Transmission Case: Assembly

1. 1.

   Install the transfer shaft tube fluid dam on the special tool. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-583 Oil dam seal installer.

Courtesy of FORD MOTOR COMPANY

1. 2.

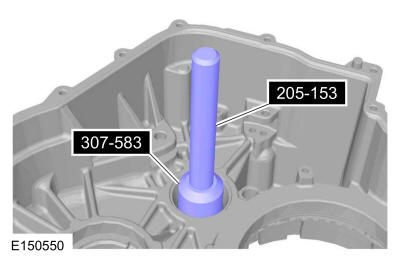

   Using the special tool, install the transfer shaft tube fluid dam. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-583 Oil dam seal installer.

Courtesy of FORD MOTOR COMPANY

1. 3.

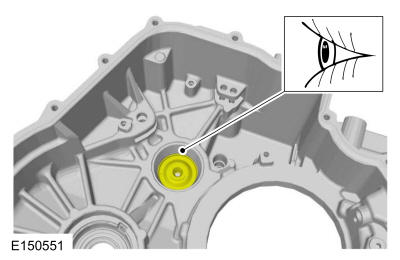

   Inspect the transfer shaft fluid dam to be sure it is seated evenly into the transmission case.

Courtesy of FORD MOTOR COMPANY

1. 4.

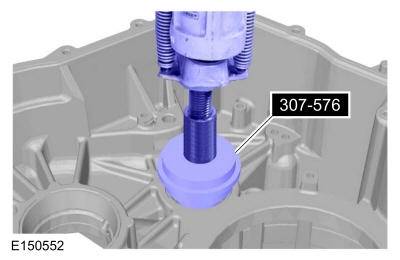

   Using the special tool, install the transfer shaft roller bearing cup. Use Special Service Tool: 307-576 Bearing Cup Installer. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY

1. 5.

   Install the differential bearing cup on the special tool. Use Special Service Tool: 307-689 Installer, Bearing Cup.

Courtesy of FORD MOTOR COMPANY

1. 6.

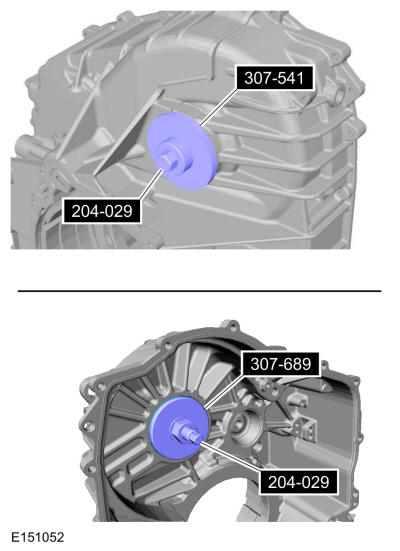

   Using the special tool, install the differential bearing cup. Use Special Service Tool: 204-029 Drawbar., 307-541 Installer, Transfer Gear Bearing., 307-689 Installer, Bearing Cup.

Courtesy of FORD MOTOR COMPANY

1. 7.

   Install the parking pawl abutment and the parking pawl abutment pins.

Courtesy of FORD MOTOR COMPANY

1. 8.

   Install the park pawl and the park pawl shaft.

Courtesy of FORD MOTOR COMPANY

1. 9.

   Install the park pawl return spring.

Courtesy of FORD MOTOR COMPANY

1. 10.

   Install the park rod guide plate and the bolts.

   Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

1. 11.

   Remove the torque converter housing differential and transfer shaft bearing races to select a new differential or transfer shaft shim. Refer to: Torque Converter Housing .
