Head Up Display (HUD) Module: Removal

  1. Remove the defrost vent trim panel. Refer to: Defrost Vent Trim Panel .

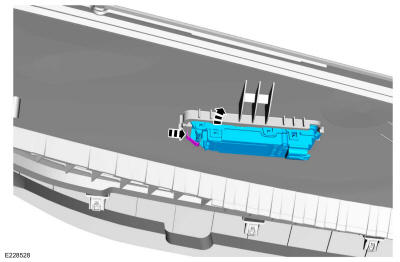

  2. Release the tab and remove the HUD.
GFD185054Courtesy of FORD MOTOR COMPANY
