Rear Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: FWD vehicle shown, AWD vehicles similar.

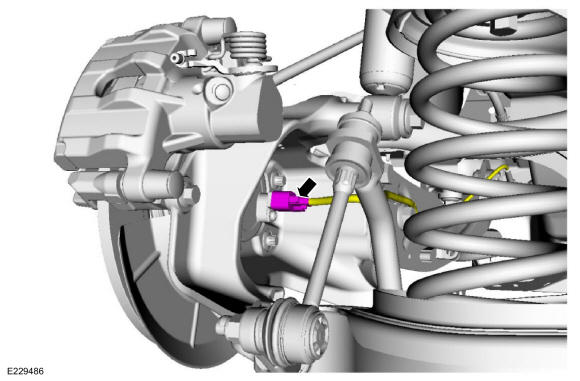

1. Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

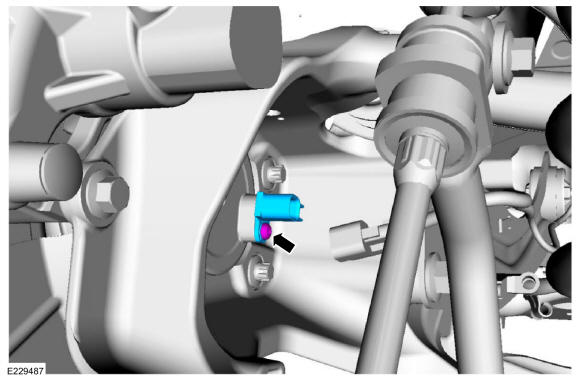

2. Remove the bolt and the rear wheel speed sensor.

   Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY
