Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2018 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING .

Adjustment

NOTE: Rear Fixed Glass Panel

NOTE: If both glass panels are being aligned, align the rear fixed glass panel before aligning the front sliding glass panel.

The front sliding glass panel initialization procedure must be done when repairs are carried out on the roof opening panel system, including: any time the roof opening panel motor has been removed, the roof opening panel glass (rear fixed or front sliding) has been removed or adjusted, or if the roof opening panel frame has been removed.

Position the front sliding glass panel to the fully closed position.

Courtesy of FORD MOTOR COMPANY

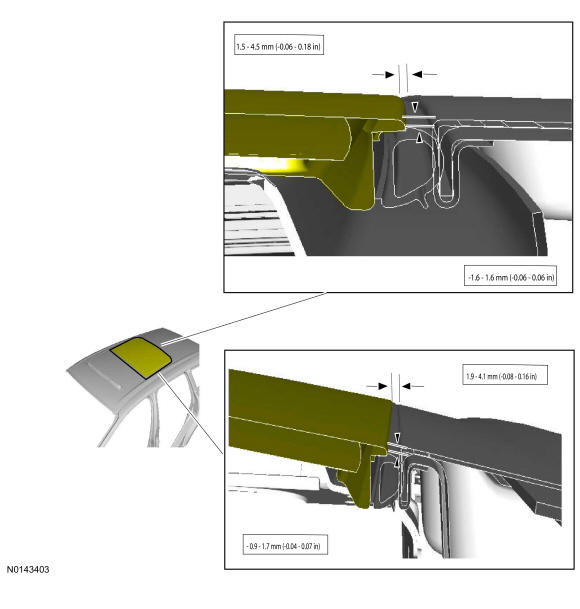

Measure the rear fixed glass panel to roof and roof height at the side of the glass and rear of the glass as shown in illustration.

Courtesy of FORD MOTOR COMPANY
If adjustment is necessary, place the roof opening panel shield to the fully open position.

Courtesy of FORD MOTOR COMPANY

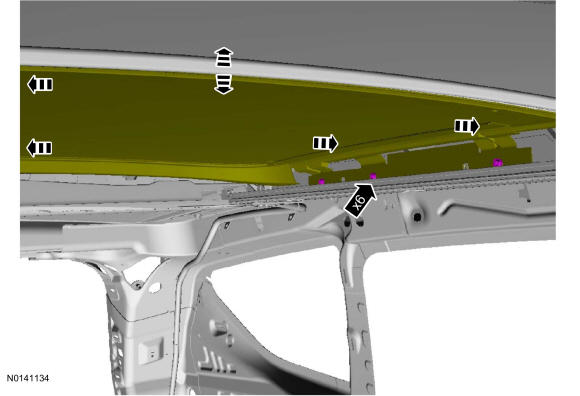

If necessary.Adjust the rear fixed glass.
1. NOTE: LH side shown in illustration, RH side similar.

  On both sides.Loosen the retaining bolts.

  Torque

  : 44 lb.in (5 Nm)
2. Adjust the rear fixed glass to specifications from the previous steps.
Courtesy of FORD MOTOR COMPANY
If the rear fixed glass alignment was adjusted and the front sliding glass panel does not need adjustment, initialize the front sliding glass panel. REFER to: Power Roof Opening Panel Initialization - Vehicles Built From: 06-June-2016 .

Adjustment

NOTE: Front Sliding Glass Panel

NOTE: The front sliding glass panel initialization procedure must be done when repairs are carried out on the roof opening panel system, including: any time the roof opening panel motor has been removed, the roof opening panel glass (rear fixed or front sliding) has been removed or adjusted, or if the roof opening panel frame has been removed.

Position the front sliding glass panel to the fully closed position.

Courtesy of FORD MOTOR COMPANY

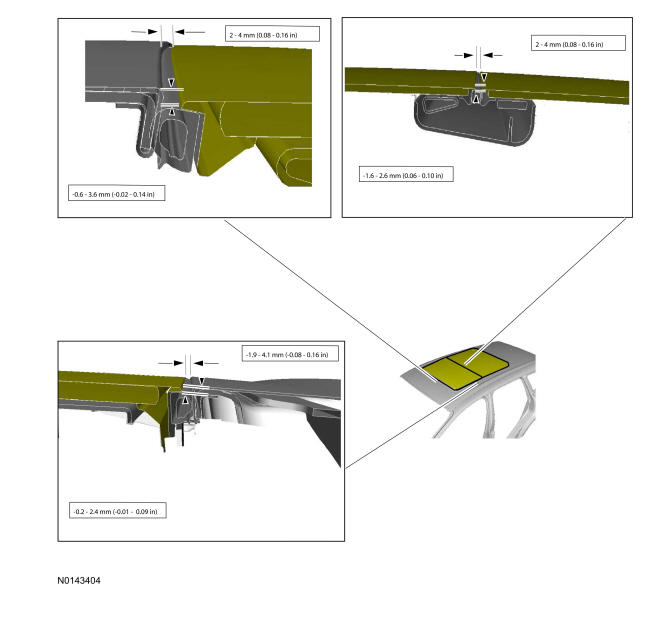

Measure the front sliding glass panel to roof and roof height at the front of the glass, the side of the glass and the front sliding glass panel to rear fixed glass panel as shown in illustration.

Courtesy of FORD MOTOR COMPANY

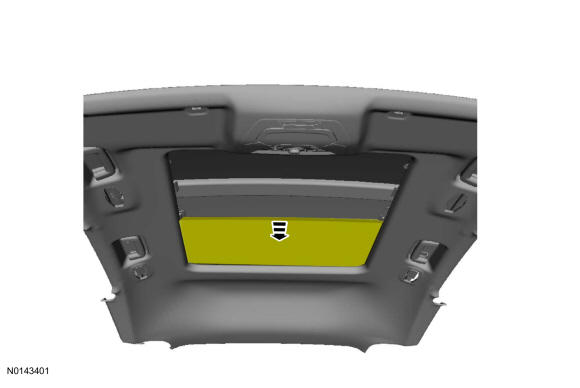

If necessary.Place the roof opening panel shield to the fully open position.

Courtesy of FORD MOTOR COMPANY

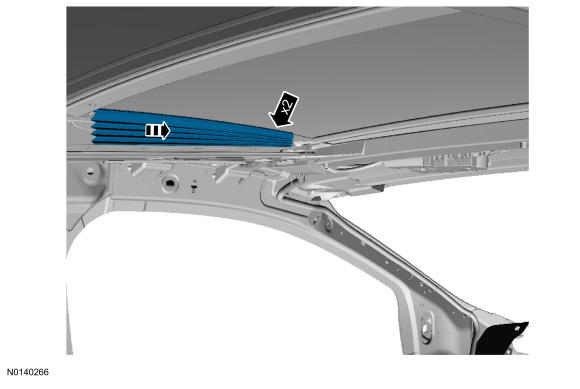

If necessary.On both sides, remove the roof opening panel blind.

Courtesy of FORD MOTOR COMPANY

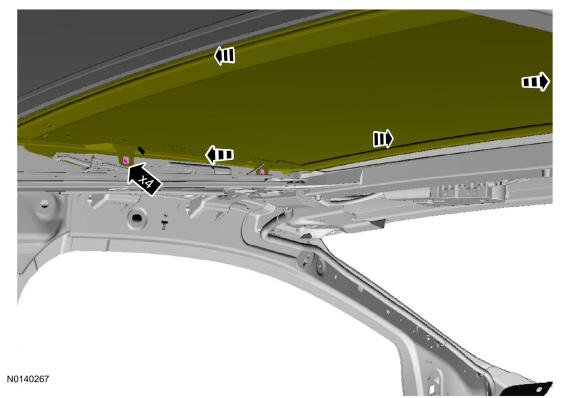

If necessary.Adjust the front sliding glass.
1. NOTE: LH side shown in illustration, RH side similar.

  On both sides. Loosen the retaining bolts.

  Torque

  : 44 lb.in (5 Nm)
2. Adjust the front sliding glass panel to specifications from the previous steps.
Courtesy of FORD MOTOR COMPANY
If any adjustment was made on the front sliding or rear fixed glass panels, initialize the front sliding glass panel. REFER to: Power Roof Opening Panel Initialization - Vehicles Built From: 06-June-2016 .
