Headlamp Control Module (HCM): Removal

WARNING: This page is about a different car, the 2019 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the HCM following the on-screen instructions.

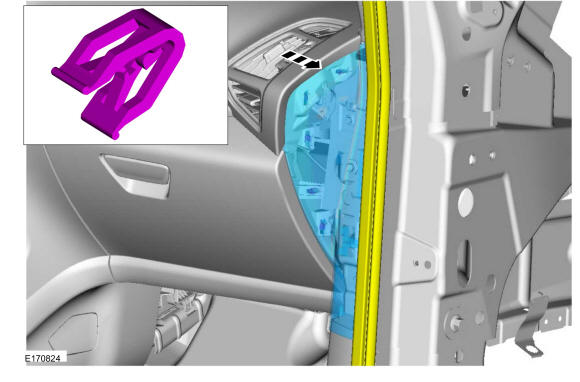

Position the RH front door weatherstrip aside, release the clips and remove the instrument panel finish panel.

Courtesy of FORD MOTOR COMPANY

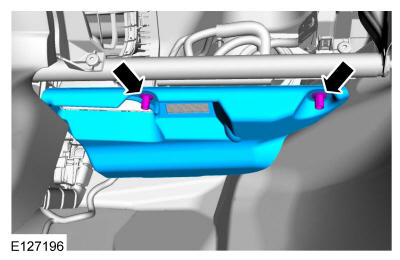

Remove the retainers and the RH insulation panel.

Courtesy of FORD MOTOR COMPANY

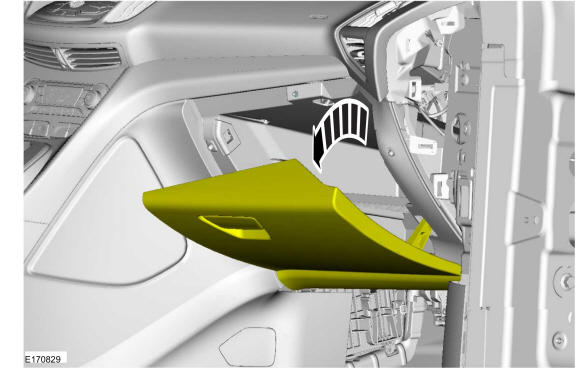

Open the glove compartment.

Courtesy of FORD MOTOR COMPANY

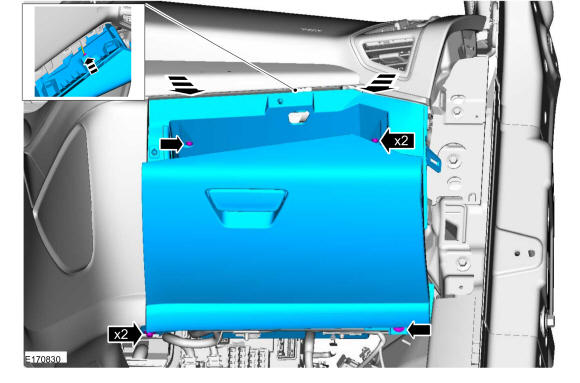

Remove the screws and the glove compartment. Disconnect the electrical connector.
Torque: 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY

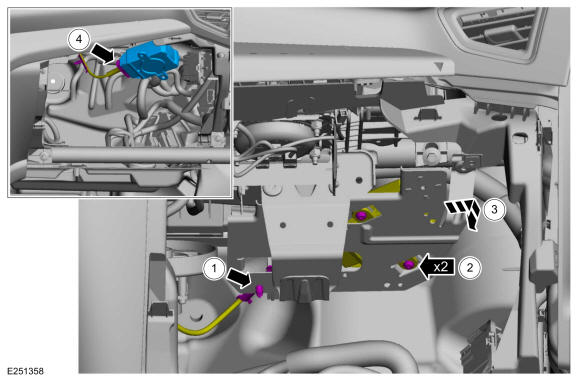

Remove the HCM.
1. Separate the wiring harness guide from the bracket.
2. Remove the screws.
3. Position the HCM out and down.
4. Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
