Transfer Case

WARNING: This page is about a different car, the 2019 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

All vehicles

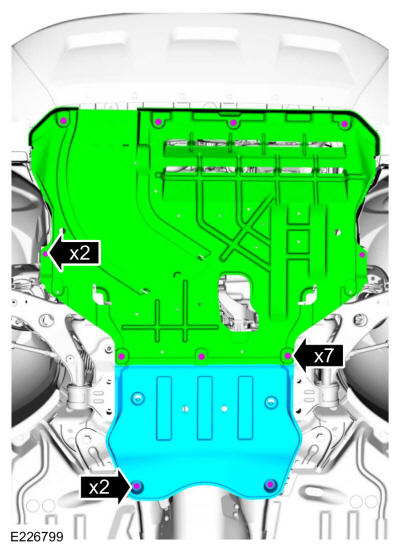

- Remove the retainers and the underbody shield.
- Remove the retainers and the stone guard.
Courtesy of FORD MOTOR COMPANY

1.6L EcoBoost (132kW/180PS) - Sigma

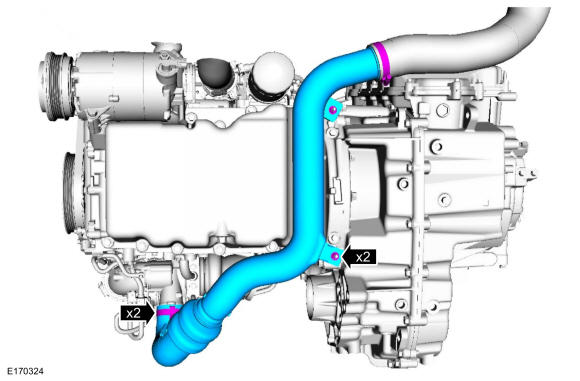

Remove the CAC tube clamps and CAC tube.

Courtesy of FORD MOTOR COMPANY

All vehicles
Remove the rear driveshaft. Refer to: Rear Driveshaft .
2.0L
Remove the CAC tube clamps and CAC tube.

Courtesy of FORD MOTOR COMPANY
Remove the catalytic converter. Refer to: Catalytic Converter .
All vehicles
Remove the PTU heat shield bolts and the PTU heat shield.

Courtesy of FORD MOTOR COMPANY
Remove the RH front halfshaft. Refer to: Front Halfshaft RH .
Disconnect the PTU vent hose.

Courtesy of FORD MOTOR COMPANY

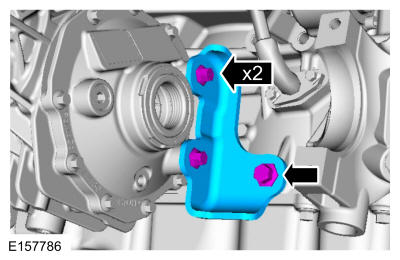

Remove the PTU support bracket bolts and the PTU support bracket.

Courtesy of FORD MOTOR COMPANY

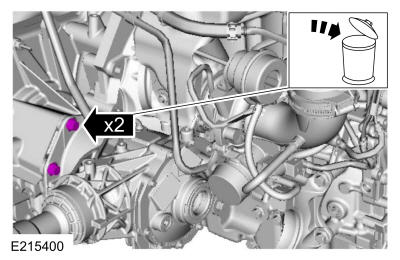

Remove and discard the upper PTU bolts.

Courtesy of FORD MOTOR COMPANY

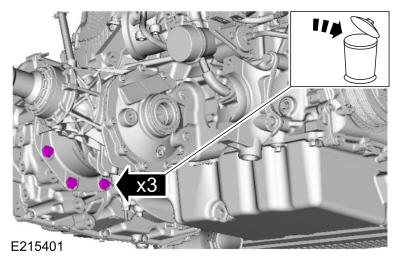

Remove and discard the lower PTU bolts.

Courtesy of FORD MOTOR COMPANY
Remove the PTU.

Courtesy of FORD MOTOR COMPANY
Remove and discard the PTU compression seal.

Courtesy of FORD MOTOR COMPANY
