Component Location Views

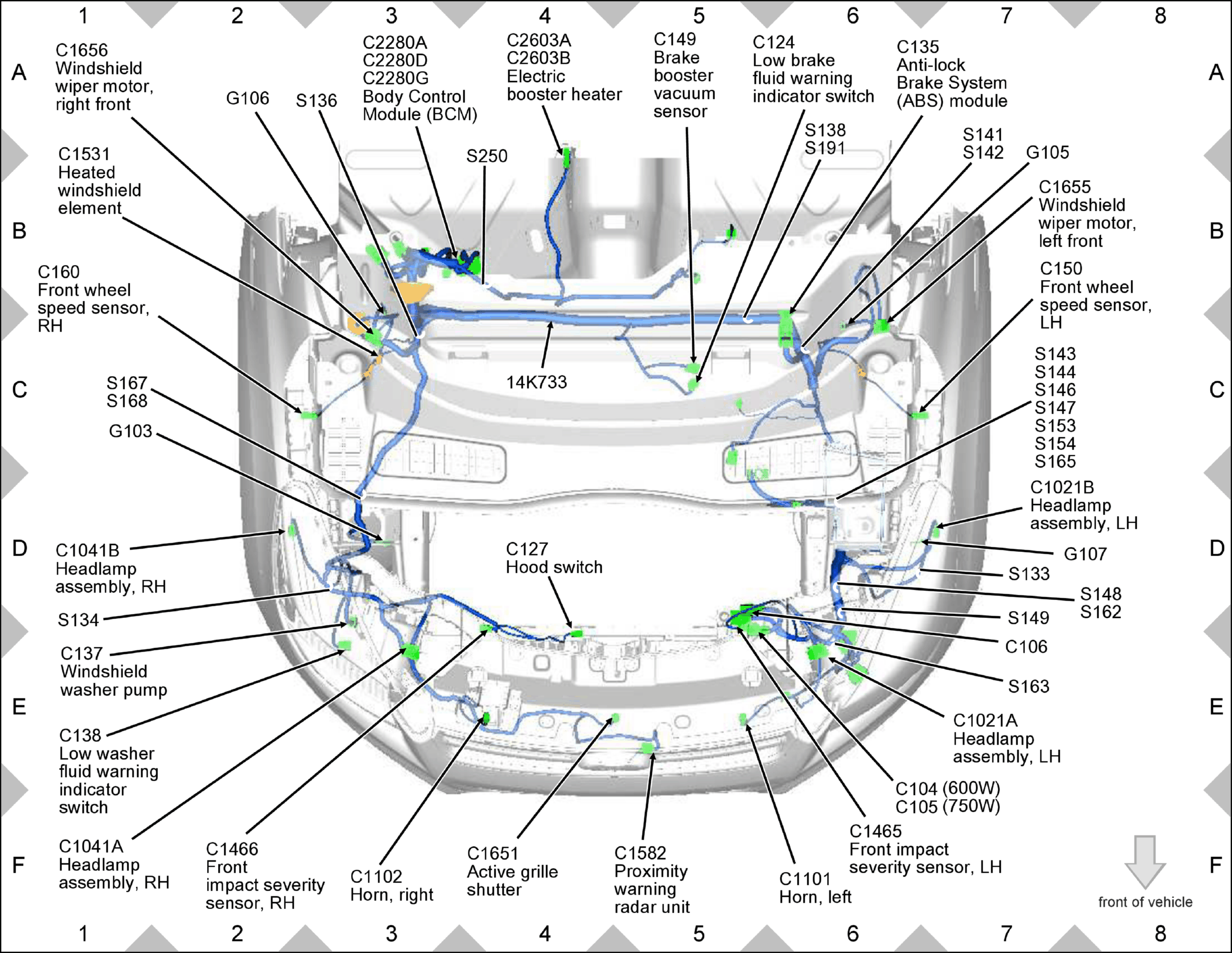

GFDW75742Courtesy of FORD MOTOR COMPANY

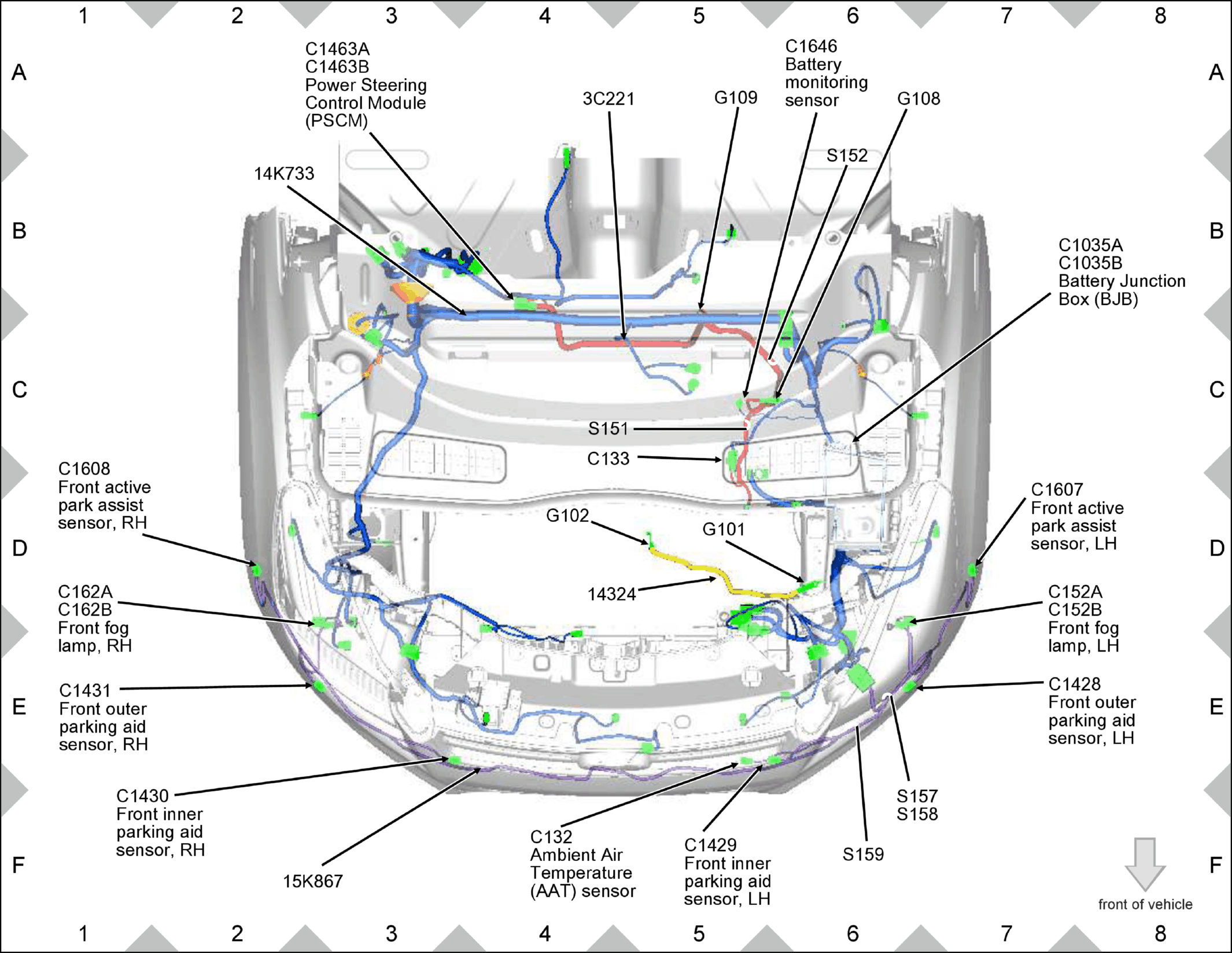

GFDW75743Courtesy of FORD MOTOR COMPANY

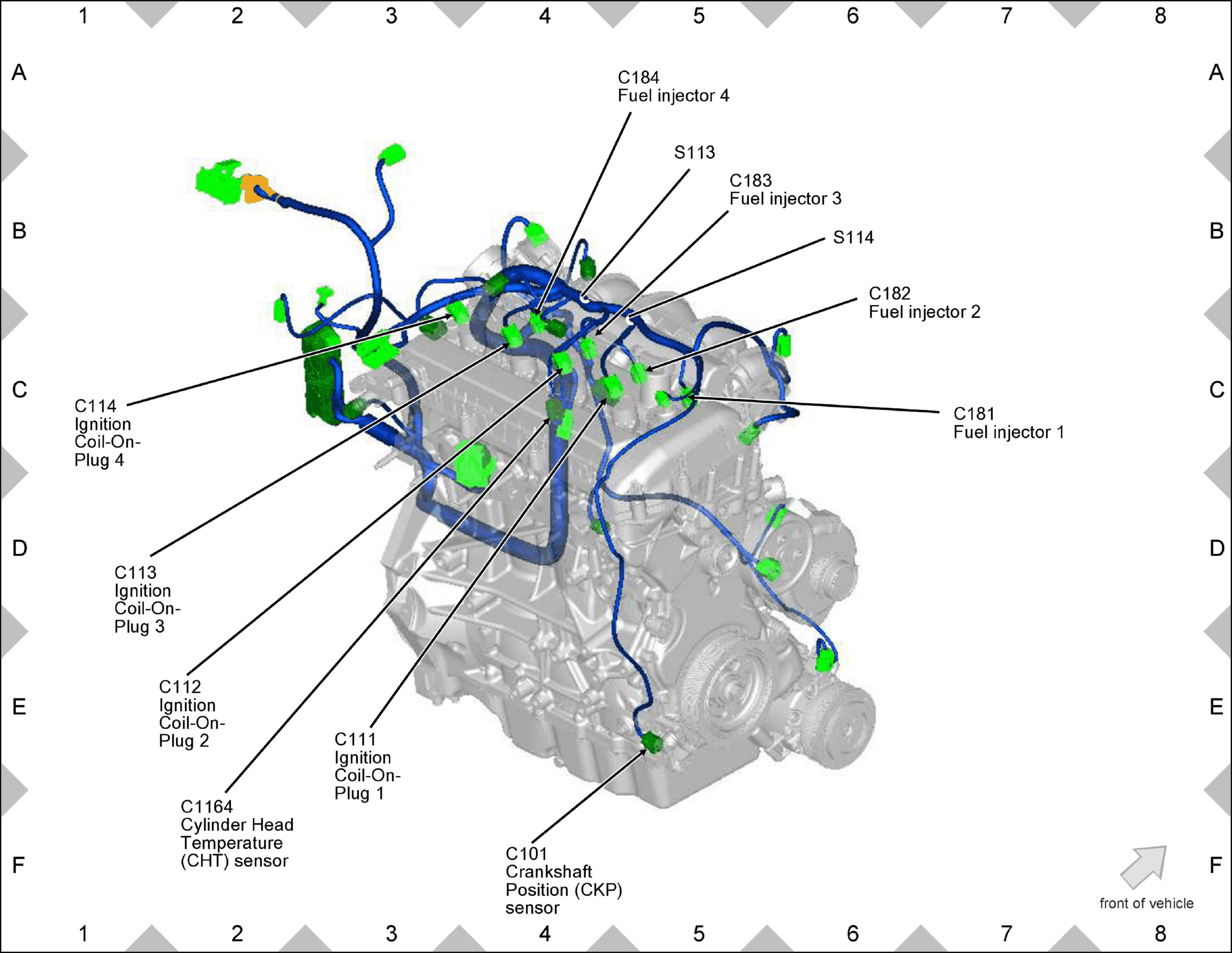

GFDW75744Courtesy of FORD MOTOR COMPANY

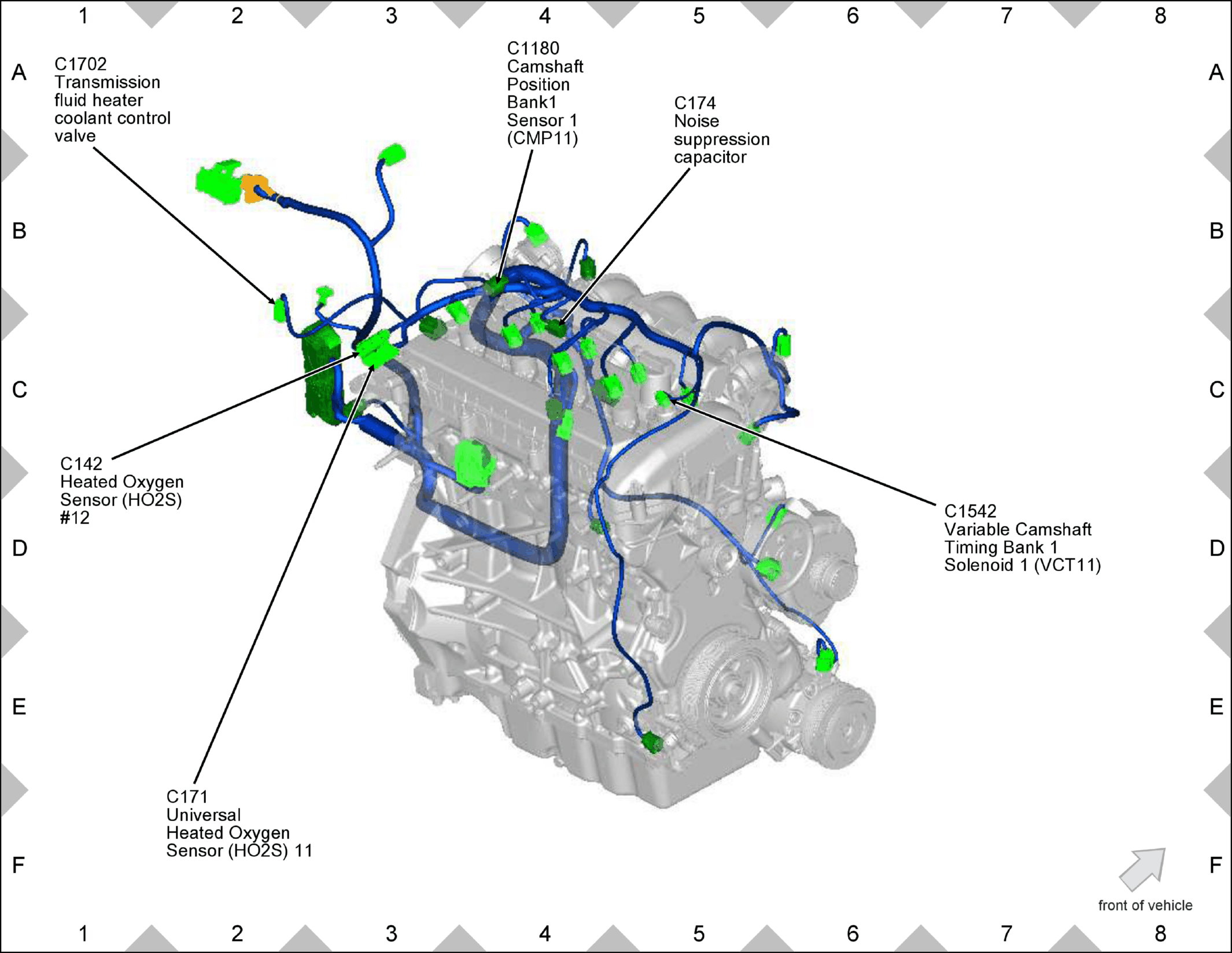

GFDW75745Courtesy of FORD MOTOR COMPANY

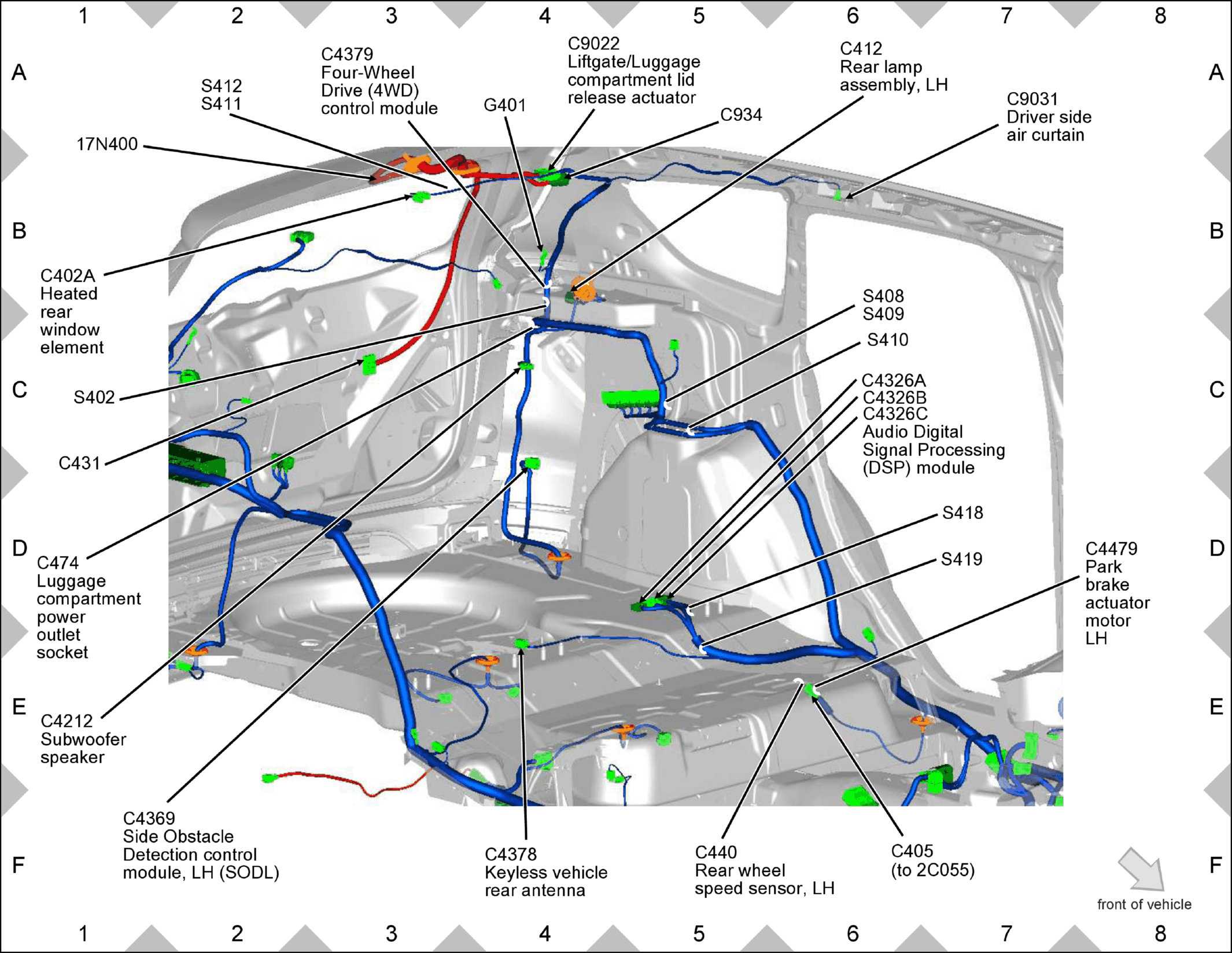

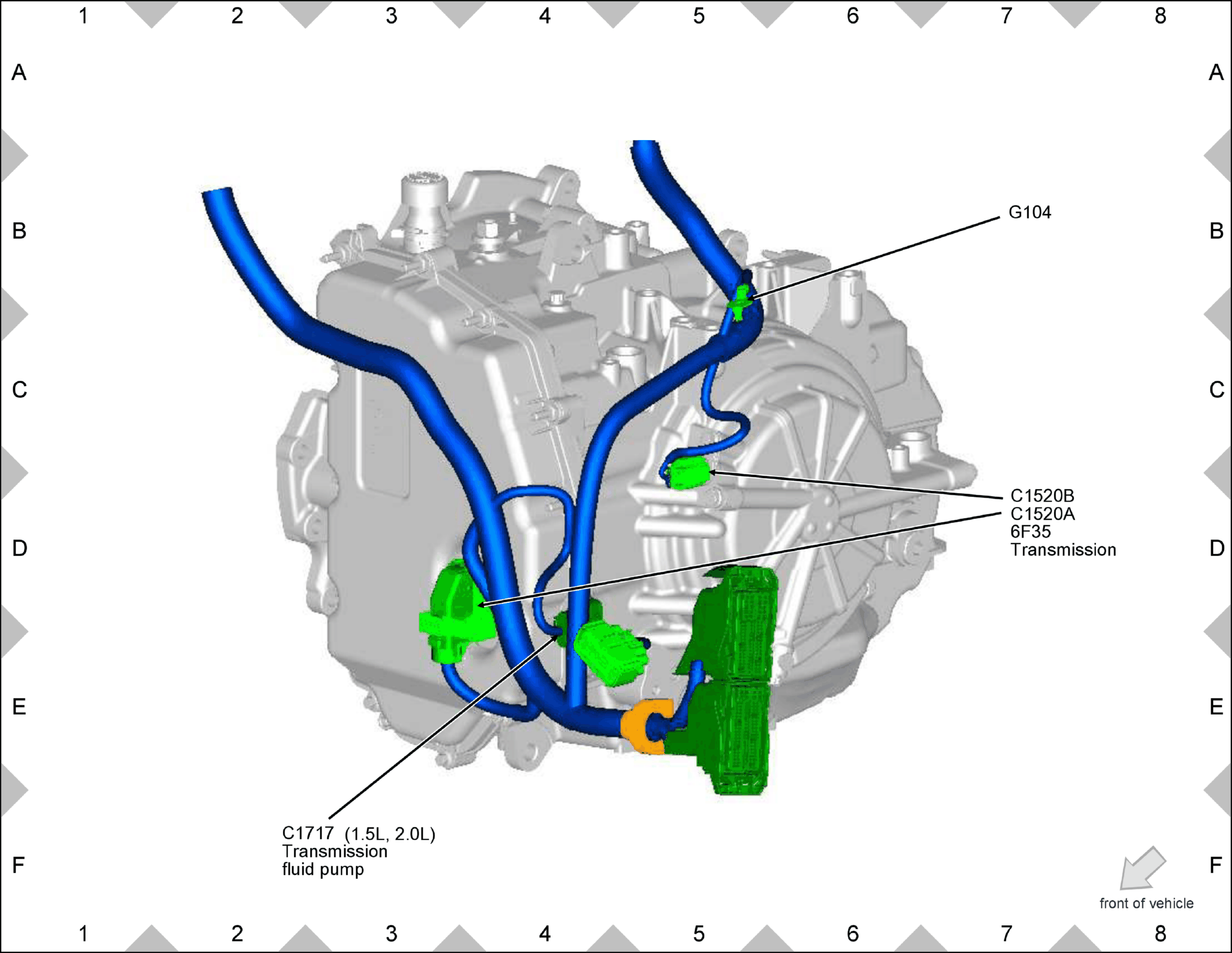

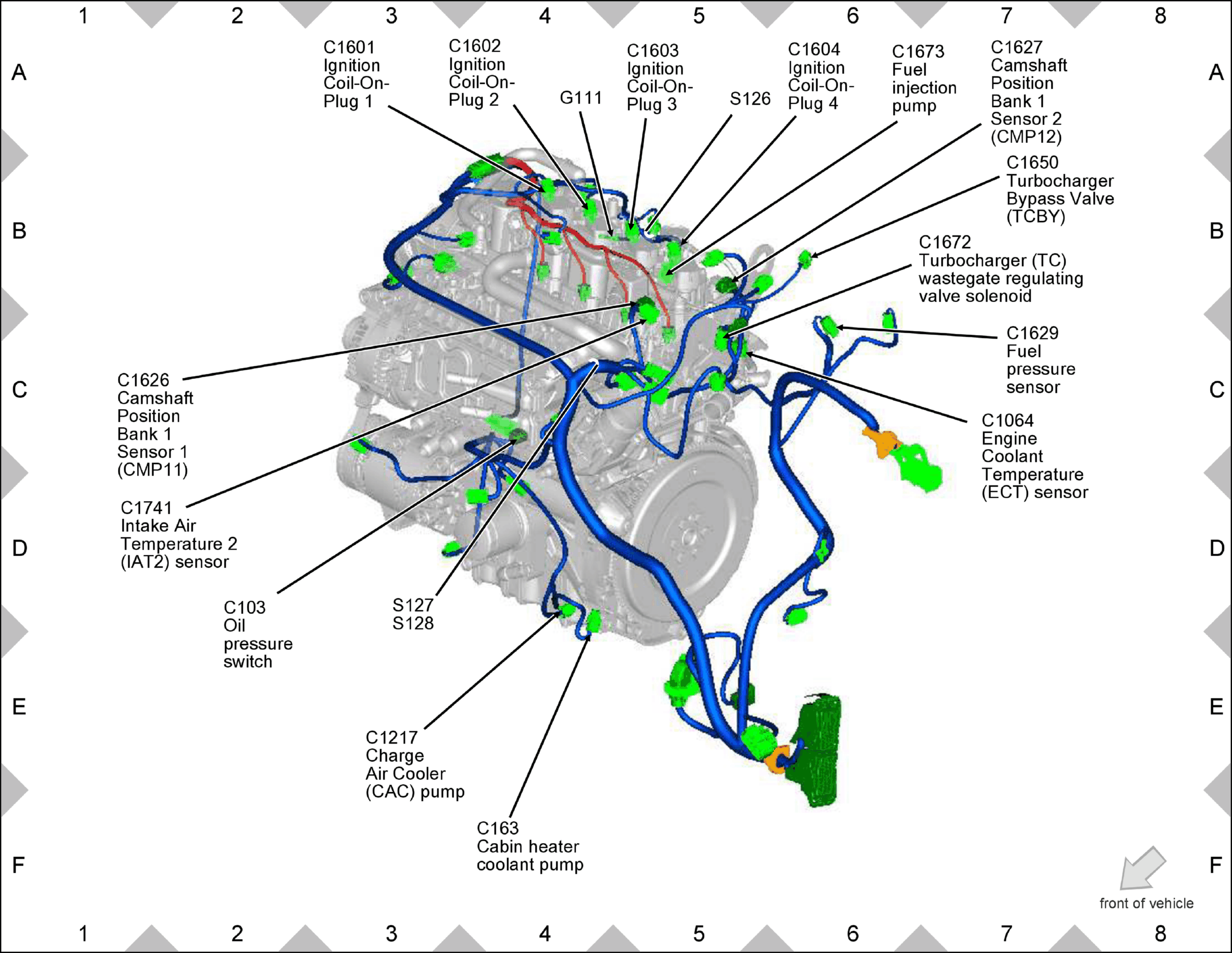

GFDW75746Courtesy of FORD MOTOR COMPANY

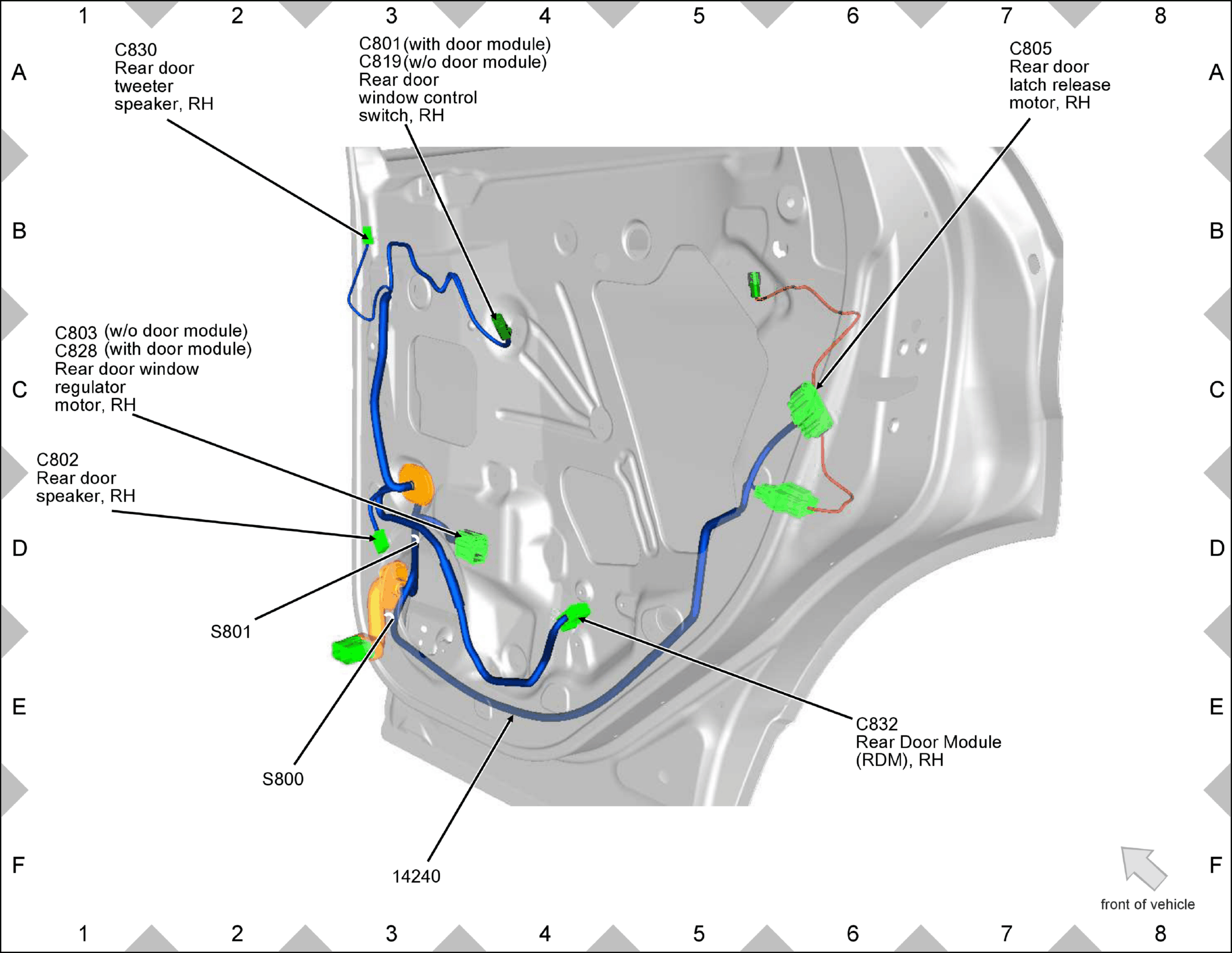

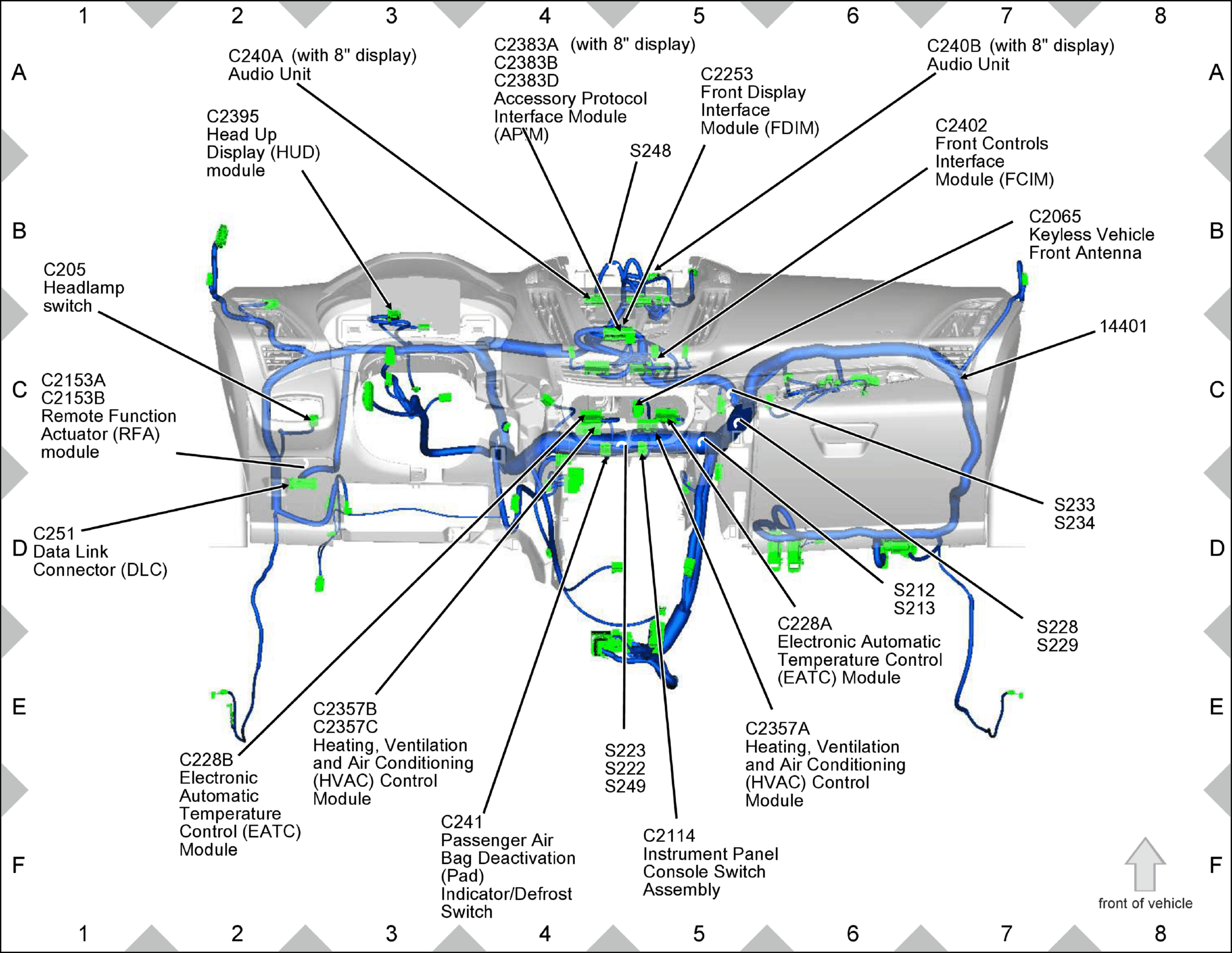

GFDW75747Courtesy of FORD MOTOR COMPANY
GFDW75748Courtesy of FORD MOTOR COMPANY

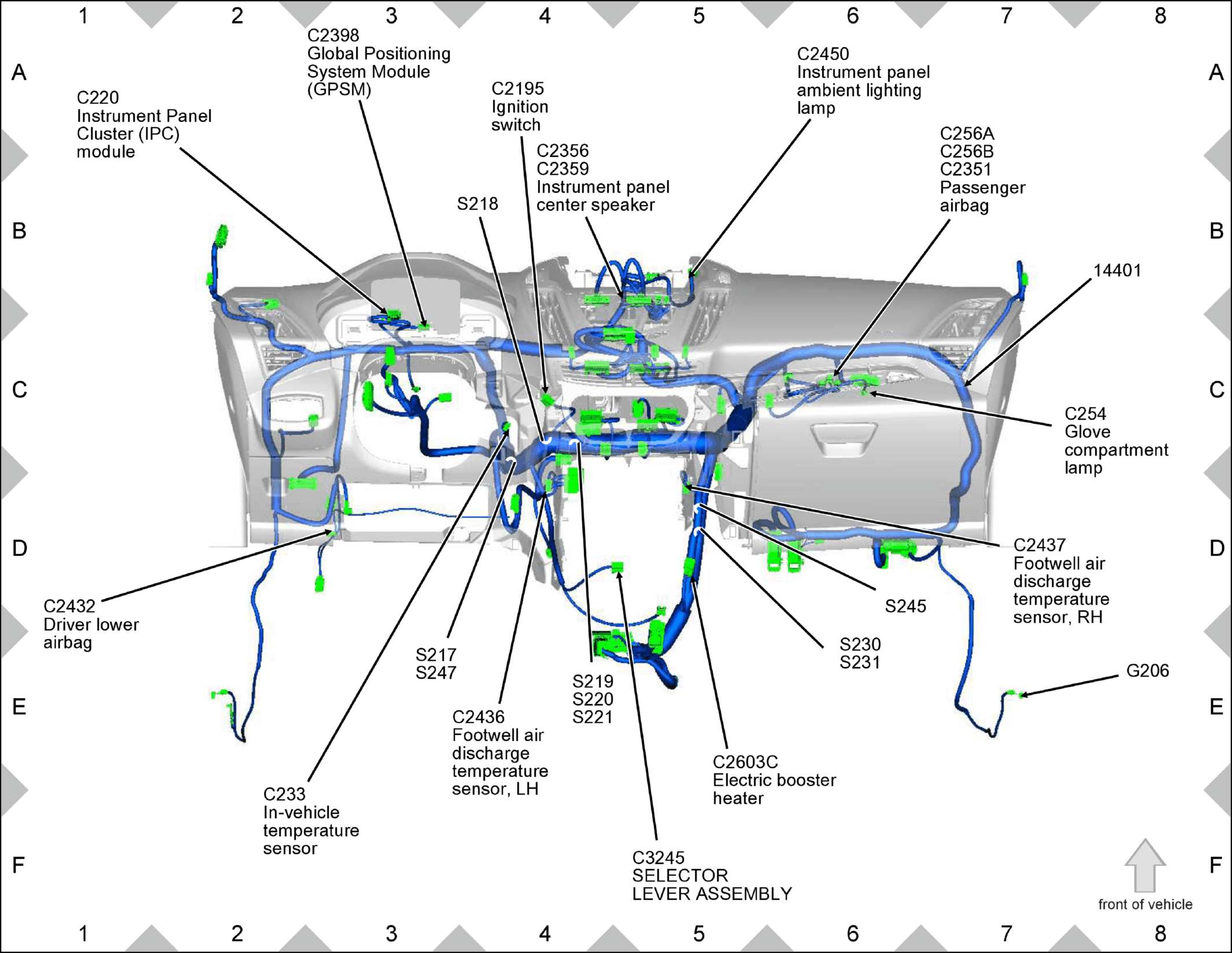

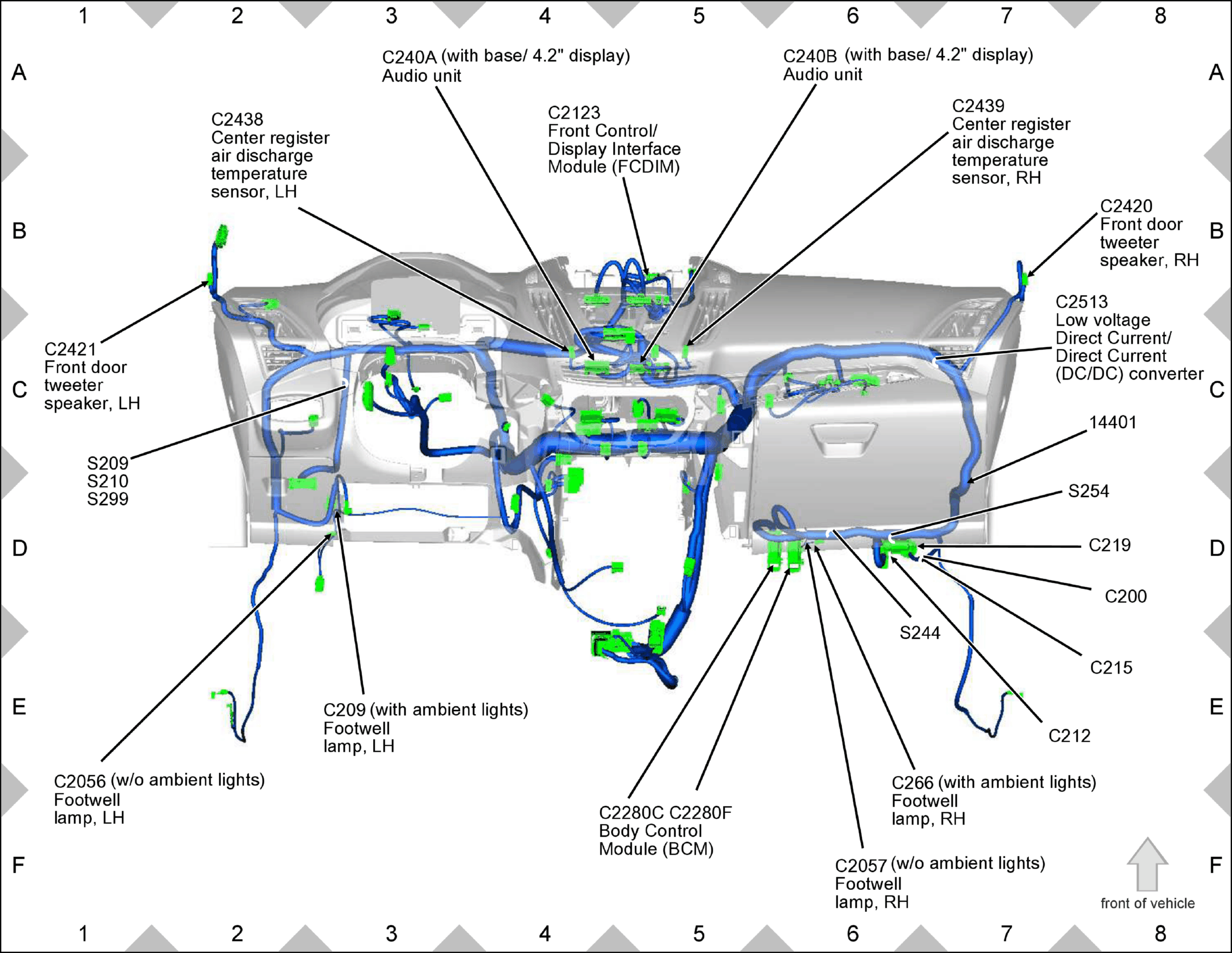

GFDW75749Courtesy of FORD MOTOR COMPANY

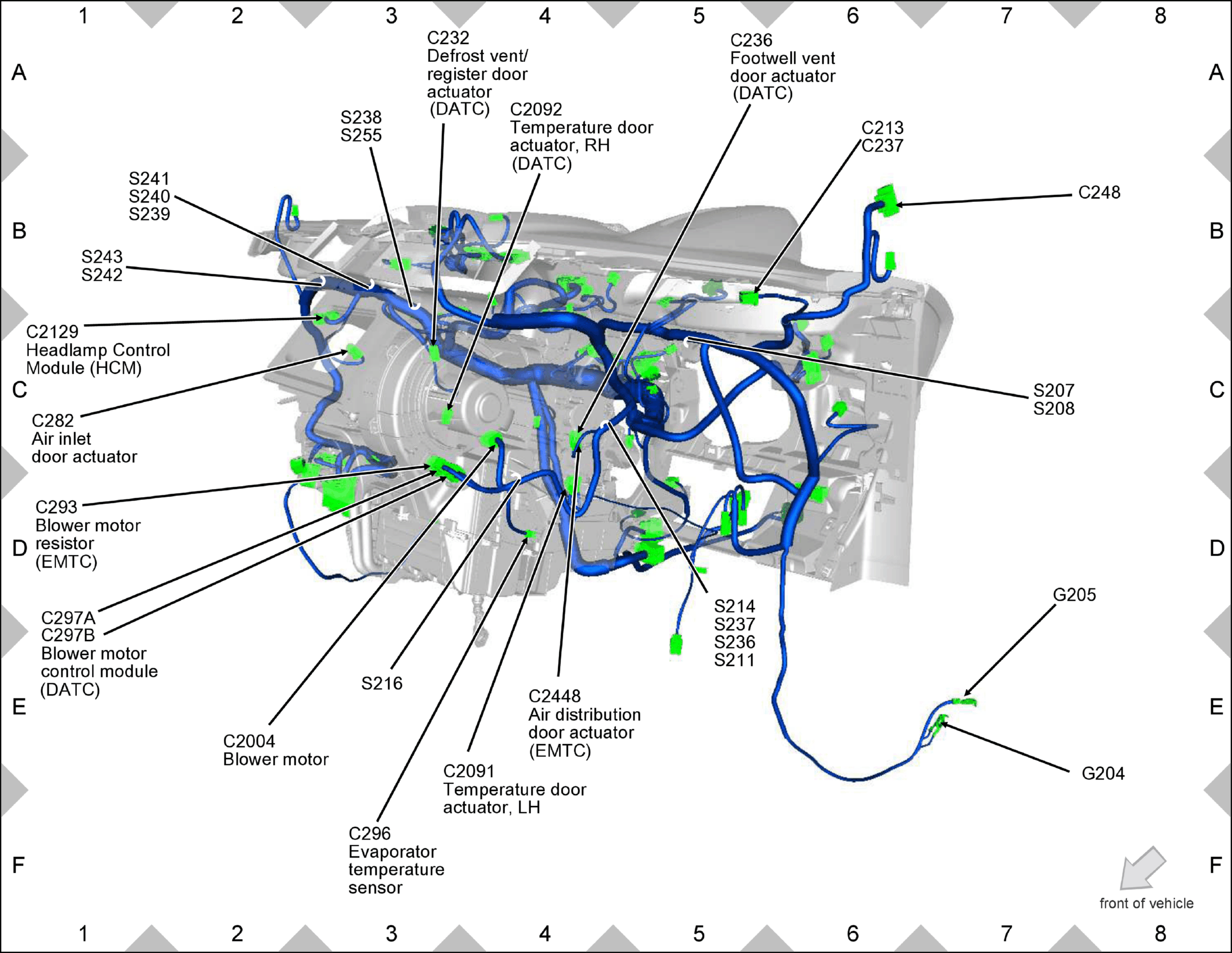

GFDW75750Courtesy of FORD MOTOR COMPANY

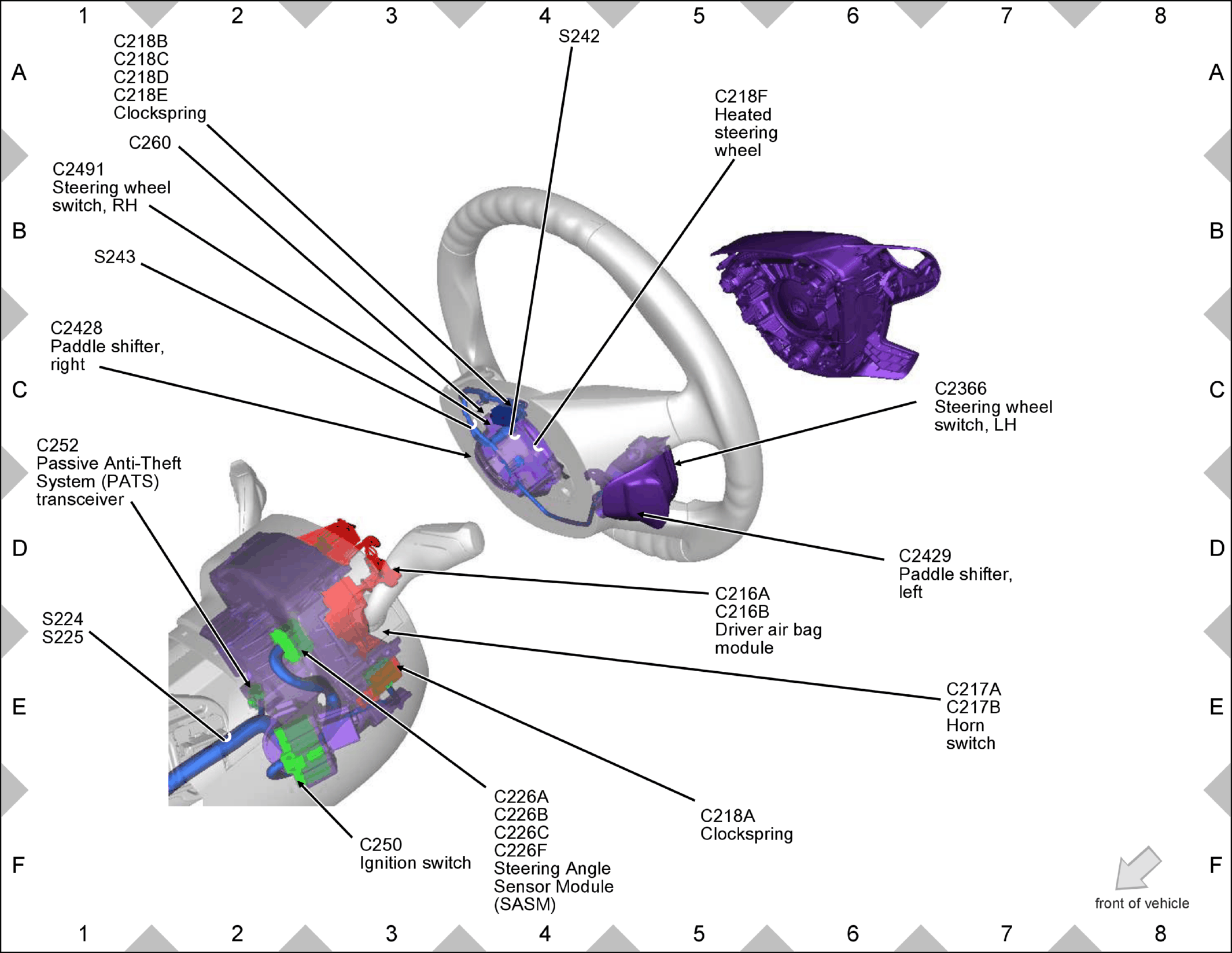

GFDW75751Courtesy of FORD MOTOR COMPANY

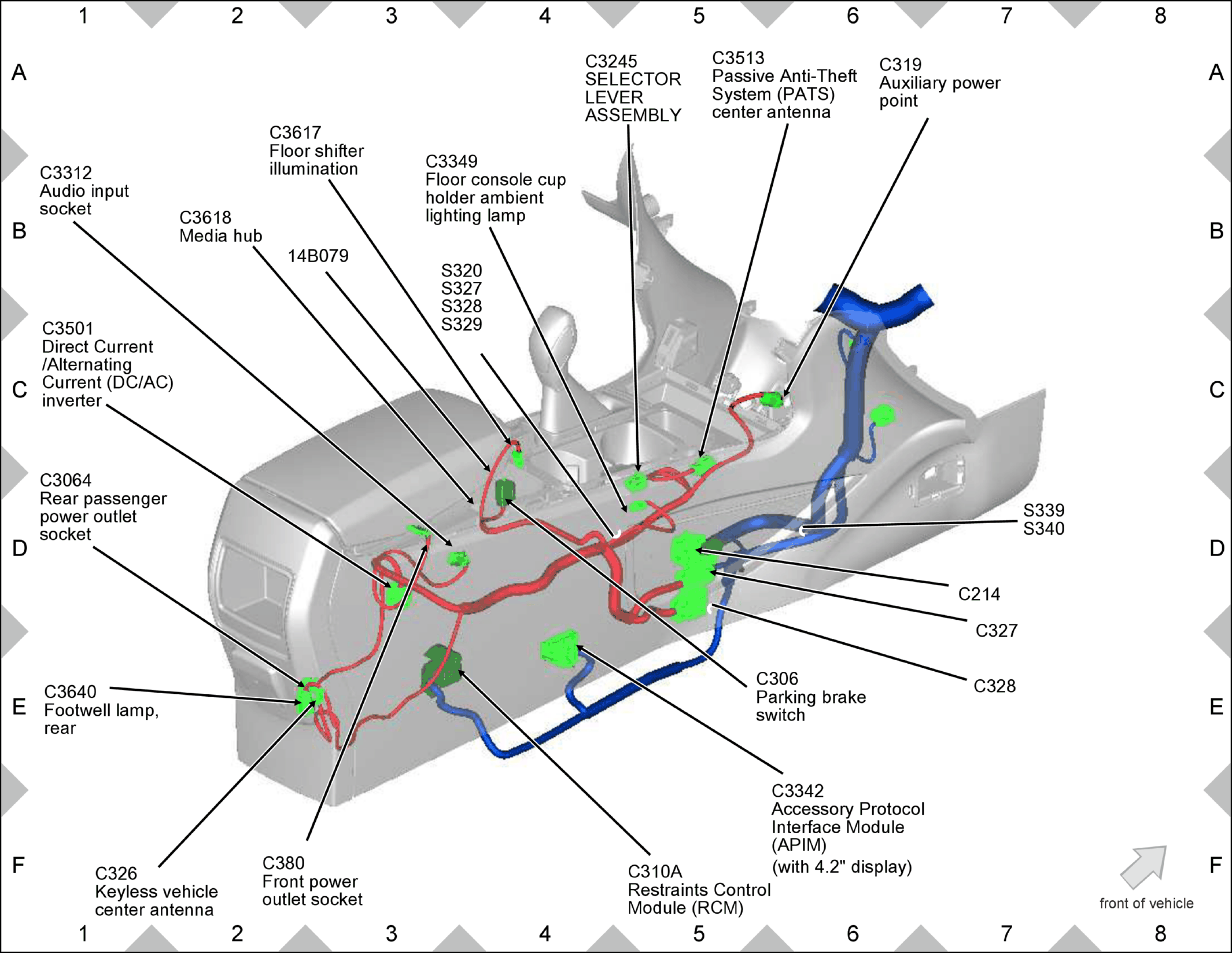

GFDW75752Courtesy of FORD MOTOR COMPANY
GFDW75753Courtesy of FORD MOTOR COMPANY

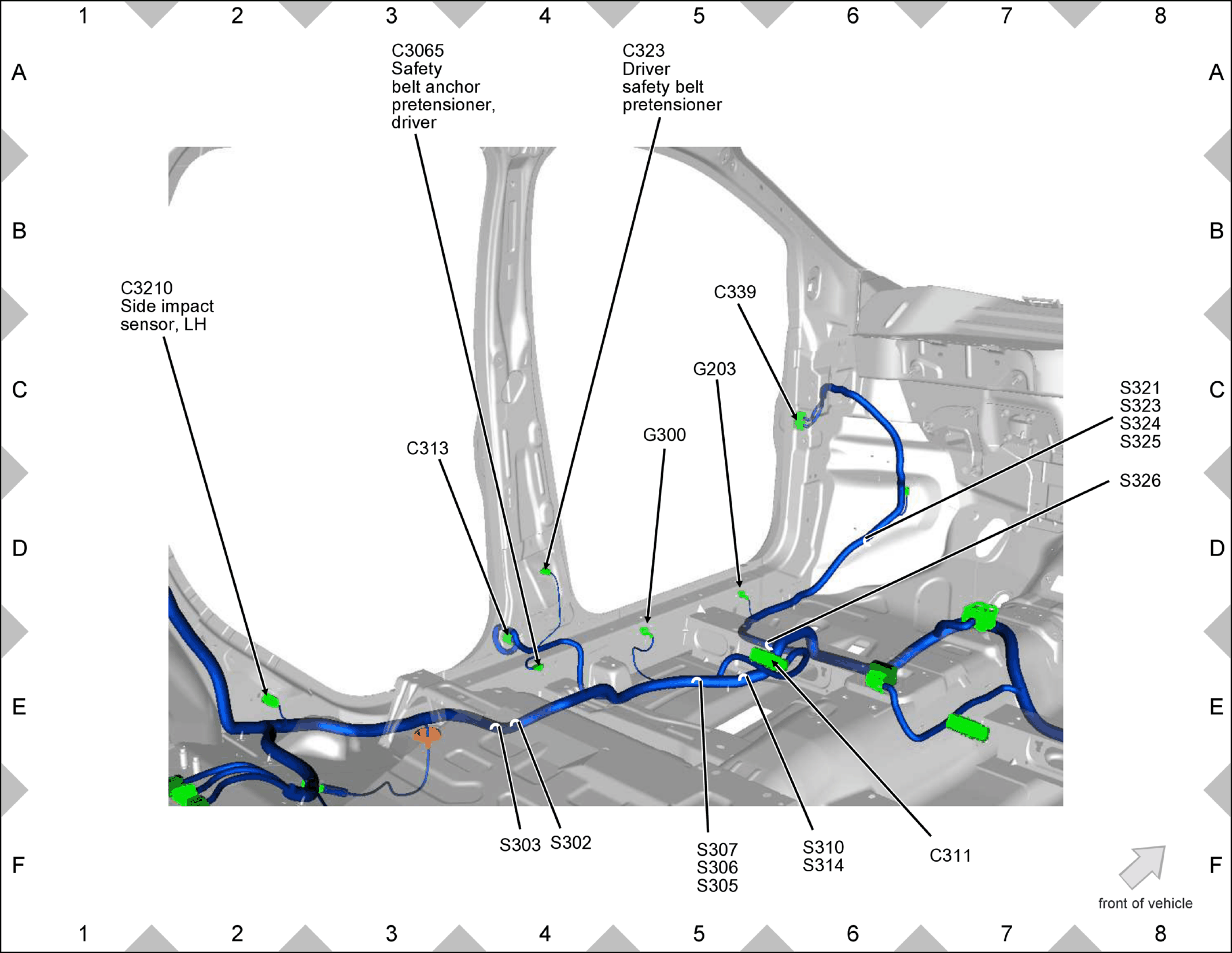

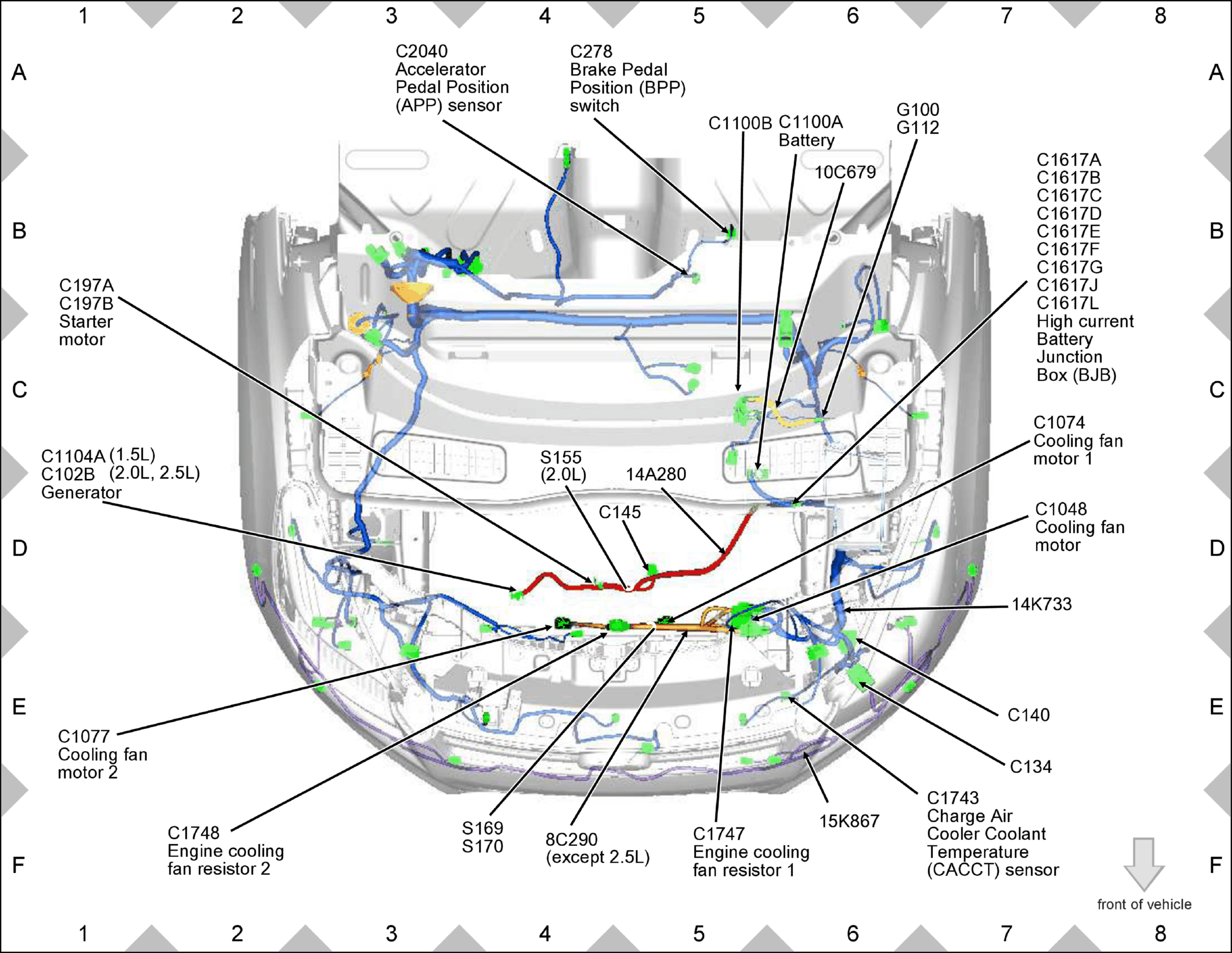

GFDW75754Courtesy of FORD MOTOR COMPANY

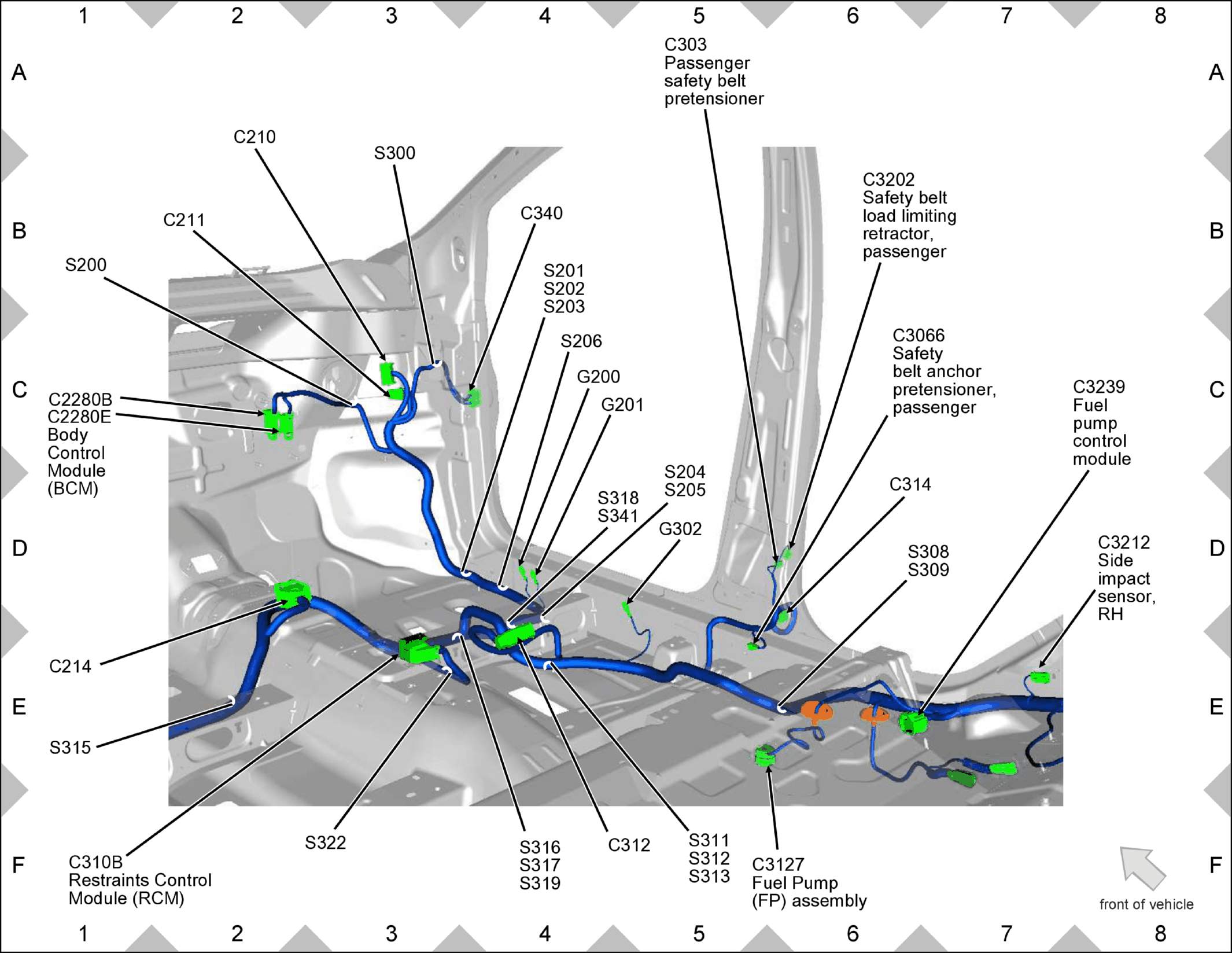

GFDW75755Courtesy of FORD MOTOR COMPANY
GFDW75756Courtesy of FORD MOTOR COMPANY

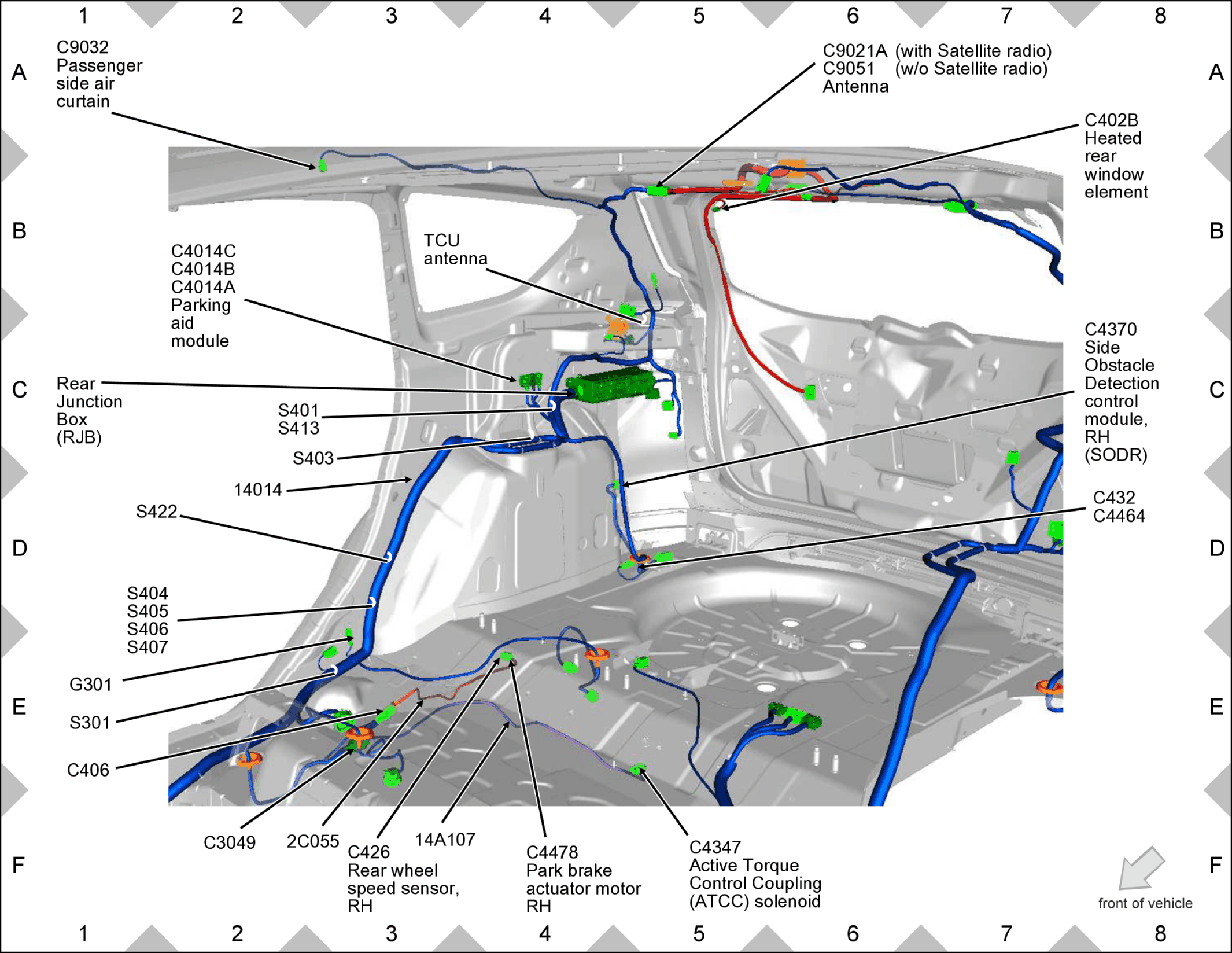

GFDW75757Courtesy of FORD MOTOR COMPANY
GFDW75758Courtesy of FORD MOTOR COMPANY

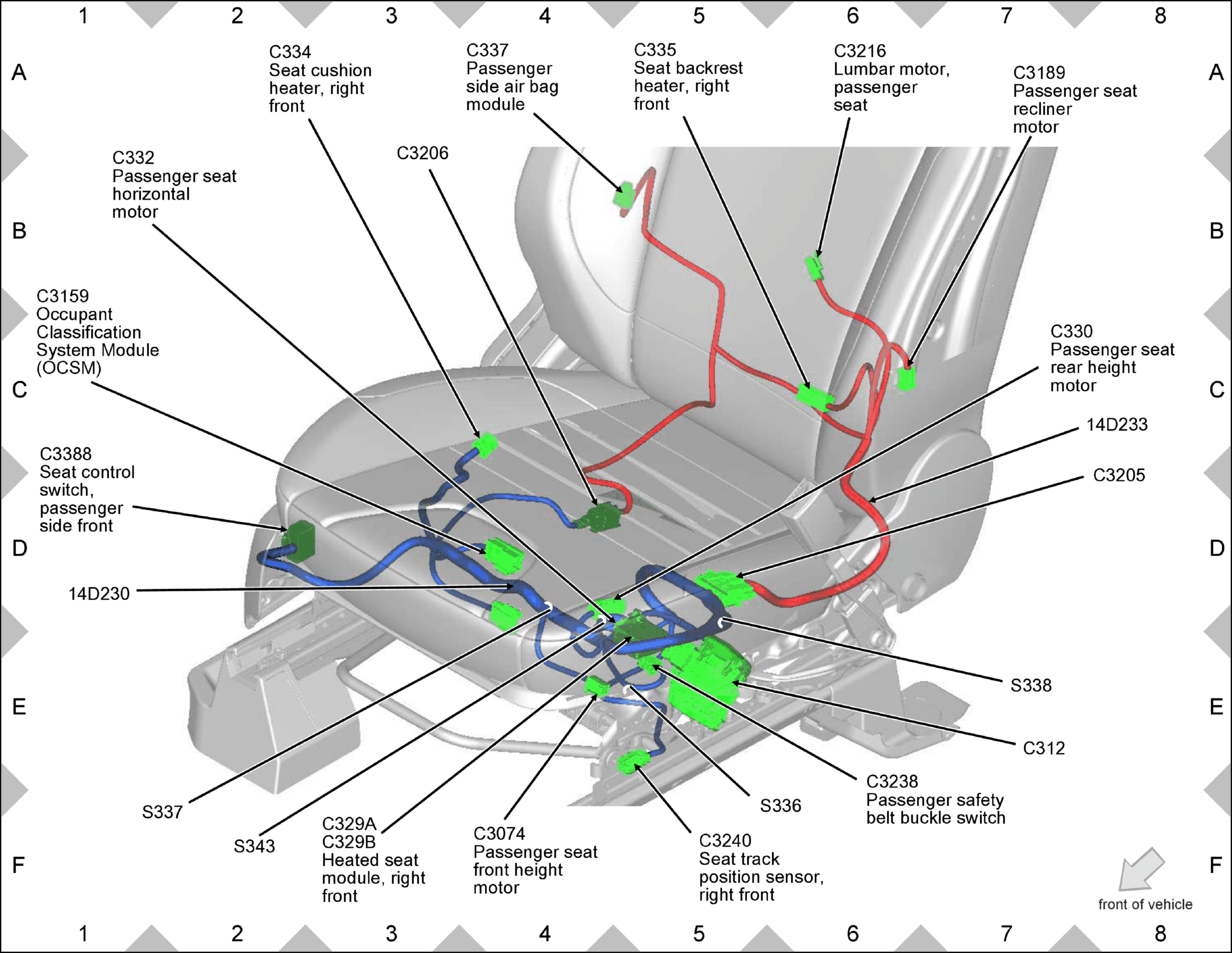

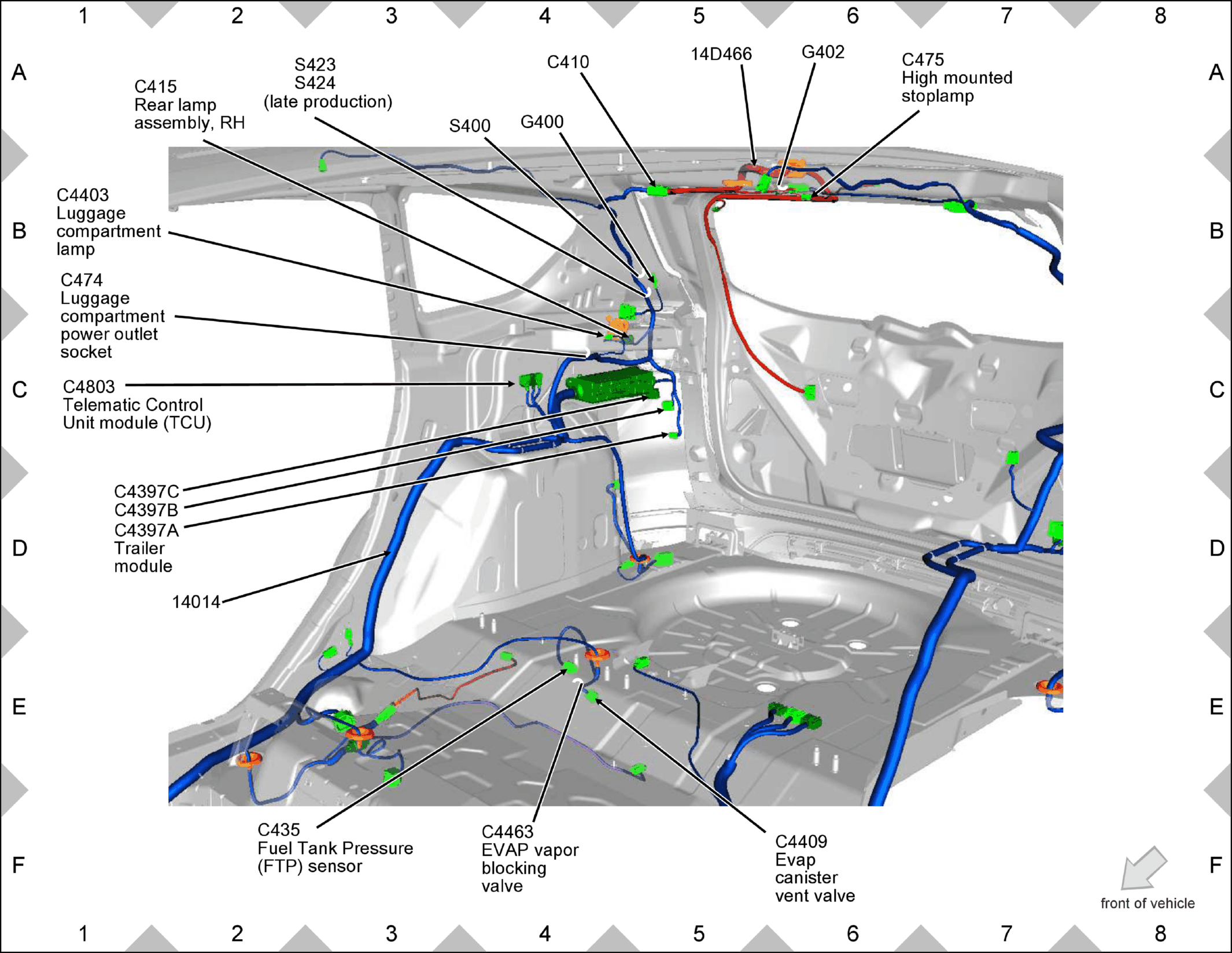

GFDW75759Courtesy of FORD MOTOR COMPANY

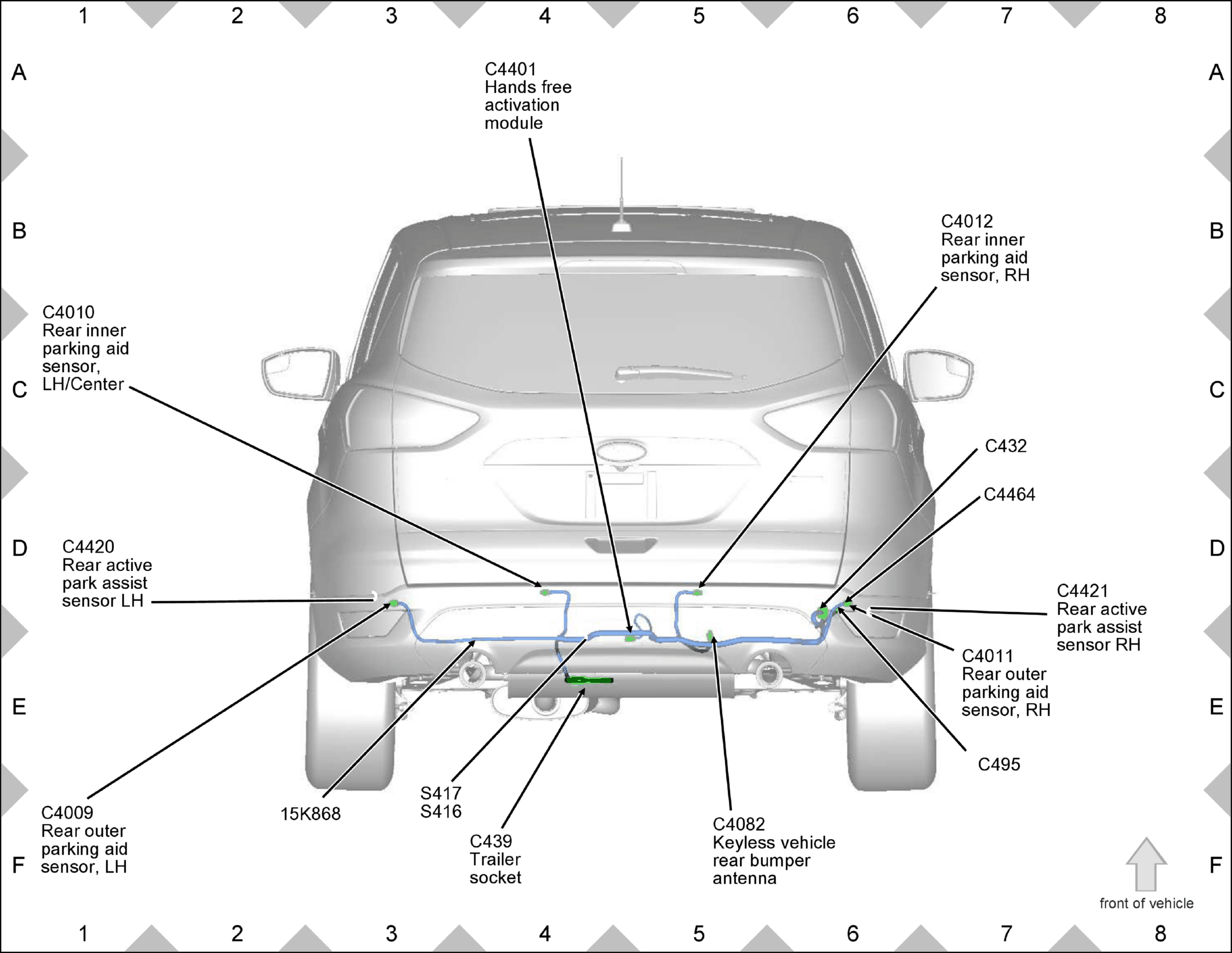

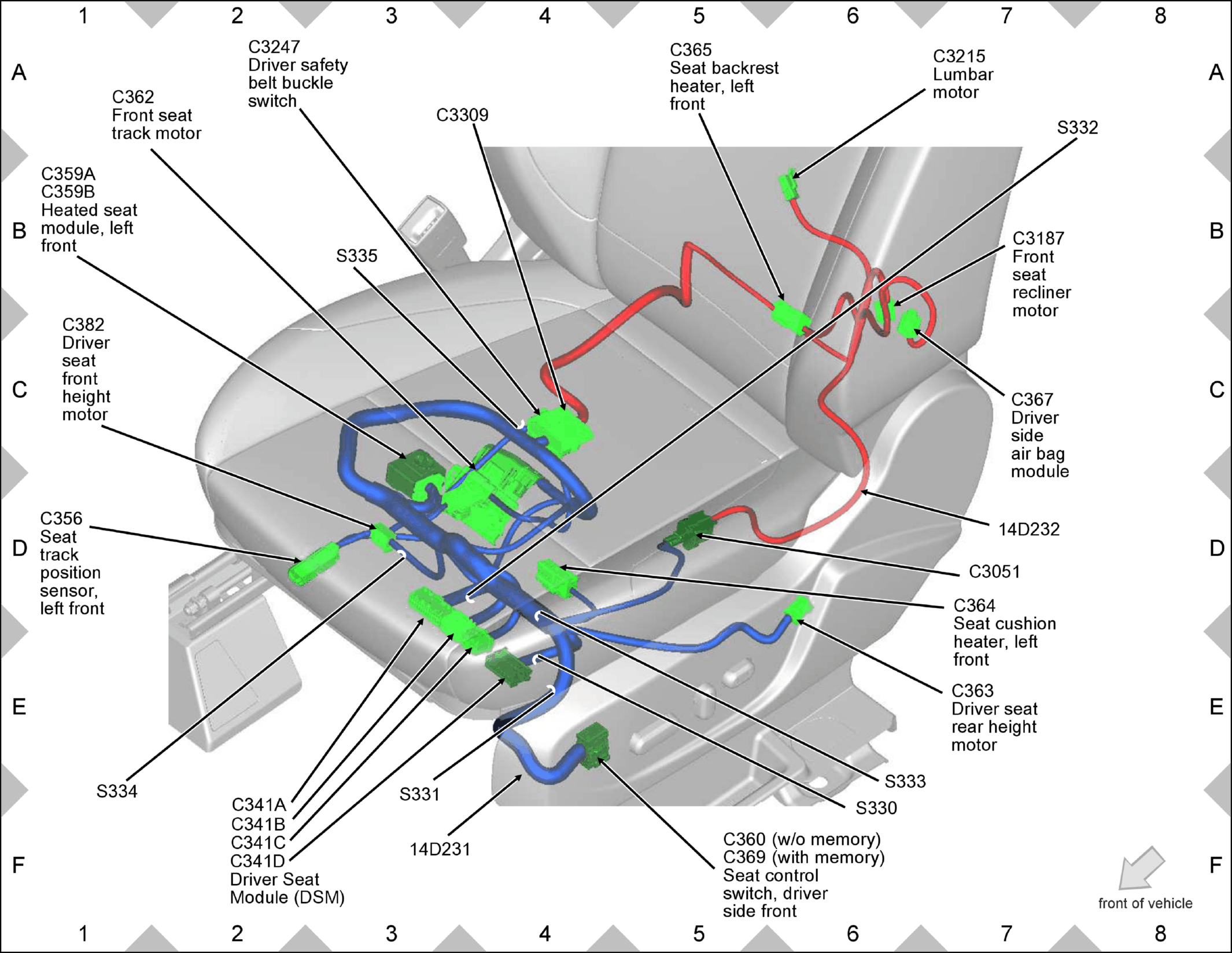

GFDW75760Courtesy of FORD MOTOR COMPANY
GFDW75761Courtesy of FORD MOTOR COMPANY
GFDW75762Courtesy of FORD MOTOR COMPANY

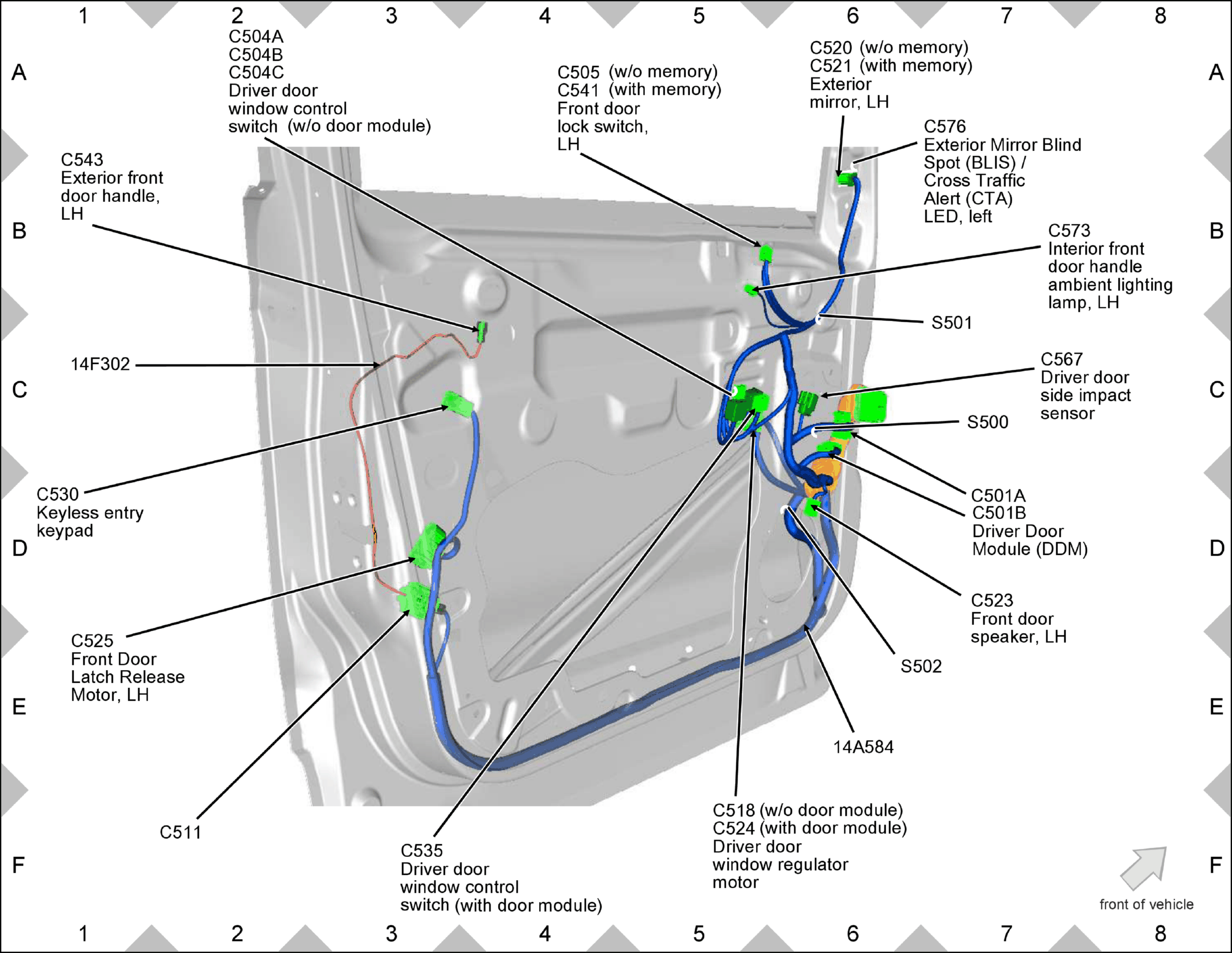

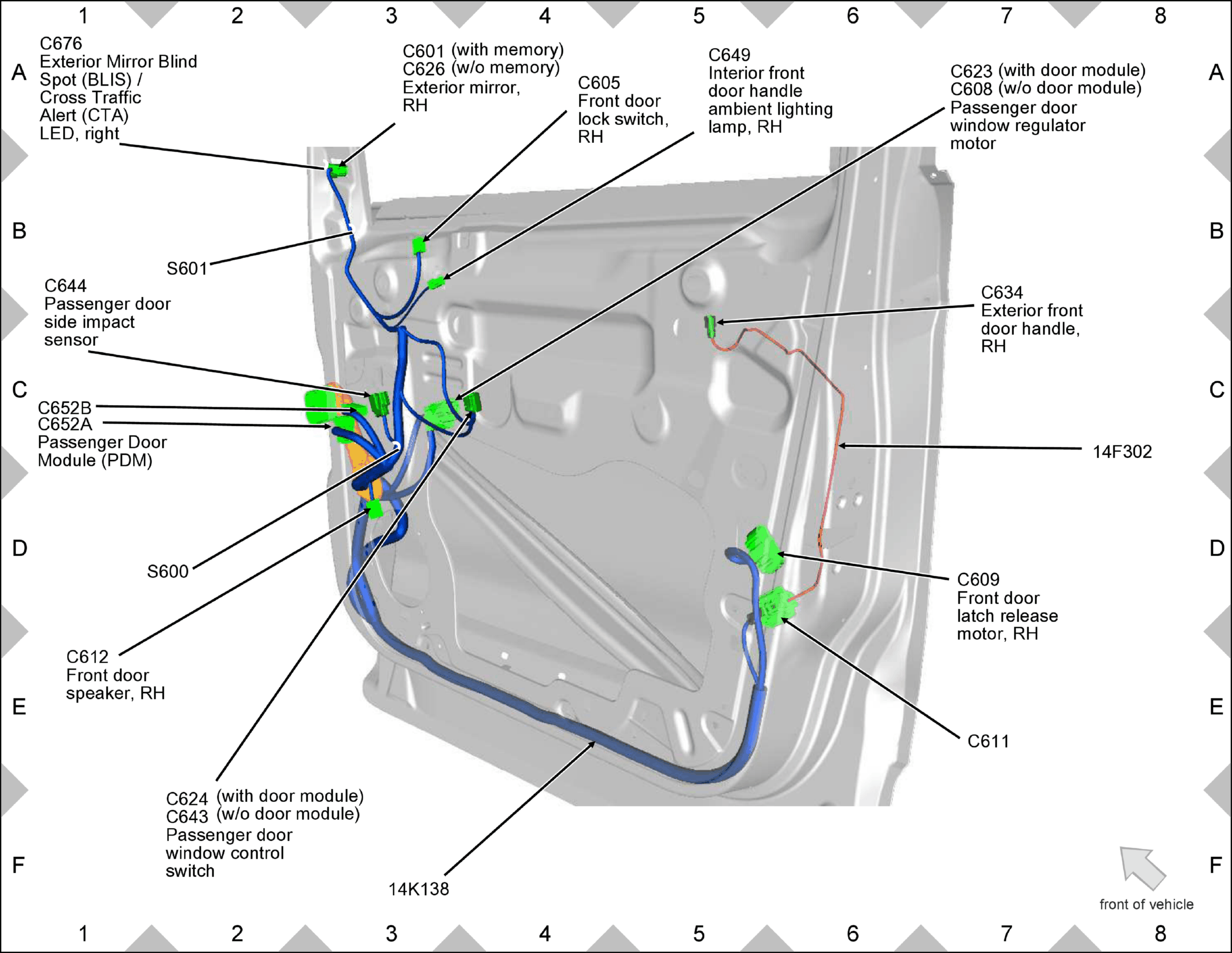

GFDW75763Courtesy of FORD MOTOR COMPANY

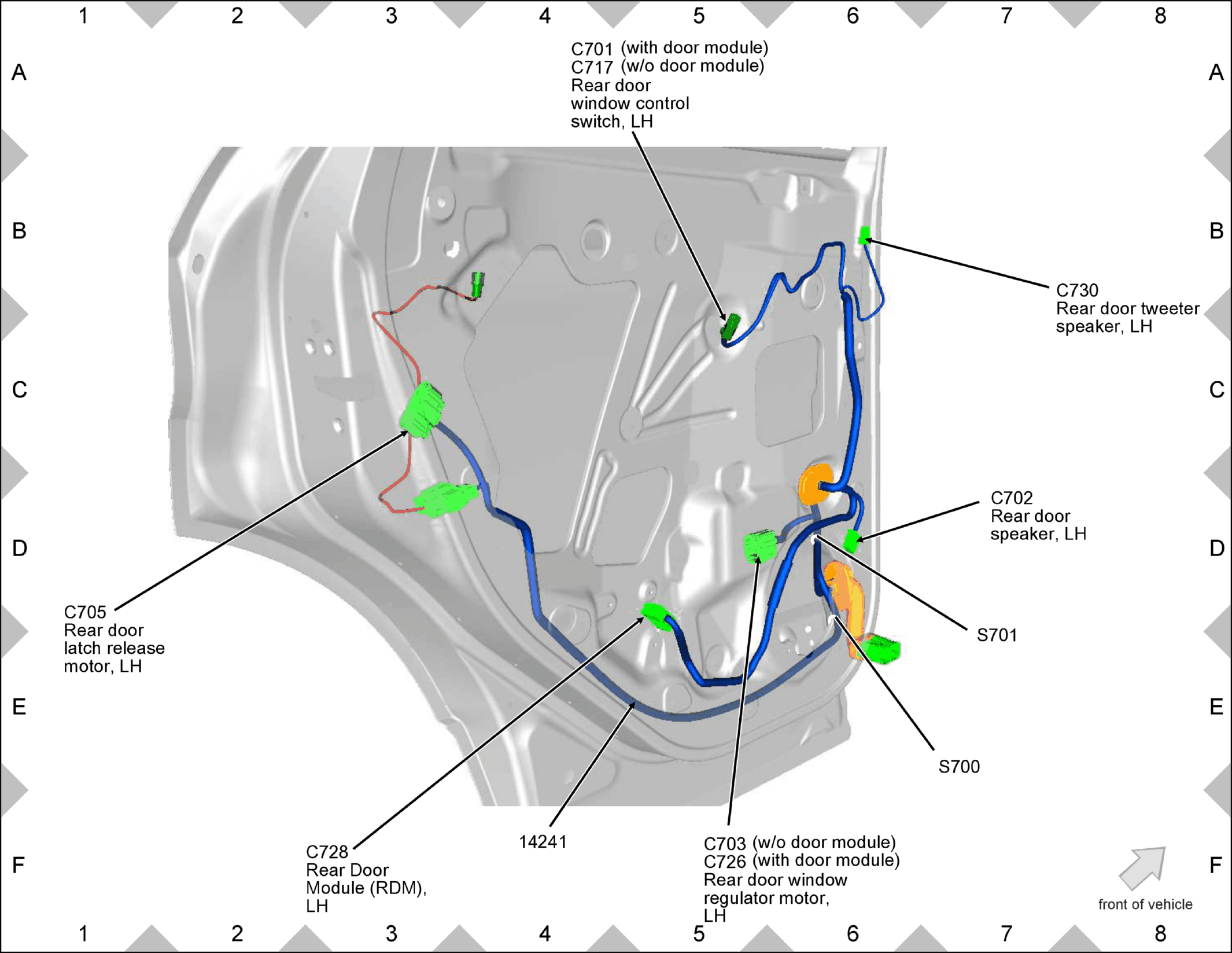

GFDW75764Courtesy of FORD MOTOR COMPANY

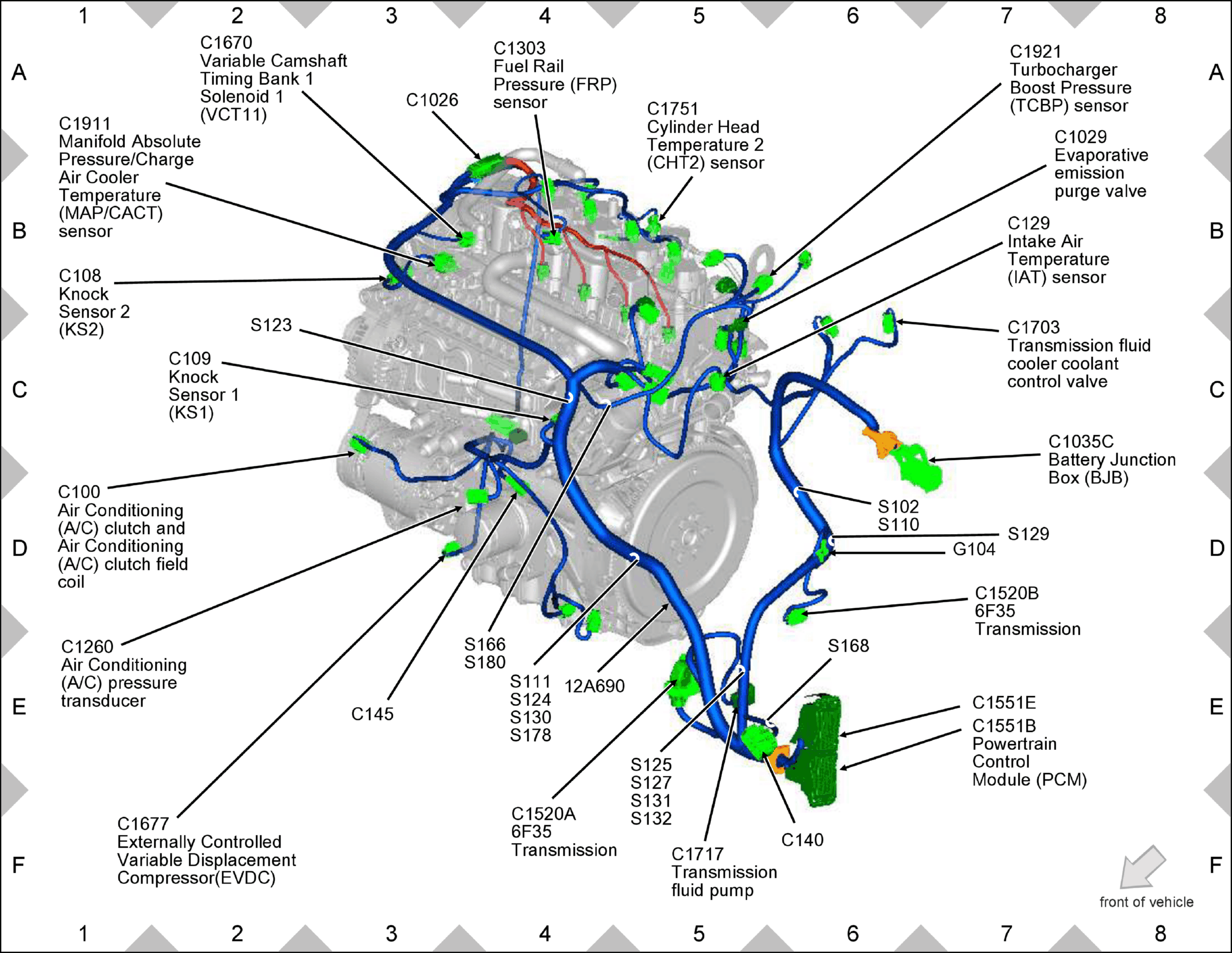

GFDW75765Courtesy of FORD MOTOR COMPANY
GFDW75766Courtesy of FORD MOTOR COMPANY

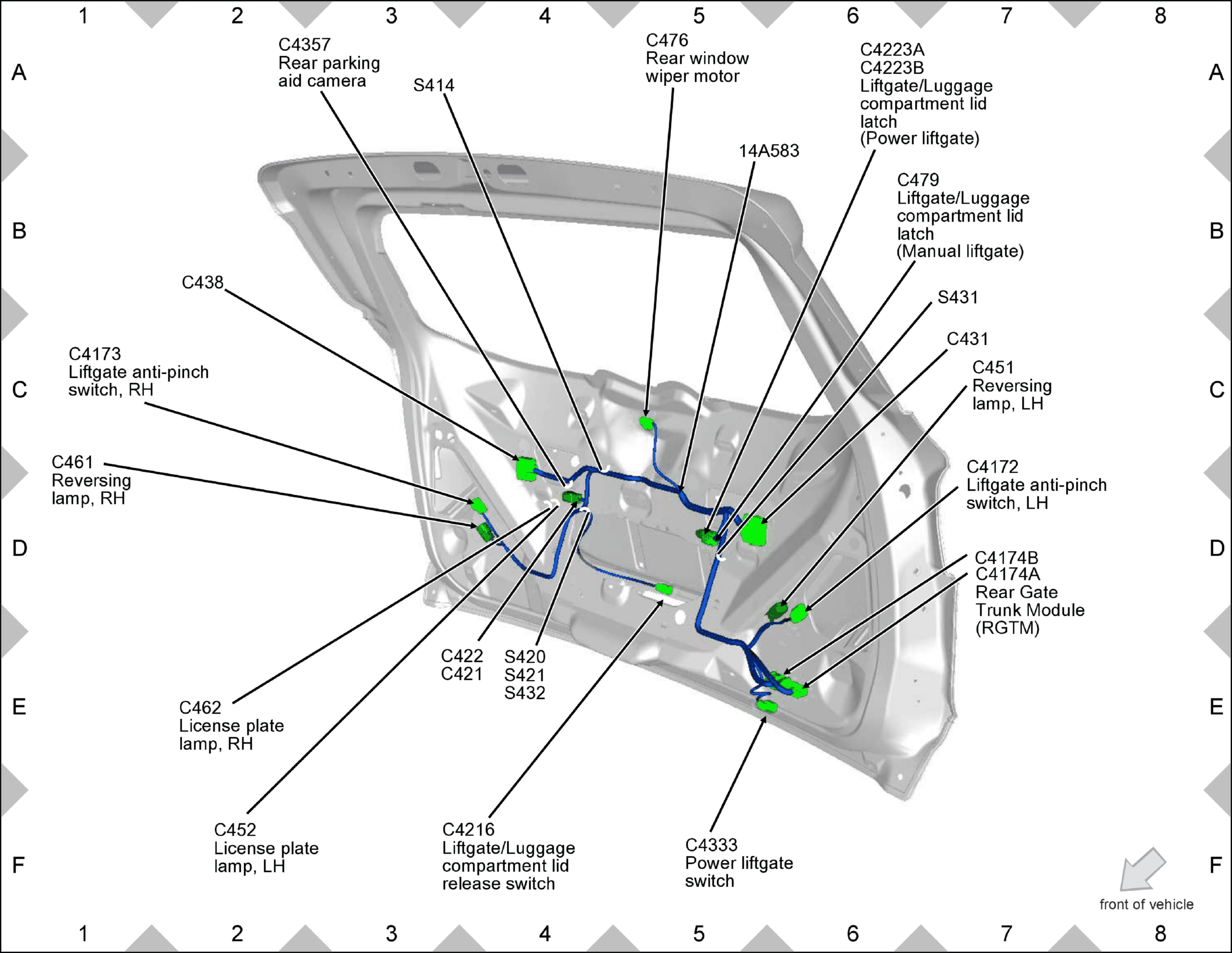

GFDW75767Courtesy of FORD MOTOR COMPANY
GFDW75768Courtesy of FORD MOTOR COMPANY

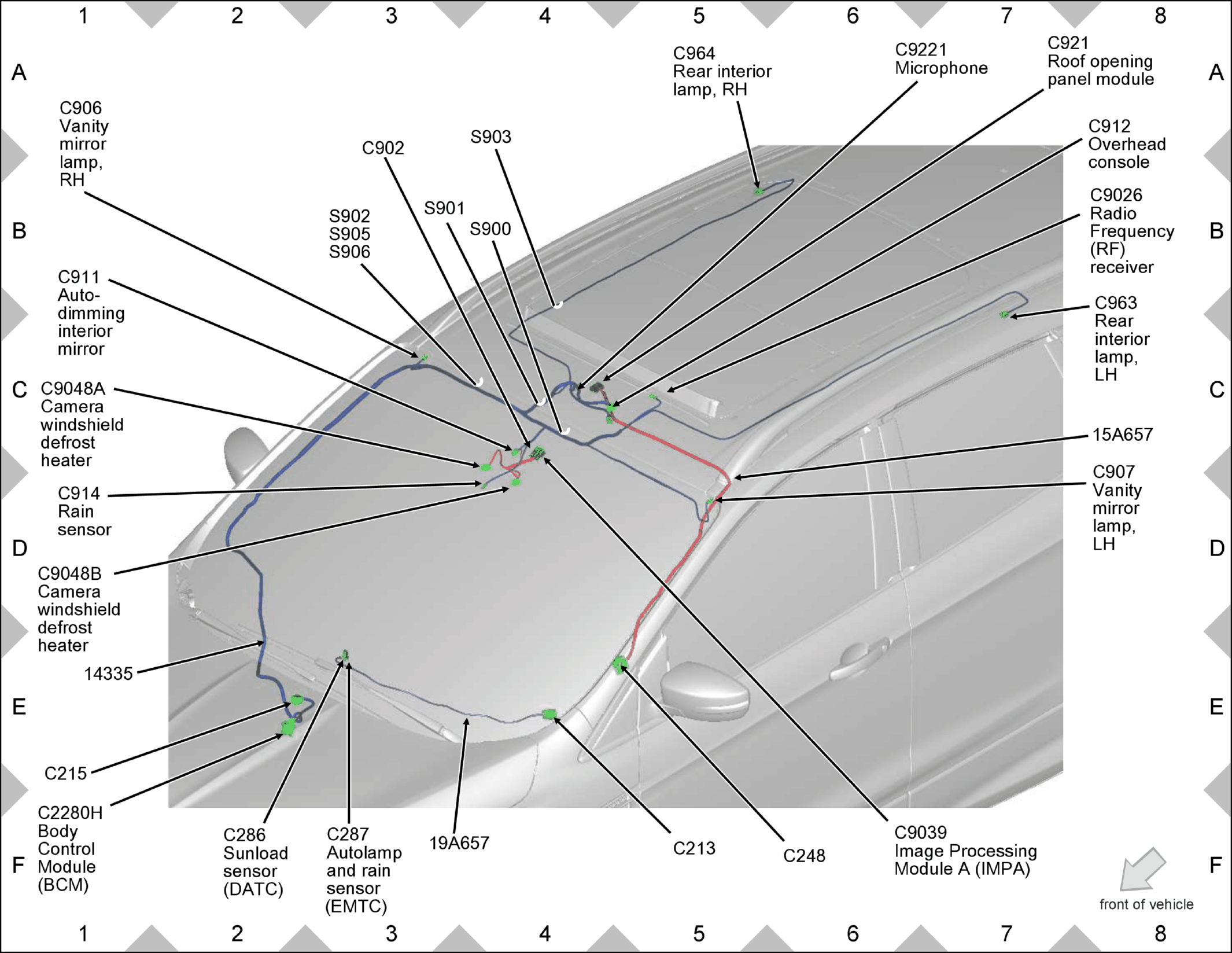

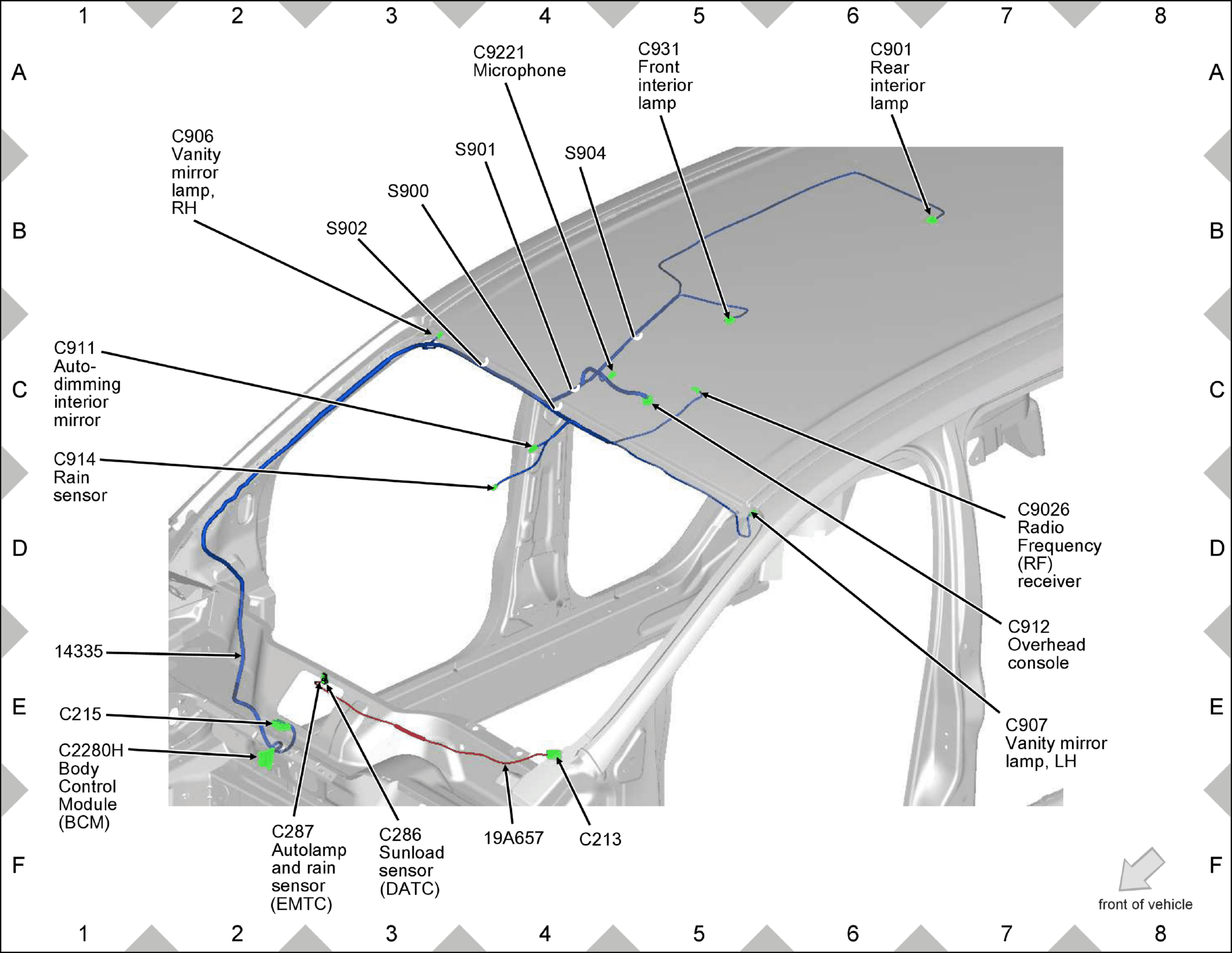

GFDW75769Courtesy of FORD MOTOR COMPANY
GFDW75770Courtesy of FORD MOTOR COMPANY
GFDW75771Courtesy of FORD MOTOR COMPANY

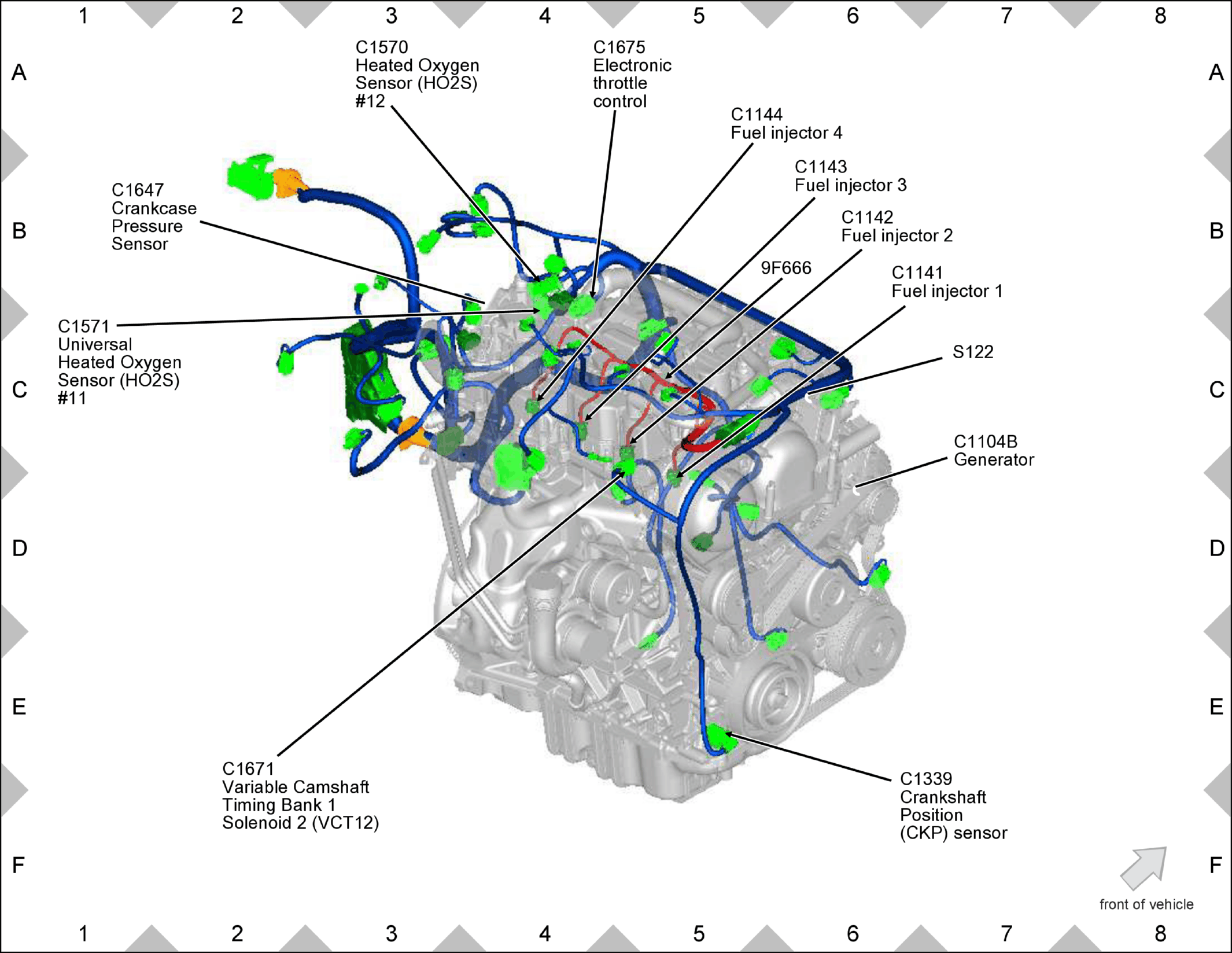

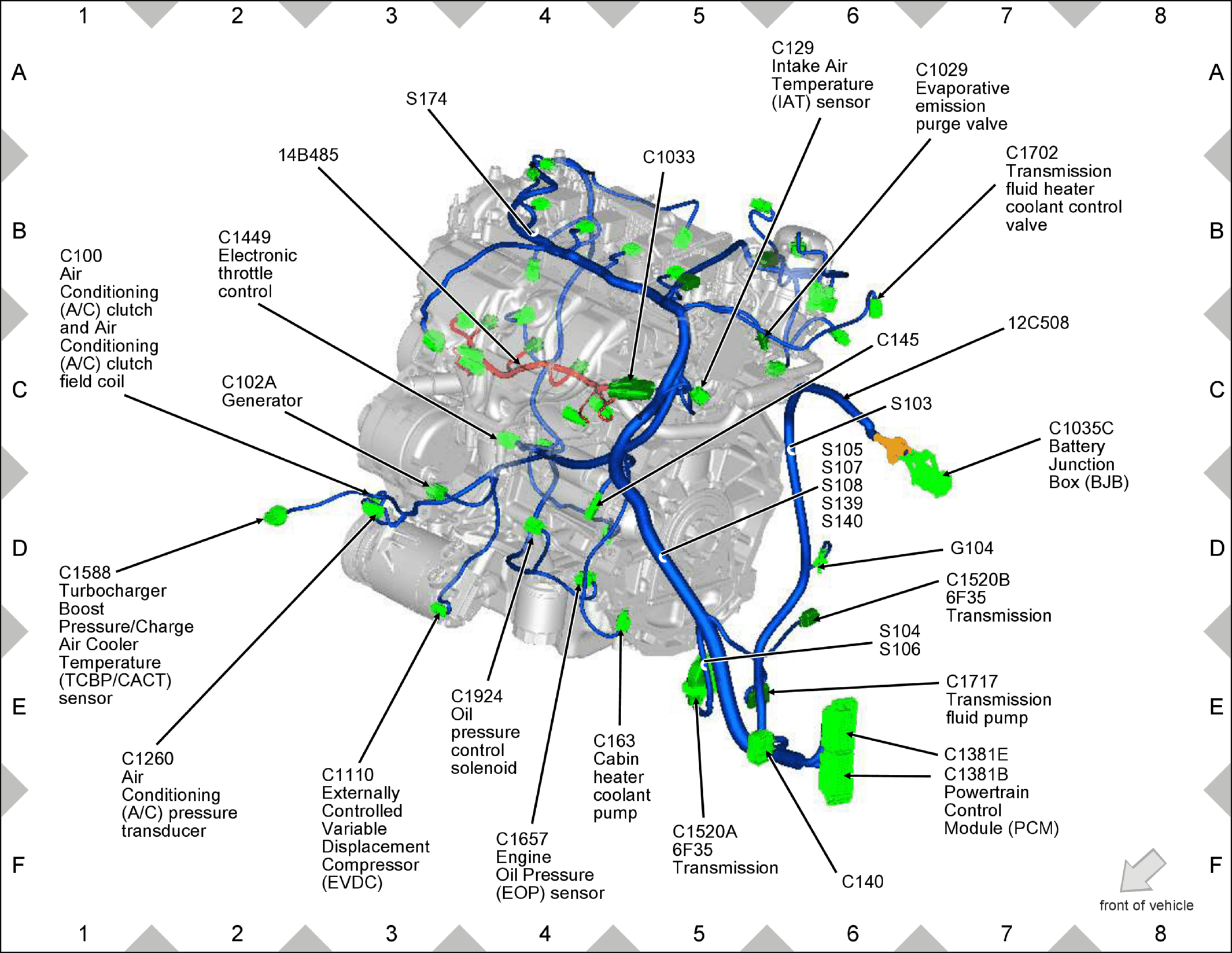

GFDW75772Courtesy of FORD MOTOR COMPANY

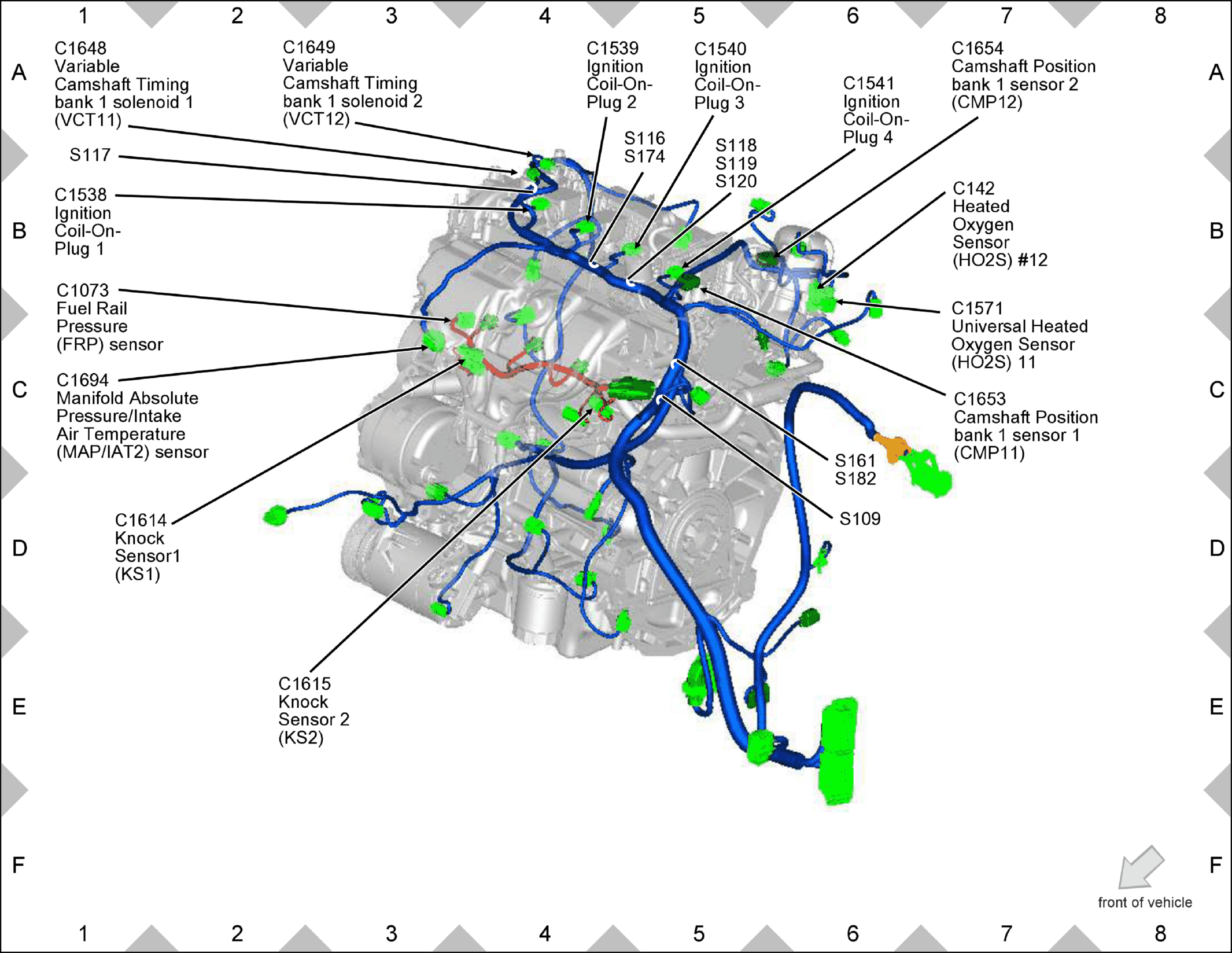

GFDW75773Courtesy of FORD MOTOR COMPANY

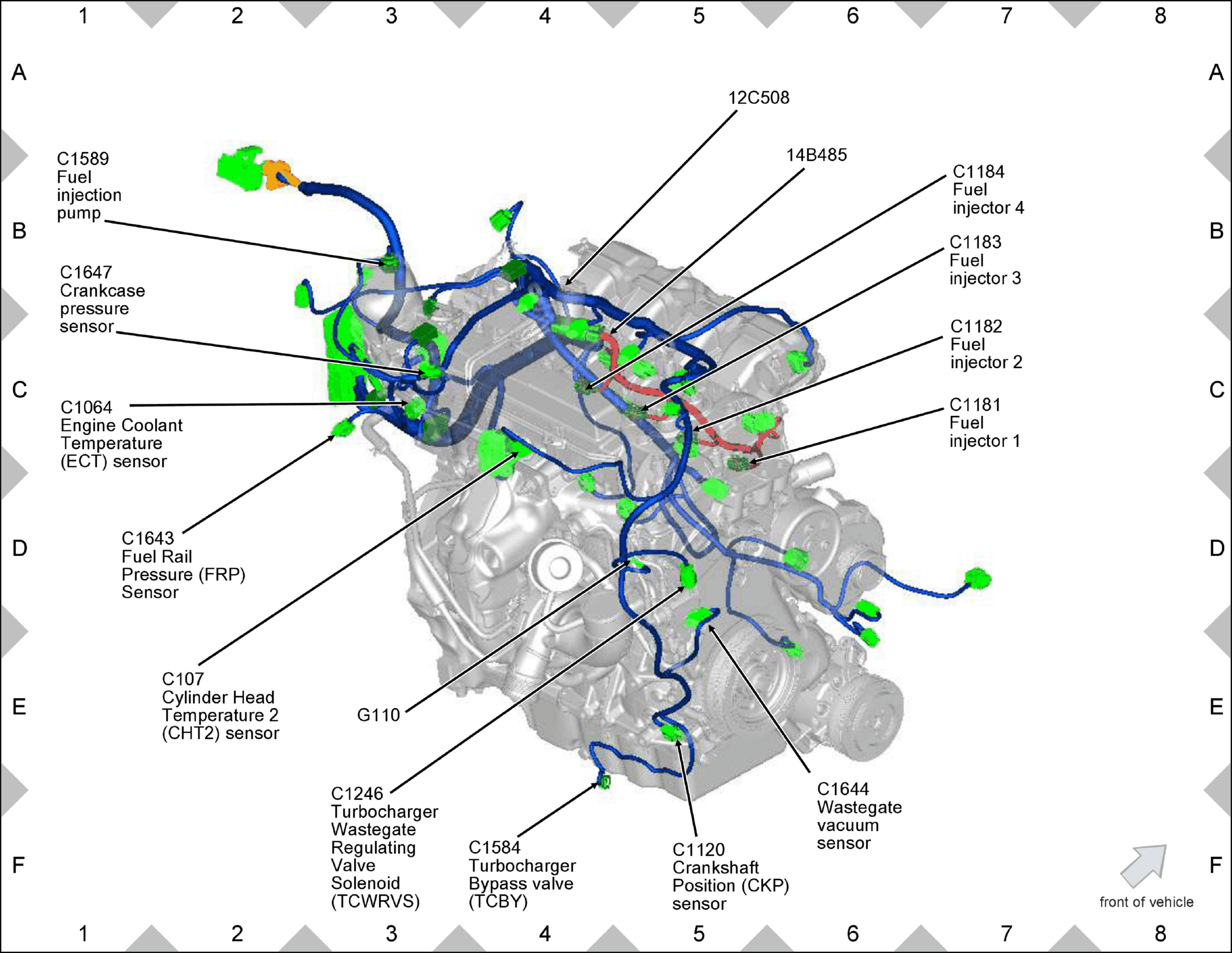

GFDW75774Courtesy of FORD MOTOR COMPANY

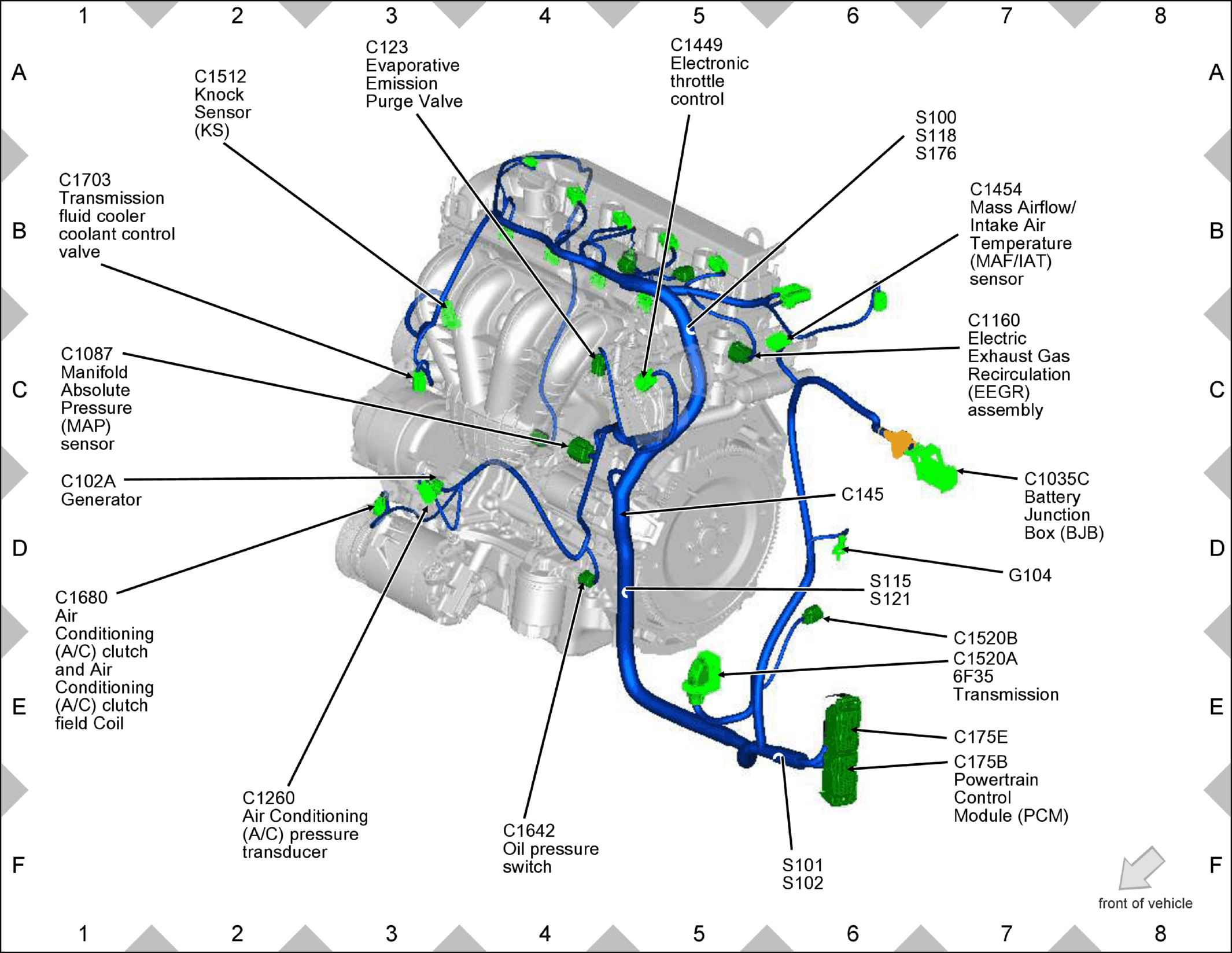

GFDW75775Courtesy of FORD MOTOR COMPANY
