Wheel Speed Sensor - Front: Notes

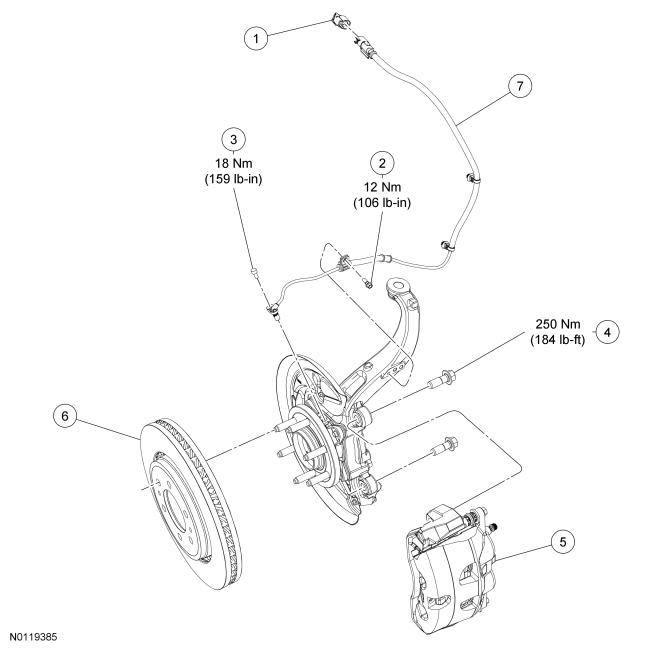

Fig 1: Exploded View Of Front Wheel Speed Sensor With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	Front wheel speed sensor electrical connector (part of 14250)
2	W710279	Front wheel speed sensor harness bolt
3	-	Front wheel speed sensor bolt (part of 2C204)
4	W714743	Brake caliper anchor plate bolt (2 required)
5	2B120 RH / 2B121 LH RH / 2B121 LH	Brake caliper
6	1125	Brake disc
7	2C204	Front wheel speed sensor
