Front Door Alignment
WARNING: This page is about a different car, the 2017 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.
Inspection
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown in illustration, RH side similar.

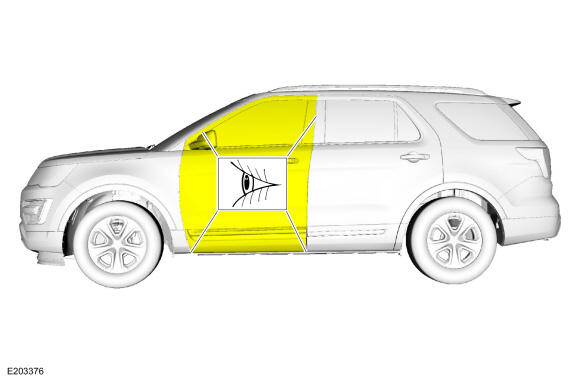

- 1.

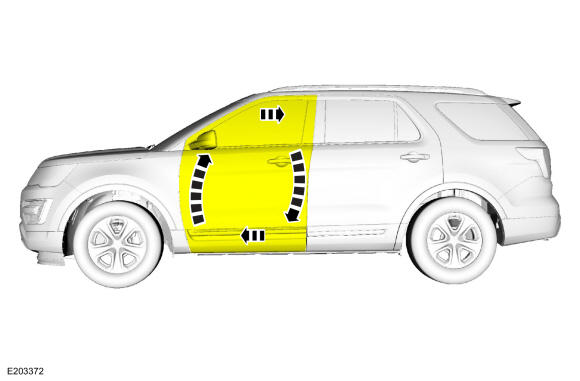

Inspect the front door-to-body dimensions. REFER to: Body and Frame
- Vehicle Specific Information and Tolerance Checks.
Adjustment
All alignments
- 1.

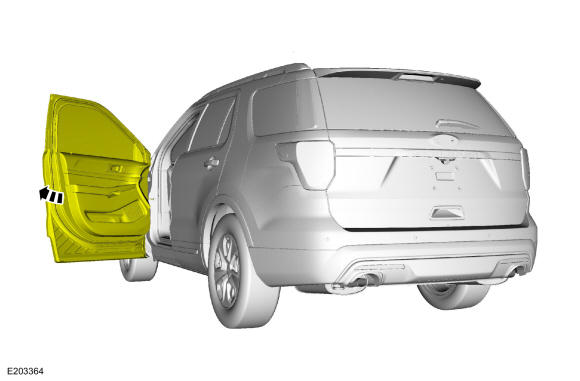

Open the door.
 Courtesy of FORD MOTOR COMPANY
|

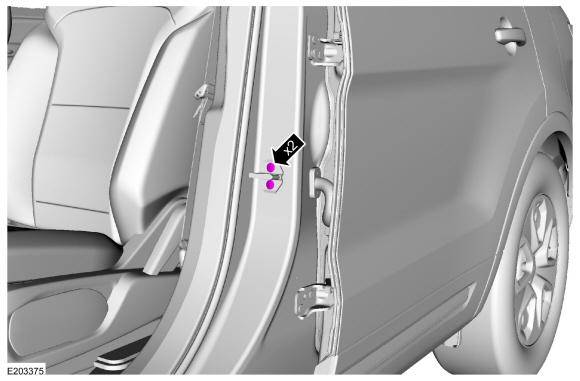

- 2.
Remove the bolts and the striker assembly.Torque
: 17 lb.ft (22.5 Nm)
 Courtesy of FORD MOTOR COMPANY
|
Front door in and out, up and down alignment

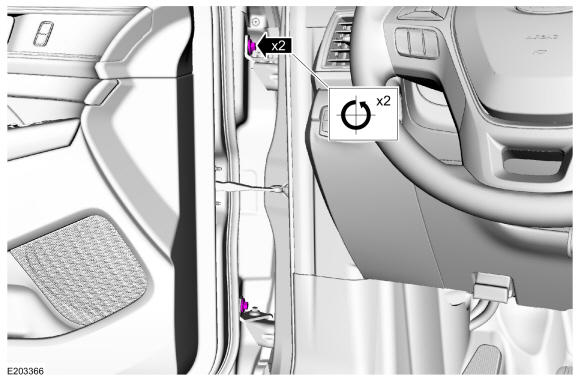

- 3.
Loosen the bolts to permit movement of the door.Loosen: 2 turn(s)
 Courtesy of FORD MOTOR COMPANY
|

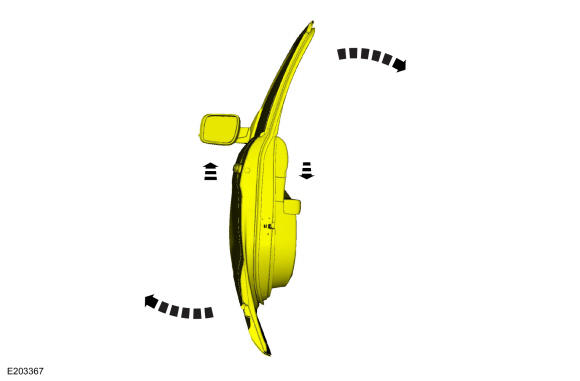

- 4.
Adjust the door to specification. REFER to: Body and Frame
- Vehicle Specific Information and Tolerance Checks.
 Courtesy of FORD MOTOR COMPANY
|

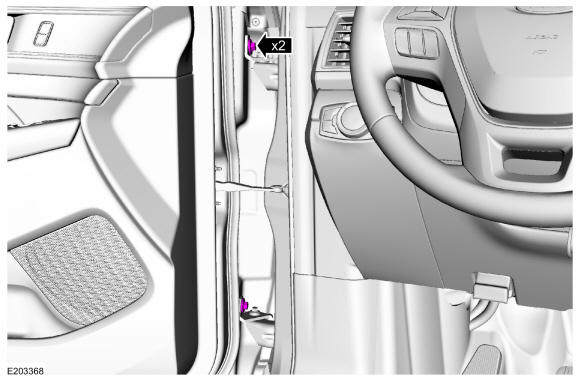

- 5.
Tighten the bolts.Torque
: 41 lb.ft (55 Nm)
 Courtesy of FORD MOTOR COMPANY
|
Front door fore, aft and tilt alignment

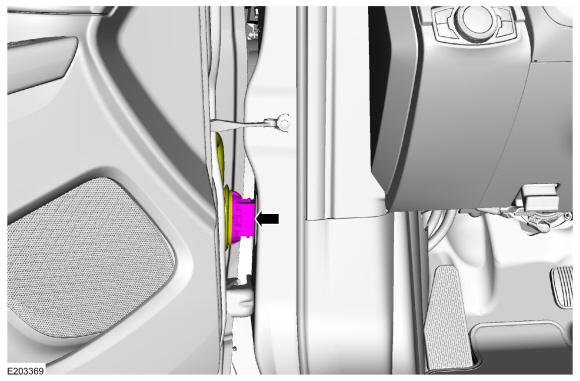

- 6.
Disconnect the front door electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 7.

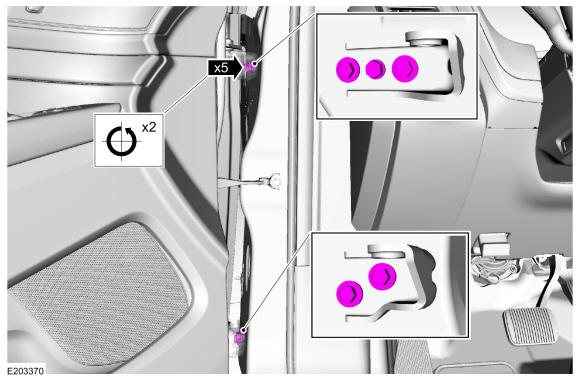

Loosen the bolts to permit movement of the door.Loosen: 2 turn(s)
 Courtesy of FORD MOTOR COMPANY
|
- 8.

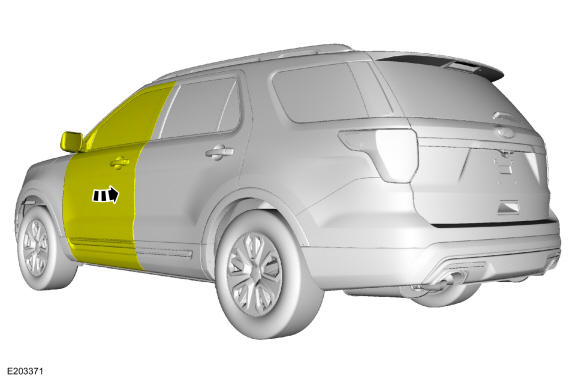

Carefully close the door.
 Courtesy of FORD MOTOR COMPANY
|
- 9.
Adjust the door to specification. REFER to: Body and Frame
- Vehicle Specific Information and Tolerance Checks.
 Courtesy of FORD MOTOR COMPANY
|
- 10.
Carefully open the door.
Courtesy of FORD MOTOR COMPANY
|

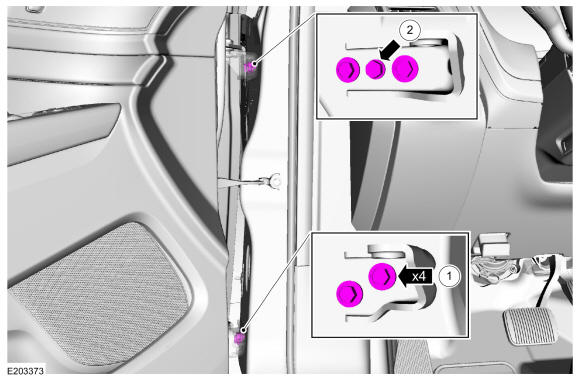

- 11.
Tighten the bolts.Torque:
1: 22 lb.ft (30 Nm)
2: 89 lb.in (10 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 12.
Connect the front door electrical connector.
Courtesy of FORD MOTOR COMPANY
|
All alignments
- 13.
Install the striker assembly.Torque
: 17 lb.ft (22.5 Nm)
Courtesy of FORD MOTOR COMPANY
|

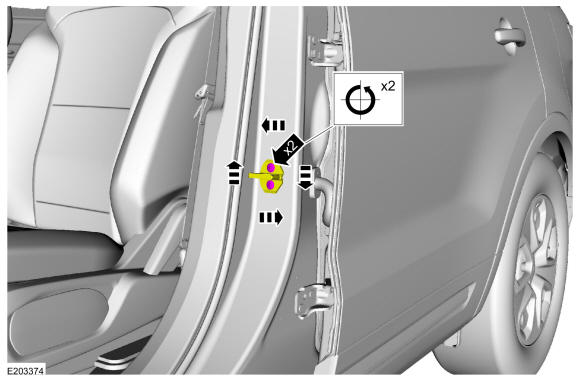

- 14.
Loosen the bolts to permit movement of the striker assembly.Loosen: 2 turn(s)
 Courtesy of FORD MOTOR COMPANY
|
- 15.
Tighten the bolts.Torque
: 17 lb.ft (22.5 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 16.
Inspect the body-to-front door dimensions. REFER to: Body and Frame
- Vehicle Specific Information and Tolerance Checks.
 Courtesy of FORD MOTOR COMPANY
|
