Hood Alignment

WARNING: This page is about a different car, the 2017 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.

Inspection

NOTE: Removal steps in this procedure may contain installation details.

1.

Inspect the hood-to-body dimensions. REFER to: Body and Frame - Vehicle Specific Information and Tolerance Checks.

All alignments

2.

Remove the hood latch. REFER to: Hood Latch .

3.

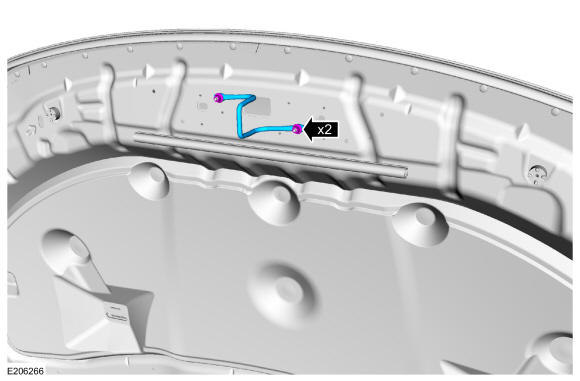

Remove the nuts and the striker assembly.
Torque

: 80 lb.in (9 Nm)

GFD127630

Courtesy of FORD MOTOR COMPANY

Hood fore and aft, left and right alignments

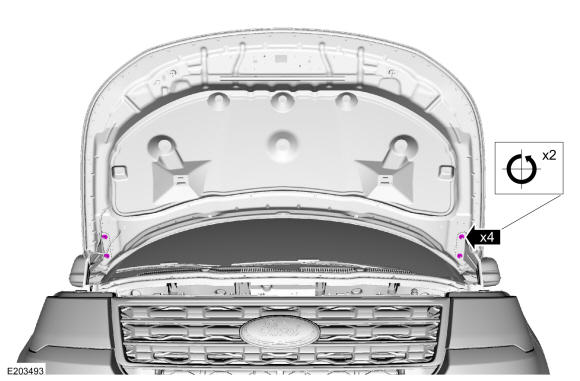

4.

Loosen the nuts to permit movement of the hood.
Loosen: 2 turn(s)

GFD125279

Courtesy of FORD MOTOR COMPANY

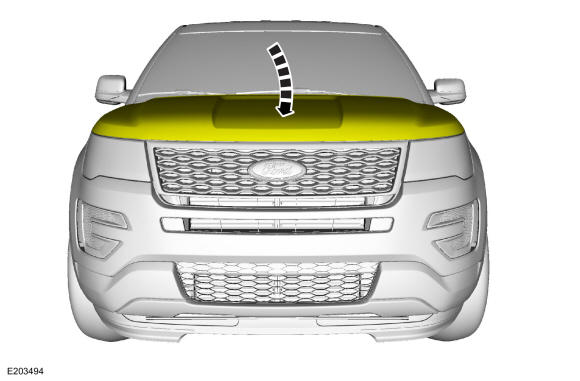

5.

Carefully close the hood.

GFD127631

Courtesy of FORD MOTOR COMPANY

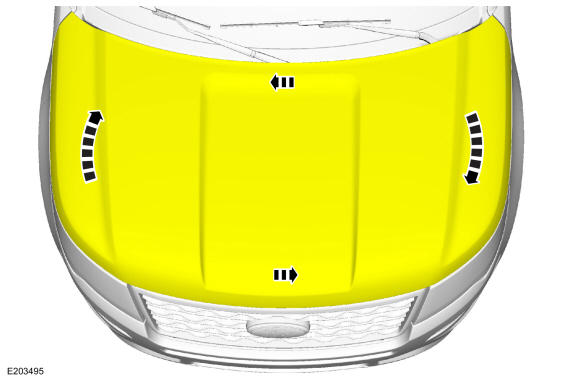

6.

Adjust the hood to specification. REFER to: Body and Frame - Vehicle Specific Information and Tolerance Checks.

GFD125280

Courtesy of FORD MOTOR COMPANY

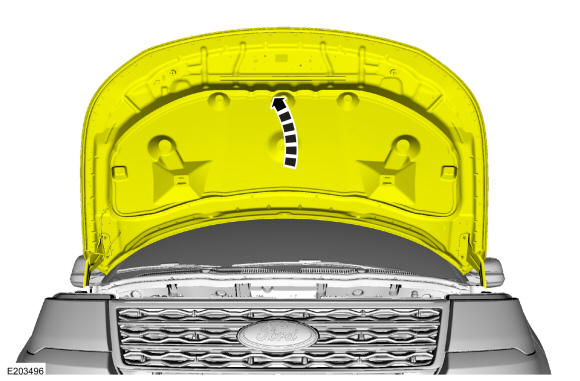

7.

Carefully open the hood.

GFD125281

Courtesy of FORD MOTOR COMPANY

8.

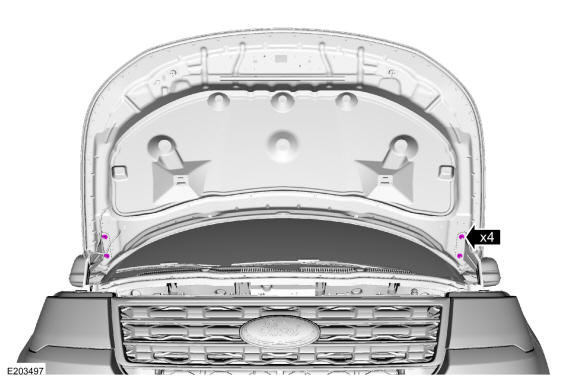

Tighten the nuts.
Torque

: 177 lb.in (20 Nm)

GFD125282

Courtesy of FORD MOTOR COMPANY

Hood front up and down alignments

9.

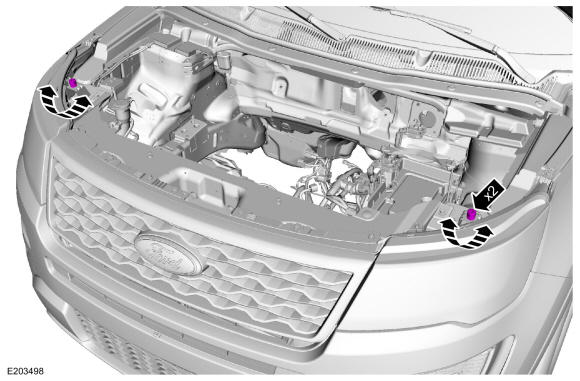

Adjust the bump stop rubbers.

GFD125283

Courtesy of FORD MOTOR COMPANY

10.

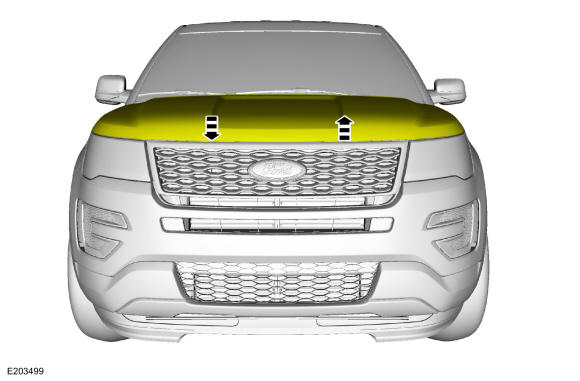

Adjust the hood to specification. REFER to: Body and Frame - Vehicle Specific Information and Tolerance Checks.

GFD125284

Courtesy of FORD MOTOR COMPANY

All alignments

11.

Install the striker assembly.
Torque

: 80 lb.in (9 Nm)

GFD127630

Courtesy of FORD MOTOR COMPANY

12.

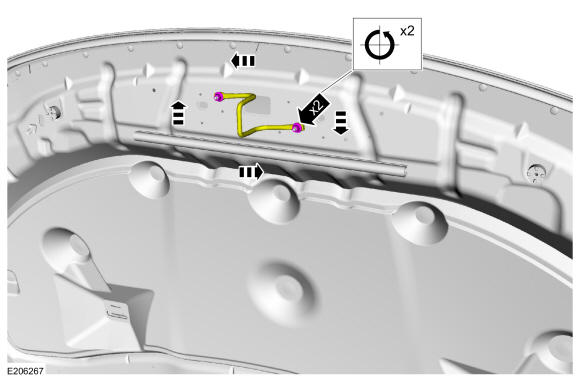

Loosen the nuts to permit movement of the striker assembly.
Loosen: 2 turn(s)

GFD125285

Courtesy of FORD MOTOR COMPANY

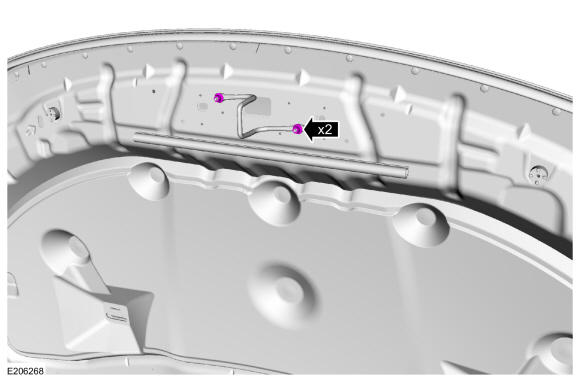

13.

Tighten the nuts.
Torque

: 80 lb.in (9 Nm)

GFD125286

Courtesy of FORD MOTOR COMPANY

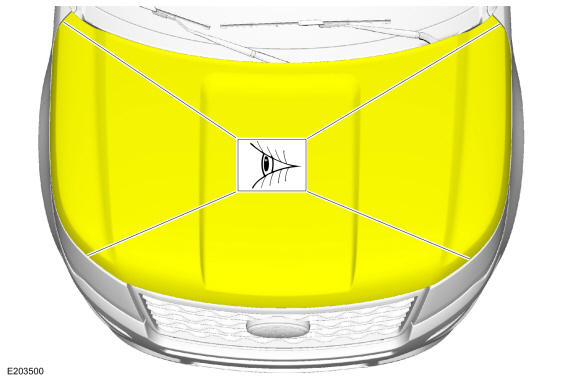

14.

Inspect the body-to-hood dimensions. REFER to: Body and Frame - Vehicle Specific Information and Tolerance Checks.

GFD125287

Courtesy of FORD MOTOR COMPANY

15.

Install the removed components.
