Home › Ford › 2017 › Explorer Platinum › Repair and Diagnosis › Quick Lookups › Wiring Diagrams › OEM Wiring Diagrams Component Testing › Component Testing › Door Lock Control Switch - Driver Side (With Memory)

Door Lock Control Switch - Driver Side (With Memory)

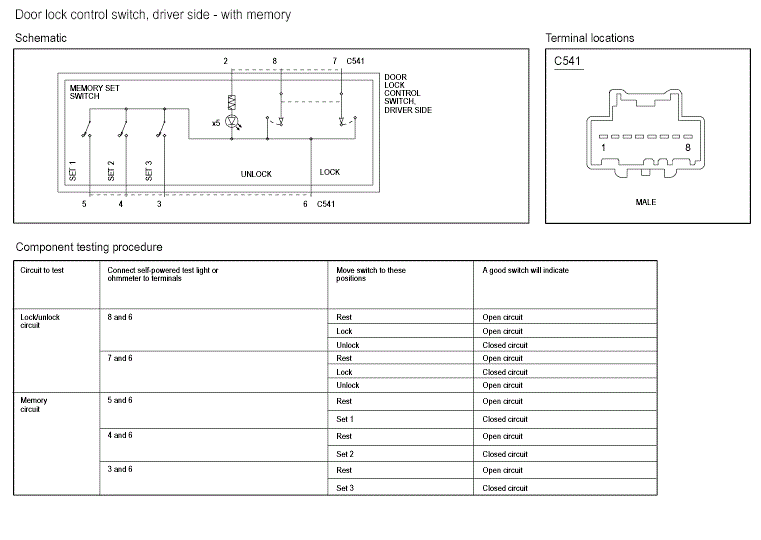

Fig 1: Door Lock Control Switch - Driver Side (With Memory)
GFDW55265Courtesy of FORD MOTOR COMPANY
