Roof Opening Panel Control Switch

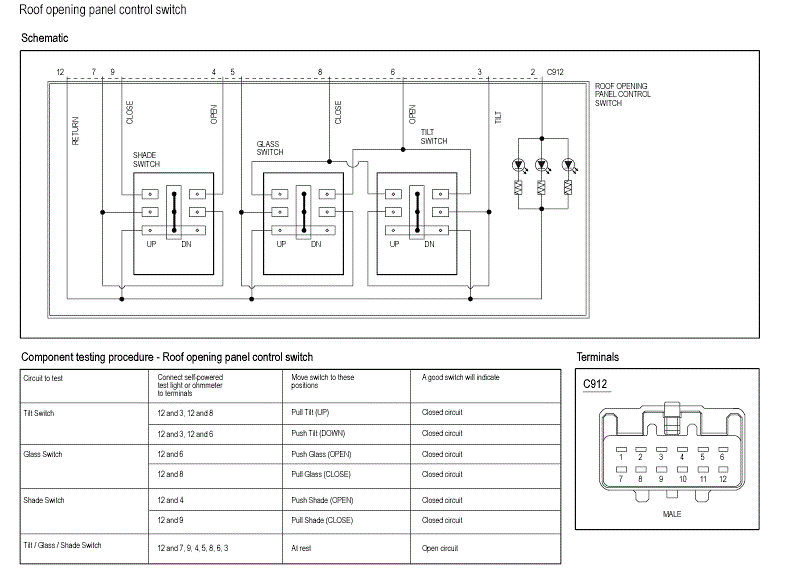

Fig 1: Roof Opening Panel Control Switch
GFDW55259Courtesy of FORD MOTOR COMPANY
