Front Strut and Spring Assembly: Assembly

1.

To assemble, reverse the disassembly procedure.

2.

NOTE: Make sure the grease is applied completely around the strut shaft. Do not allow grease to make contact with the strut rod threads.

Liberally apply the specified grease to the length of the strut shaft that makes contact with the jounce bumper plus an additional 15 mm (0.5 in).

Material

: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

GFD126906

Courtesy of FORD MOTOR COMPANY

3.

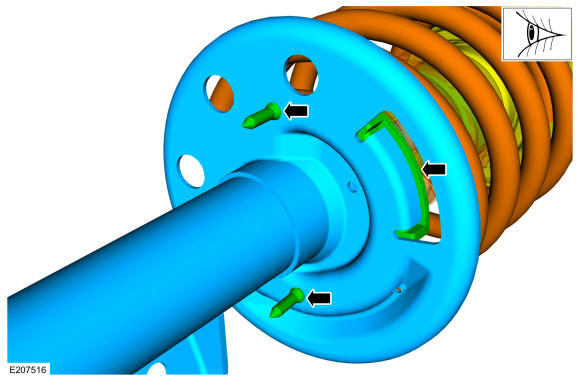

Make sure that the lower spring insulator is properly installed.

GFD126907

Courtesy of FORD MOTOR COMPANY

4.

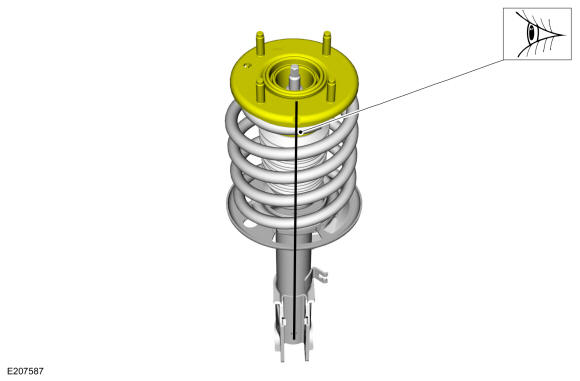

NOTE: Make sure the components are correctly aligned during assembly.

GFD126908

Courtesy of FORD MOTOR COMPANY

5.

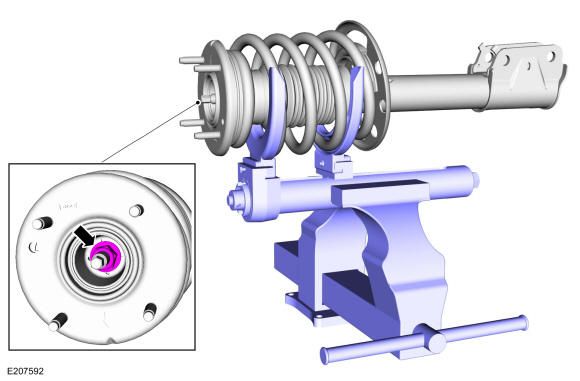

Tighten the strut rod nut.
Torque

: 98 lb.ft (133 Nm)

GFD126909

Courtesy of FORD MOTOR COMPANY

6.

Install the front strut and spring assembly. Refer to: Front Strut and Spring Assembly .
