Front Strut and Spring Assembly: Installation

1.

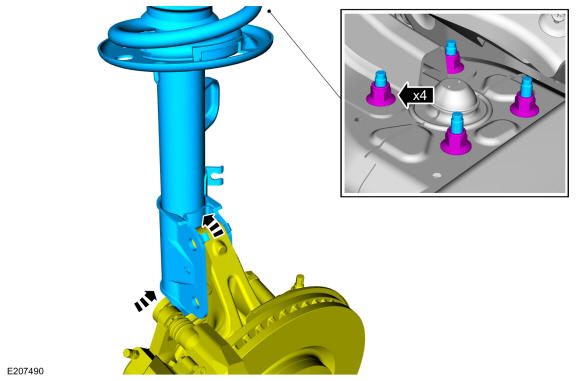

Position the front strut and spring assembly and install the new upper strut mount nuts.
Torque

: 46 lb.ft (62.5 Nm)

GFD126880

Courtesy of FORD MOTOR COMPANY

2.

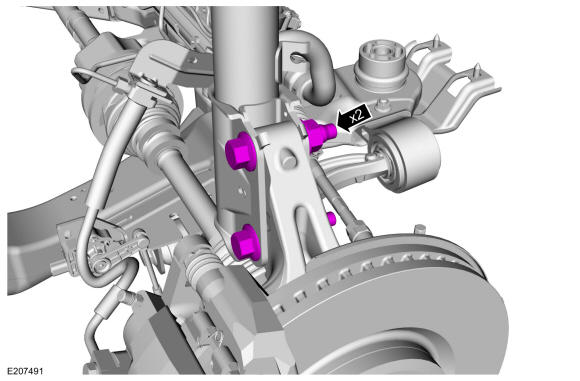

Install the new lower strut-to-wheel knuckle nuts and bolts.
Torque

: 166 lb.ft (225 Nm)

GFD126881

Courtesy of FORD MOTOR COMPANY

3.

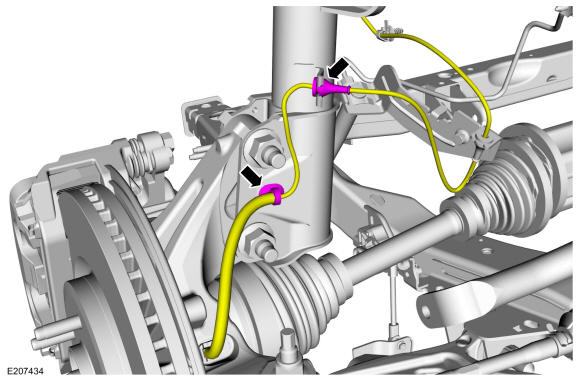

Attach the wheel speed sensor harness to the strut.

GFD121280

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Do not use power tools to install the stabilizer bar link nut. Damage to the stabilizer bar link ball joint or boot may occur.

NOTE: To install the stabilizer bar link lower nut, use the hex holding feature to prevent the stabilizer bar link ball joint from turning while installing the stabilizer bar link lower nut.
- 1.

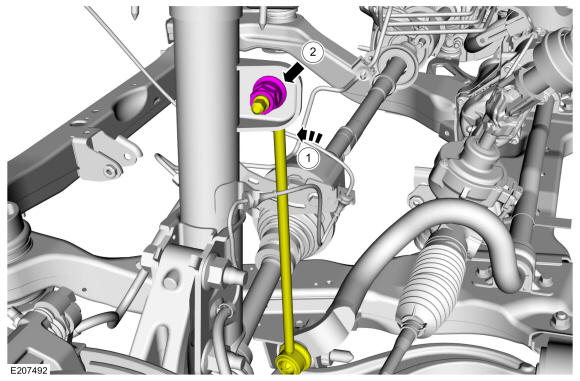

  Position the front stabilizer bar link.
- 2.

  Install the new front stabilizer bar link upper nut.
  Torque

  : 111 lb.ft (150 Nm)

GFD126882

Courtesy of FORD MOTOR COMPANY

5.

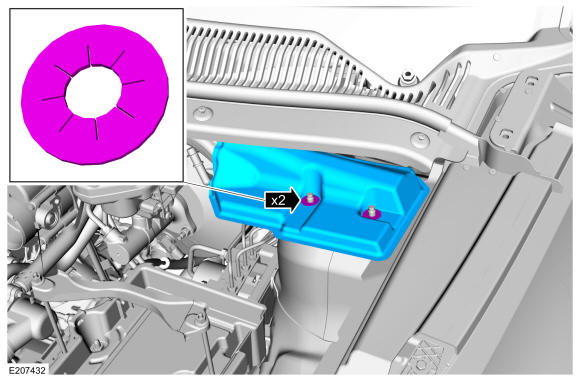

If equipped. Install the upper strut tower cover.

GFD126877

Courtesy of FORD MOTOR COMPANY

6.

Install the wheel and tire. Refer to: Wheel and Tire .

7.

Check and if necessary adjust front camber. Refer to: Front Camber Adjustment .
