Rear Toe Adjustment

Special Tool(s) / General Equipment

Adjustment

• 1.

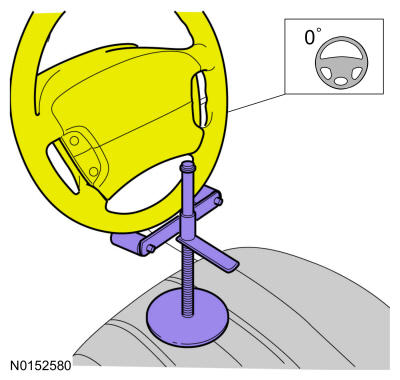

  Steering wheel in straight ahead position.

  Use the General Equipment: Steering Wheel Holder

Courtesy of FORD MOTOR COMPANY

• 2.

  Using alignment equipment and the manufacturer's instructions, check the front toe setting on both sides.

  Use the General Equipment: Wheel Alignment System

• 3.

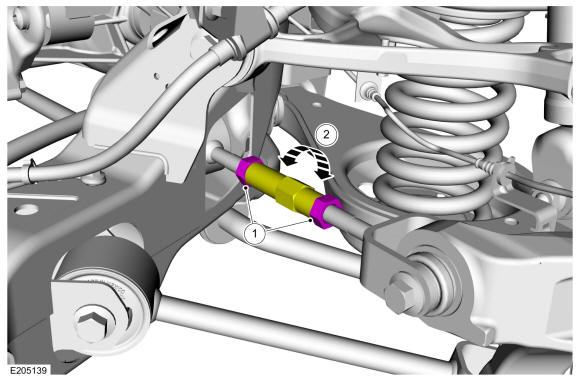

  • 1.


    NOTE: Do not allow the adjusting rod to rotate while tightening the jam nuts.

    Loosen the tie-rod jam nuts.

    Torque

    : 46 lb.ft (62.5 Nm)

  • 2.

    Rotate the toe link adjusting rod until the toe setting is within specifications.

Courtesy of FORD MOTOR COMPANY

• 4.

  Recheck the rear toe and adjust as necessary.
