Ride Height Measurement

Check

NOTE: Ride Height Measurement - Front

NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

1.
- 1.

  Ride height = 3-2.
- 2.

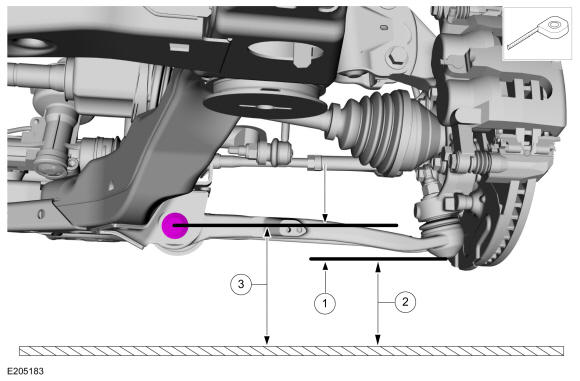

  Measure the distance between the flat level surface and the center of the lower arm ball joint cap (measurement 2).
- 3.

  Measure the distance between the flat level surface and the center of the lower arm inboard bolt (measurement 3).

Courtesy of FORD MOTOR COMPANY

2.

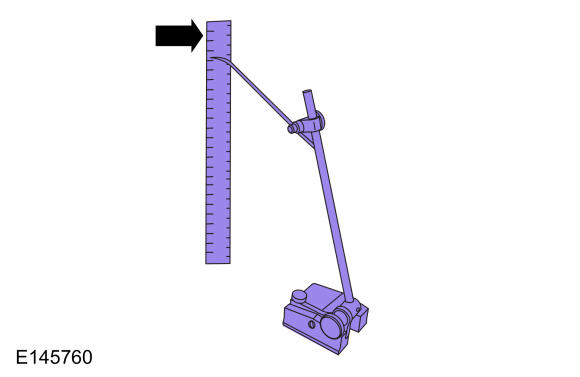

With the surface gauge positioned on a flat, level surface, record the measurement of the surface gauge position (measurement 2) and (measurement 3).

Courtesy of FORD MOTOR COMPANY

3.

Subtract measurement 2 from measurement 3 to obtain the front ride height.

Check

NOTE: Ride Height Measurement - Rear

NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

1.
- 1.

  Ride height = 3-2.
- 2.

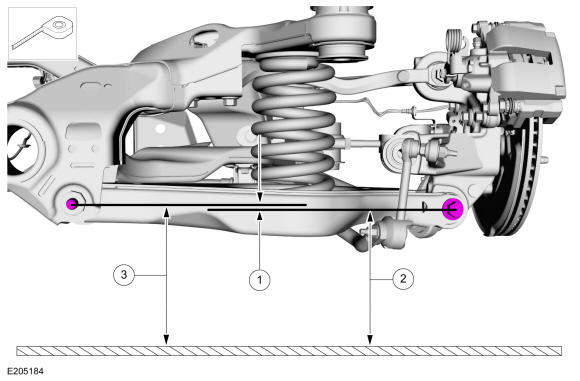

  Measure the distance between the flat level surface and the center of the lower arm-to-wheel knuckle bolt (measurement 2).
- 3.

  Measure the distance between the flat level surface and the center lower arm-to-subframe (measurement 3).

Courtesy of FORD MOTOR COMPANY

2.

Subtract measurement 2 from measurement 3 to obtain the front ride height.
