Transmission Case: Disassembly
- 1.

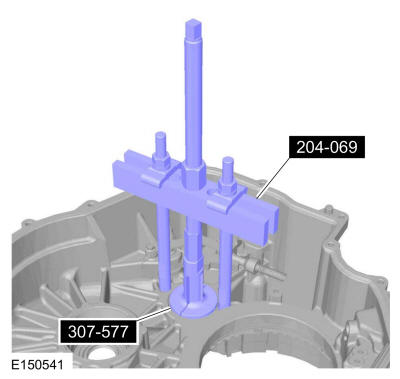

Using the special tool, remove the transfer shaft roller bearing cup from the transmission case.Use Special Service Tool: 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub, 307-577 Transfer Gear Bearing race remover.
- 3.

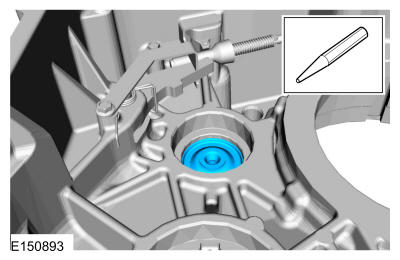

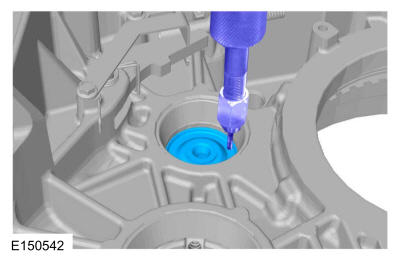

Use a dent puller to remove the transfer shaft tube fluid dam from the transmission case.Use the General Equipment: Puller
- 4.
Using the special tool, remove the differential bearing cup.- 1.

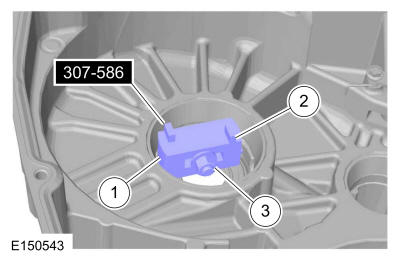

Position the Differential Bearing Cup Remover 307-586 in the transmission case with the tabs on the Differential Bearing Cup Remover 307-586 aligned with the slots in the transmission case.Use Special Service Tool: 307-586 Differential bearing cup remover.
- 2.
Expand the Differential Bearing Cup Remover 307-586 by hand.
- 3.
While holding the Differential Bearing Cup Remover 307-586 in the expanded position with the tabs in the slots of the transmission case, tighten the nut.
- 1.
- 5.

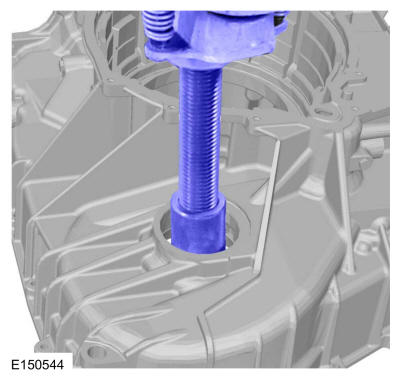

Using the general equipment, press the differential bearing cup out of the transmission case.Use the General Equipment: Hydraulic Press
