Main Control Valve Body

  1. 1.

    NOTE: Note the location of the different length bolts for assembly.

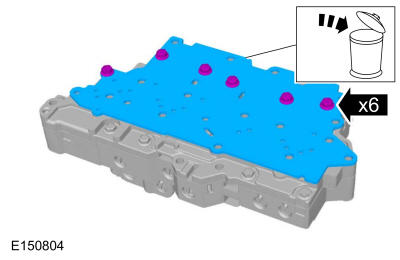

    Remove the bolts and discard the transfer plate cover assembly.

GFD127334Courtesy of FORD MOTOR COMPANY

  1. 2.

    NOTE: Note the location of the different length bolts for assembly.

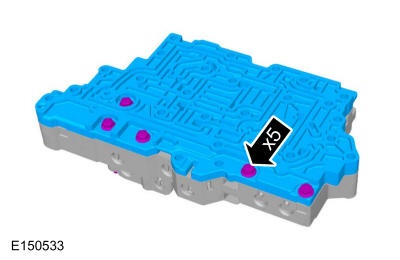

    Remove the valve body bolts and the transfer plate assembly.

GFD124171Courtesy of FORD MOTOR COMPANY

  1. 3.

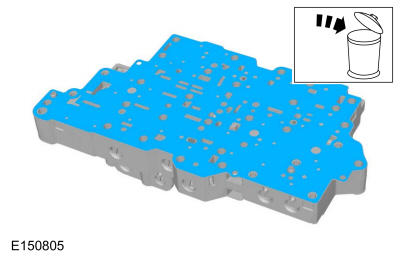

    Remove and discard the valve body separator plate.
GFD124172Courtesy of FORD MOTOR COMPANY

  1. 4.

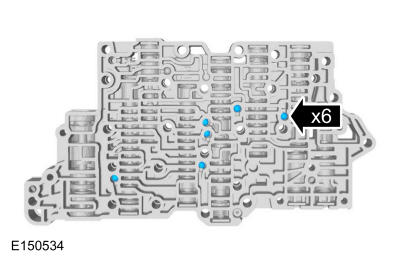

    NOTE: Note the location of the check balls for assembly.

    Remove the check balls.

GFD124173Courtesy of FORD MOTOR COMPANY

  1. 5.

    Remove the lower valve body assembly.
GFD124174Courtesy of FORD MOTOR COMPANY

  1. 6.

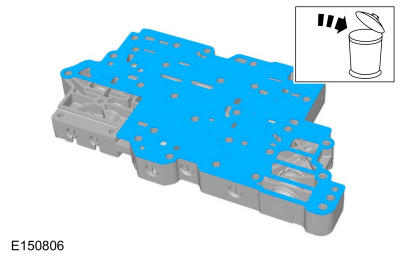

    Remove and discard the lower valve body separator plate and gasket.
GFD127335Courtesy of FORD MOTOR COMPANY

  1. 7.

    Remove the manual valve from the valve body.
GFD124175Courtesy of FORD MOTOR COMPANY

  1. 8.

    NOTE: Remove the valves by tapping the valve body on the palm of the hand to slide the valves out of the bores. If it is necessary to use a pick, use extreme caution to prevent damaging the valves or valve bores. If necessary, disassemble parts of the main control valve body in small groups. Arrange the parts as they are removed to avoid mixing similar pieces.
    NOTE: Do not stone or polish any valves. If the valves do not move freely, install a new assembly.

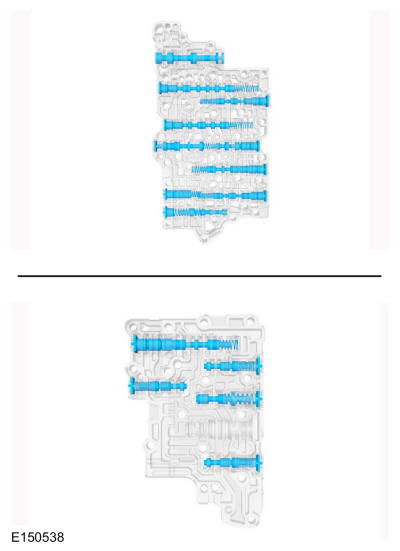

    Remove the individual valves and springs from the main control valve body and lower valve body by removing the retaining clips. Clean valves, springs, main control valve body and lower valve body.

GFD127336Courtesy of FORD MOTOR COMPANY

  1. 9.

    Install the valve body valves, springs and retaining clips in the main control valve body and lower valve body. For valve and spring locations. REFER to: Main Control Valve Body .

  1. 10.

    Install the manual valve in the valve body.
GFD124175Courtesy of FORD MOTOR COMPANY

  1. 11.

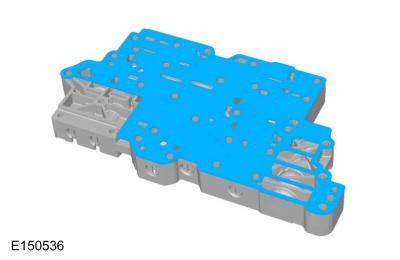

    Install a new lower valve body separator plate and gasket on the main control valve body.
GFD124176Courtesy of FORD MOTOR COMPANY

  1. 12.

    Install the lower valve body on the main control valve body.
GFD124174Courtesy of FORD MOTOR COMPANY

  1. 13.

    Install the check balls in the correct location as noted during disassembly.
GFD124173Courtesy of FORD MOTOR COMPANY

  1. 14.

    Install a new valve body separator plate and gasket.
GFD124176Courtesy of FORD MOTOR COMPANY

  1. 15.

    NOTE: Install the different length bolts in the correct location as noted during disassembly.

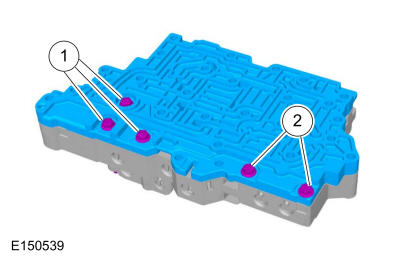

    Install the transfer plate assembly and hand-tighten the bolts.

    1. 1.

      Distance

      : 2.48 in (63 mm)

    1. 2.

      Distance

      : 1.38 in (35 mm)

GFD124177Courtesy of FORD MOTOR COMPANY

  1. 16.

    Tighten the valve body bolts.

    Torque

    : 106 lb.in (12 Nm)

GFD124171Courtesy of FORD MOTOR COMPANY

  1. 17.

    NOTE: Install the different length bolts in the correct location as noted during disassembly.

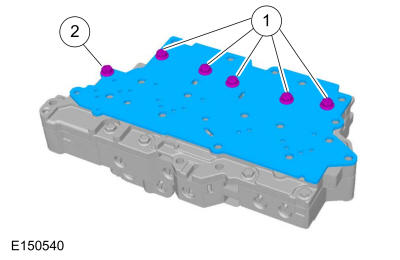

    Install the transfer plate cover assembly and hand-tighten the bolts.

    1. 1.

      Distance

      : 2.48 in (63 mm)

    1. 2.

      Distance

      : 1.38 in (35 mm)

GFD124178Courtesy of FORD MOTOR COMPANY

  1. 18.

    Tighten the valve body bolts.

    Torque

    : 106 lb.in (12 Nm)

GFD127337Courtesy of FORD MOTOR COMPANY
