Main Control Valve Body: Removal

  1. 1.

    Remove the main control cover. REFER to: Main Control Cover - 3.5L Duratec (209kW/284PS) . REFER to: Main Control Cover - 3.5L EcoBoost (257kW/350PS) .

  1. 2.

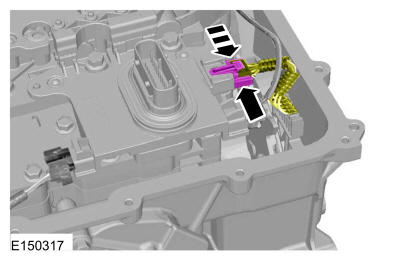

    Slide the TR sensor electrical connector lock tab over.
GFD127244Courtesy of FORD MOTOR COMPANY

  1. 3.

    Disconnect the TSS and OSS sensor electrical connectors.
GFD127245Courtesy of FORD MOTOR COMPANY

  1. 4.

    Remove the OSS sensor wire from the retainer.
GFD127246Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: Handle the solenoid body with care or damage to the solenoid body may occur.
    NOTE: Note the location of the different length bolts for assembly.

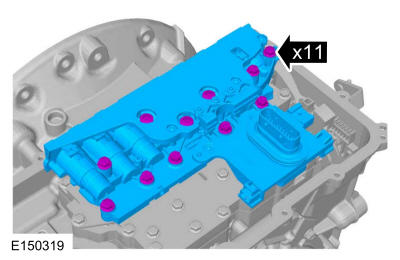

    Remove the bolts and the solenoid body.

GFD127247Courtesy of FORD MOTOR COMPANY

  1. 6.

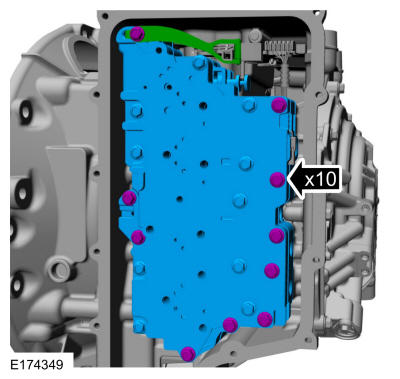

    Remove the 10 main control valve body bolts and the valve body.
GFD127248Courtesy of FORD MOTOR COMPANY
