Stability Assist/Traction Control Switch: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) - Vehicles Without: SYNC . Refer to: Front Controls Interface Module (FCIM) - Vehicles With: SYNC Without Touchscreen . Refer to: Front Controls Interface Module (FCIM) - Vehicles With: Touchscreen Display . Refer to: Front Controls Interface Module (FCIM) - Vehicles With: Sony Audio System .

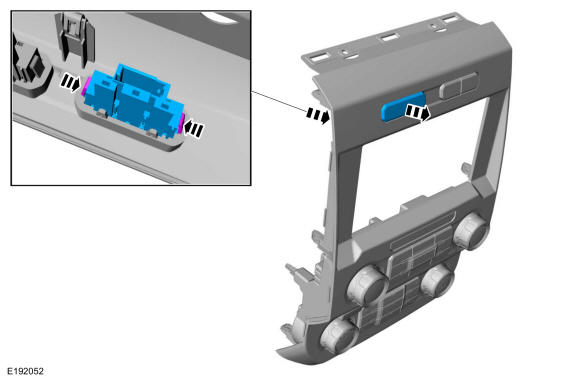

- Press the 2 tabs and remove the stability assist/traction control switch.
