Transmission Control Module (TCM): Installation

NOTE: Keep the TCM electrical connector straight when connecting it or damage the connector terminals can occur.

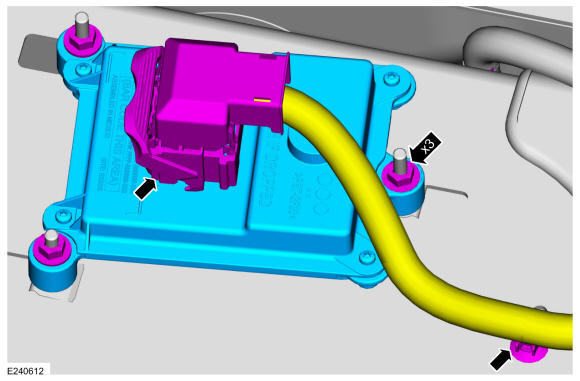

- Position the TCM in place and install the nuts.
  Torque: 80 lb.in (9 Nm)
- Connect the TCM electrical connector and slide the lock tab in to lock the connector.
- Attach the TCM wiring harness retainer.
Courtesy of FORD MOTOR COMPANY

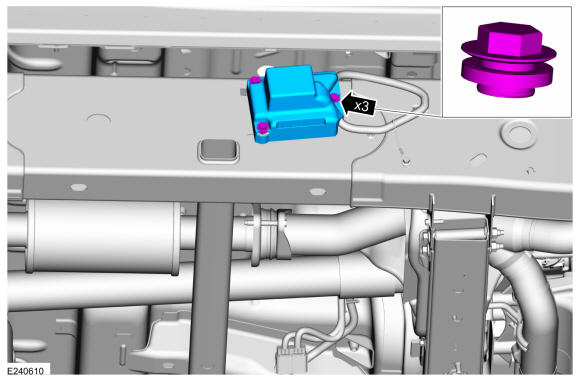

Install the TCM shield and retainers.

Courtesy of FORD MOTOR COMPANY
Restore the module configuration. Carry out the module configuration restore steps of the PMI procedure. Refer to: Module Programming .
Using the scan tool, download the solenoid body strategy. Refer to: Transmission Strategy Download .
