Engine Front Cover: Installation

WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    NOTE: Only use a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) to clean the engine front cover. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean front cover.

    Clean the engine front cover using a 3M™ Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15, 000 rpm.

    • Thoroughly wash the engine front cover to remove any foreign material, including any abrasive particles created during the cleaning process.

  1. 2.

    NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
    NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white part number 07528) to clean the sealing surfaces of engine block, cylinder heads, and oil pan. These tools can cause contamination that will cause premature engine failure. Remove all traces of the gasket.

    Clean the sealing surfaces of the cylinder heads, the cylinder block and the oil pan in the following sequence.

    1. 1.

      Remove any large deposits of silicone or gasket material.

    1. 2.

      Apply silicone gasket remover and allow to set for several minutes.

    1. 3.

      Remove the silicone gasket remover. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.

    1. 4.

      Apply metal surface prep to remove any remaining traces of oil or coolant and to prepare the surfaces to bond. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.

    1. 5.

      Make sure the 2 locating dowel pins are seated correctly in the cylinder block.

  1. 3.

    Install the Alignment Pins.
GFD87233Courtesy of FORD MOTOR COMPANY

  1. 4.

    NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The engine front cover and bolts 7, 8, 15, 17, 18, 21 and 22 must be installed within 4 minutes of the initial sealant application. The remainder of the engine front cover bolts must be installed and tightened within 35 minutes of the initial sealant application. If the time limits are exceeded, the sealant must be removed, the sealing area cleaned and sealant reapplied. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

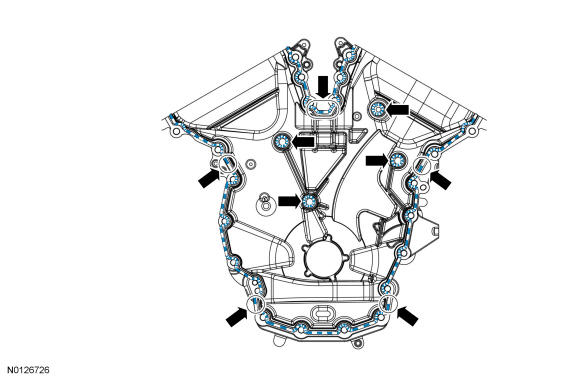

    Apply a 3.0 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover sealing surfaces including the 4 inner bolt bosses.

    • Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the oil pan-to-cylinder block joint and the cylinder head-to-cylinder block joint areas of the engine front cover in 5 places as indicated.
GFD87234Courtesy of FORD MOTOR COMPANY

  1. 5.

    NOTE: Make sure the 2 locating dowel pins are seated correctly in the cylinder block.

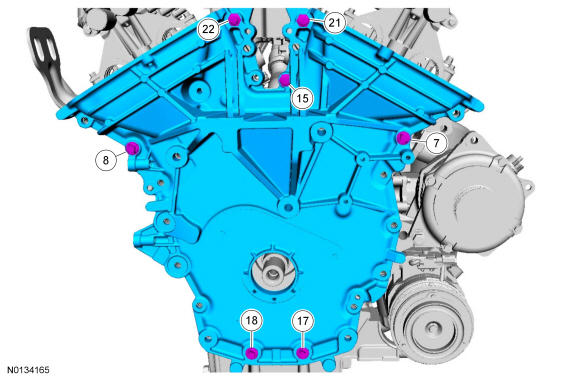

    Install the engine front cover and bolts 7, 8, 15, 17, 18, 21 and 22.

    • Tighten in sequence to 3 Nm (27 lb-in).
Fig 1: Engine Front Cover Bolts Tightening Sequence
GFD87235Courtesy of FORD MOTOR COMPANY

  1. 6.

    Remove the Alignment Pins.
GFD87236Courtesy of FORD MOTOR COMPANY

  1. 7.

    NOTE: Do not tighten the bolt at this time.

    Install the M6 engine front cover bolt.

GFD87231Courtesy of FORD MOTOR COMPANY

  1. 8.

    NOTE: Do not tighten the bolts at this time.

    Install the 2 upper M10 engine front cover bolts.

GFD87229Courtesy of FORD MOTOR COMPANY

  1. 9.

    NOTE: Do not allow the A/C compressor to contact the subframe. Failure to follow this direction may result in damage to the A/C compressor.
    NOTE: Do not tighten the bolt at this time.

    Using the floor jack, lower the engine to allow installation of the lower M10 engine front cover bolt.

    • Install the lower M10 engine front cover bolt.
GFD87228Courtesy of FORD MOTOR COMPANY

  1. 10.

    NOTE: Do not expose the Motorcraft® High Performance Engine RTV Silicone to engine oil for at least 90 minutes after installing the engine front cover. Failure to follow this instruction may cause oil leakage.

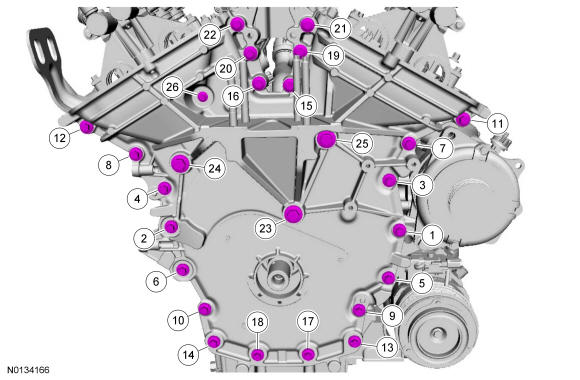

    Install the remaining engine front cover bolts. Tighten all of the engine front cover bolts in the sequence shown in illustration in 7 stages:

    • Stage 1: Tighten bolts 1 thru 22 to 10 Nm (89 lb-in).
    • Stage 2: Tighten bolts 23, 24 and 25 to 15 Nm (133 lb-in).
    • Stage 3: Tighten bolt 26 to 10 Nm (89 lb-in).
    • Stage 4: Loosen bolt 26 one full turn.
    • Stage 5: Tighten bolts 23, 24 and 25 to 30 Nm (22 lb-ft) plus an additional 90 degrees.
    • Stage 6: Tighten bolts 1 thru 22 to 20 Nm (177 lb-in) plus an additional 45 degrees.
    • Stage 7: Tighten bolt 26 to 10 Nm (89 lb-in) plus an additional 45 degrees.
Fig 2: Engine Front Cover Bolts With Tightening Sequence
GFD87237Courtesy of FORD MOTOR COMPANY

  1. 11.

    Install the engine mount bracket and the 2 bolts.
    • Tighten to 30 Nm (22 lb-ft).
GFD87227Courtesy of FORD MOTOR COMPANY

  1. 12.

    Use the floor jack to raise the engine to the installed position and install the engine mount and the 3 bolts.
    • Tighten to 90 Nm (66 lb-ft).
GFD87226Courtesy of FORD MOTOR COMPANY

  1. 13.

    Install the 4 engine mount nuts.
    • Tighten to 63 Nm (46 lb-ft).
GFD87225Courtesy of FORD MOTOR COMPANY

  1. 14.

    Install the engine mount brace, nut and bolt.
    • Tighten to 20 Nm (177 lb-in).
GFD87224Courtesy of FORD MOTOR COMPANY

  1. 15.

    NOTE: Apply clean engine oil to the crankshaft front seal bore in the engine front cover.

    Using the Front Crankshaft Seal Installer and Crankshaft Vibration Damper Installer, install a new crankshaft front seal.

GFD87199Courtesy of FORD MOTOR COMPANY

  1. 16.

    NOTE: Lubricate the outside diameter sealing surfaces and crankshaft front seal inner lip with clean engine oil.

    Using the Front Cover Oil Seal Installer and Crankshaft Vibration Damper Replacer, install the crankshaft pulley.

GFD87205Courtesy of FORD MOTOR COMPANY

  1. 17.

    Using the strap wrench, install the crankshaft pulley washer and new bolt and tighten in 4 stages.
    • Stage 1: Tighten to 120 Nm (89 lb-ft).
    • Stage 2: Loosen one full turn.
    • Stage 3: Tighten to 50 Nm (37 lb-ft).
    • Stage 4: Tighten an additional 90 degrees.
GFD87206Courtesy of FORD MOTOR COMPANY

  1. 18.

    Install the RH inner fender splash shield. For additional information, refer to Front End Body Panels .

  1. 19.

    Install the 3 accessory drive shield scrivets to the subframe.
GFD87221Courtesy of FORD MOTOR COMPANY

  1. 20.

    Install the RF wheel and tire. For additional information, refer to Wheels and Tires .

  1. 21.

    Position the generator and install the stud and nut.
    • Tighten the stud to 8 Nm (71 lb-in).
    • Tighten the nut to 47 Nm (35 lb-ft).
    • Tighten the bolt to 47 Nm (35 lb-ft).
GFD87238Courtesy of FORD MOTOR COMPANY

  1. 22.

    Install the LH and RH valve covers. For additional information, refer to Valve Cover - LH  and Valve Cover - RH .

  1. 23.

    Install the fuel tube-to-engine front cover bolt.
    • Tighten the bolt to 10 Nm (89 lb-in).
GFD87219Courtesy of FORD MOTOR COMPANY

  1. 24.

    Using a new O-ring seal, connect the A/C pressure tube fitting and install the nut.
    • Tighten to 8 Nm (71 lb-in).
GFD87218Courtesy of FORD MOTOR COMPANY

  1. 25.

    Install the degas bottle. For additional information, refer to Engine Cooling .

  1. 26.

    Connect the coolant hose to the coolant inlet pipe.
    • Remove the hose clamp pliers.
GFD87239Courtesy of FORD MOTOR COMPANY

  1. 27.

    If equipped, install the underbody shield and attach the 4 retainers.
GFD87201Courtesy of FORD MOTOR COMPANY

  1. 28.

    Install the accessory drive belt and the tensioner. For additional information, refer to Accessory Drive .

  1. 29.

    Install the engine ACL outlet pipe. For additional information, refer to Intake Air Distribution And Filtering System .

  1. 30.

    NOTE: Do not expose the Motorcraft® High Performance Engine RTV Silicone to engine oil for at least 90 minutes after installing the engine front cover. Failure to follow this instruction may cause oil leakage.

    Fill the engine with clean engine oil.

  1. 31.

    Connect the battery ground cable. For additional information, refer to Battery, Mounting and Cables .

  1. 32.

    Fill the cooling system. Refer to Engine Cooling .

  1. 33.

    Evacuate and recharge the A/C system. For additional information, refer to Climate Control System - General Information and Diagnostics .

  1. 34.

    After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure following the on-screen instructions.
