Timing Drive Components: Removal

All engines

1. 1.

   Remove the engine front cover. For additional information, refer to Engine Front Cover .

1. 2.

   Rotate the crankshaft clockwise and align the timing marks on the intake Variable Camshaft Timing (VCT) assemblies as shown in illustration.

Courtesy of FORD MOTOR COMPANY

1. 3.

   Remove the 3 bolts and the LH valve train oil tube.

Courtesy of FORD MOTOR COMPANY

1. 4.


   NOTE: The Camshaft Holding Tool will hold the camshafts in the Top Dead Center (TDC) position.

   Install the Camshaft Holding Tool onto the flats of the LH camshafts.

Courtesy of FORD MOTOR COMPANY

1. 5.

   Remove the 3 bolts and the RH valve train oil tube.

Courtesy of FORD MOTOR COMPANY

1. 6.


   NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

   Install the Camshaft Holding Tool onto the flats of the RH camshafts.

Courtesy of FORD MOTOR COMPANY

1. 7.

   Mark the timing chain link that aligns with the timing mark on the LH intake VCT assembly as shown in illustration.

Courtesy of FORD MOTOR COMPANY

1. 8.

   Mark the timing chain link that aligns with the timing mark on the RH intake VCT assembly as shown in illustration.

Courtesy of FORD MOTOR COMPANY

1. 9.


   NOTE: The crankshaft sprocket timing mark should be between the 2 colored links.

   Mark the 2 timing chain links that align with the timing mark on the crankshaft sprocket as shown in illustration.

Courtesy of FORD MOTOR COMPANY

Early build vehicles

1. 10.

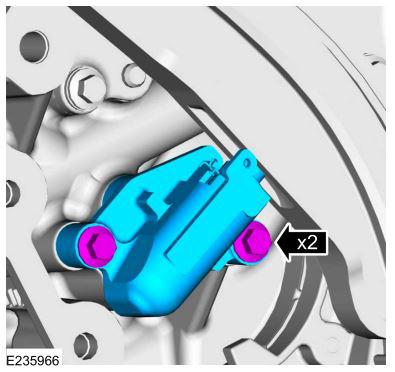

   Remove the 2 bolts and the primary timing chain tensioner.

Courtesy of FORD MOTOR COMPANY

Late build engines

1. 11.

   Remove the 2 bolts and the primary timing chain tensioner.

Courtesy of FORD MOTOR COMPANY

All engines

1. 12.

   Remove the primary timing chain tensioner arm.

Courtesy of FORD MOTOR COMPANY

1. 13.

   Remove the 2 bolts and the lower LH primary timing chain guide.

Courtesy of FORD MOTOR COMPANY

1. 14.


   NOTE: Removal of the VCT oil control solenoid will aid in the removal of the primary timing chain.
   NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.
   NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

   Remove the bolt and the LH intake VCT oil control solenoid.

Courtesy of FORD MOTOR COMPANY

1. 15.


   NOTE: Removal of the VCT oil control solenoid will aid in the removal of the primary timing chain.
   NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.
   NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

   Remove the bolt and the RH intake VCT oil control solenoid.

Courtesy of FORD MOTOR COMPANY

1. 16.

   Remove the primary timing chain.

Courtesy of FORD MOTOR COMPANY

1. 17.

   Remove the crankshaft timing chain sprocket.

Courtesy of FORD MOTOR COMPANY

1. 18.


   NOTE: Do not use power tools to remove the bolt or damage to the LH primary timing chain guide may occur.

   Remove the bolt and the upper LH primary timing chain guide.

Courtesy of FORD MOTOR COMPANY

1. 19.


   NOTE: The 2 VCT oil control solenoids are removed for clarity.
   NOTE: The Secondary Chain Hold Down is inserted through a hole in the top of the mega cap.

   Compress the LH secondary timing chain tensioner and install the Secondary Chain Hold Down in the hole on the rear of the secondary timing chain tensioner guide and let it hold against the mega cap to retain the tensioner in the collapsed position.

Courtesy of FORD MOTOR COMPANY

1. 20.

   Remove and discard the 2 LH VCT assembly bolts.

Courtesy of FORD MOTOR COMPANY

1. 21.

   Remove the 2 LH VCT assemblies and secondary timing chain.

Courtesy of FORD MOTOR COMPANY

1. 22.


   NOTE: The 2 VCT oil control solenoids are removed for clarity.
   NOTE: The Secondary Chain Hold Down is inserted through a hole in the top of the mega cap.

   Compress the RH secondary timing chain tensioner and install the Secondary Chain Hold Down in the hole on the rear of the secondary timing chain tensioner guide and let it hold against the mega cap to retain the tensioner in the collapsed position.

Courtesy of FORD MOTOR COMPANY

1. 23.

   Remove and discard the 2 RH VCT assembly bolts.

Courtesy of FORD MOTOR COMPANY

1. 24.

   Remove the 2 RH VCT assemblies and secondary timing chain.

Courtesy of FORD MOTOR COMPANY

1. 25.


   NOTE: Do not use power tools to remove the bolt or damage to the RH primary timing chain guide may occur.

   Remove the bolt and the RH primary timing chain guide.

Courtesy of FORD MOTOR COMPANY

Engines with secondary timing chain tensioner removed

1. 26.


   NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.
   NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

   Remove the LH exhaust VCT oil control solenoid.

Courtesy of FORD MOTOR COMPANY

1. 27.

   Remove the LH secondary timing chain tensioner shoe.

Courtesy of FORD MOTOR COMPANY

1. 28.

   Remove the LH secondary timing chain tensioner by pushing up from the bottom and remove.

Courtesy of FORD MOTOR COMPANY

1. 29.


   NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.
   NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

   Remove the RH exhaust VCT oil control solenoid.

Courtesy of FORD MOTOR COMPANY

1. 30.

   Remove the RH secondary timing chain tensioner shoe.

Courtesy of FORD MOTOR COMPANY

1. 31.

   Remove the RH secondary timing chain tensioner by pushing up from the bottom and remove.

Courtesy of FORD MOTOR COMPANY
