Upper Intake Manifold: Installation

WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.

1.

Using a new gasket, install the upper intake manifold and the 7 bolts.
- Tighten in the sequence shown in illustration in 2 stages.
  - Stage 1: Tighten to 10 Nm (89 lb-in).
  - Stage 2: Tighten an additional 45 degrees.

Fig 1: Upper Intake Manifold Bolts Tightening Sequence

GFD87338

Courtesy of FORD MOTOR COMPANY

2.

Install the upper intake manifold support bracket bolt.
- Tighten to 10 Nm (89 lb-in).

GFD87336

Courtesy of FORD MOTOR COMPANY

3.

Attach the 2 coolant tube retainers to the upper intake manifold.

GFD87335

Courtesy of FORD MOTOR COMPANY

4.

Connect the power brake booster vacuum supply hose and crankcase ventilation hose to the upper intake manifold.

GFD87334

Courtesy of FORD MOTOR COMPANY

5.

Connect the EVAP vapor tube to the EVAP canister vent solenoid. For additional information, refer to Fuel System - General Information .
- Attach the EVAP vapor tube to the 2 retainers.

GFD87333

Courtesy of FORD MOTOR COMPANY

6.

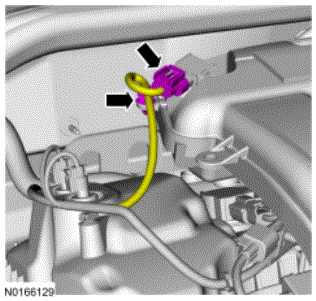

Connect the MAPT electrical connector.
- Attach the wiring harness pin-type retainer to the upper intake manifold.

G00562238

Courtesy of FORD MOTOR COMPANY

7.

Connect the EVAP canister vent solenoid and throttle body electrical connectors.
- Attach the wiring harness pin-type retainer to the upper intake manifold.

GFD87332

Courtesy of FORD MOTOR COMPANY

8.

Install the ACL outlet pipe. For additional information, refer to Intake Air Distribution And Filtering System .
