Master Window Control Switch

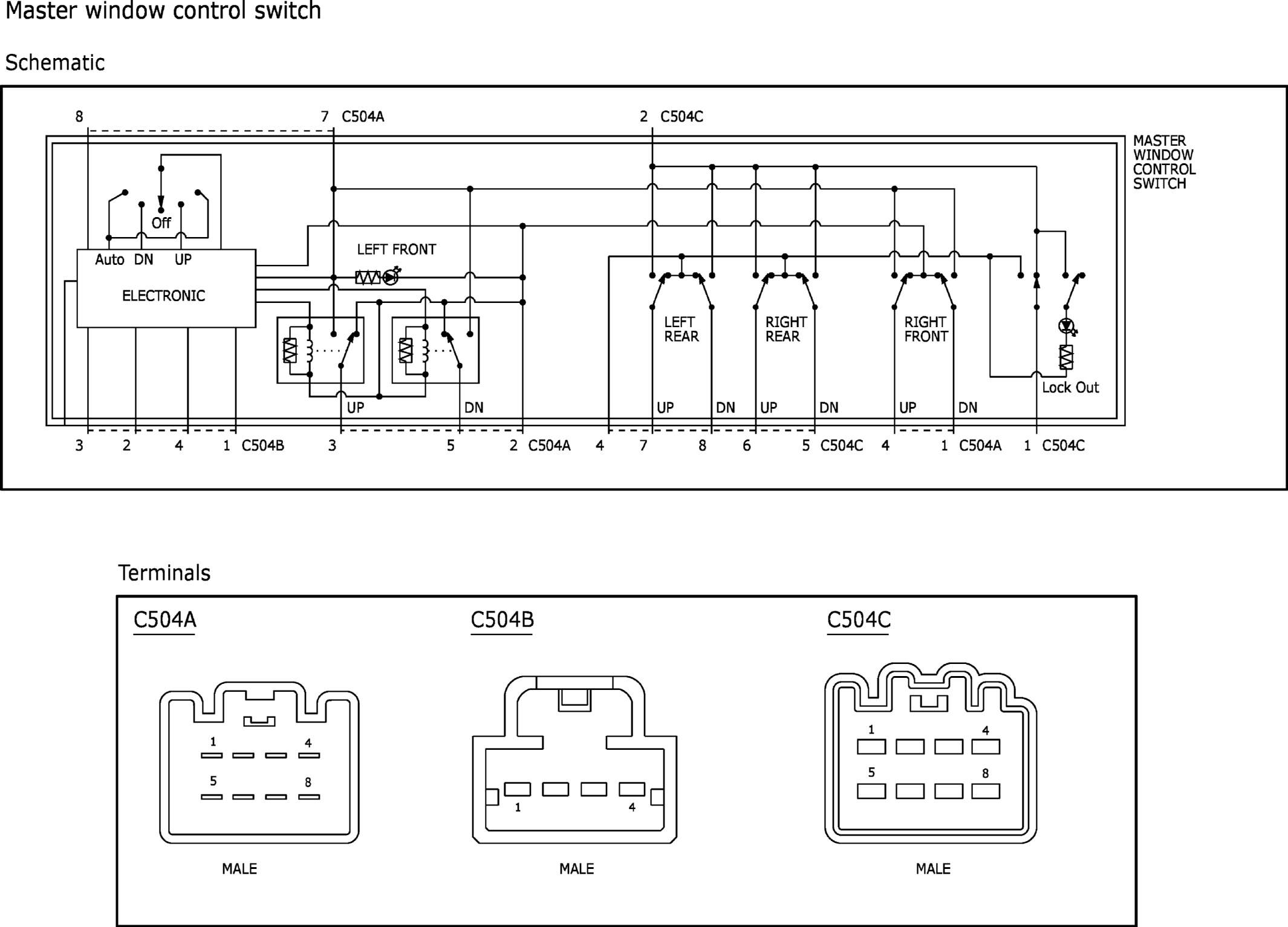

GFDW60993Courtesy of FORD MOTOR COMPANY

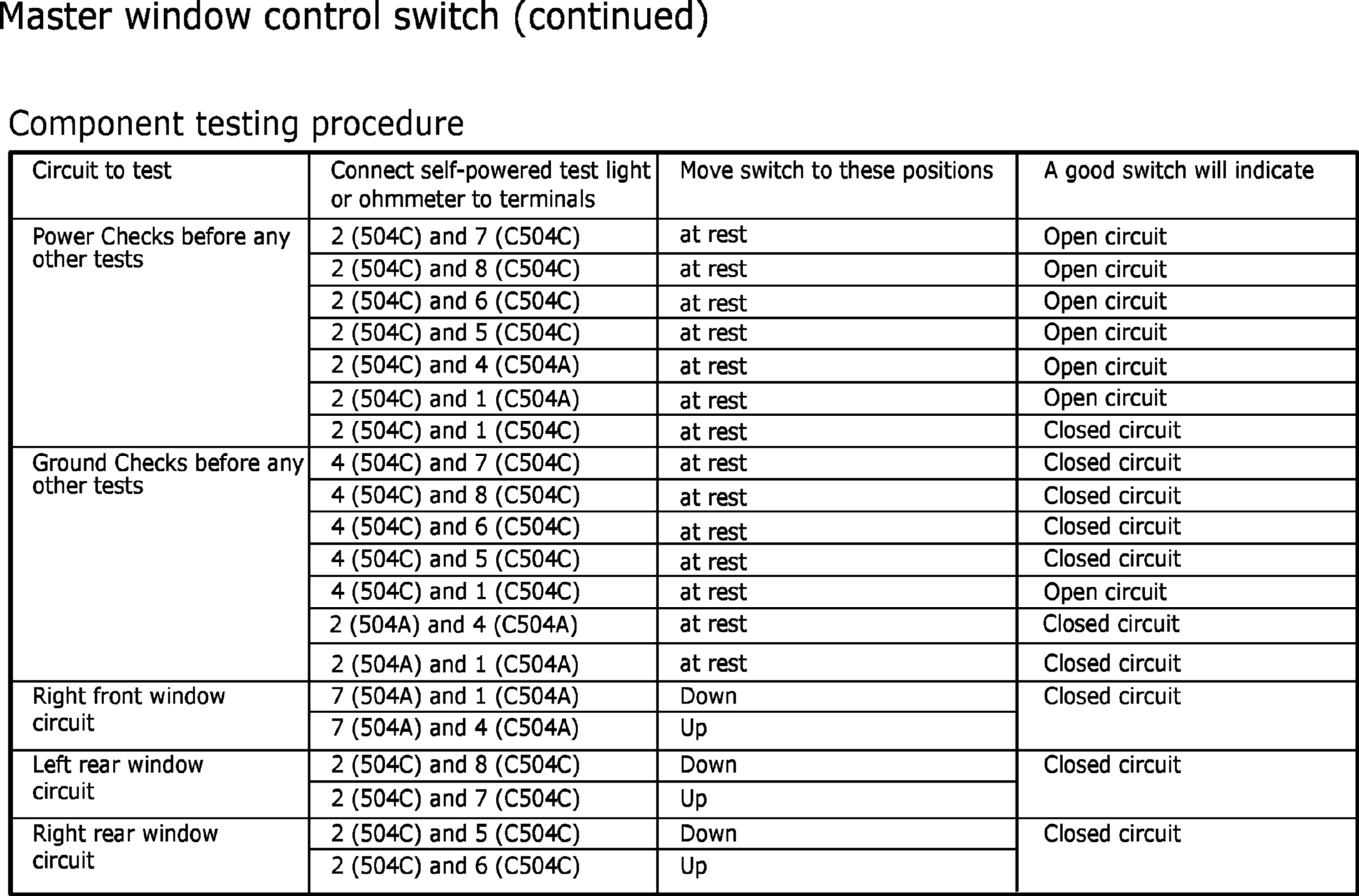

GFDW60994Courtesy of FORD MOTOR COMPANY
