Lumbar Assembly: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the front seat backrest cover. Refer to: Front Seat Backrest Cover .

2.

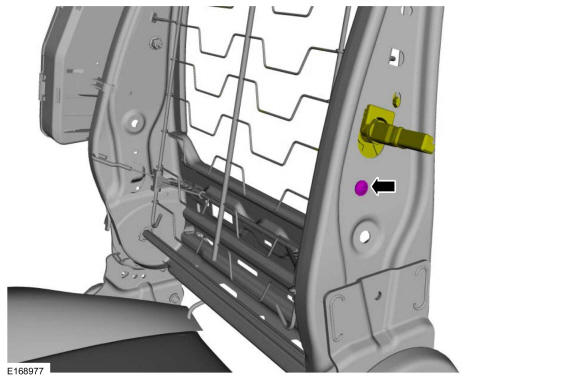

Remove the screw and position the lumbar actuator aside.
Torque: 31 lb.in (3.5 Nm)

GFD141631

Courtesy of FORD MOTOR COMPANY

3.

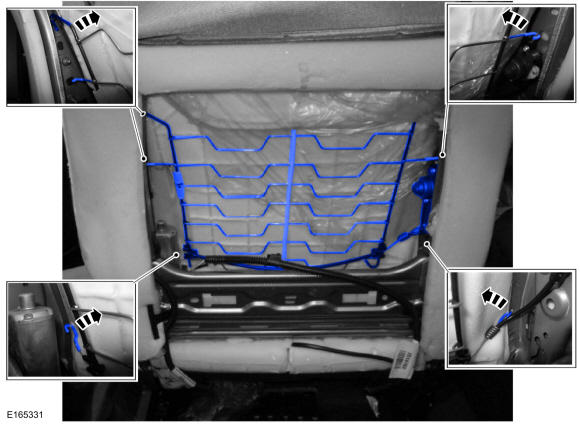

Detach the lumbar assembly J-hooks and remove the lumbar assembly.

GFD141632

Courtesy of FORD MOTOR COMPANY
