Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the wheel and tire.Refer to: Wheel and Tire .

2.

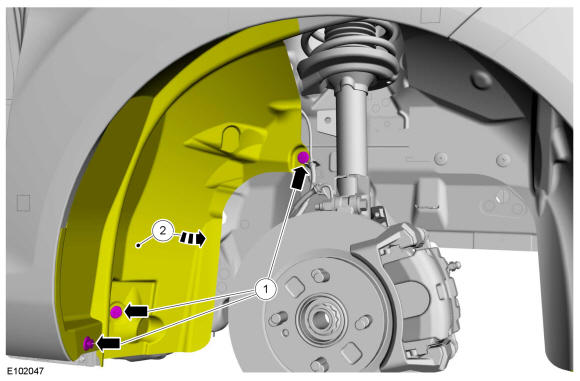

- 1.

  Remove the retainers.
- 2.

  Position aside the fender splash shield.

GFD138533

Courtesy of FORD MOTOR COMPANY

3.

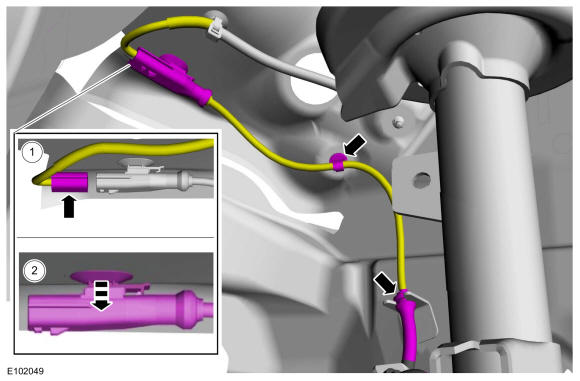

- Disconnect the front wheel speed sensor electrical connector.
- Detach the wiring retainers.

GFD138534

Courtesy of FORD MOTOR COMPANY

4.

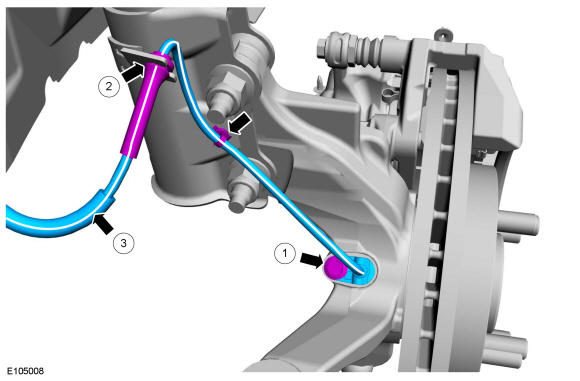

- 1.

  NOTE: Make sure that the sensor housing is clean and free of foreign material.

  Remove the bolt and detach the front wheel speed sensor from the wheel knuckle.

  Torque: 80 lb.in (9 Nm)
- 2.

  NOTE: Note the position of the component before removal.

  Detach the wiring retainers.
- 3.

  NOTE: Make sure the alignment line is not twisted during installation.

  Remove the front wheel speed sensor.

GFD138535

Courtesy of FORD MOTOR COMPANY
