Component Location Views

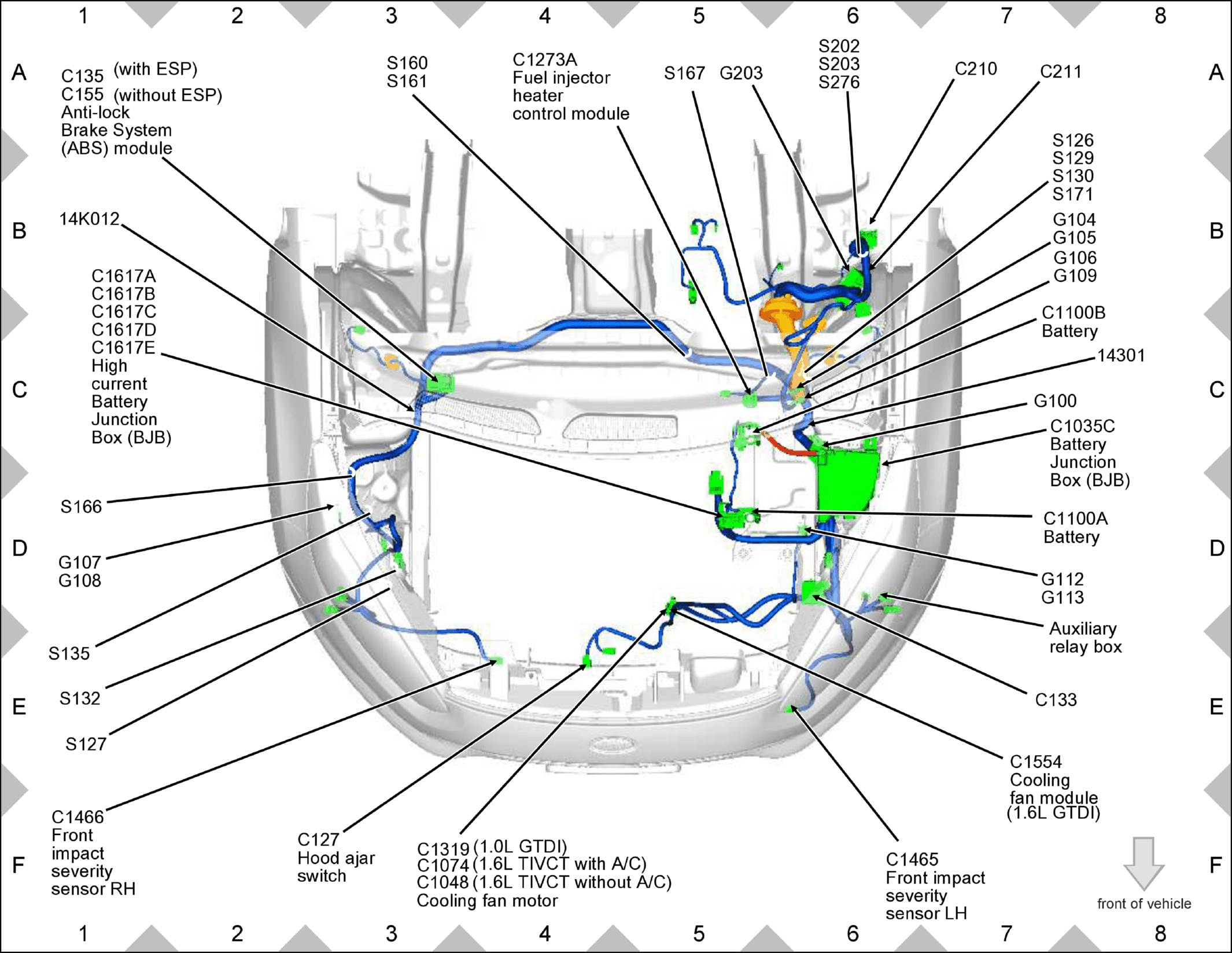

GFDW60381Courtesy of FORD MOTOR COMPANY

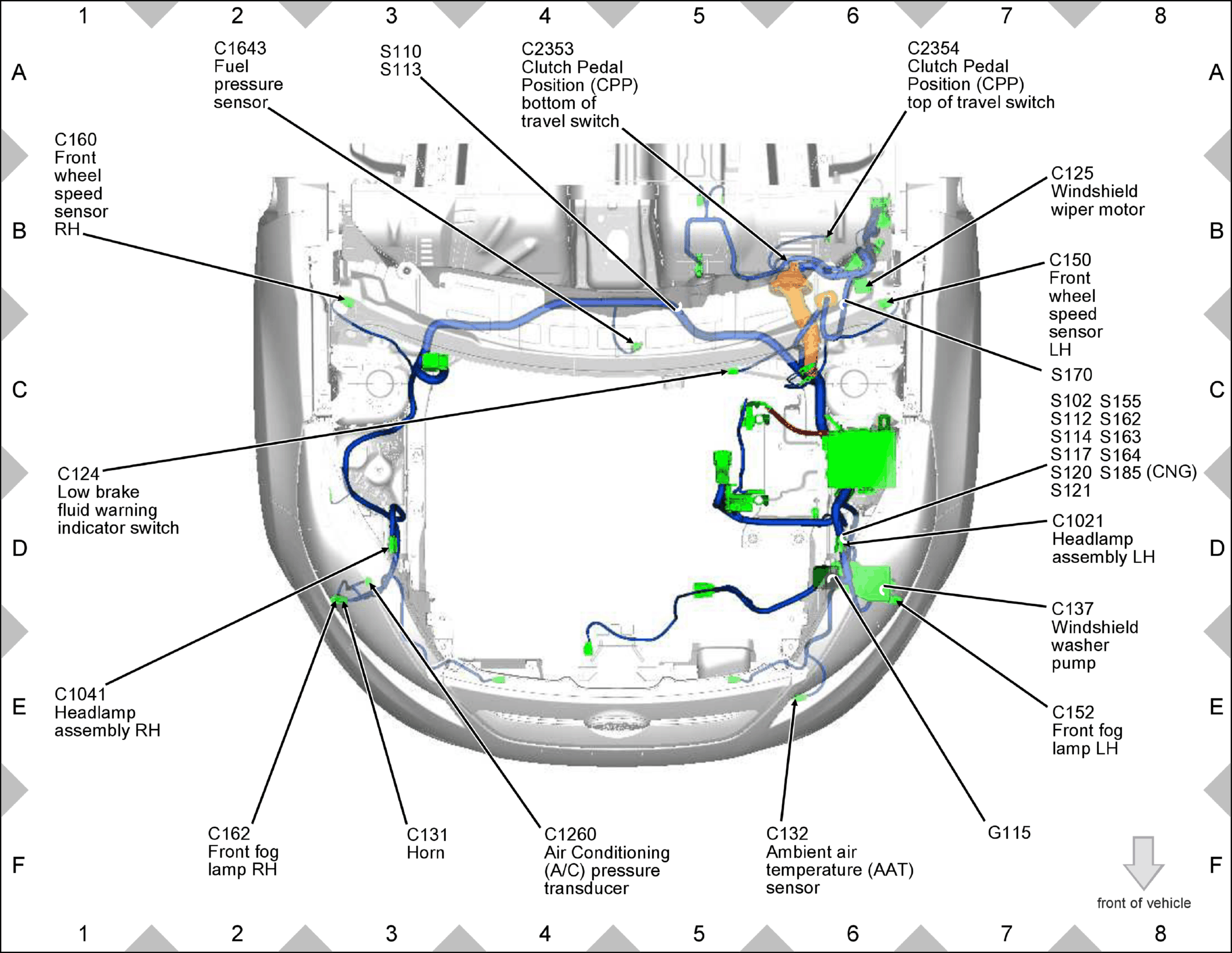

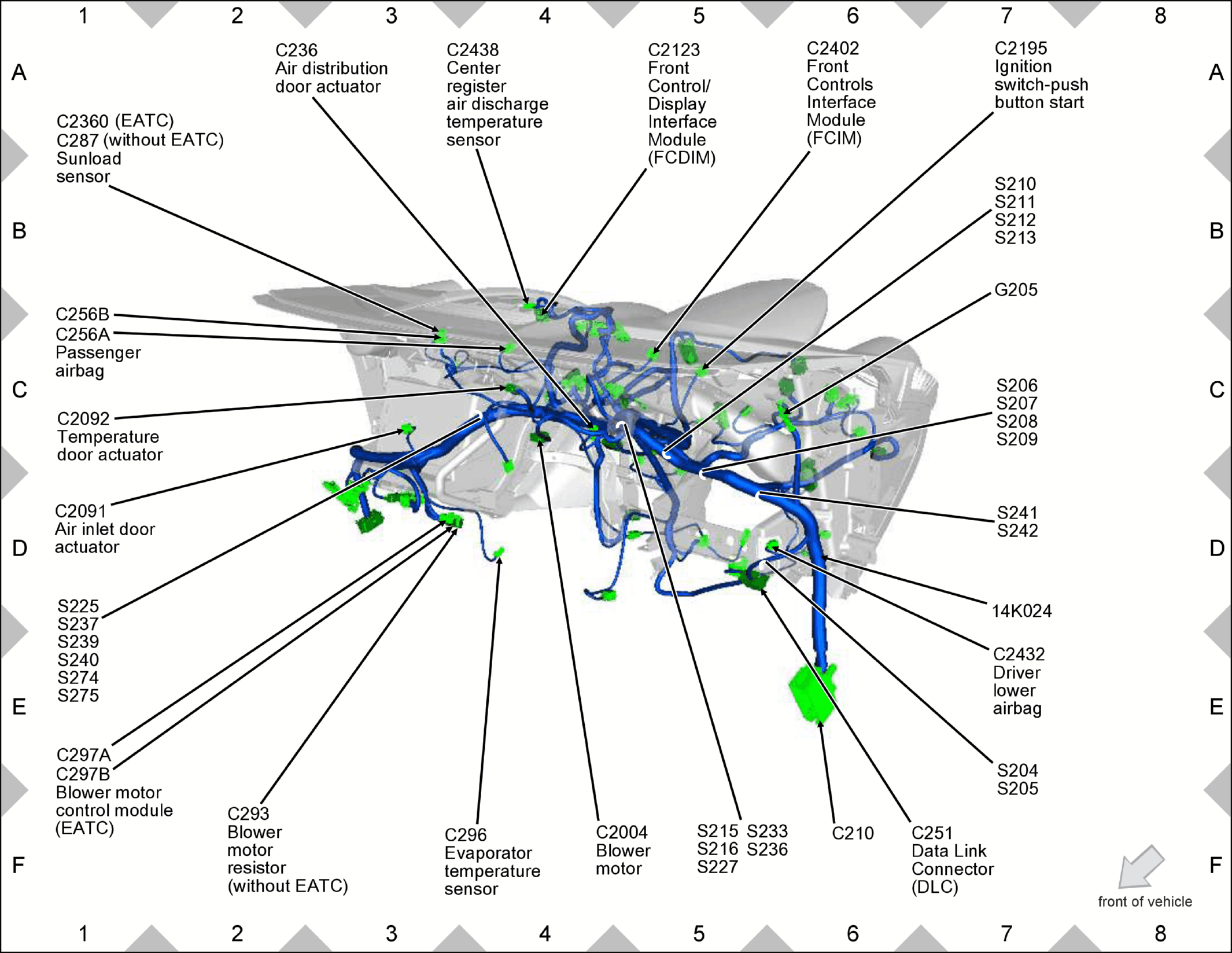

GFDW60382Courtesy of FORD MOTOR COMPANY

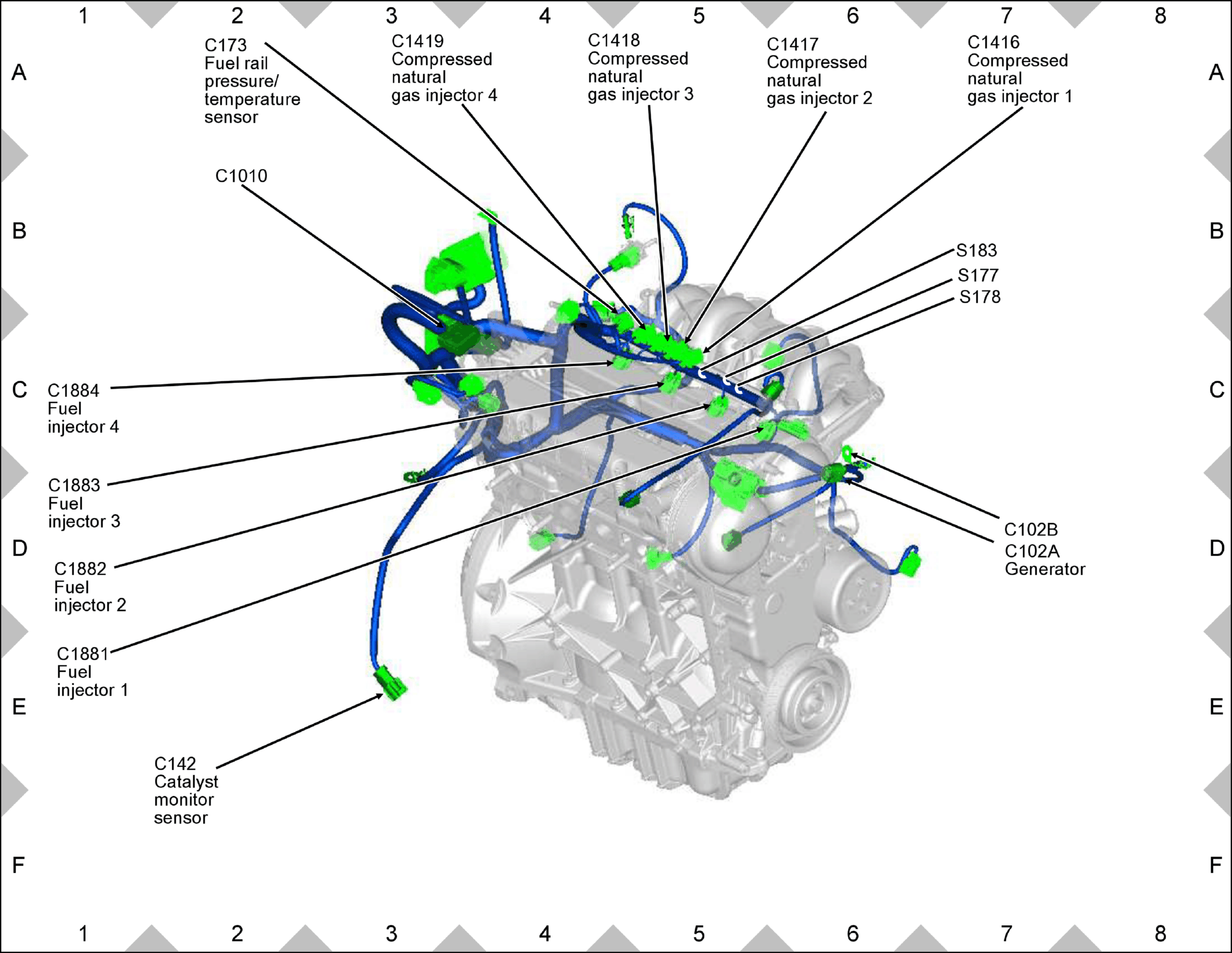

GFDW60383Courtesy of FORD MOTOR COMPANY

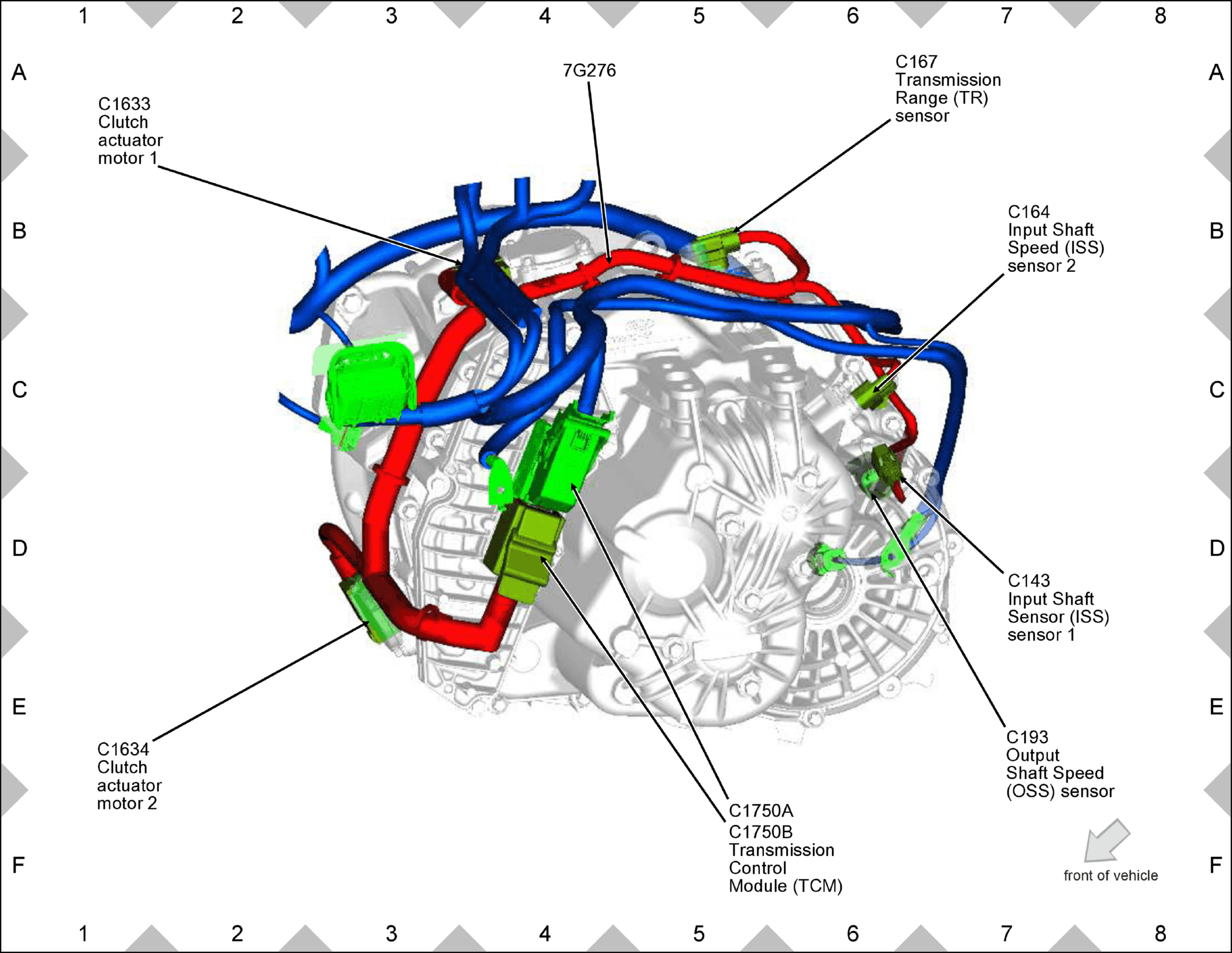

GFDW60384Courtesy of FORD MOTOR COMPANY
GFDW60385Courtesy of FORD MOTOR COMPANY

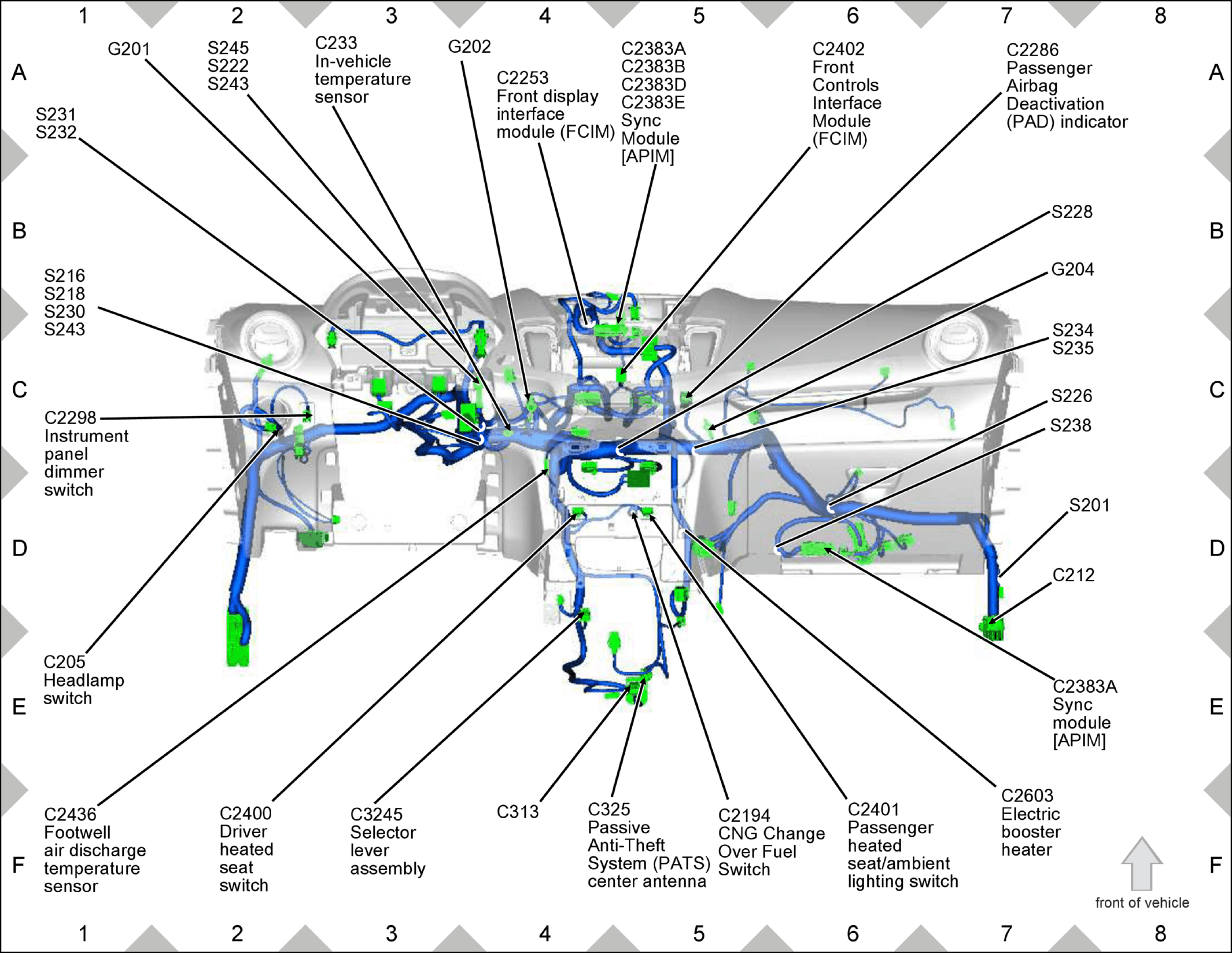

GFDW60386Courtesy of FORD MOTOR COMPANY

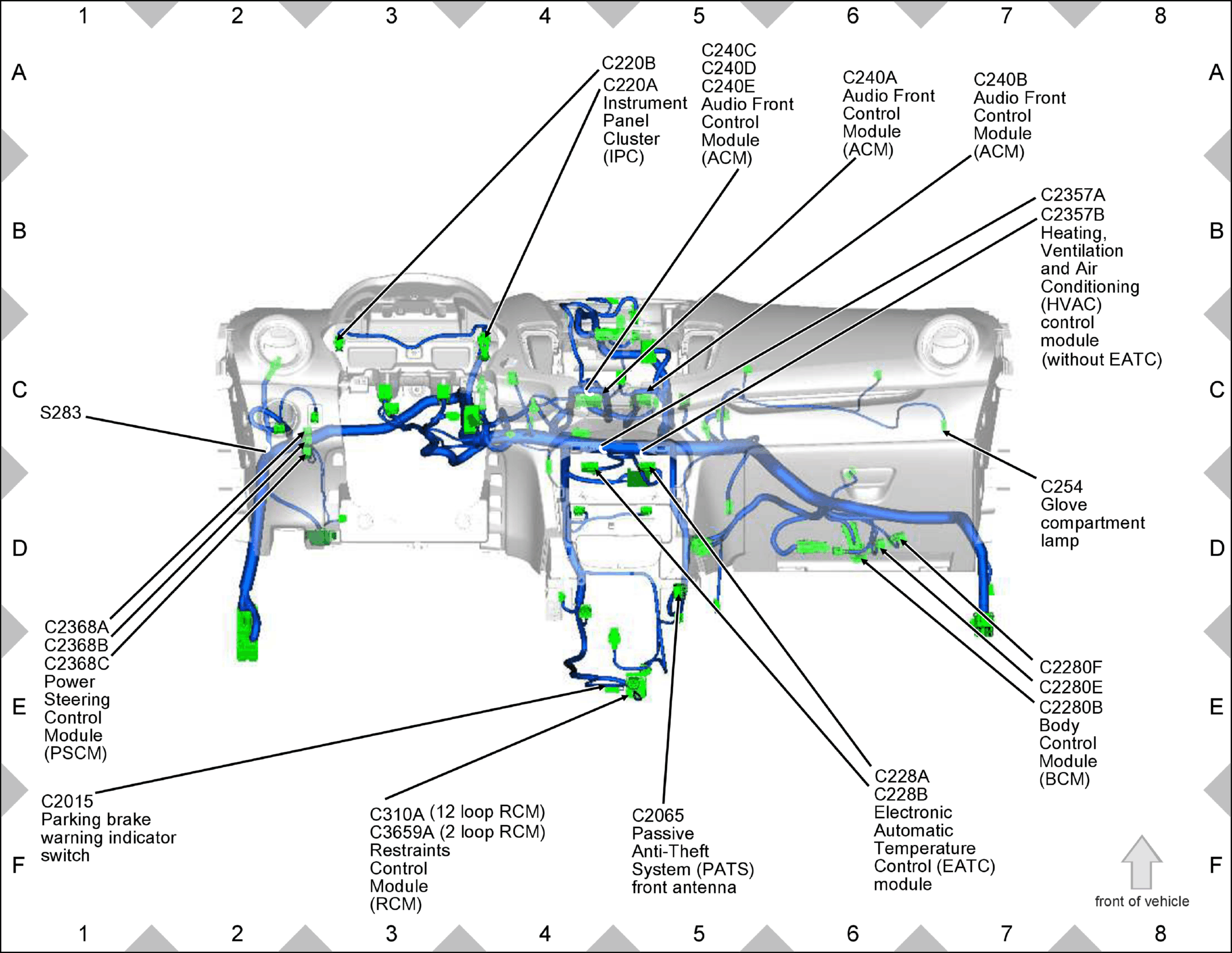

GFDW60387Courtesy of FORD MOTOR COMPANY

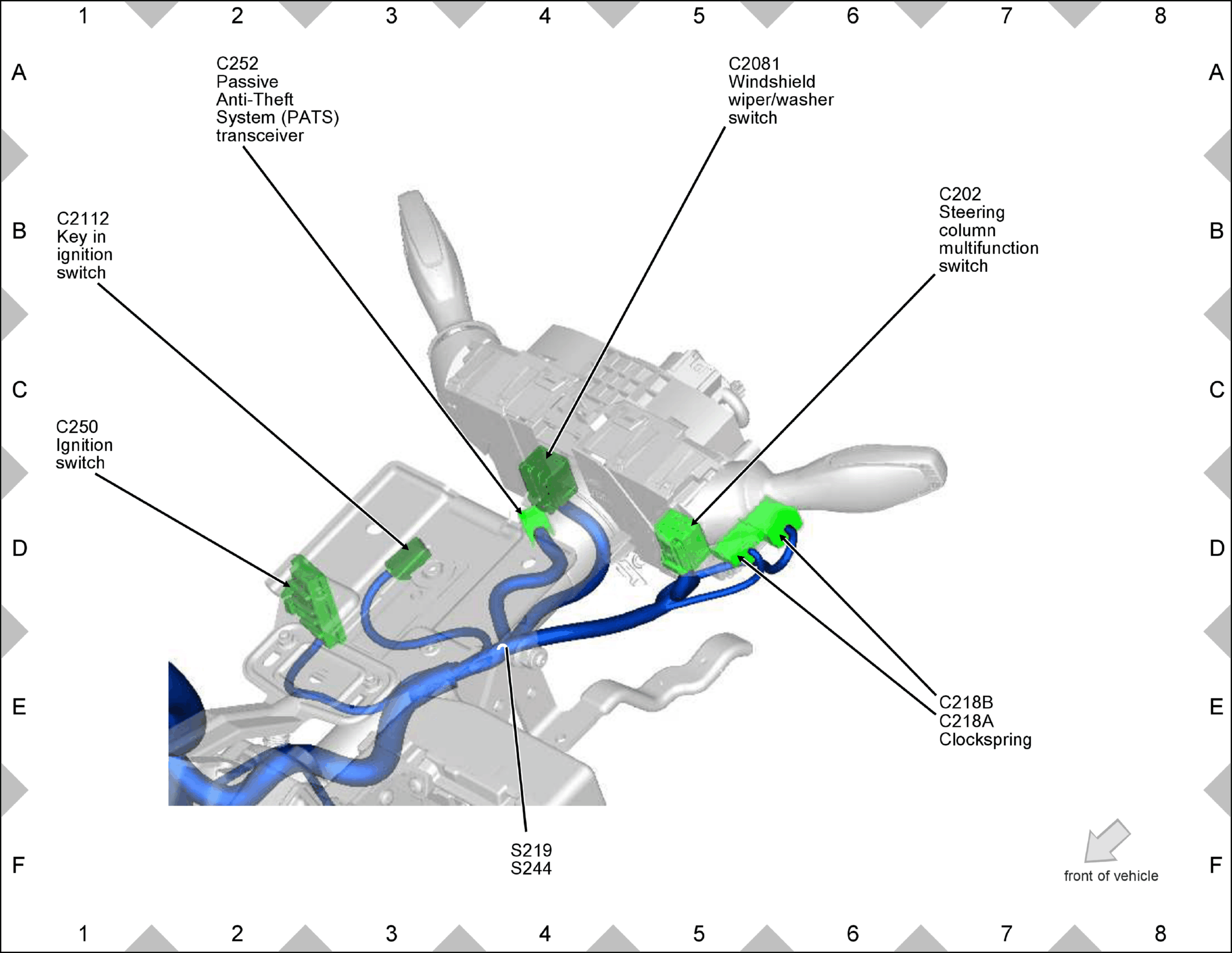

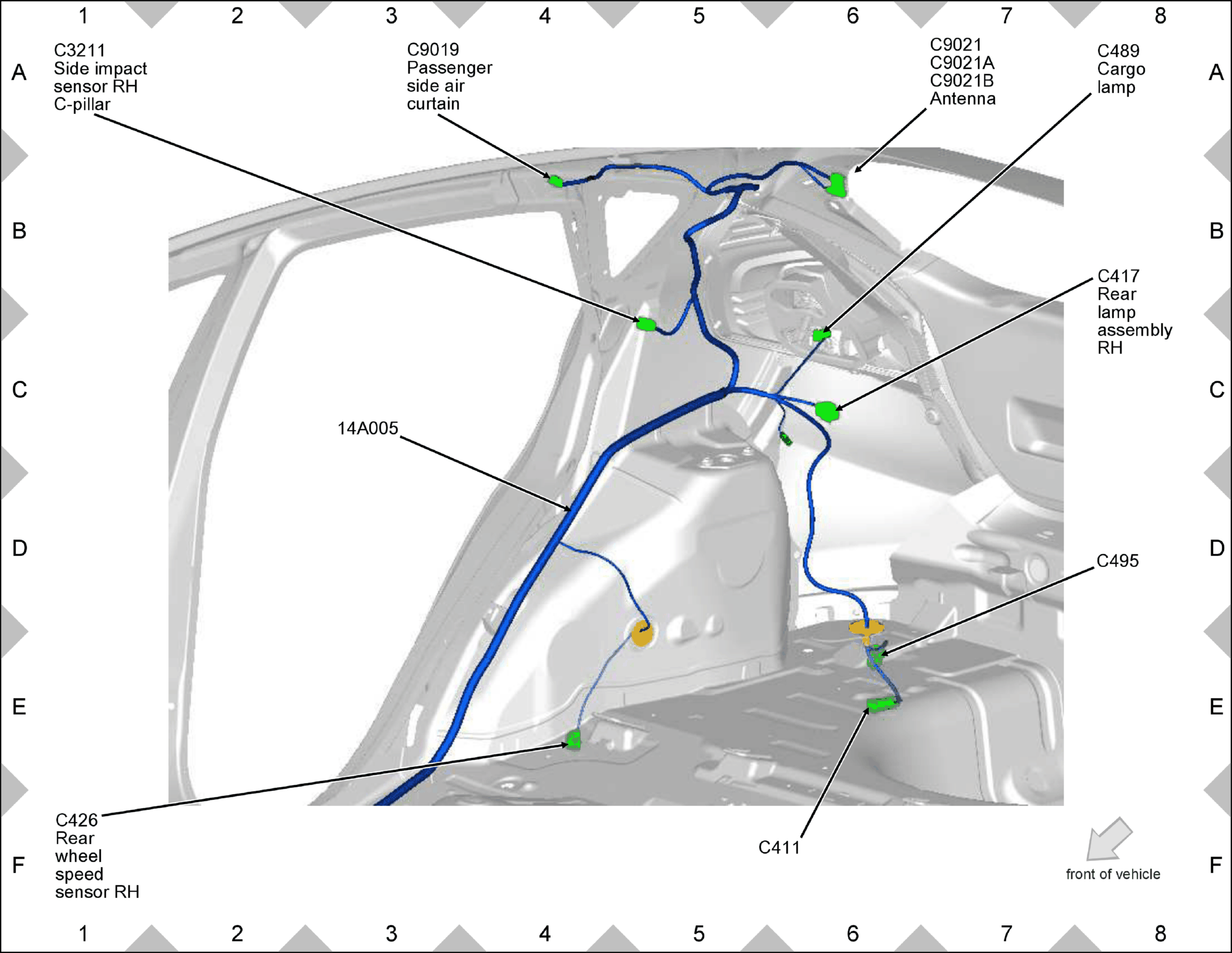

GFDW60388Courtesy of FORD MOTOR COMPANY

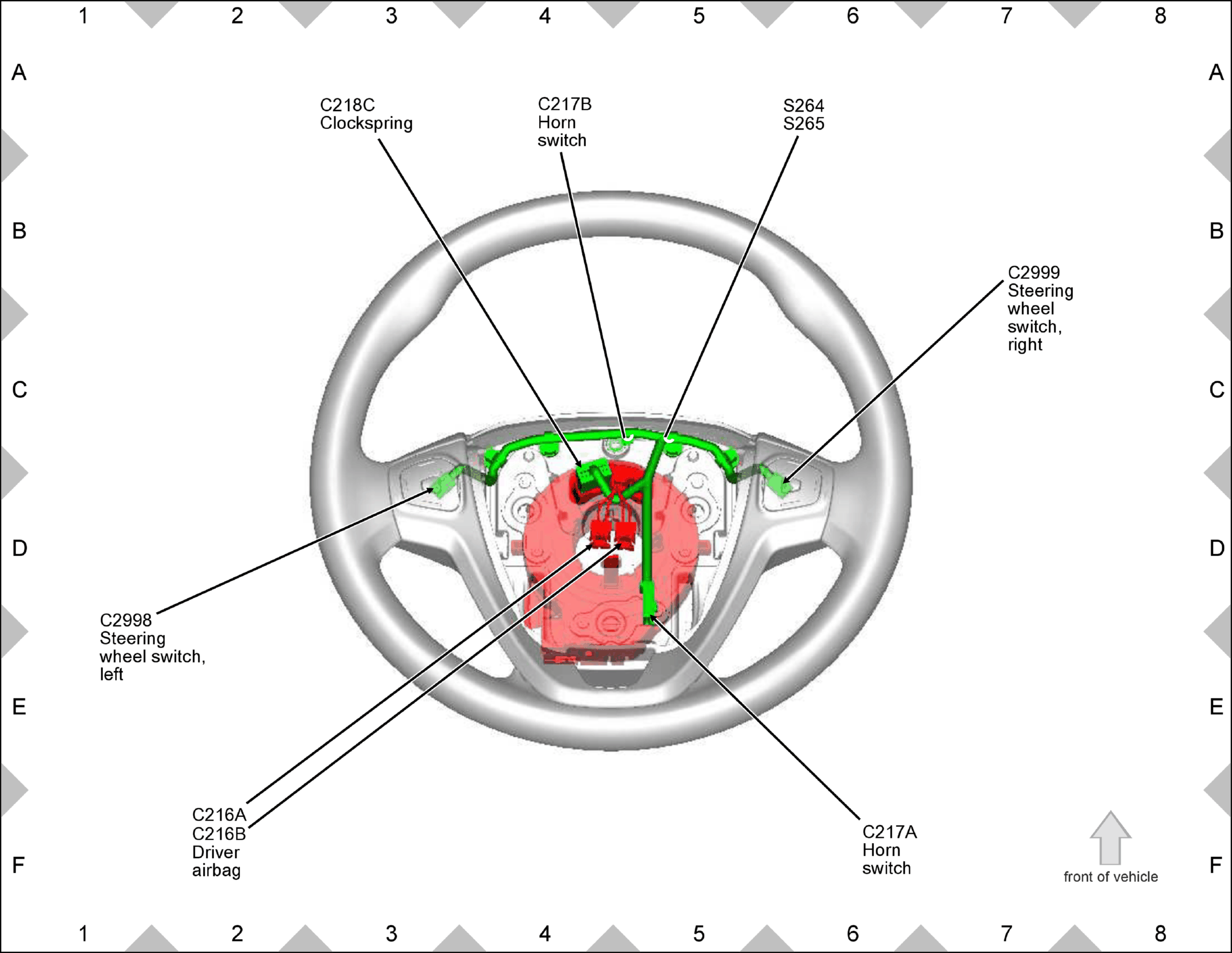

GFDW60389Courtesy of FORD MOTOR COMPANY

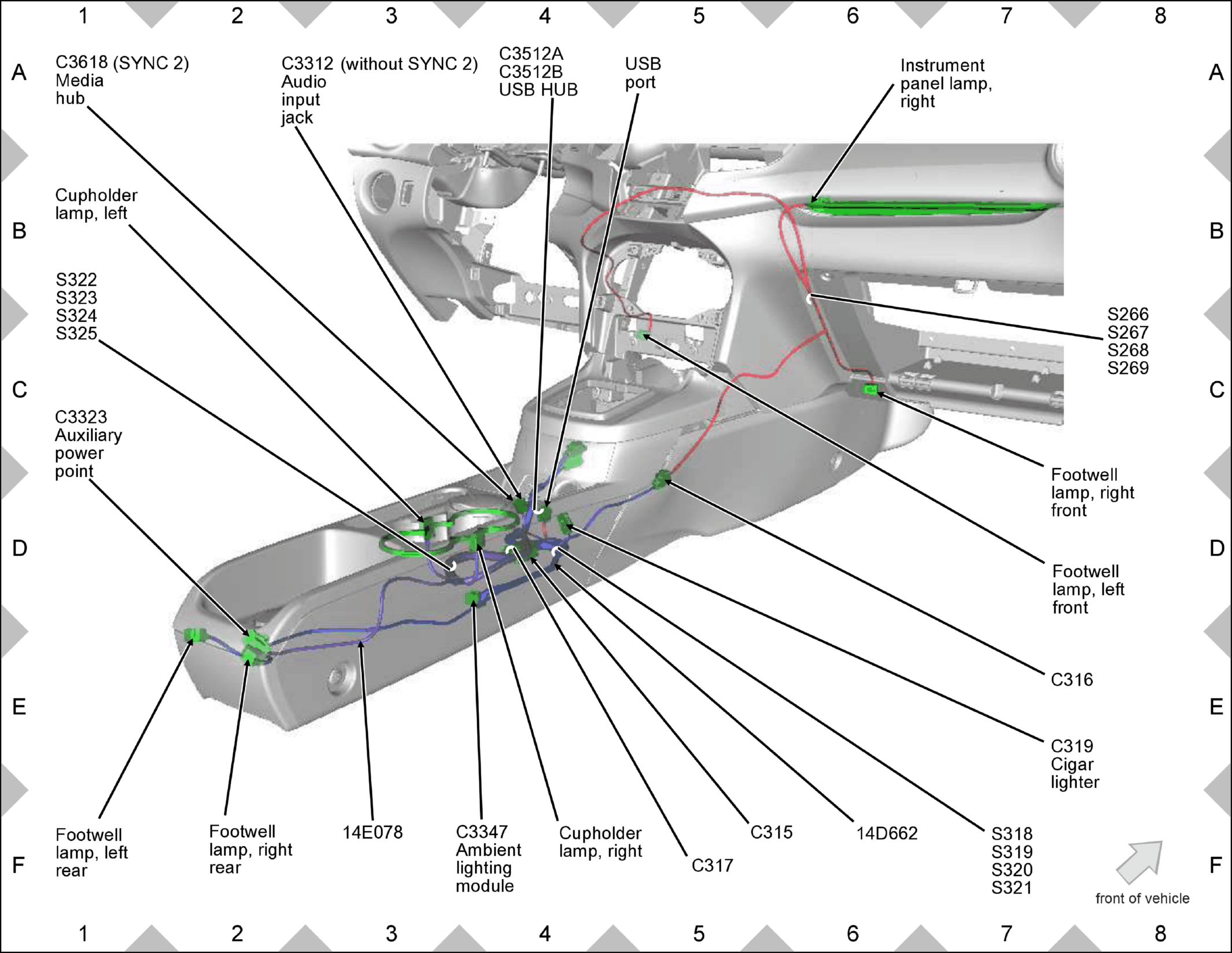

GFDW60390Courtesy of FORD MOTOR COMPANY

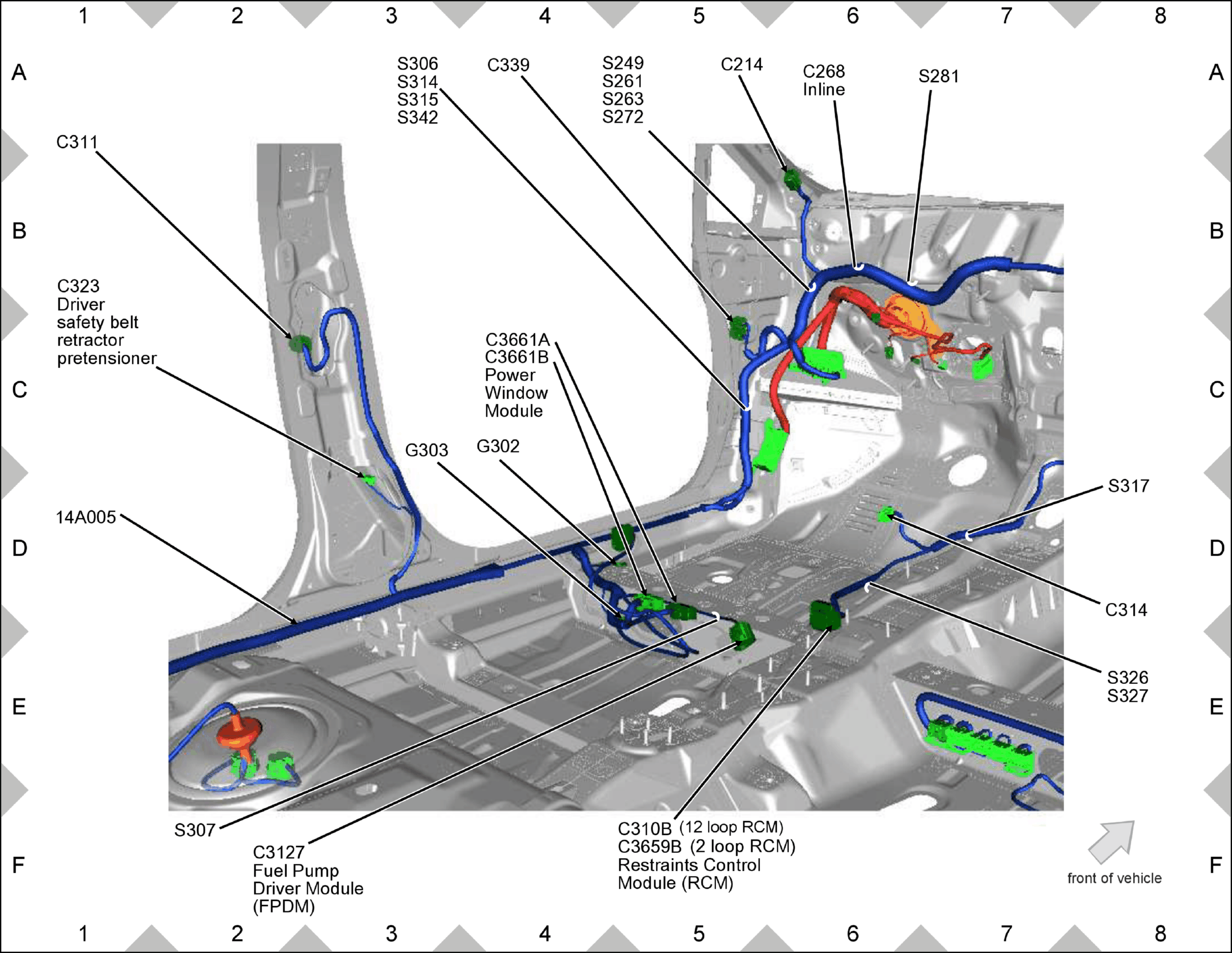

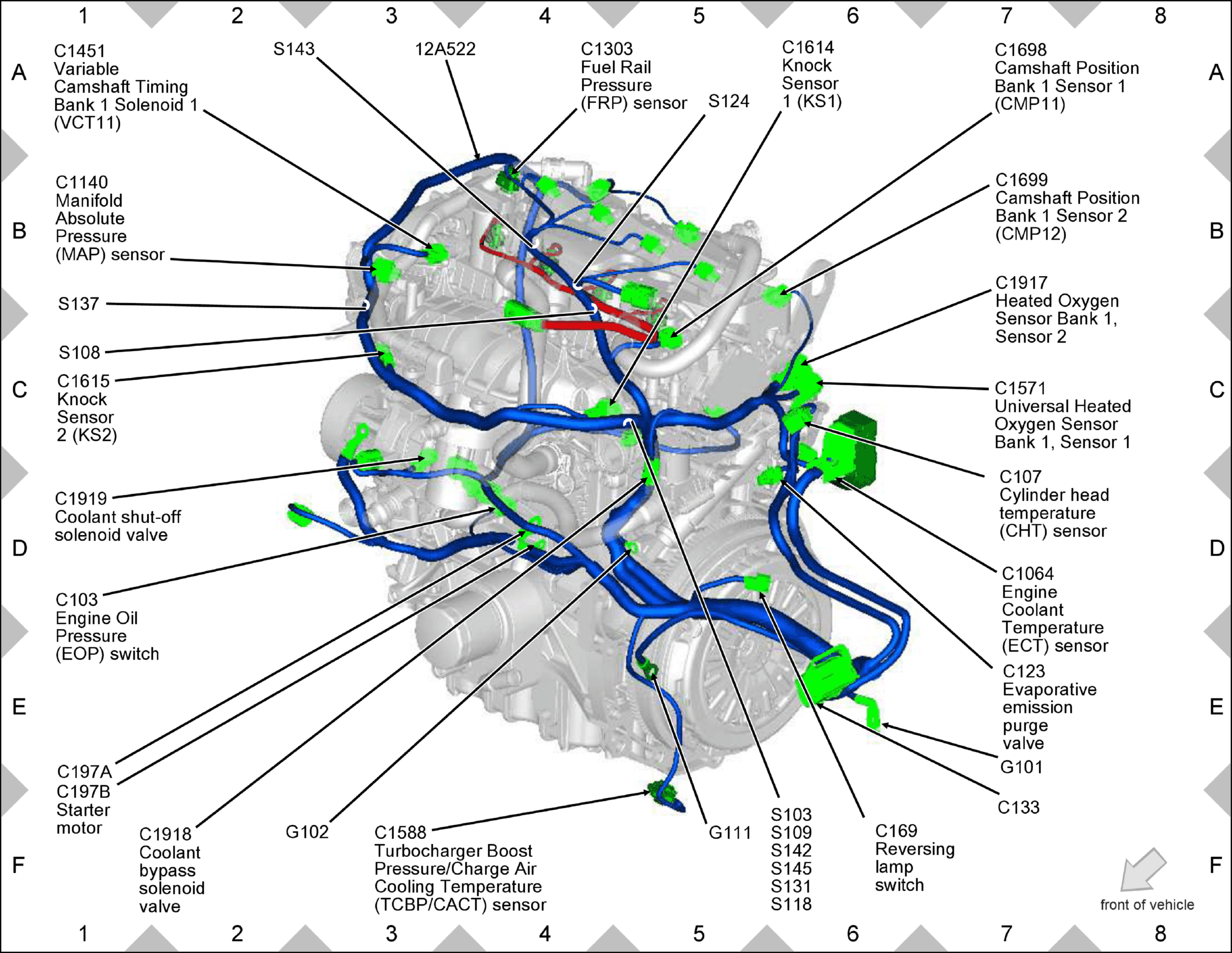

GFDW60391Courtesy of FORD MOTOR COMPANY

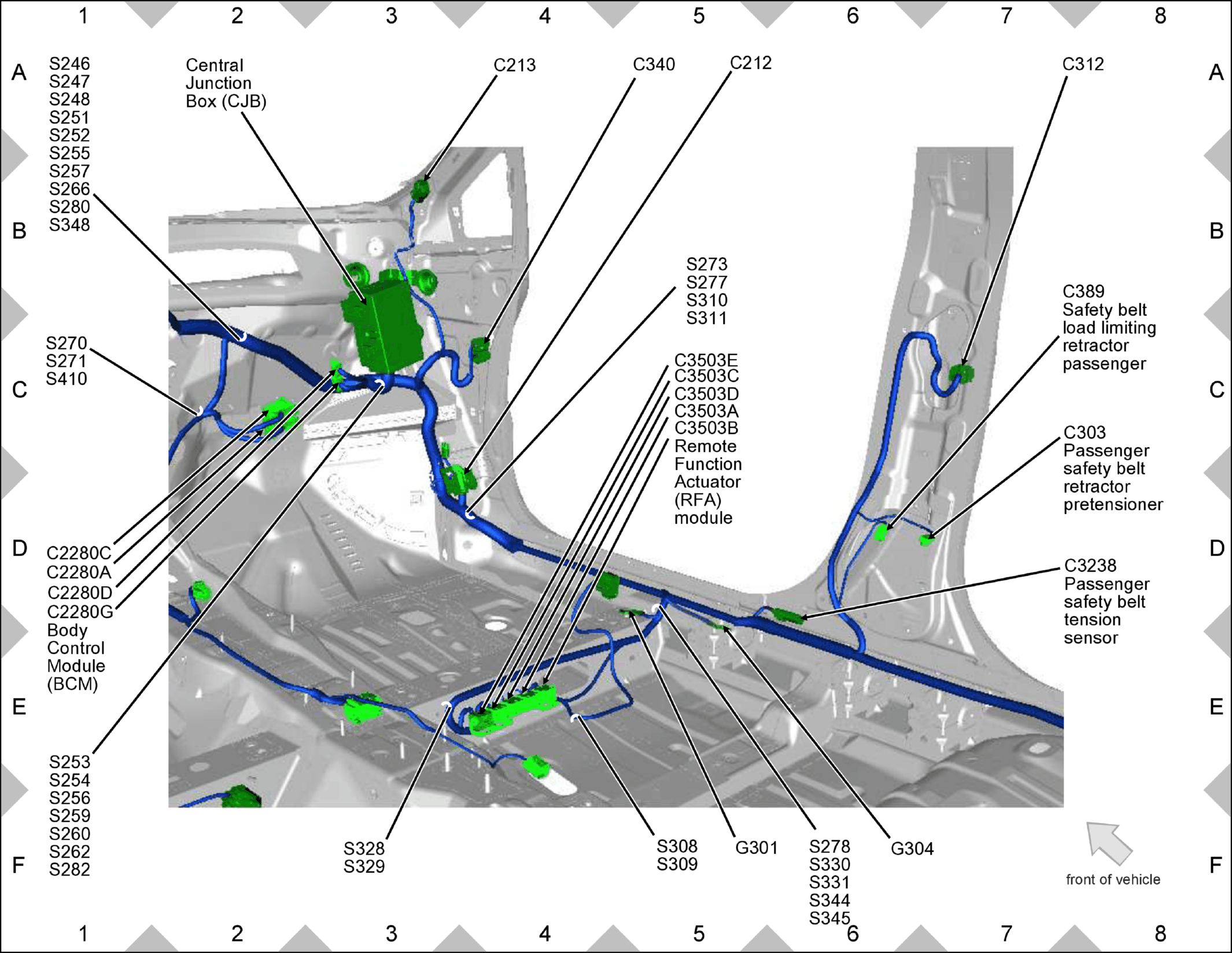

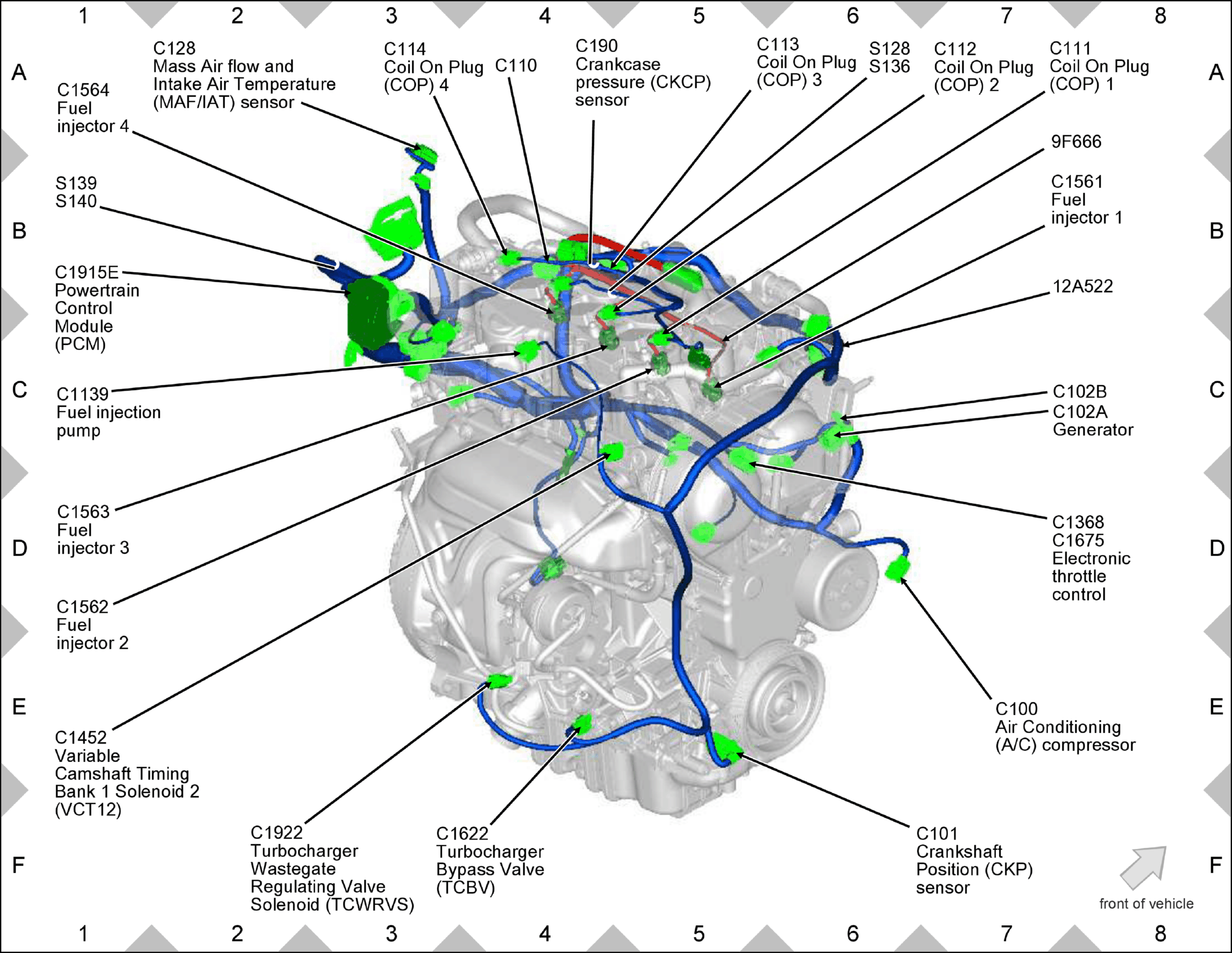

GFDW60392Courtesy of FORD MOTOR COMPANY

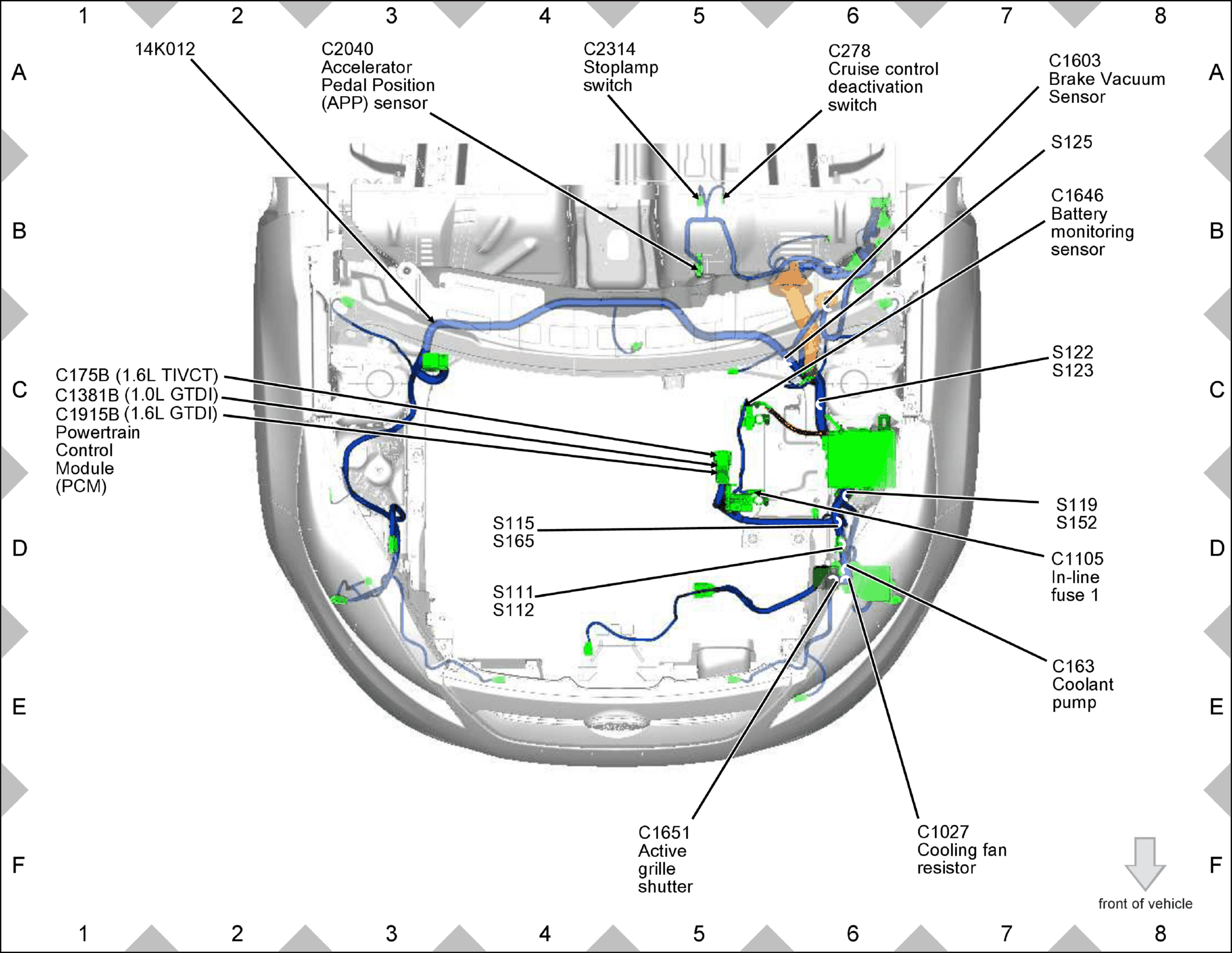

GFDW60393Courtesy of FORD MOTOR COMPANY

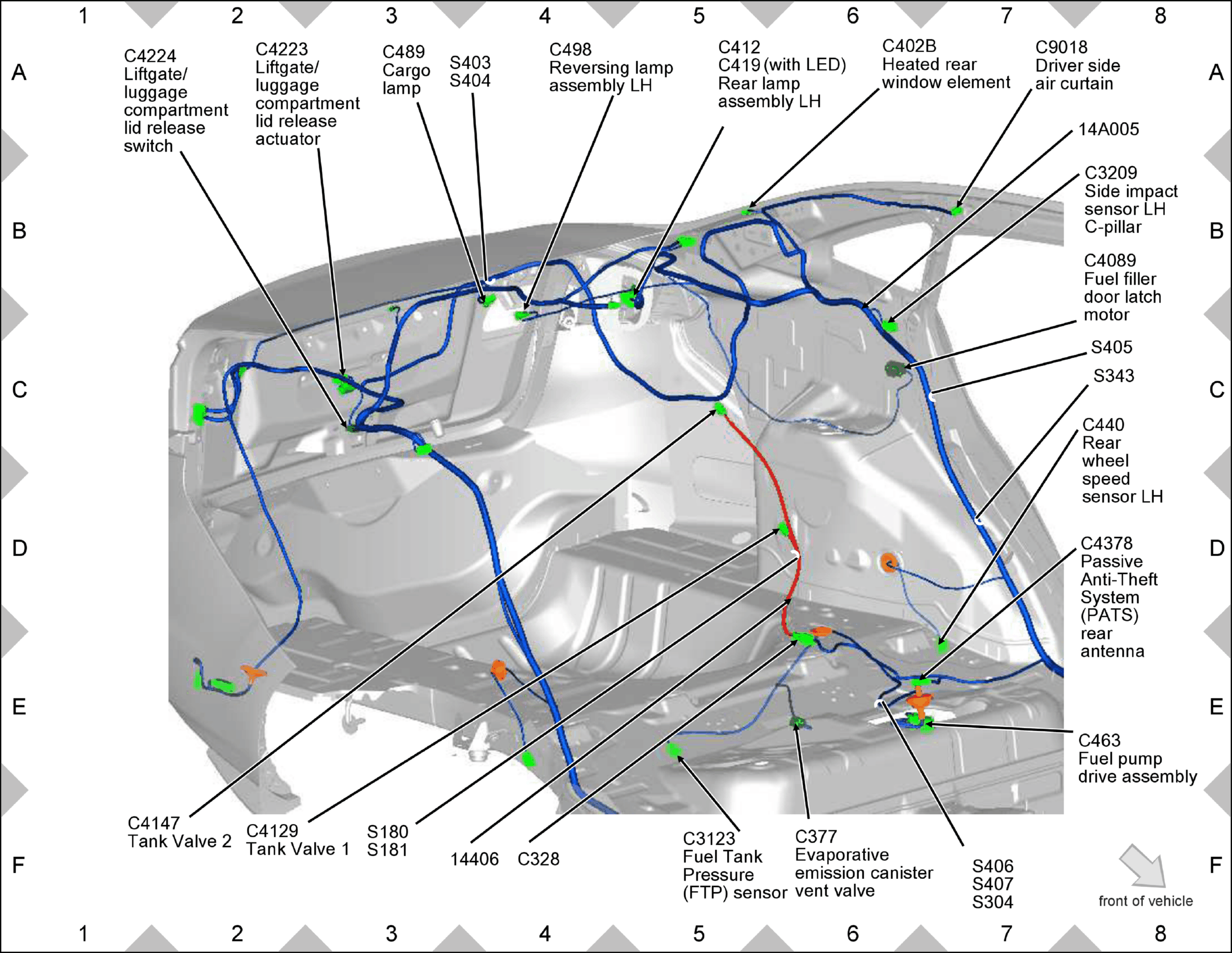

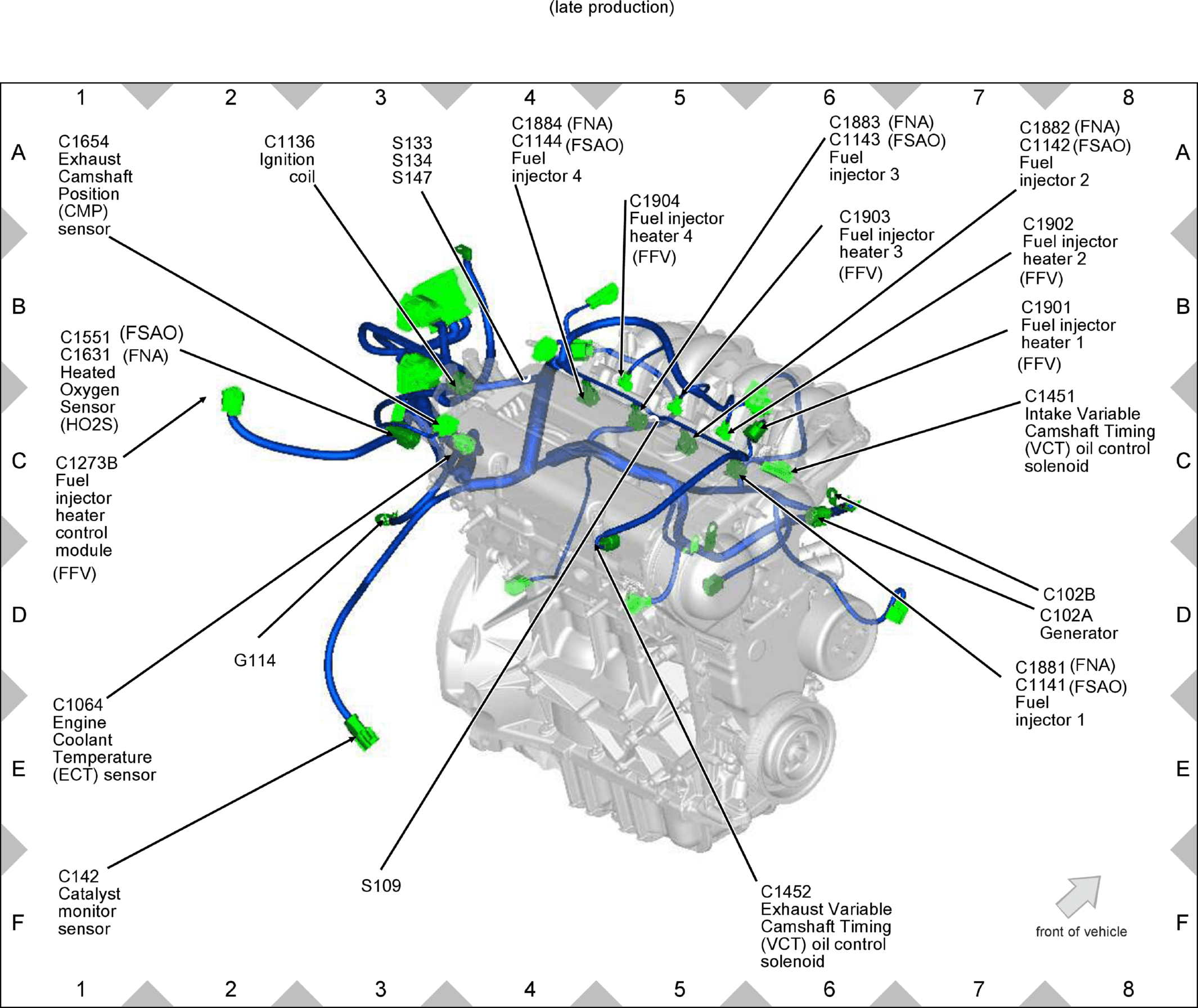

GFDW60394Courtesy of FORD MOTOR COMPANY

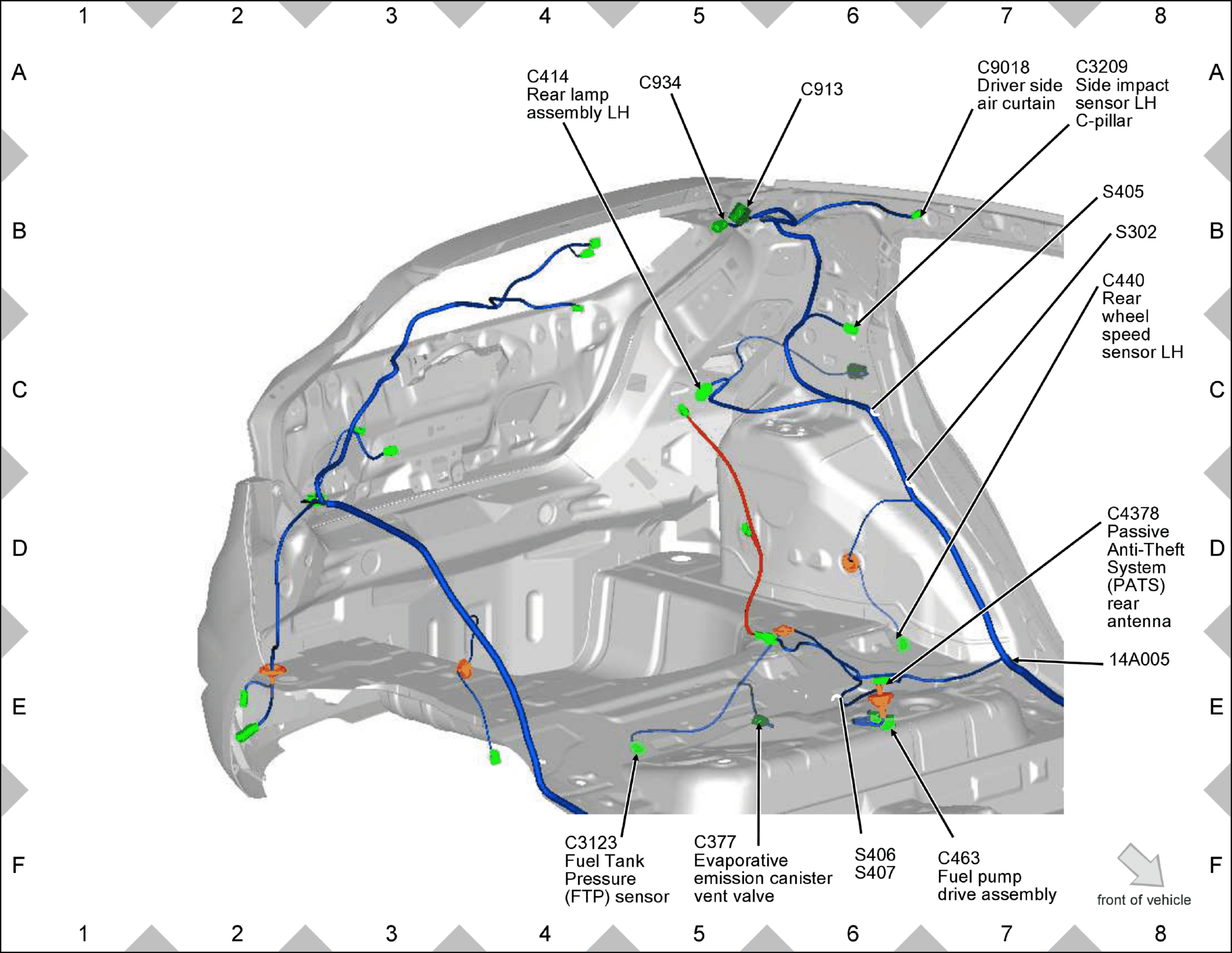

GFDW60395Courtesy of FORD MOTOR COMPANY

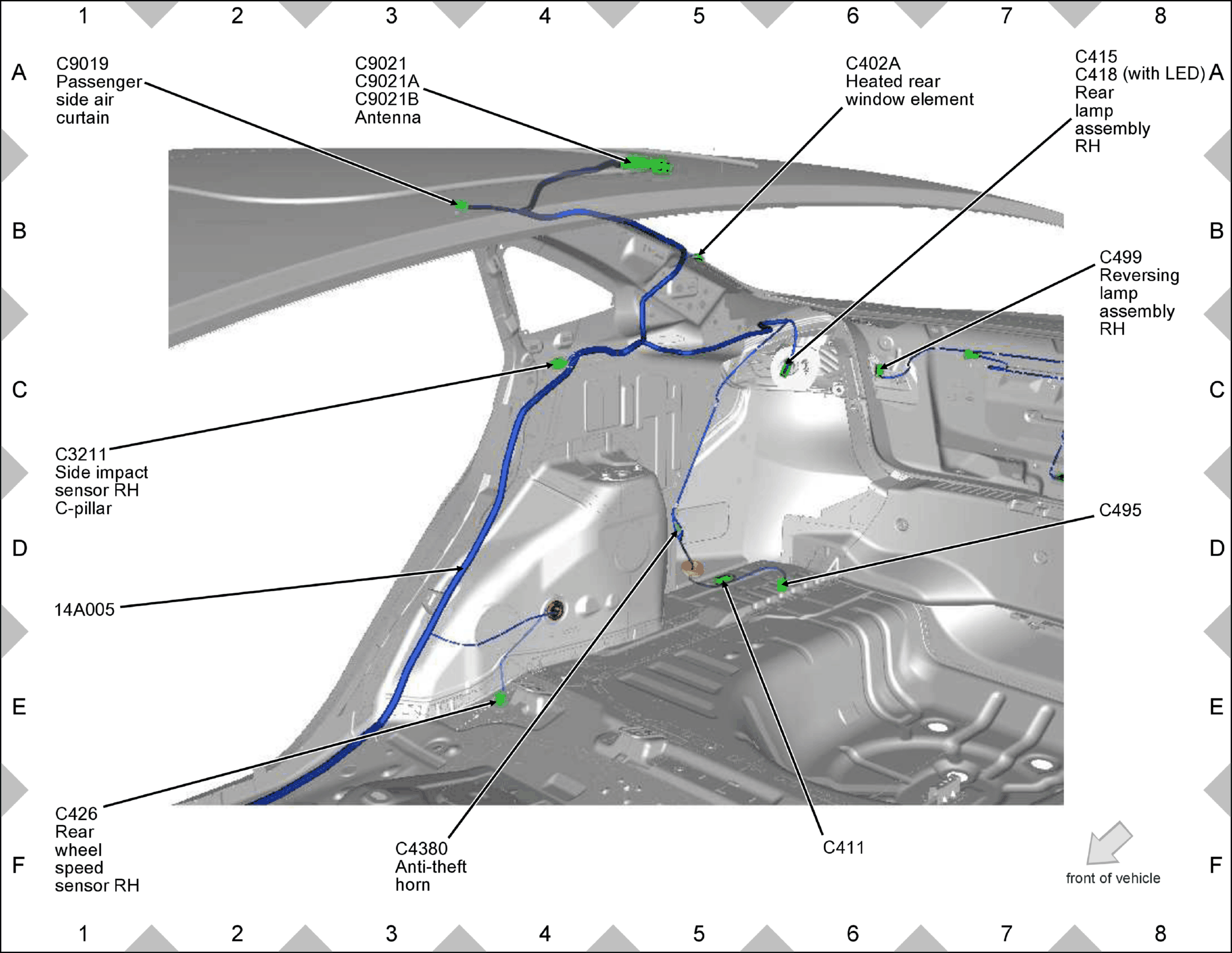

GFDW60396Courtesy of FORD MOTOR COMPANY
GFDW60397Courtesy of FORD MOTOR COMPANY

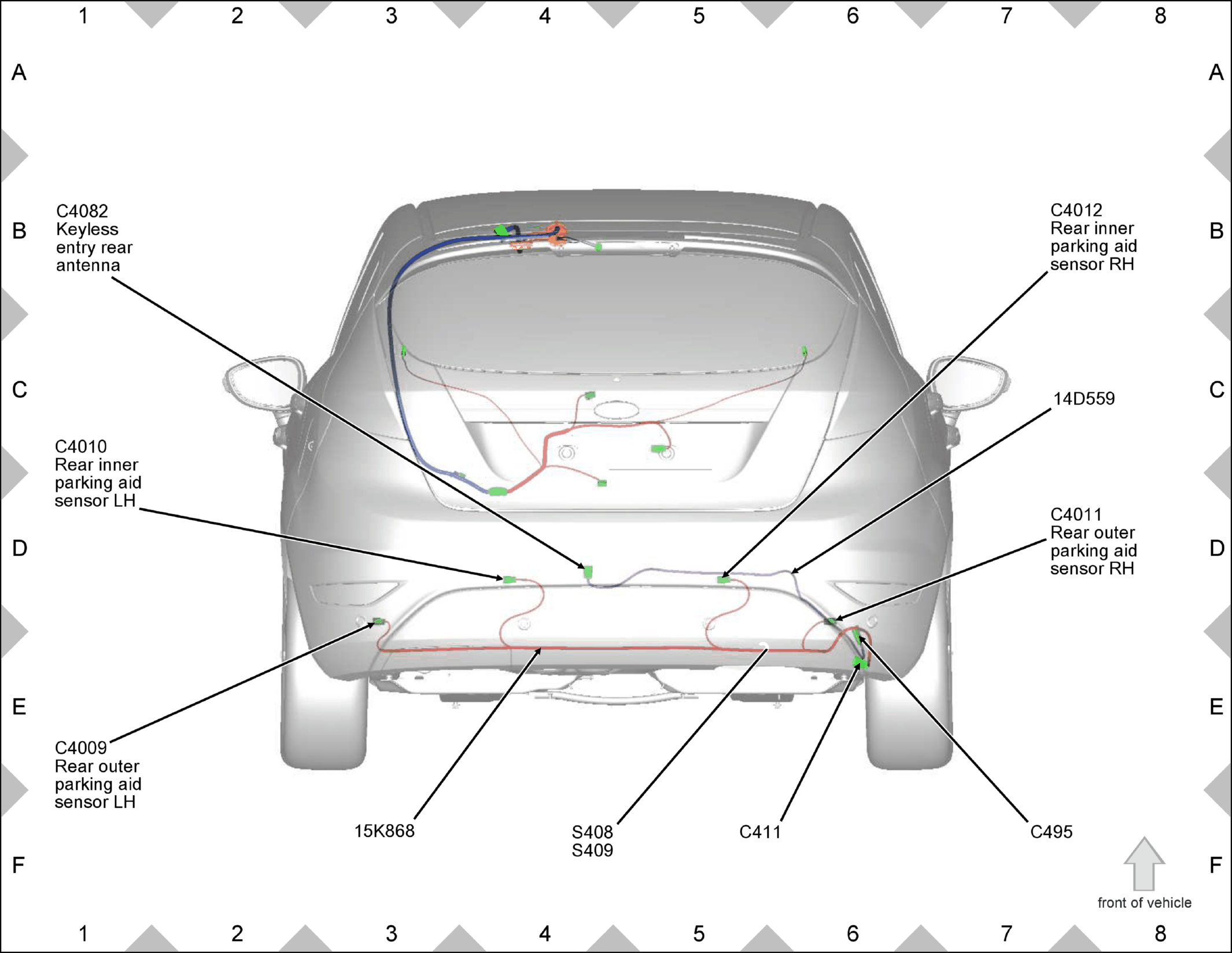

GFDW60398Courtesy of FORD MOTOR COMPANY

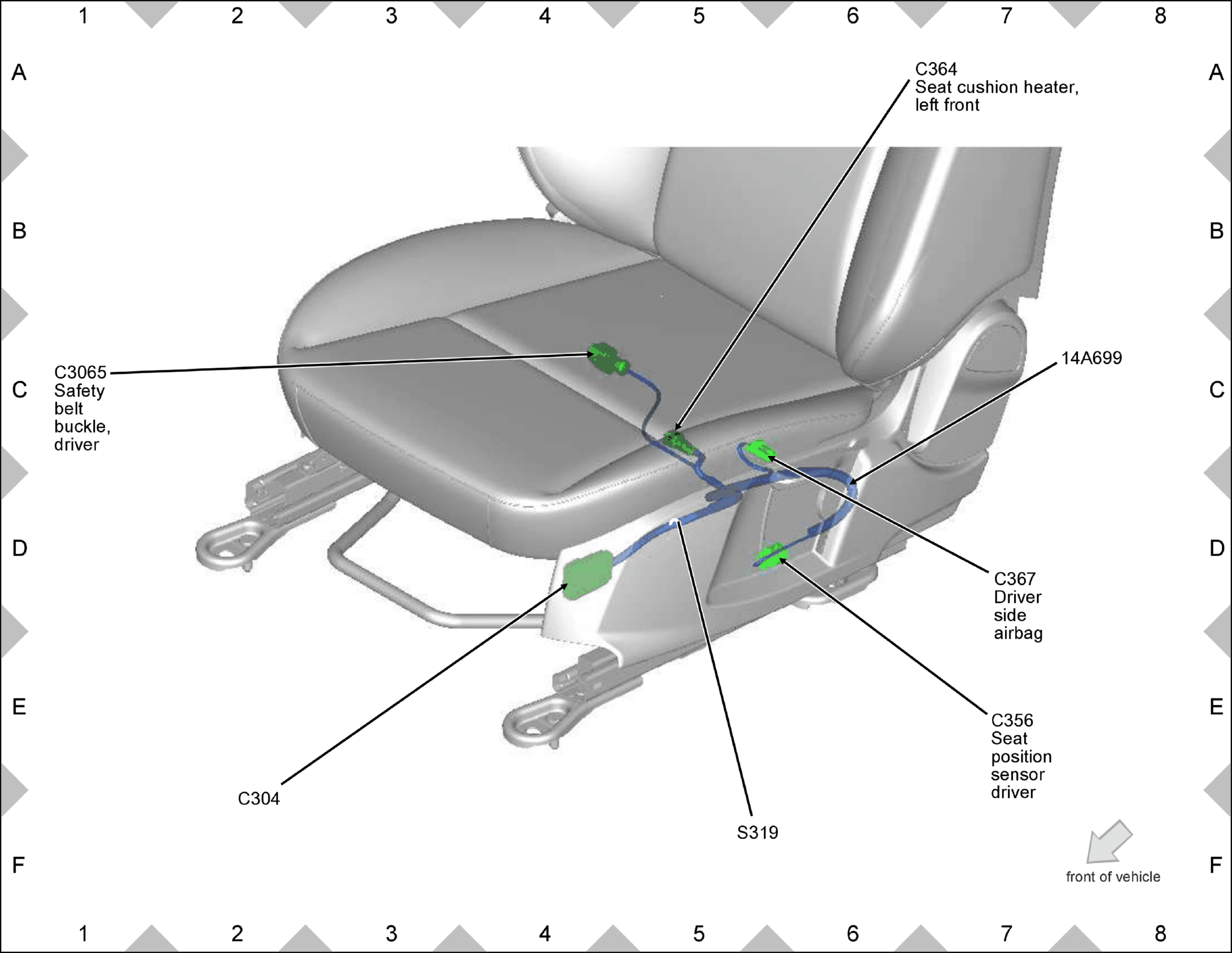

GFDW60399Courtesy of FORD MOTOR COMPANY

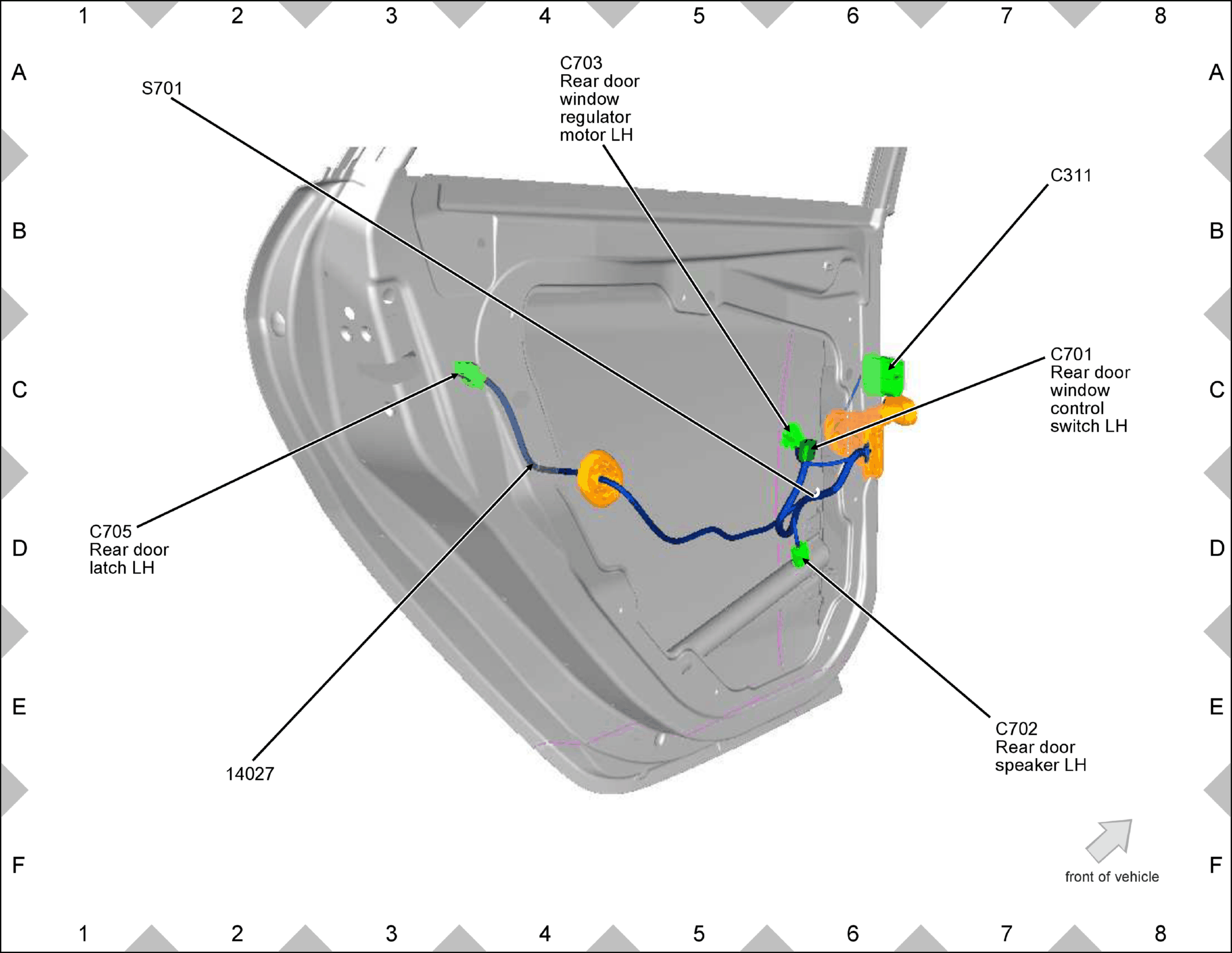

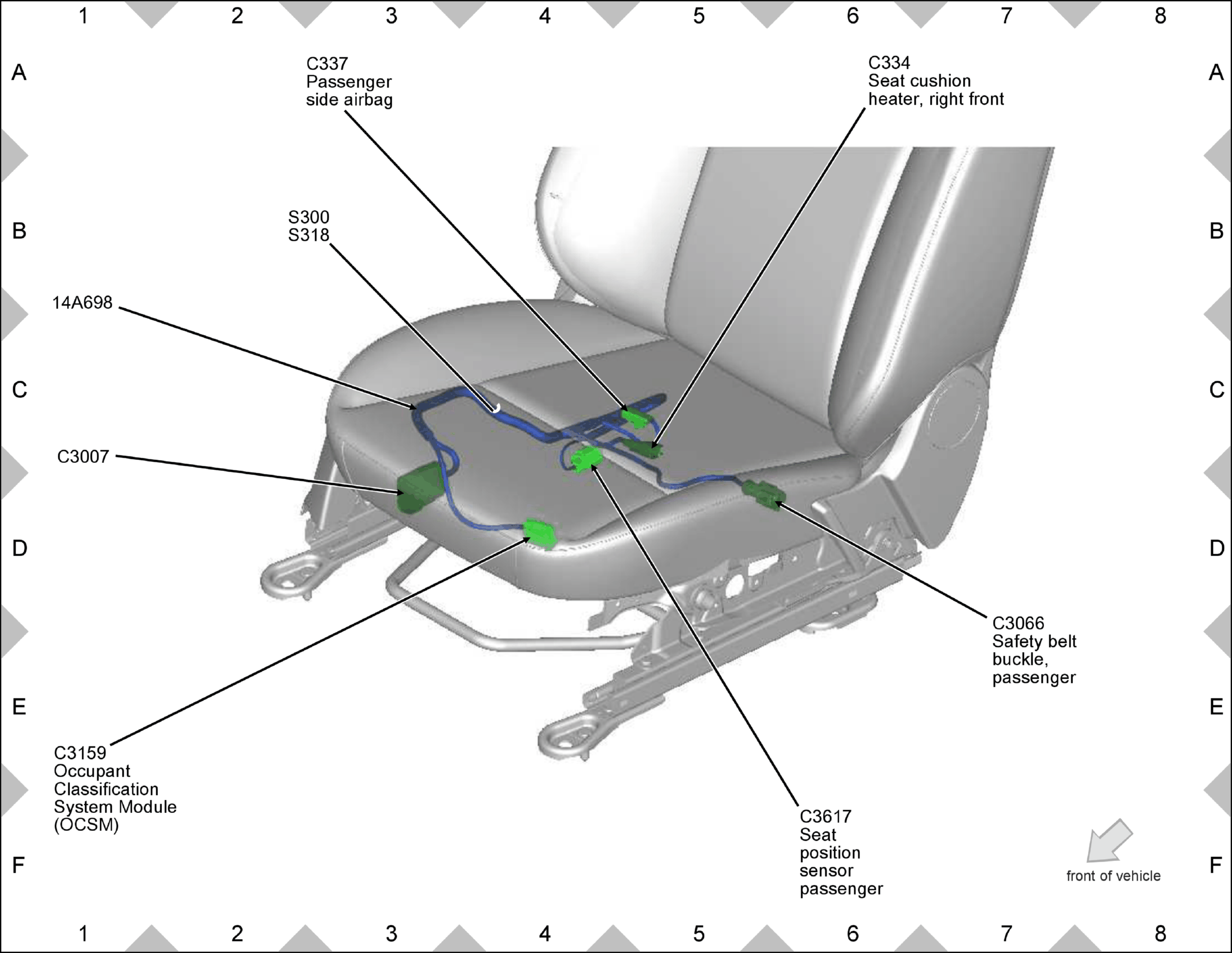

GFDW60400Courtesy of FORD MOTOR COMPANY

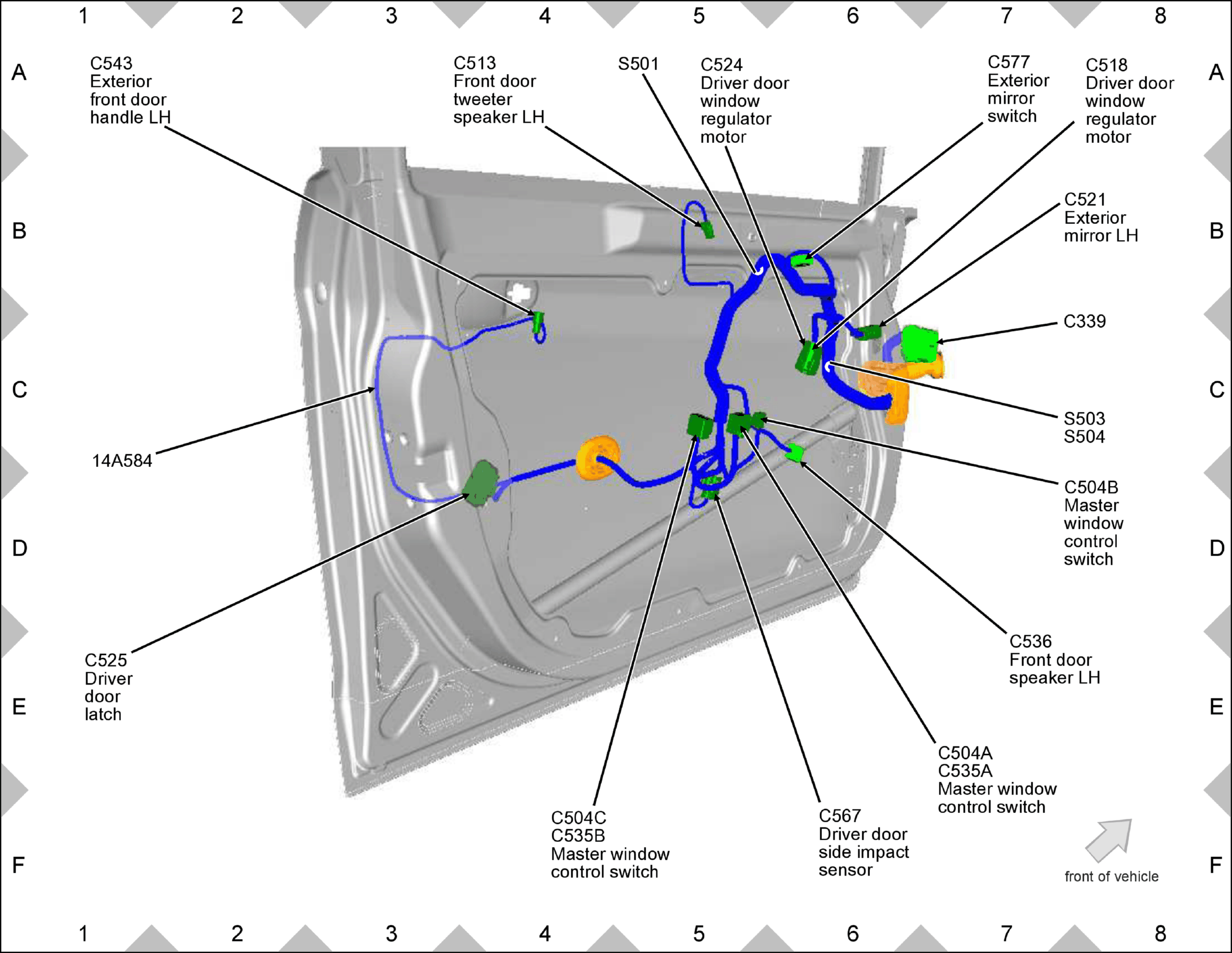

GFDW60401Courtesy of FORD MOTOR COMPANY

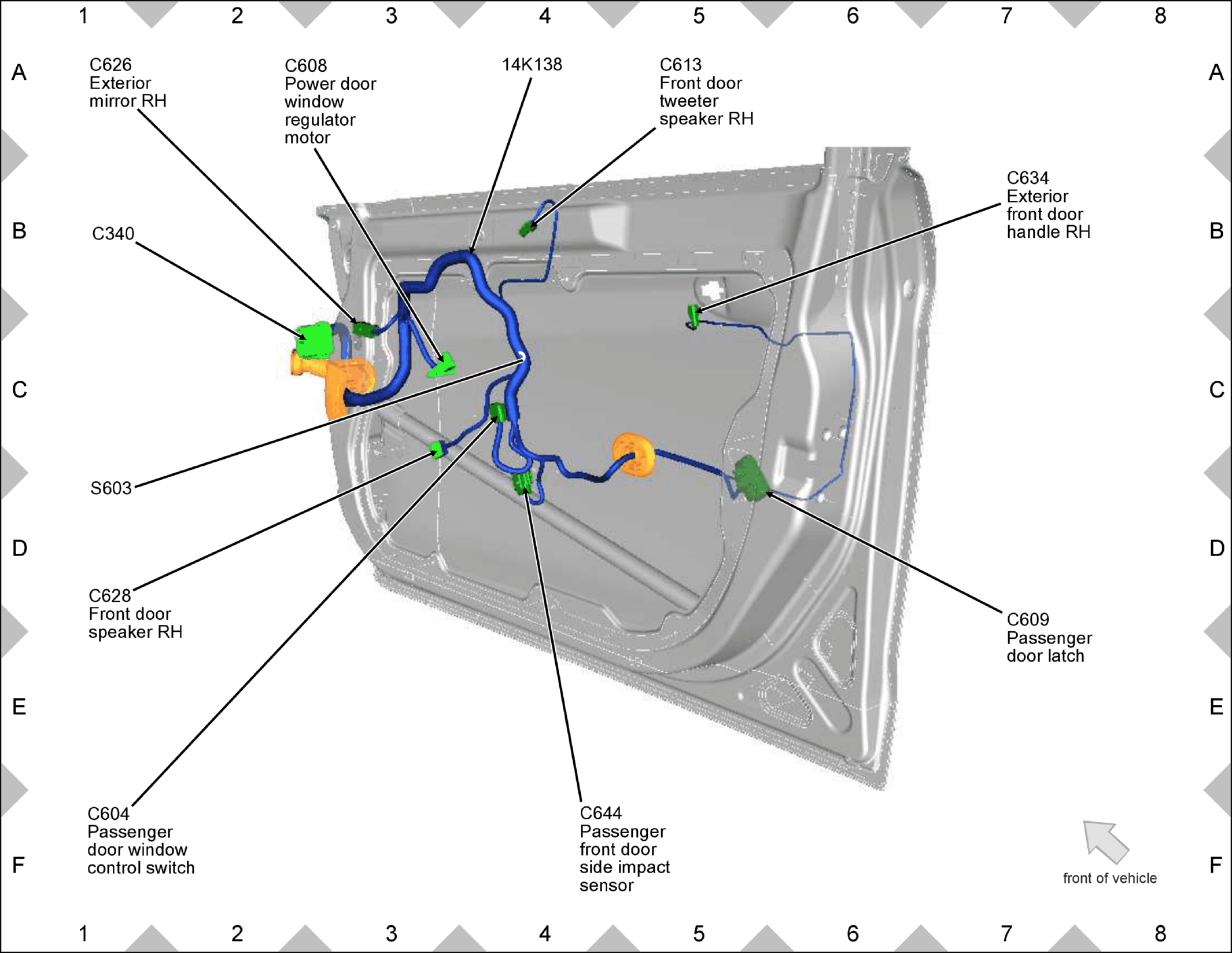

GFDW60402Courtesy of FORD MOTOR COMPANY
GFDW60403Courtesy of FORD MOTOR COMPANY

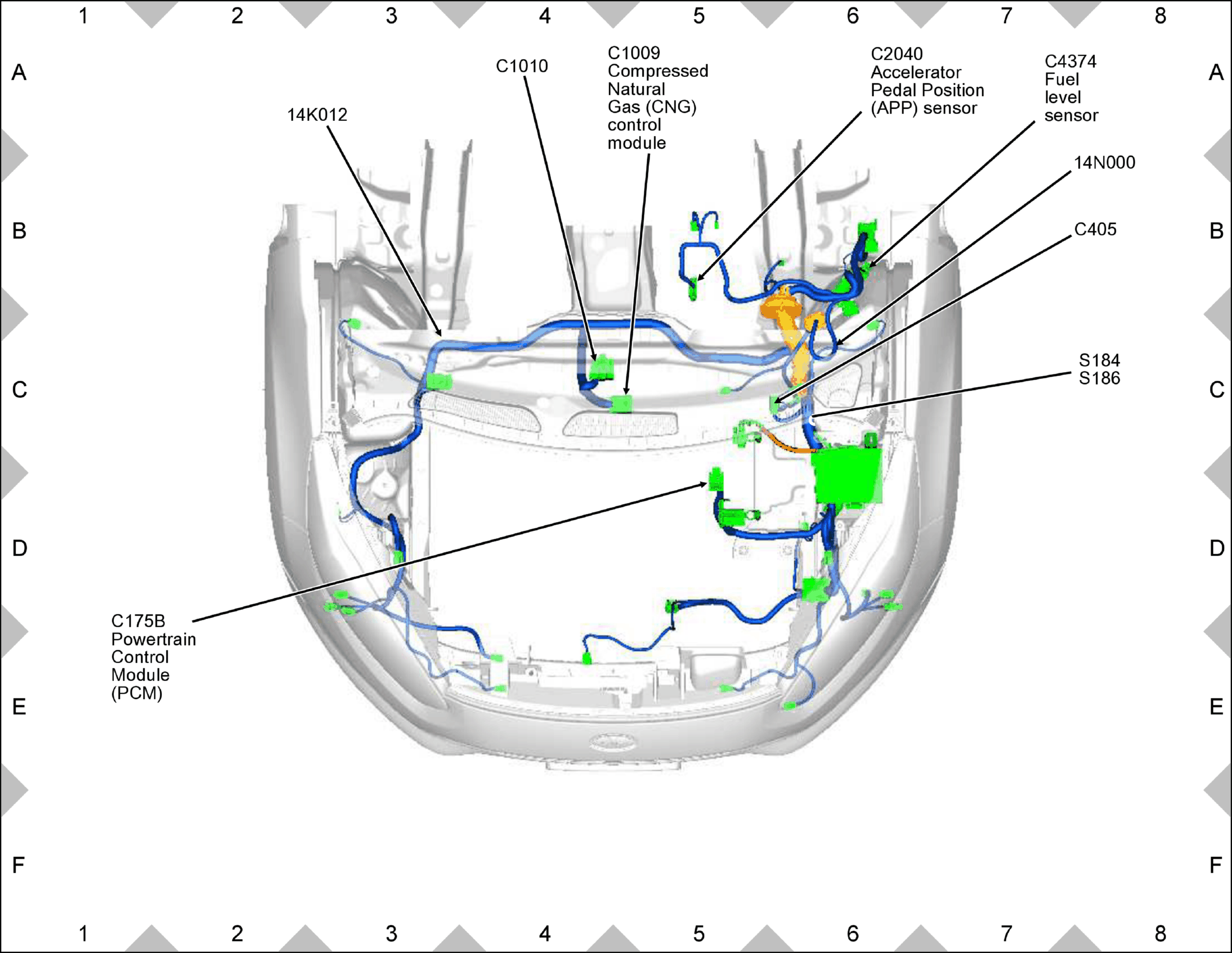

GFDW60404Courtesy of FORD MOTOR COMPANY

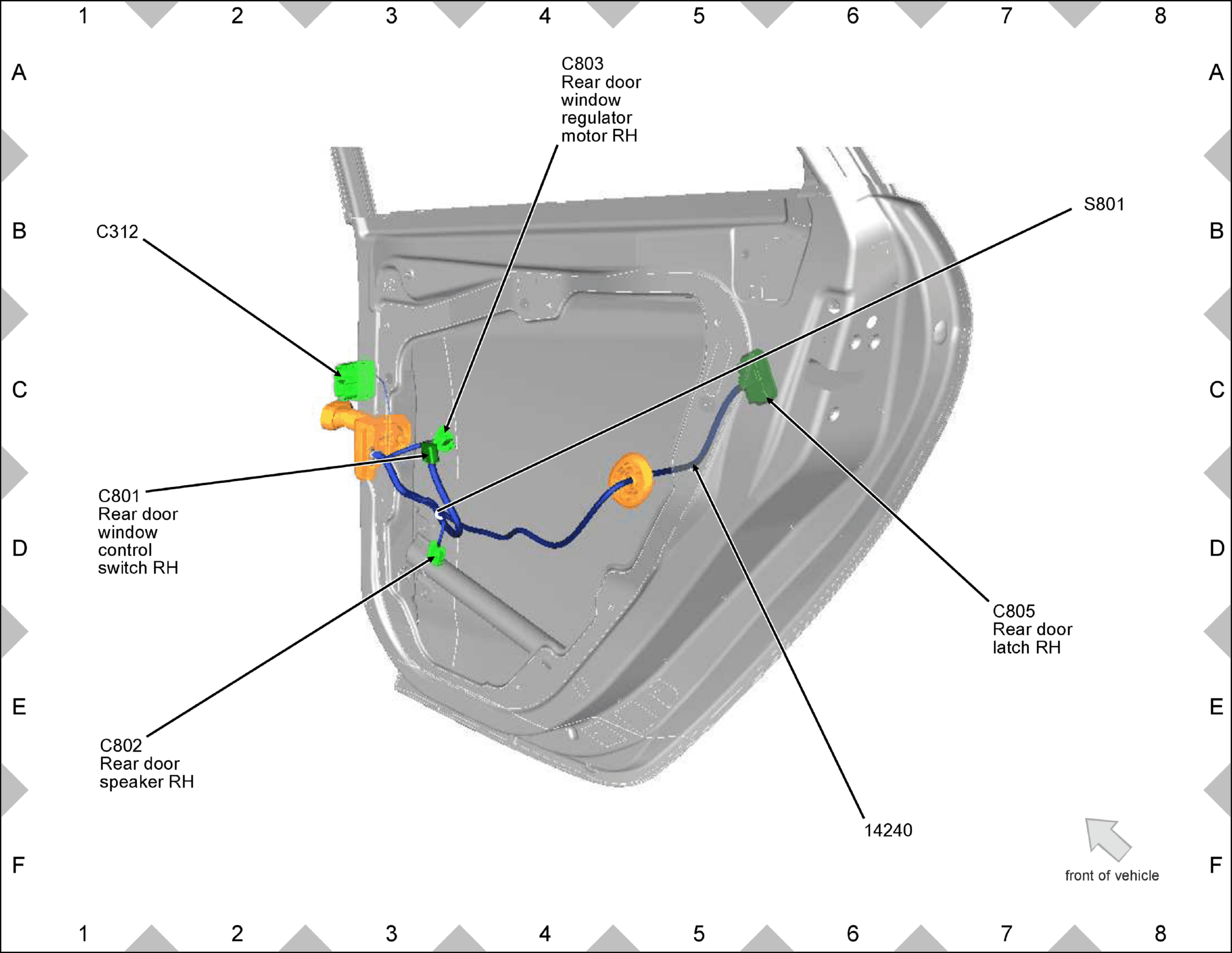

GFDW60405Courtesy of FORD MOTOR COMPANY

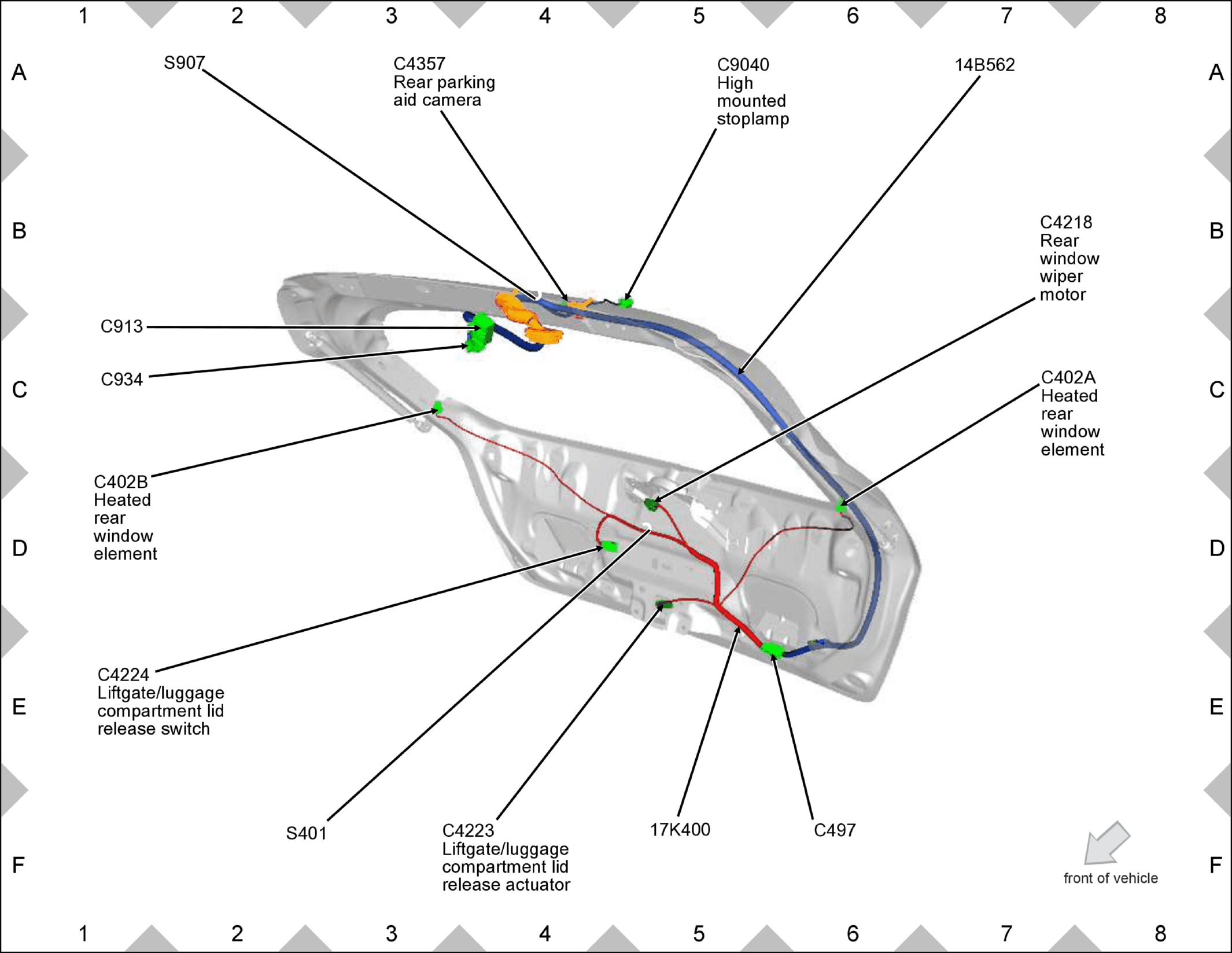

GFDW60406Courtesy of FORD MOTOR COMPANY

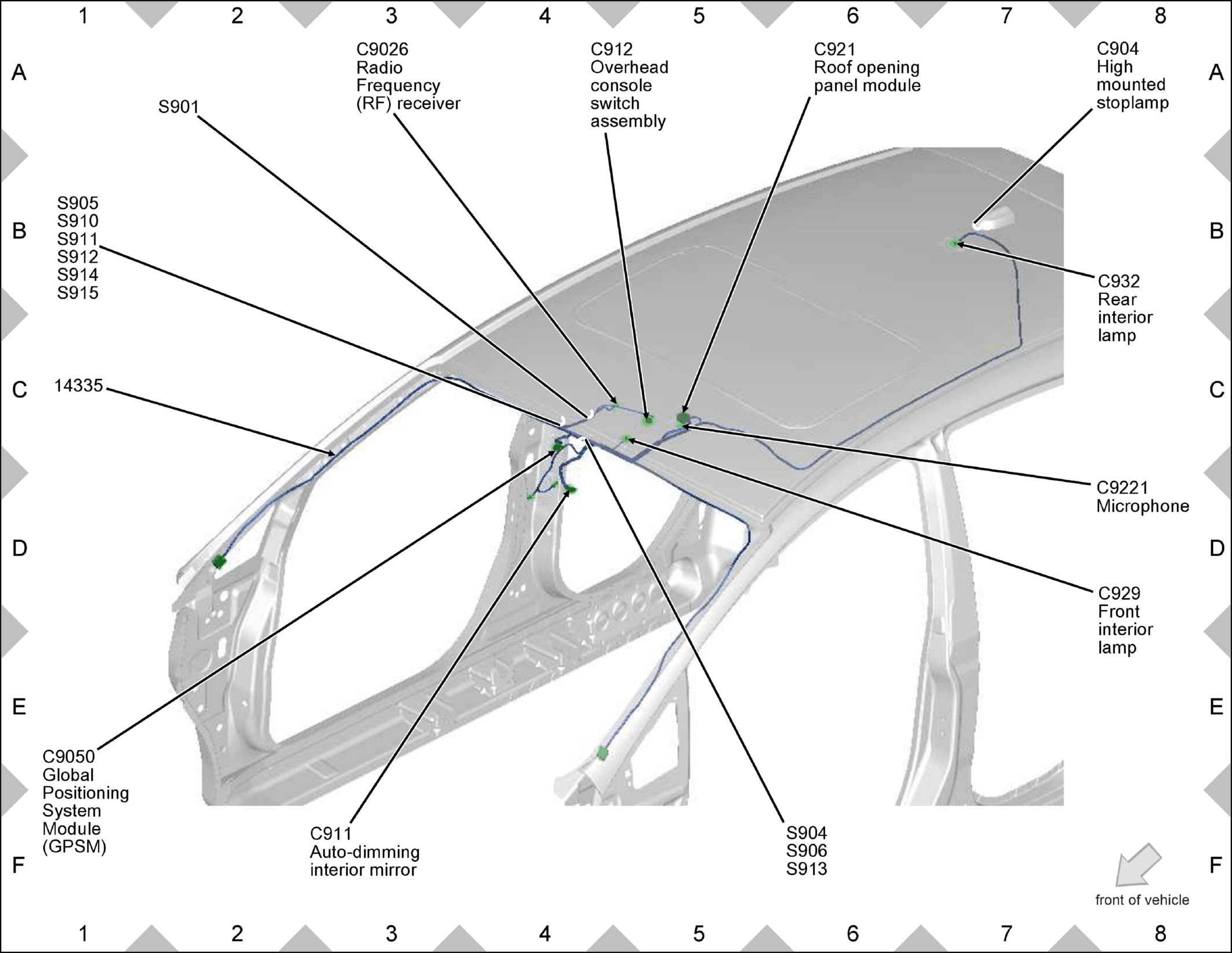

GFDW60407Courtesy of FORD MOTOR COMPANY

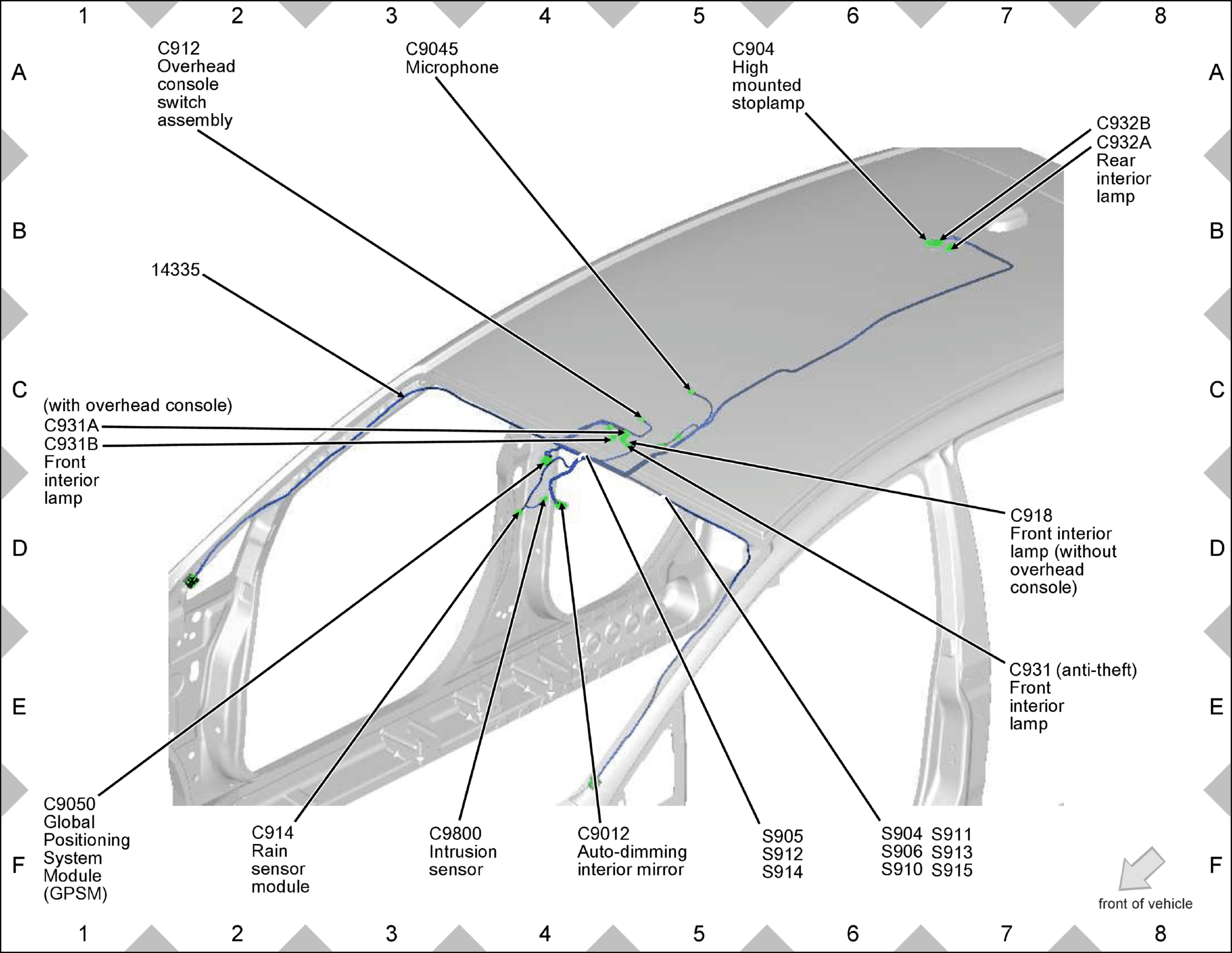

GFDW60408Courtesy of FORD MOTOR COMPANY

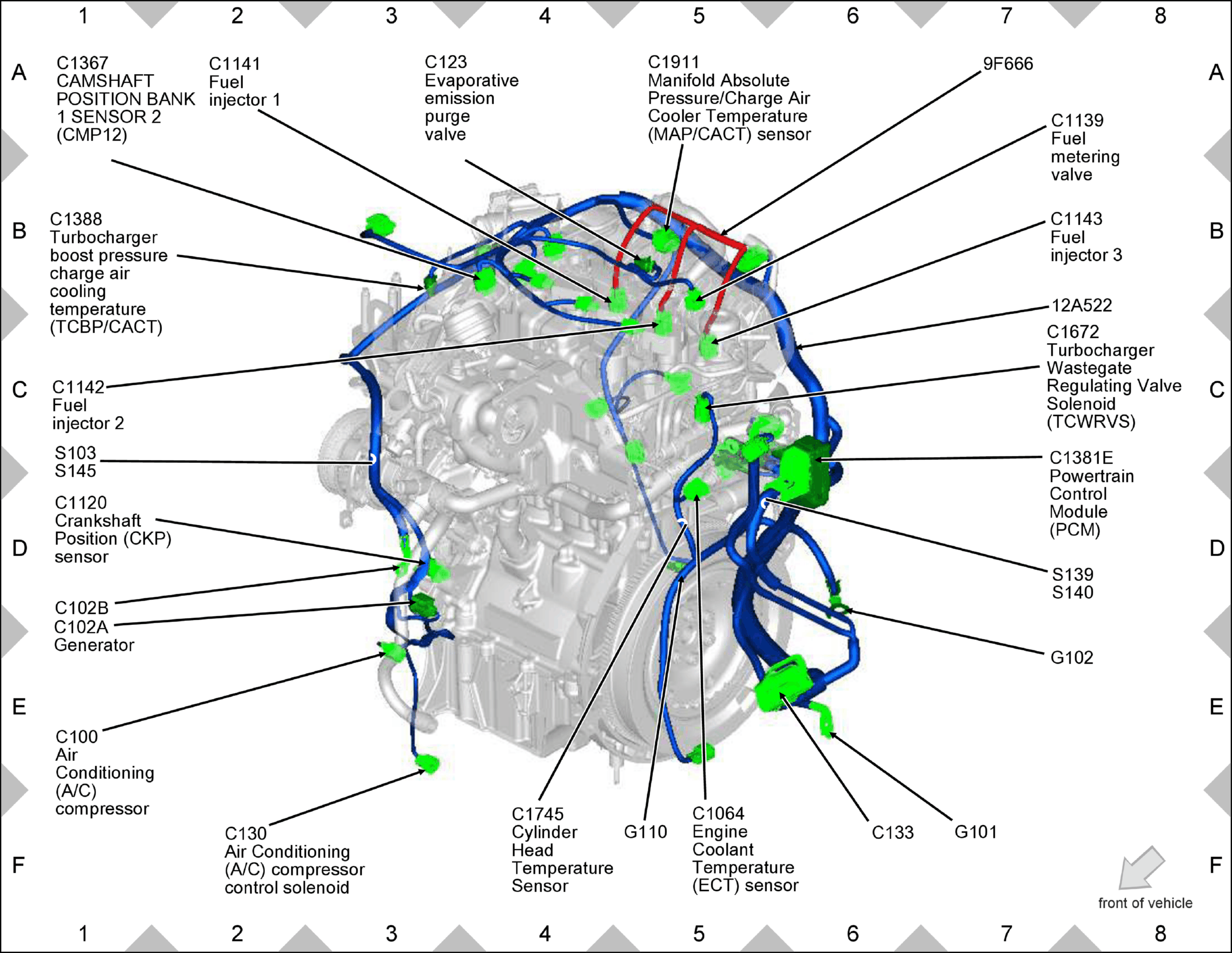

GFDW60409Courtesy of FORD MOTOR COMPANY

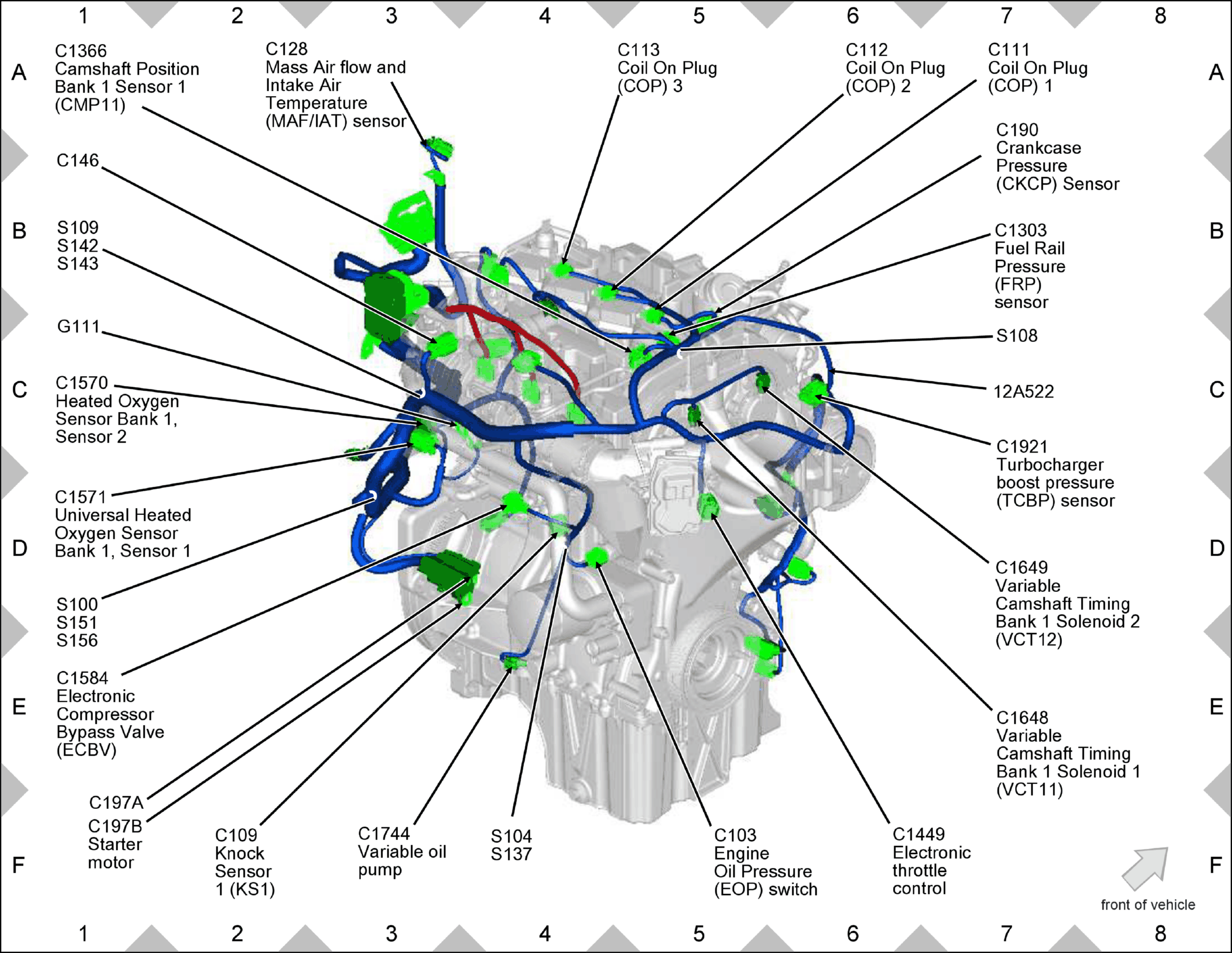

GFDW60410Courtesy of FORD MOTOR COMPANY
GFDW60411Courtesy of FORD MOTOR COMPANY
GFDW60412Courtesy of FORD MOTOR COMPANY
GFDW60413Courtesy of FORD MOTOR COMPANY
GFDW60414Courtesy of FORD MOTOR COMPANY
