Front Toe Adjustment

Special Tool(s) / General Equipment

Adjustment

• 1.

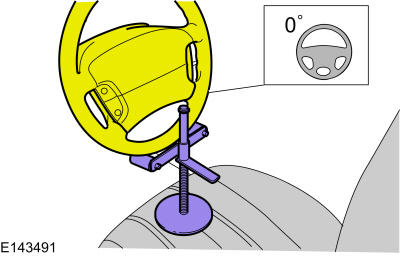

  NOTE: Make sure that the vehicle is standing on a level surface.

Courtesy of FORD MOTOR COMPANY

• 2.

  Using alignment equipment and the manufacturer's instructions, check the front toe setting on both sides. Use the General Equipment: Wheel Alignment System

• 3.



  • 1.

    On both sides.

    Torque: 58 lb.ft (79 Nm)

  • 2.


    NOTE: Make sure that the boot is correctly located.

    Rotate the inner tie-rods an equal amount in either a clockwise or a counterclockwise direction to adjust the toe setting on both sides.

Courtesy of FORD MOTOR COMPANY
