Master Window Control Switch

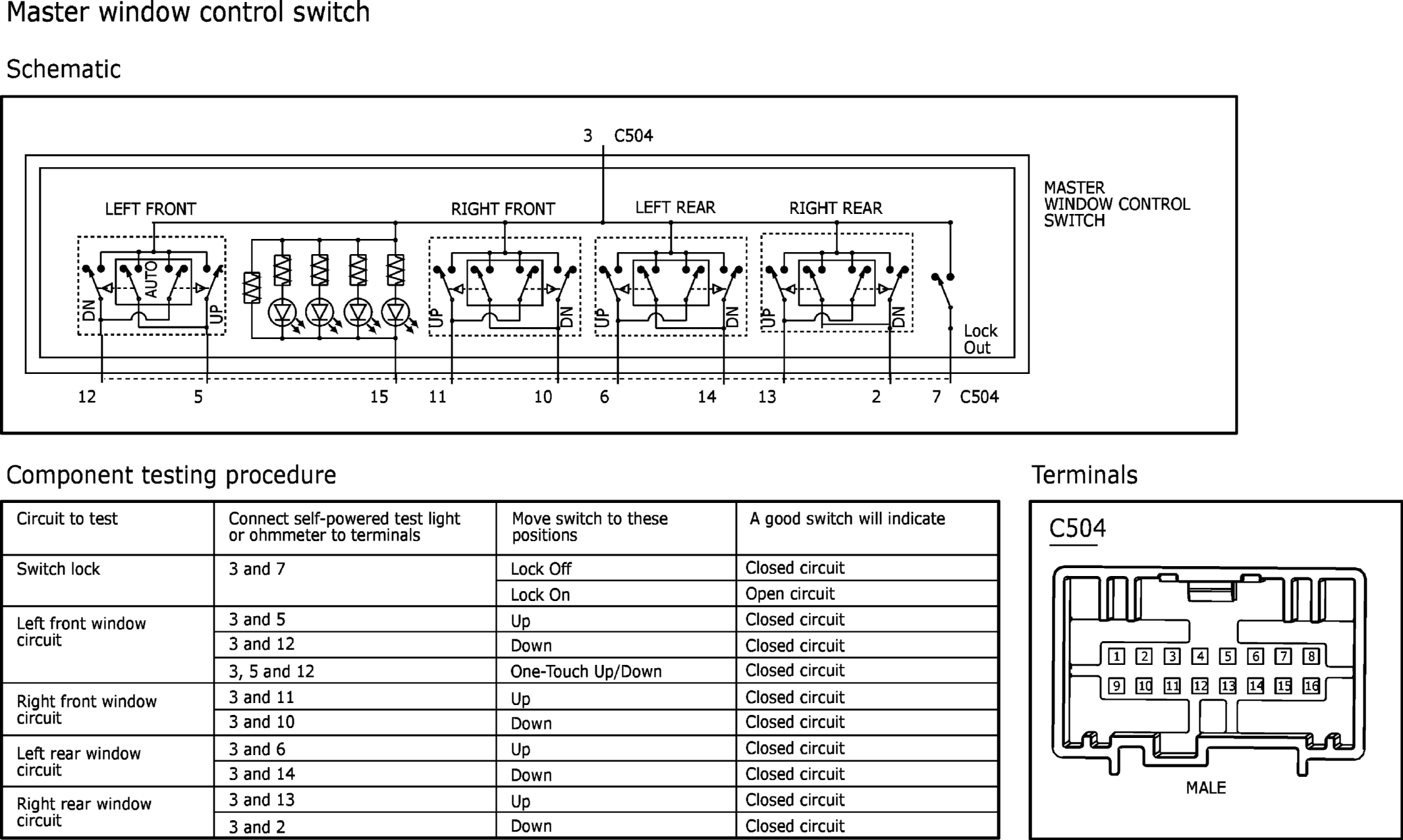

Fig 1: Master Window Control Switch
GFDW65265Courtesy of FORD MOTOR COMPANY
