Front Seat Motor Cable: Installation

1. 1.



NOTE: The front seat motor cable service part for the driver seat is different than the service part for passenger seat. Make sure to install the correct service part required for the seat.

Courtesy of FORD MOTOR COMPANY

1. 2.

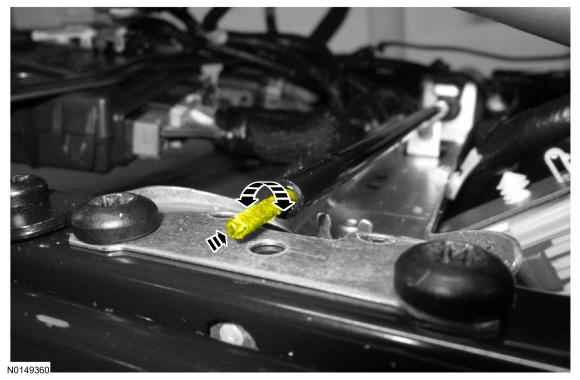

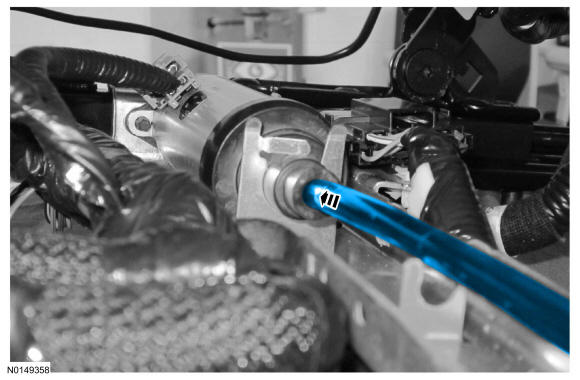

   NOTE: The cable felt covering should not be visible when the cable is correctly engaged to the horizontal motor square drive.
   • Push the cable into the horizontal motor square drive twisting back and forth to engage the cable.

Courtesy of FORD MOTOR COMPANY

1. 3.



Courtesy of FORD MOTOR COMPANY

1. 4.



Courtesy of FORD MOTOR COMPANY

1. 5.



Courtesy of FORD MOTOR COMPANY

1. 6.



Courtesy of FORD MOTOR COMPANY

1. 7.



Courtesy of FORD MOTOR COMPANY

1. 8.

   If equipped.

Courtesy of FORD MOTOR COMPANY

1. 9.

   Install the front seat. Refer to Seat - Front .
