Wheel Speed Sensor - Front: Removal

NOTE: Steps in the removal procedure may contain installation details.

1. 1.

   Remove the wheel and tire. Refer to Wheels and Tires .

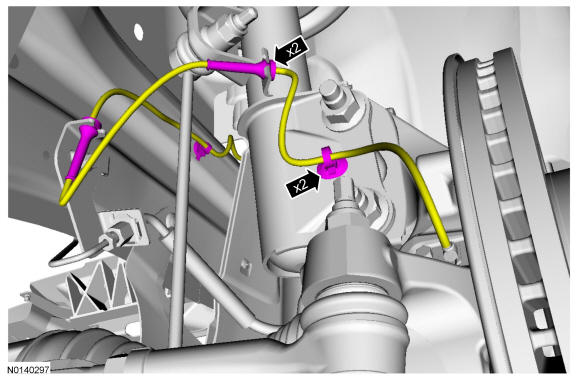

1. 2.



Courtesy of FORD MOTOR COMPANY

1. 3.



Courtesy of FORD MOTOR COMPANY

1. 4.



Courtesy of FORD MOTOR COMPANY

1. 5.



Courtesy of FORD MOTOR COMPANY

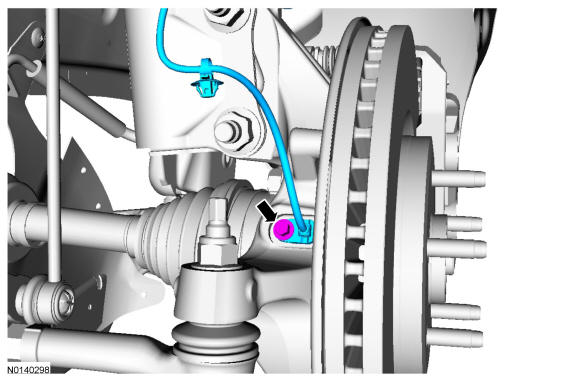

1. 6.


   • To install, tighten to 15 Nm (133 lb-in).

Courtesy of FORD MOTOR COMPANY
