Component Location Views

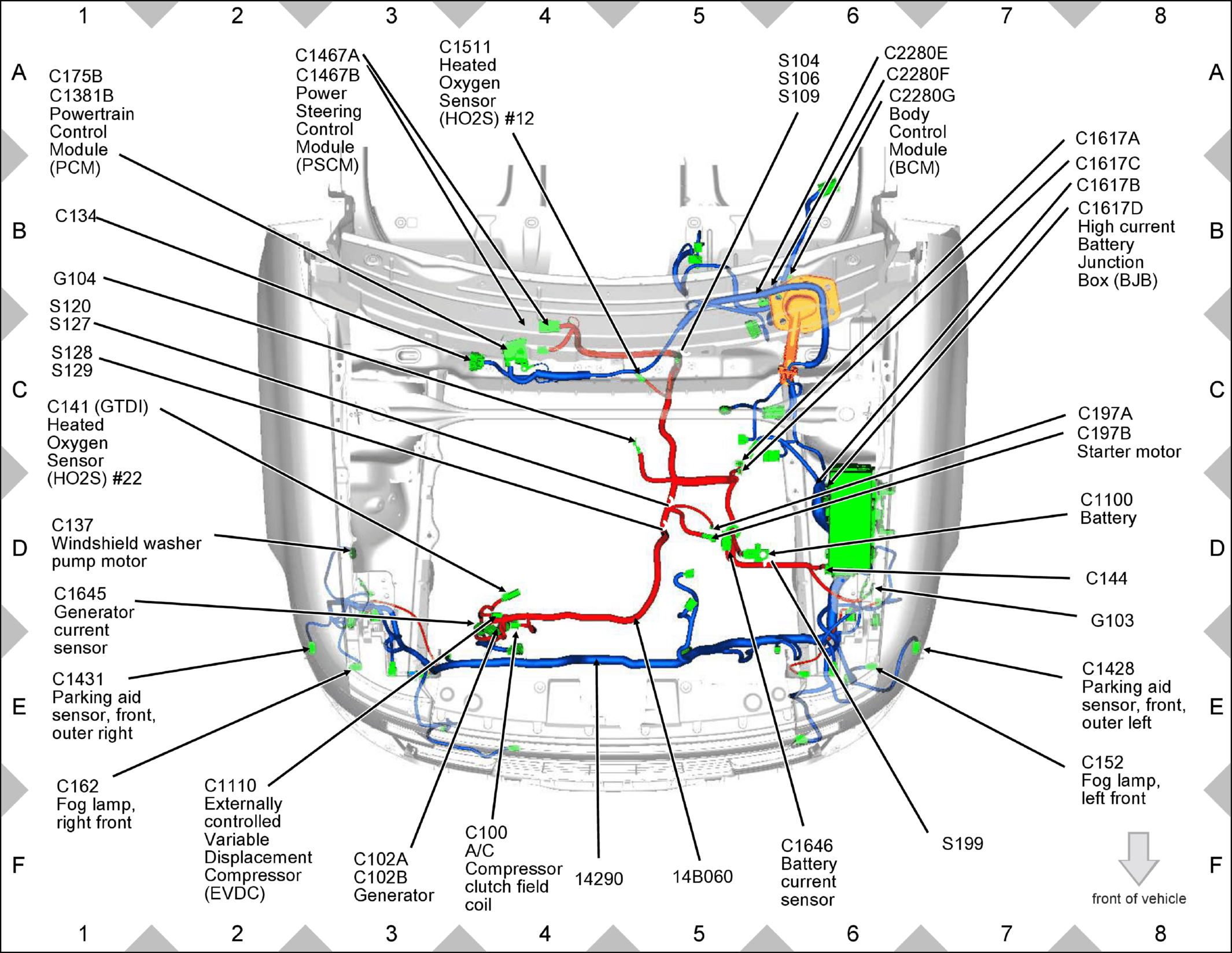

GFDW64426Courtesy of FORD MOTOR COMPANY

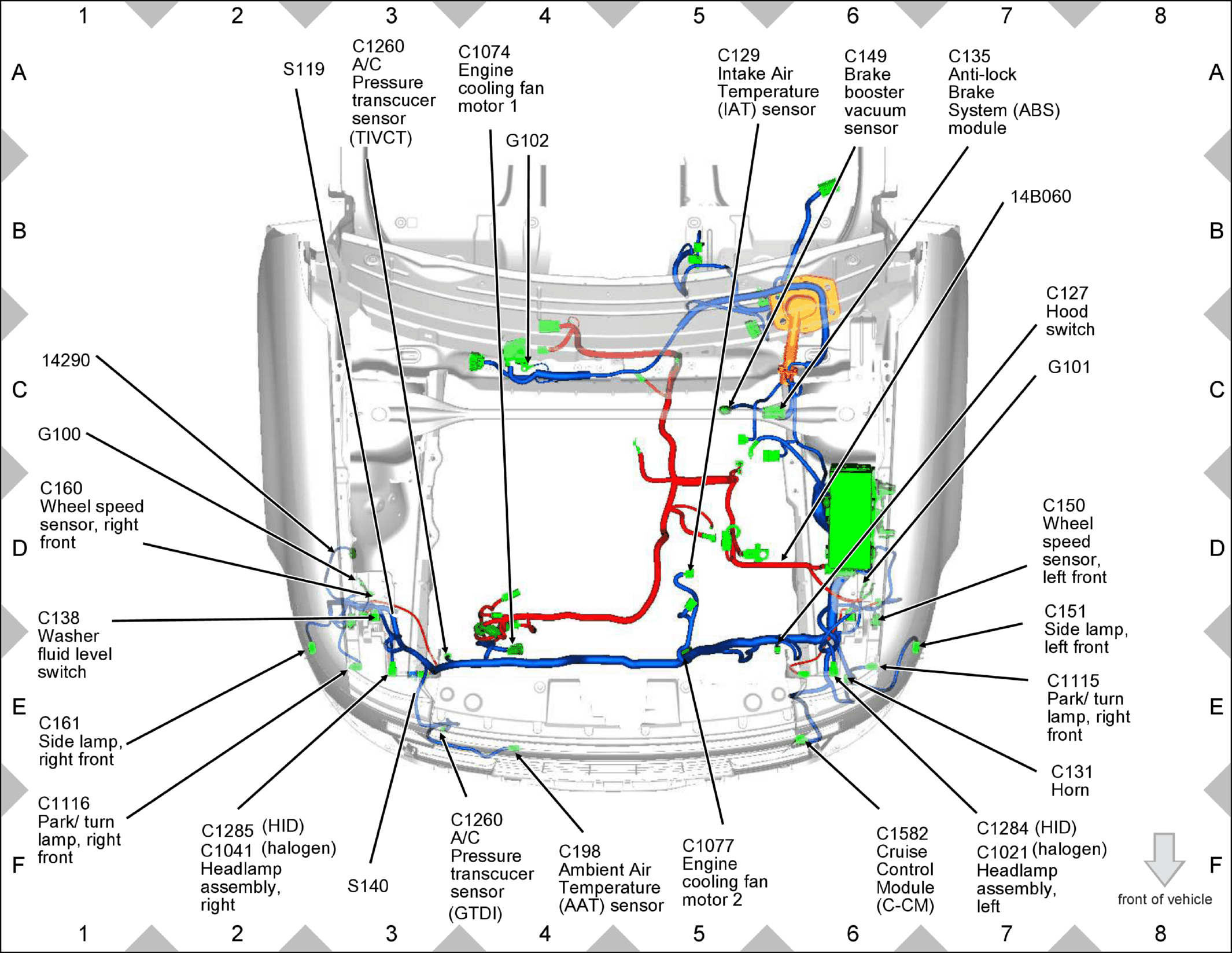

GFDW64427Courtesy of FORD MOTOR COMPANY

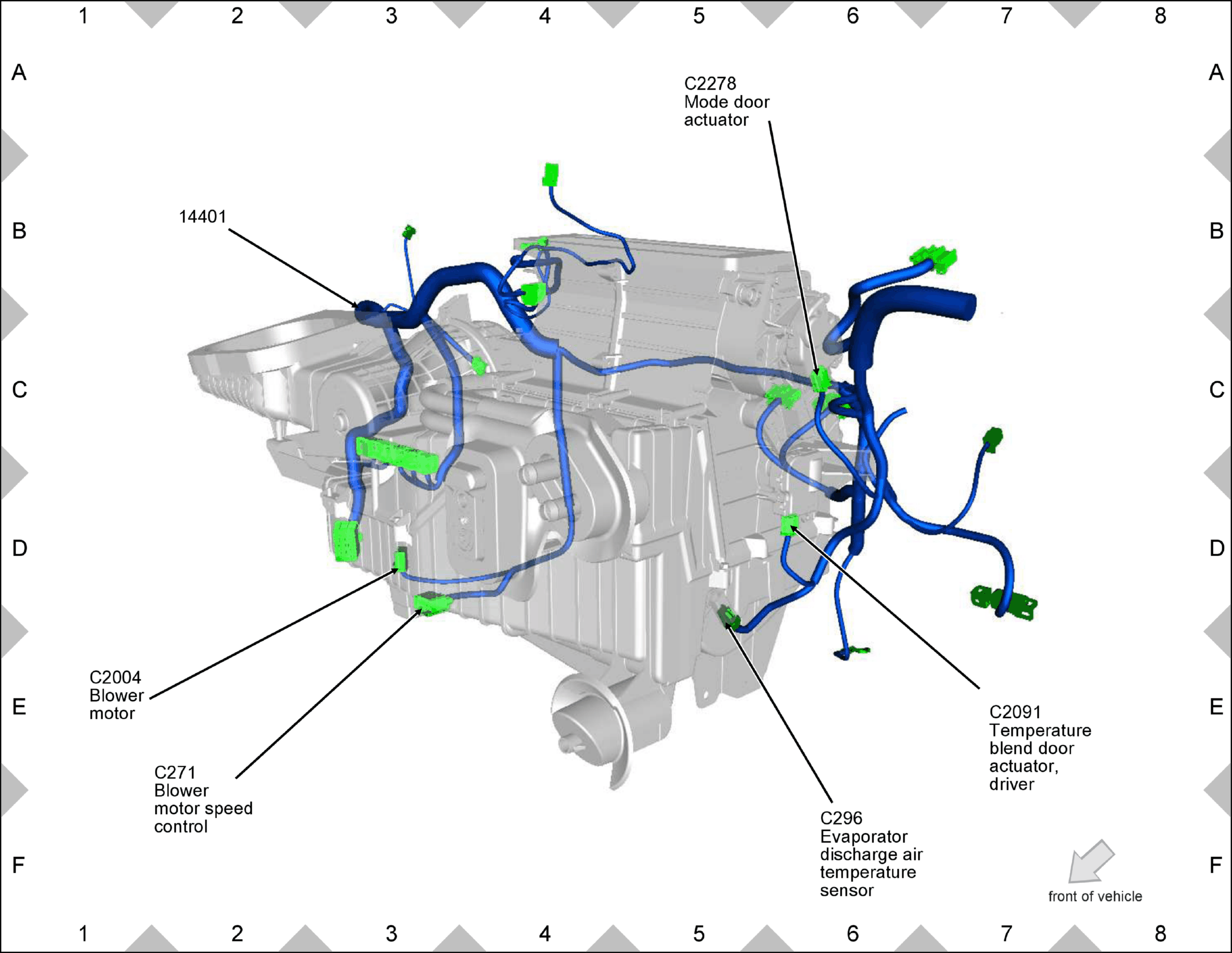

GFDW64428Courtesy of FORD MOTOR COMPANY

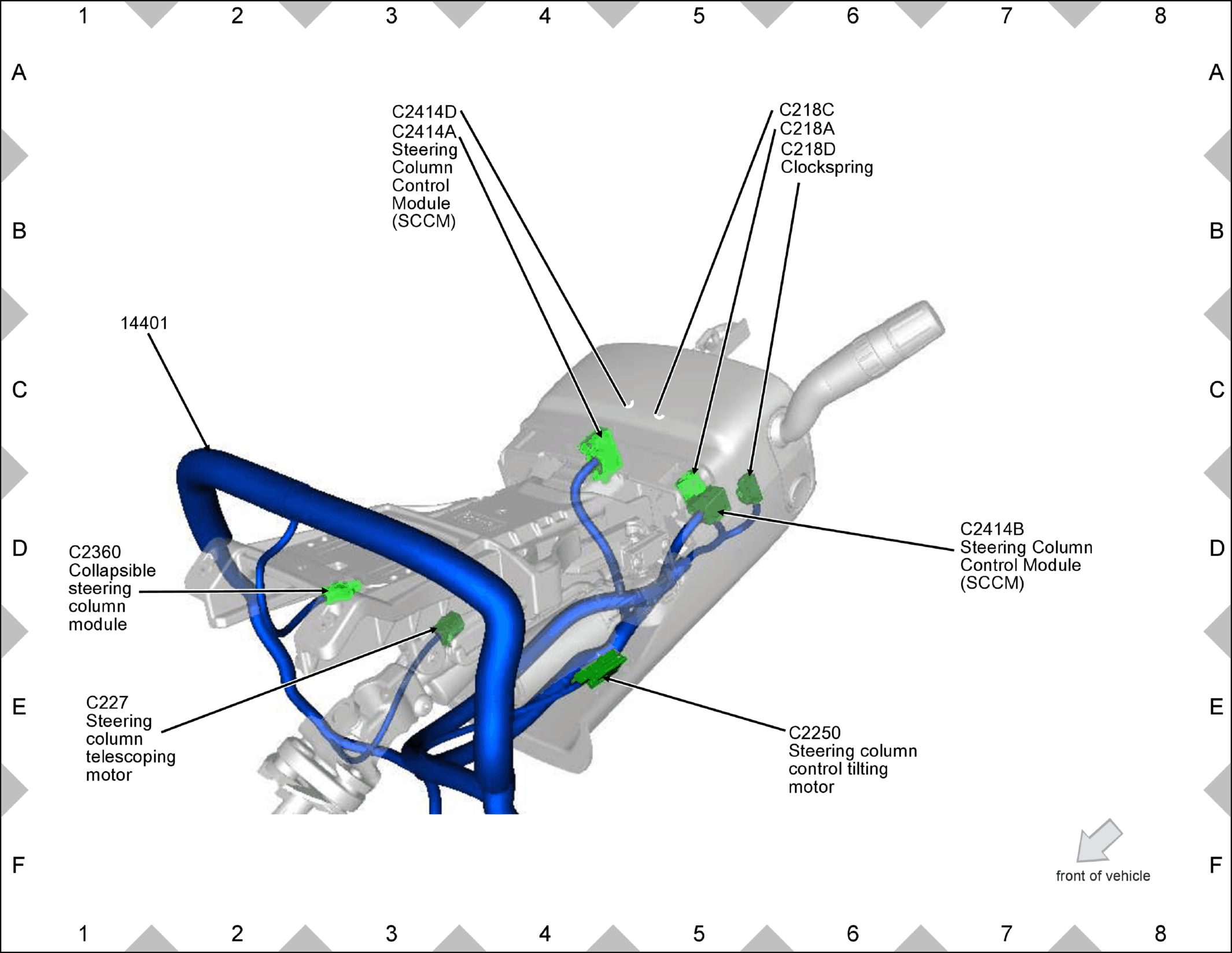

GFDW64429Courtesy of FORD MOTOR COMPANY

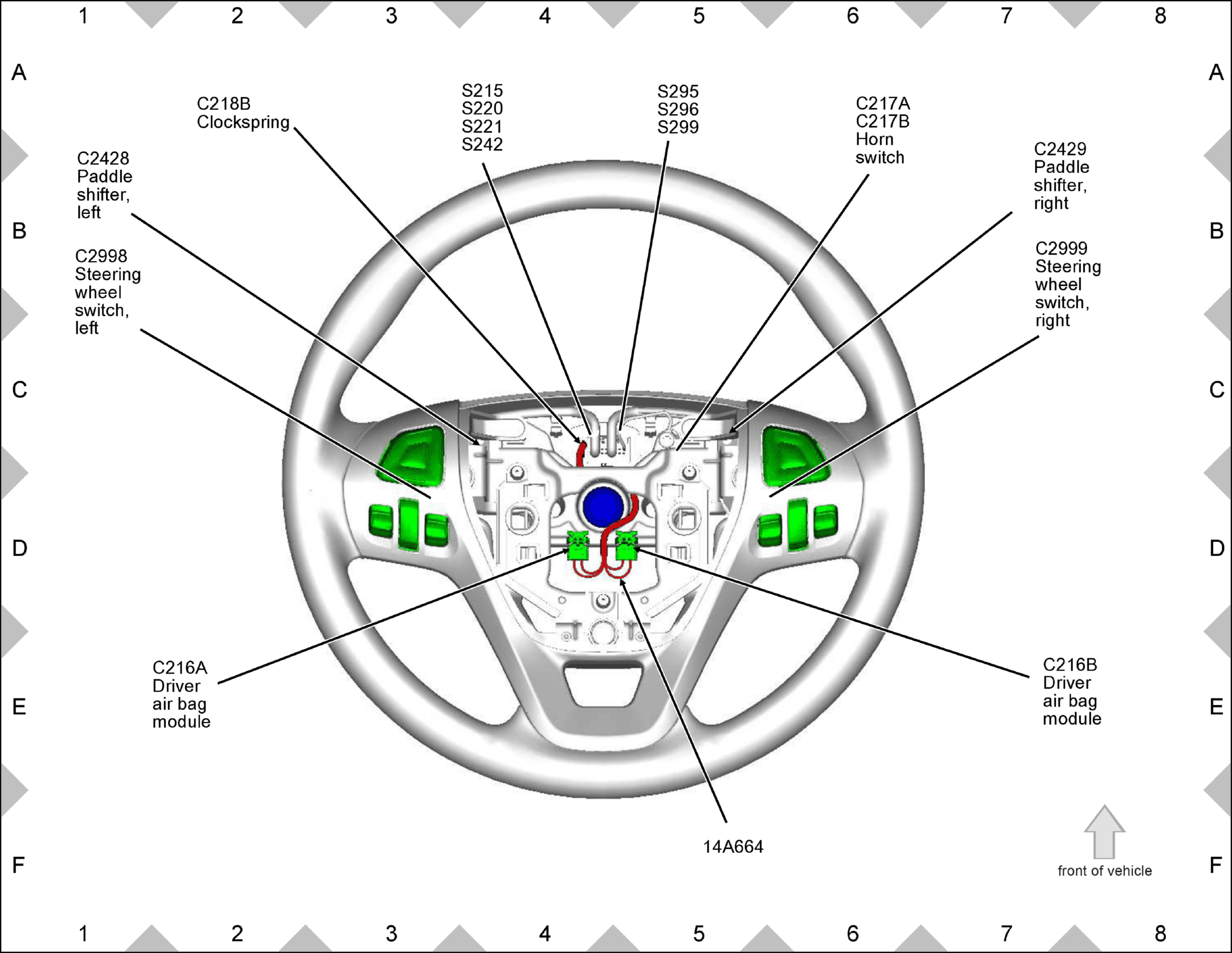

GFDW64430Courtesy of FORD MOTOR COMPANY

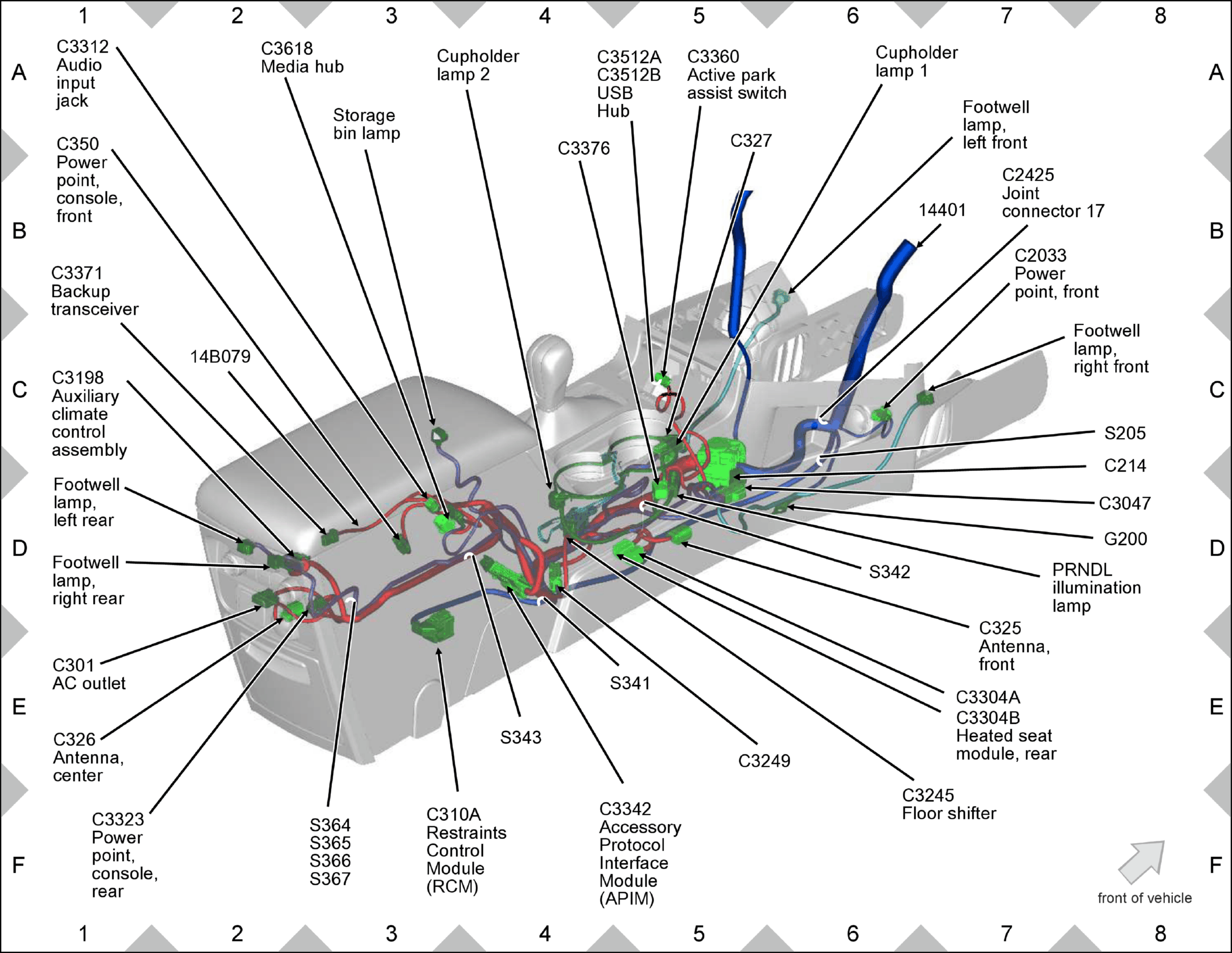

GFDW64431Courtesy of FORD MOTOR COMPANY

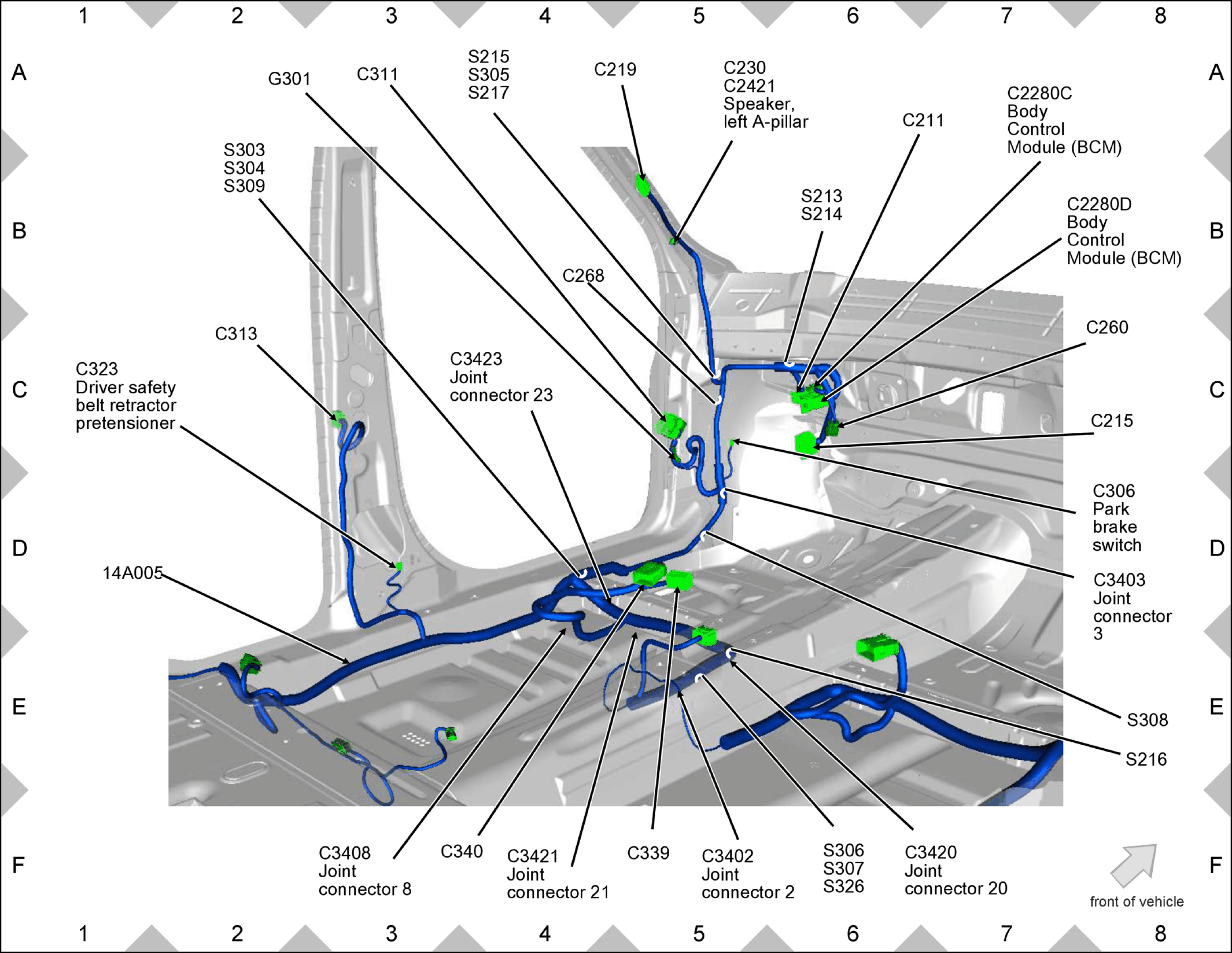

GFDW64432Courtesy of FORD MOTOR COMPANY

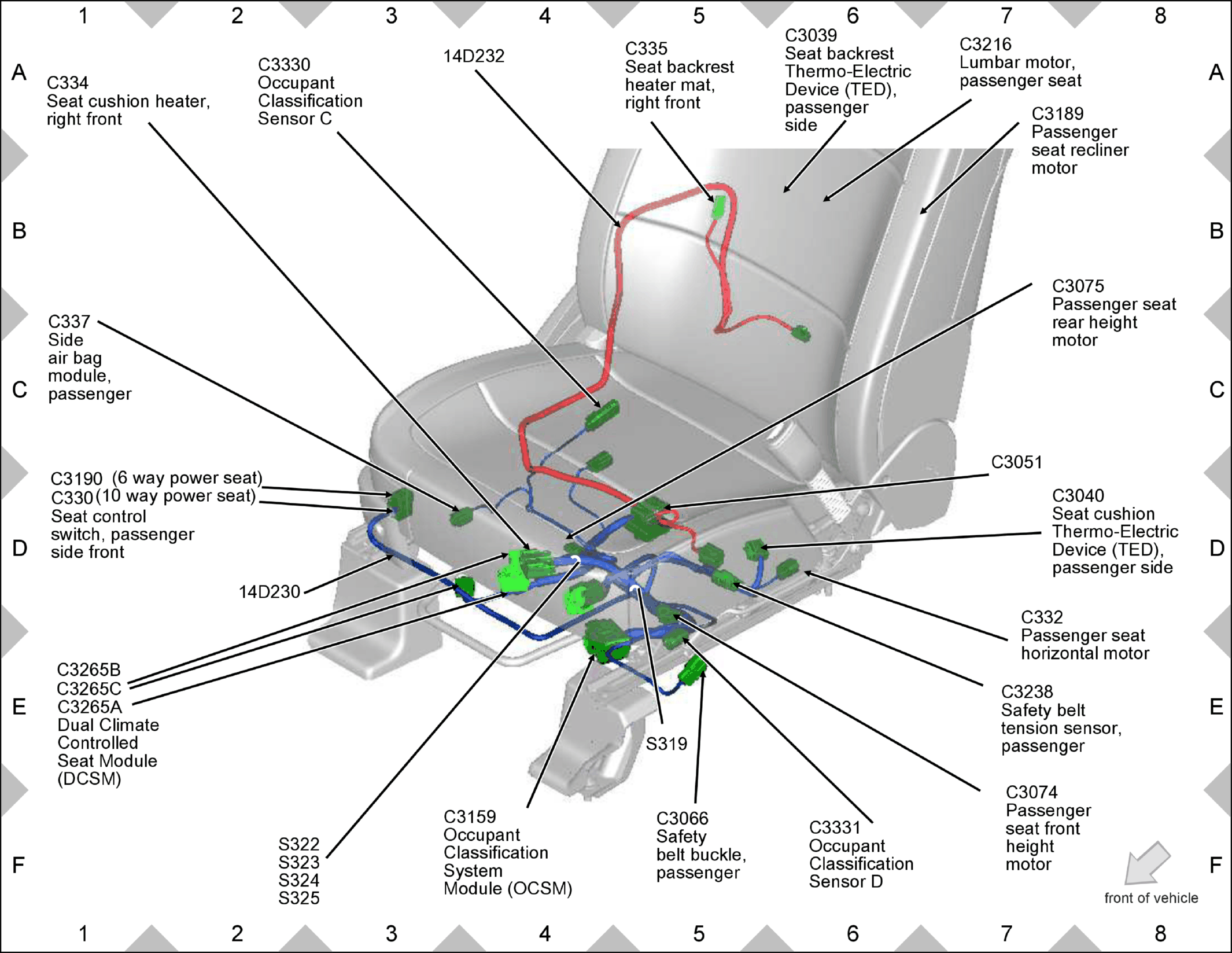

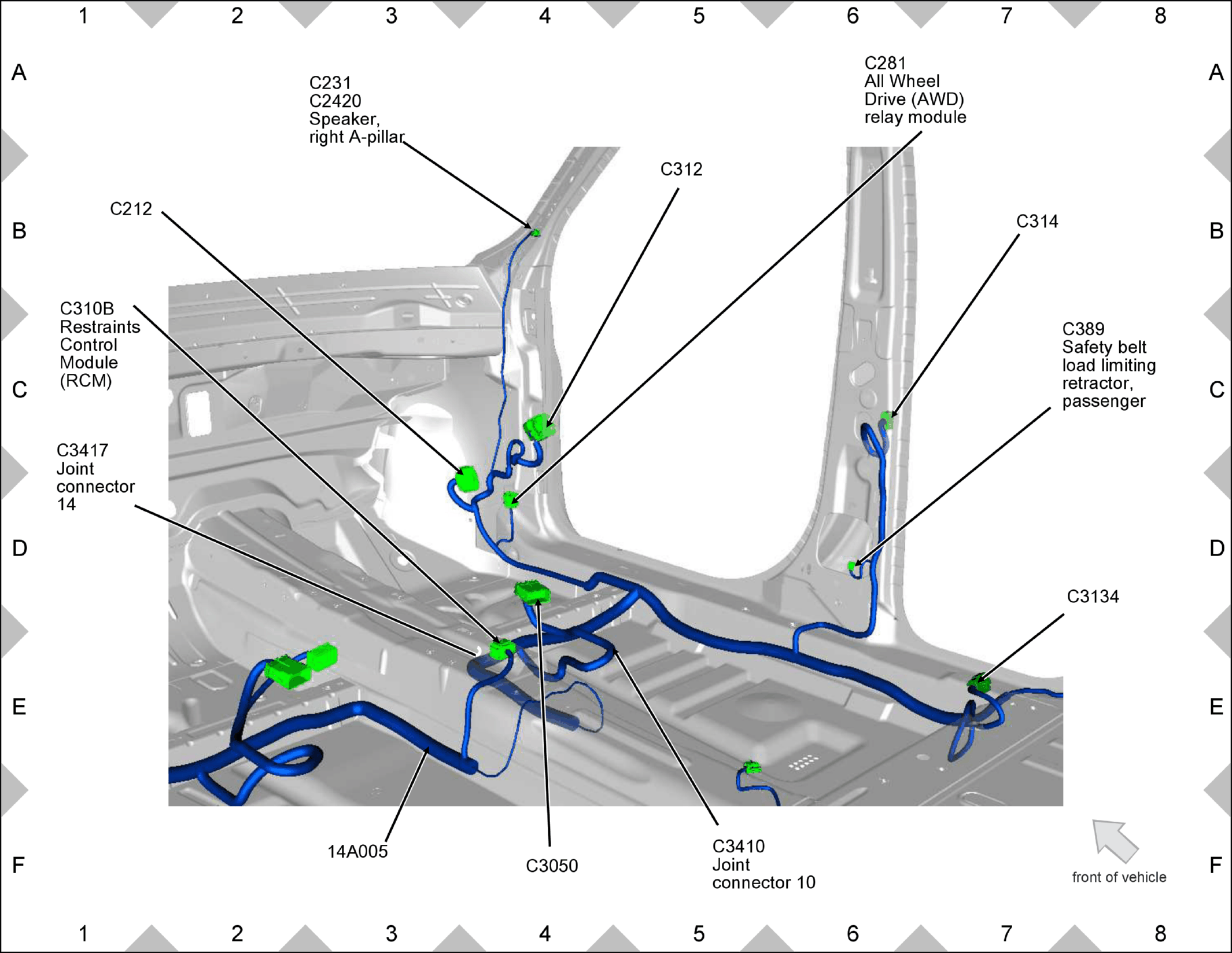

GFDW64433Courtesy of FORD MOTOR COMPANY

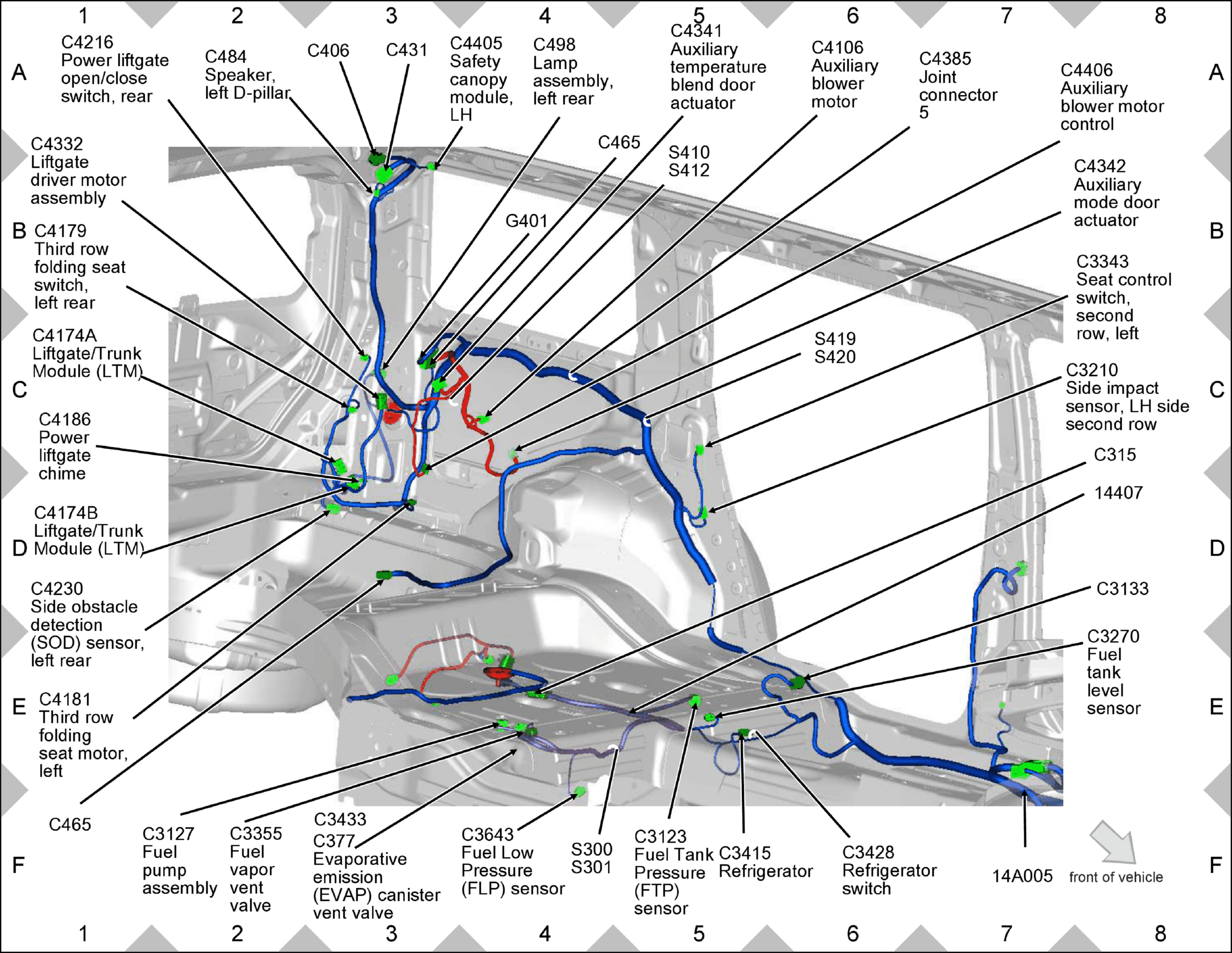

GFDW64434Courtesy of FORD MOTOR COMPANY

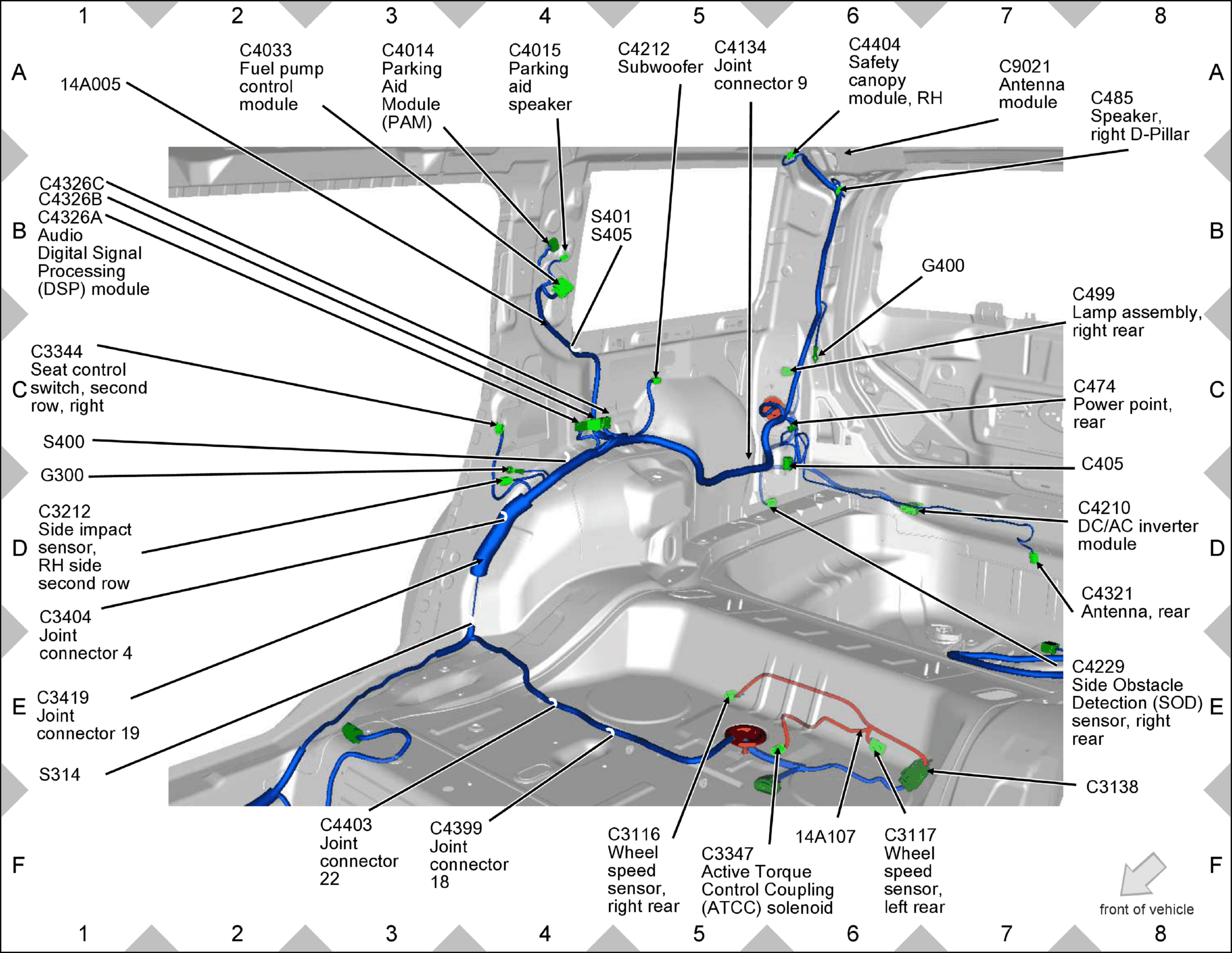

GFDW64435Courtesy of FORD MOTOR COMPANY

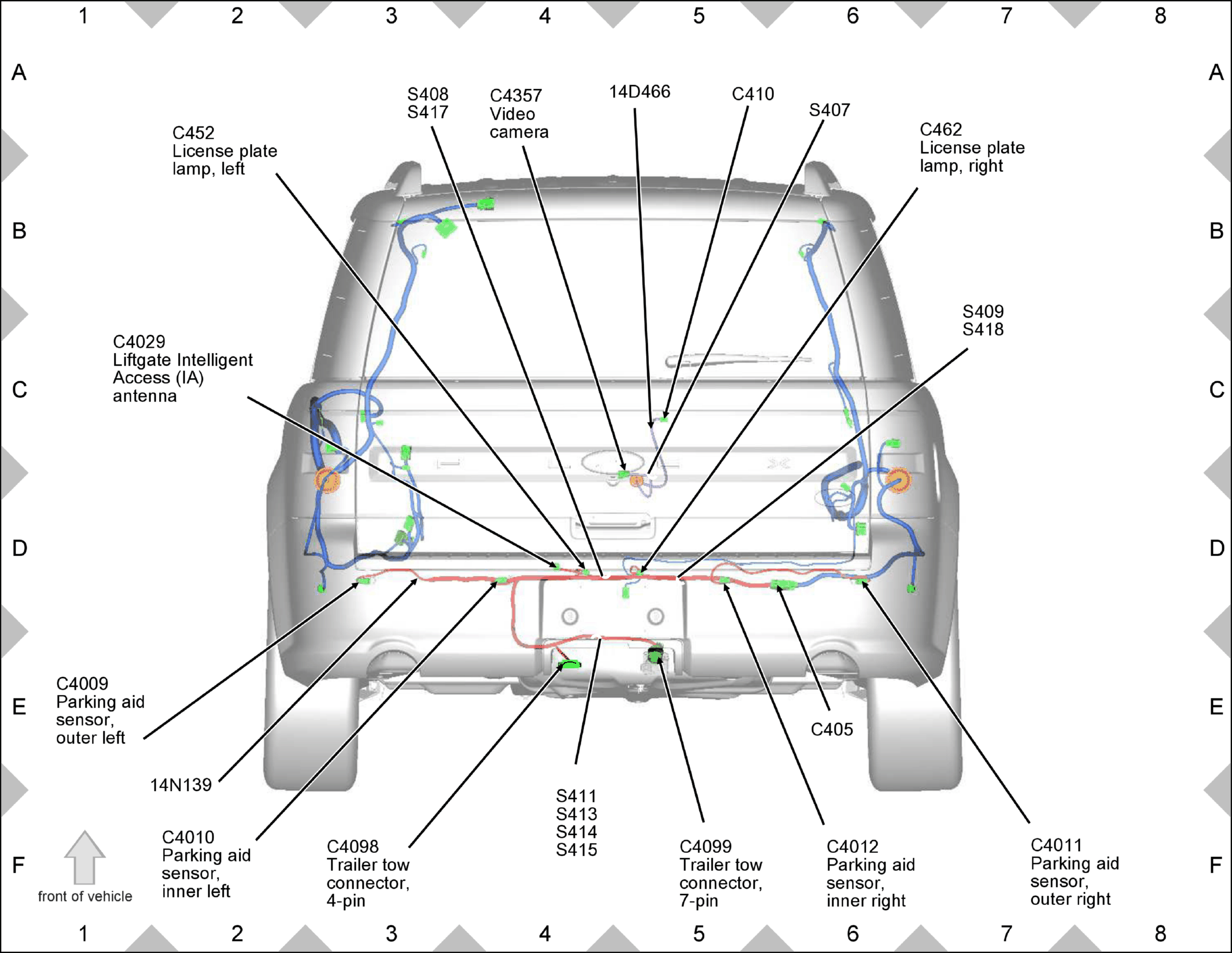

GFDW64436Courtesy of FORD MOTOR COMPANY

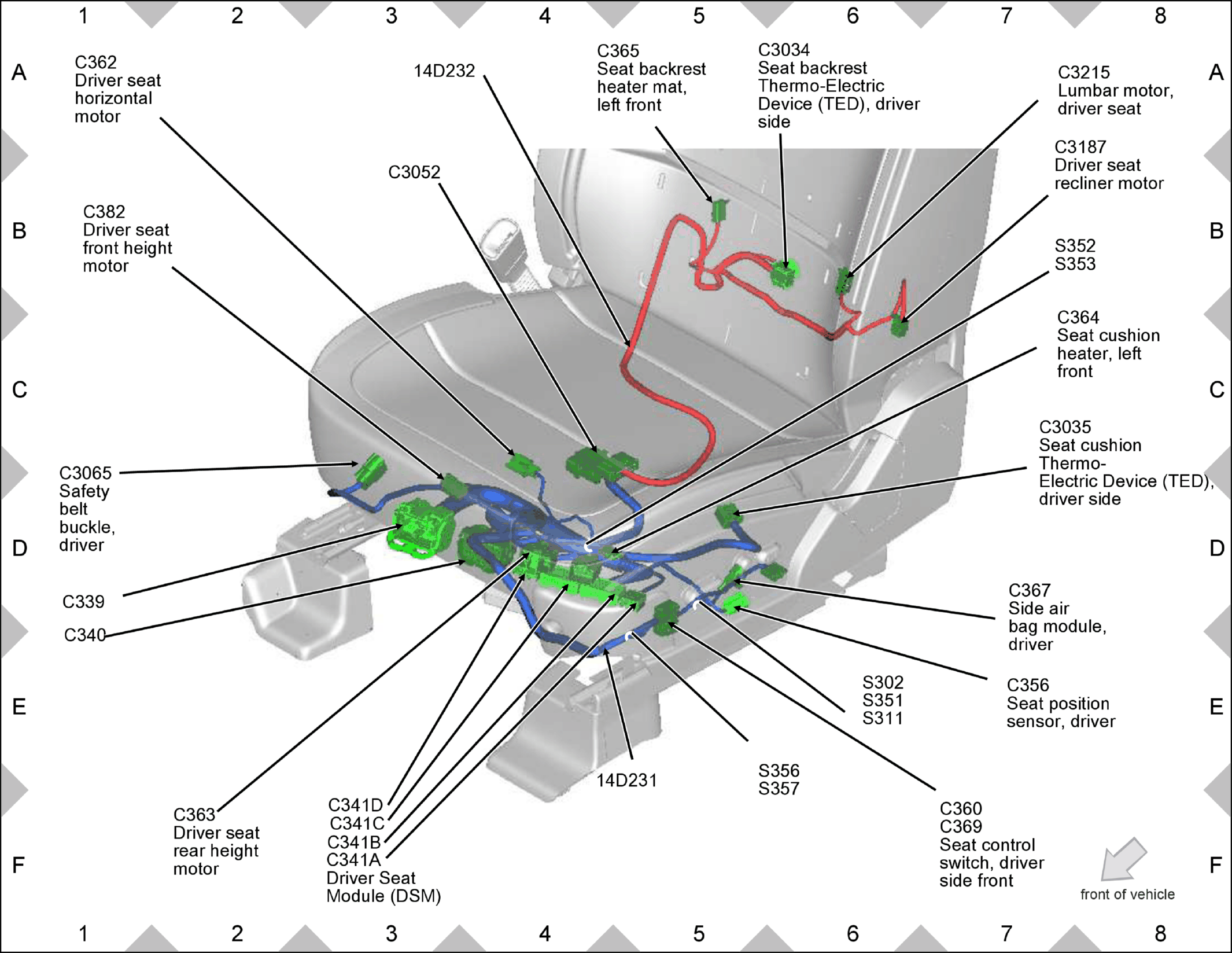

GFDW64437Courtesy of FORD MOTOR COMPANY

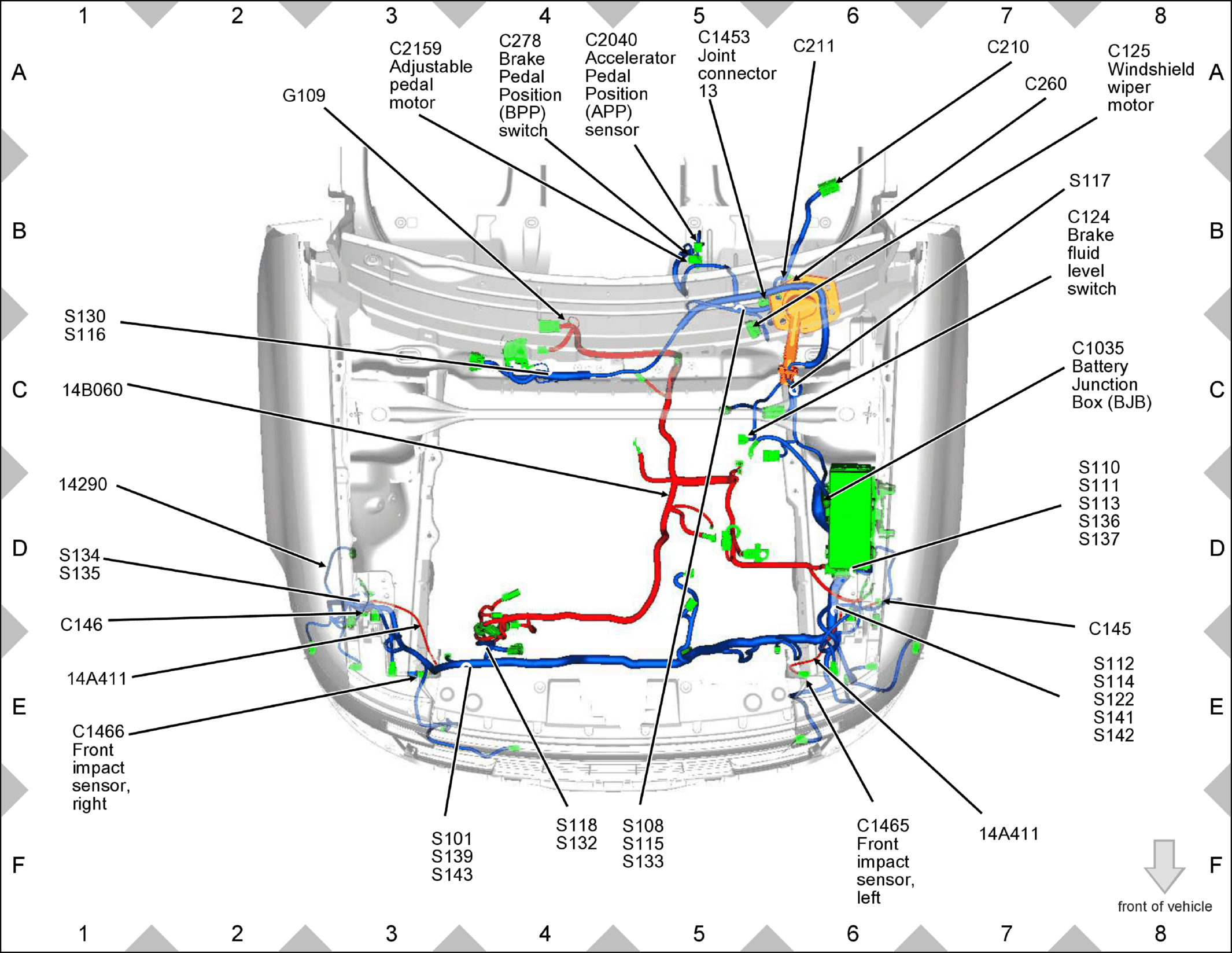

GFDW64438Courtesy of FORD MOTOR COMPANY
GFDW64439Courtesy of FORD MOTOR COMPANY

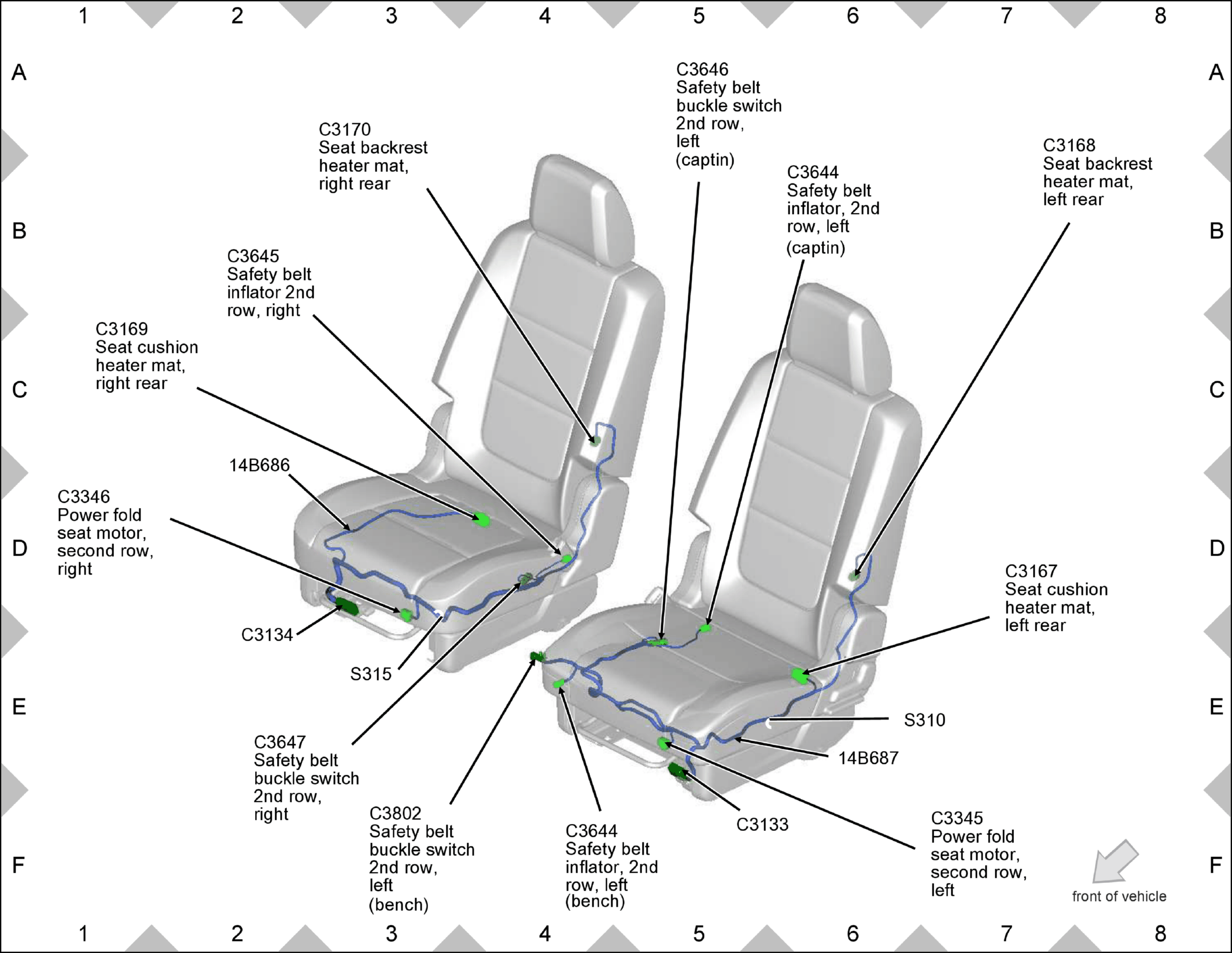

GFDW64440Courtesy of FORD MOTOR COMPANY

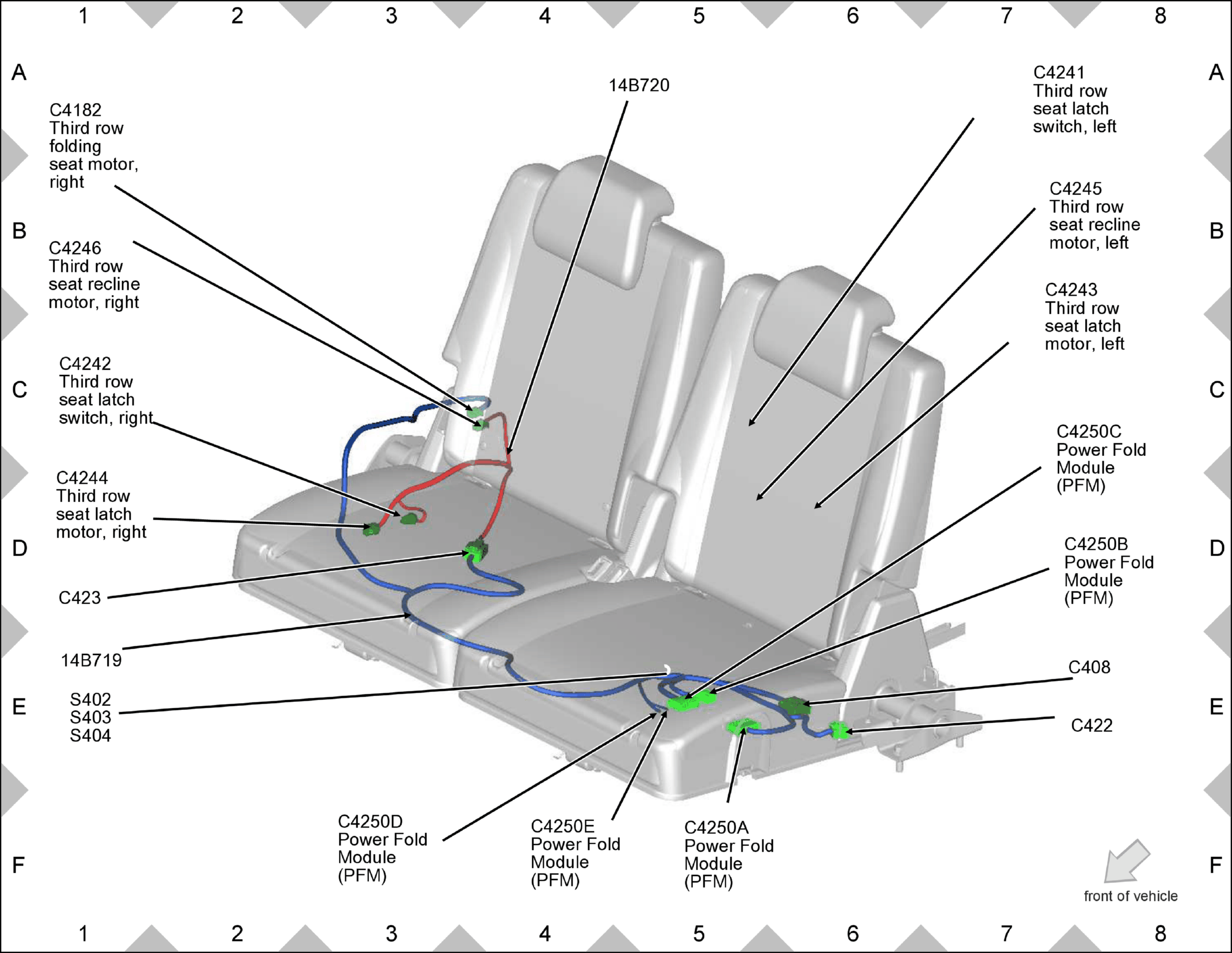

GFDW64441Courtesy of FORD MOTOR COMPANY

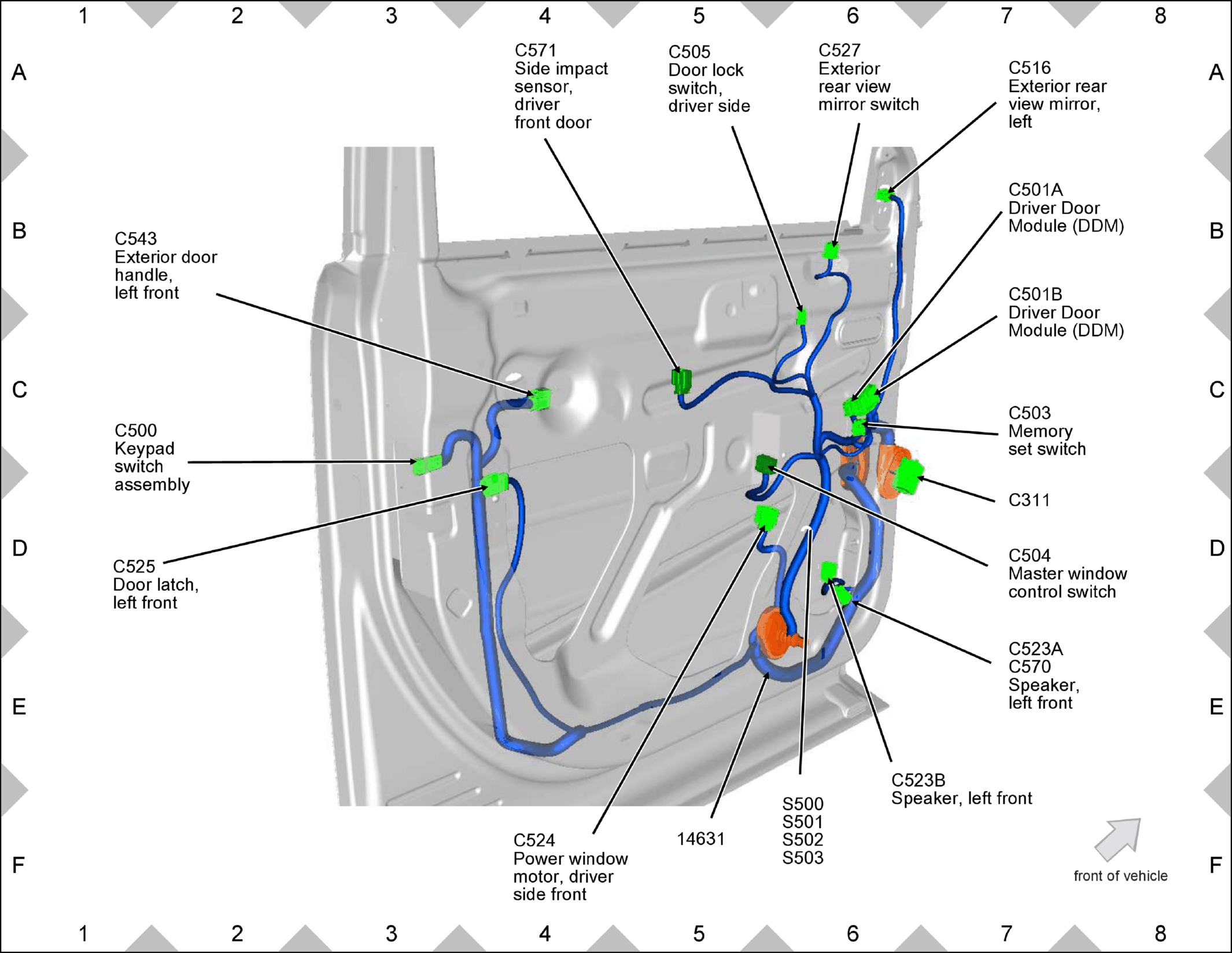

GFDW64442Courtesy of FORD MOTOR COMPANY

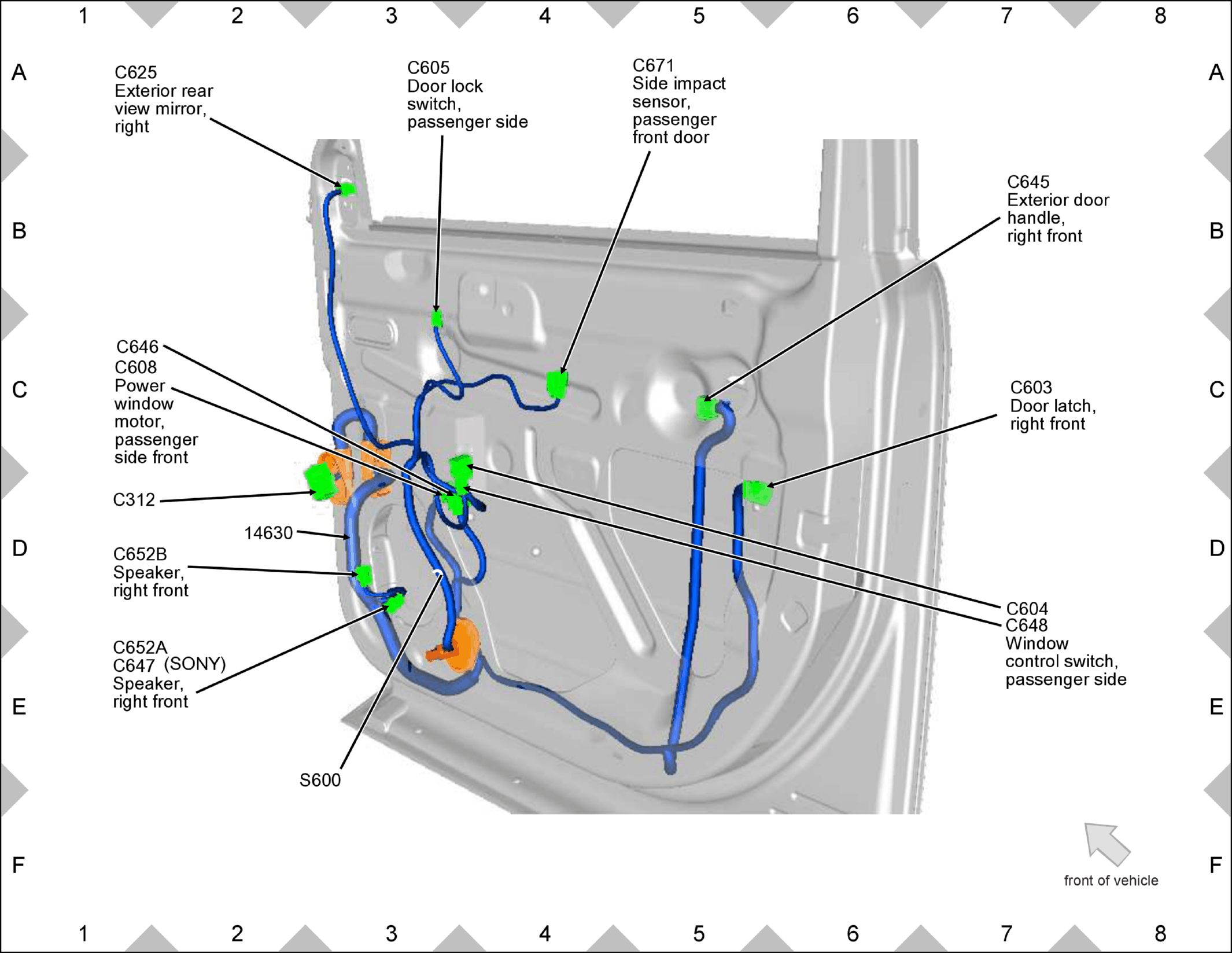

GFDW64443Courtesy of FORD MOTOR COMPANY

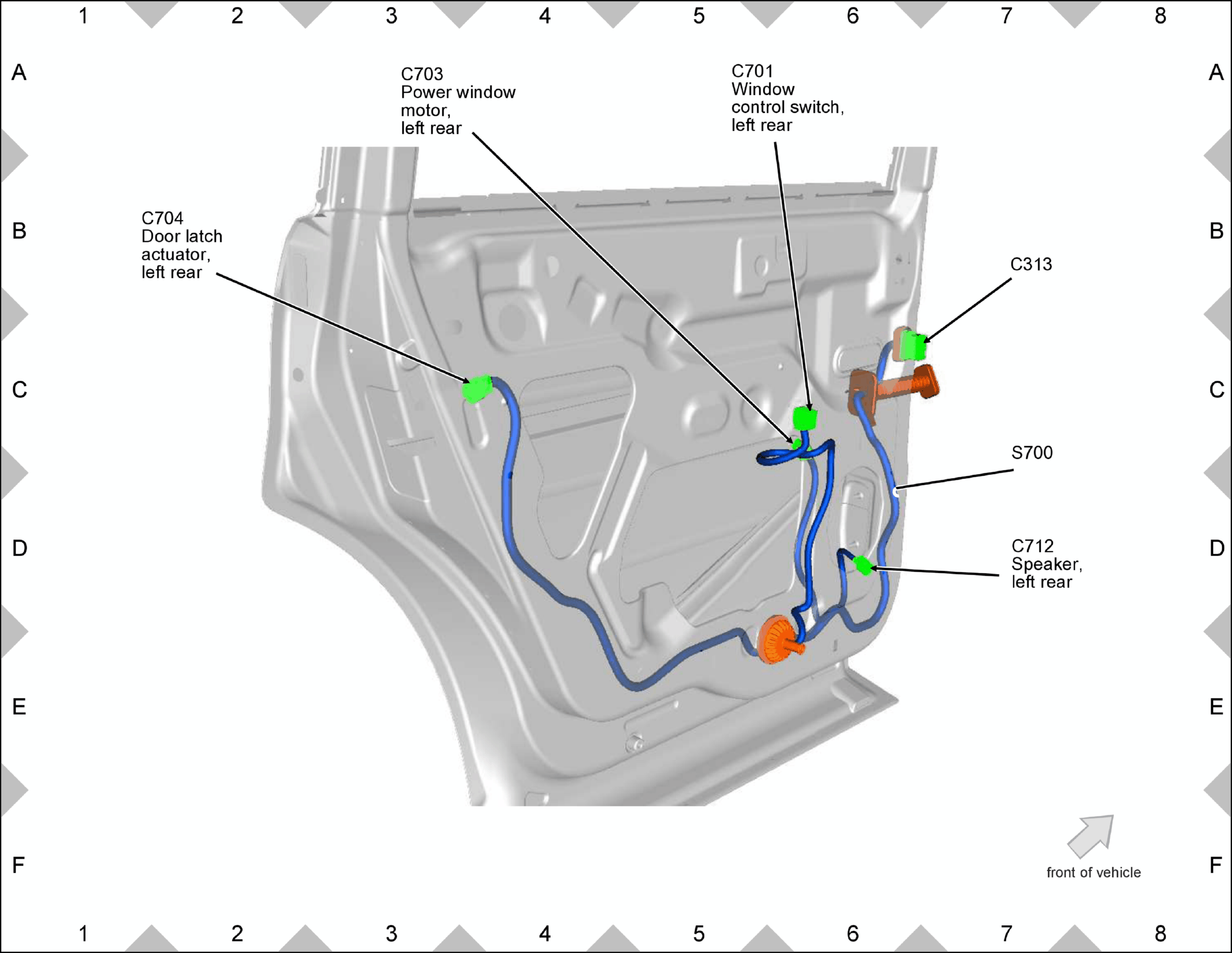

GFDW64444Courtesy of FORD MOTOR COMPANY

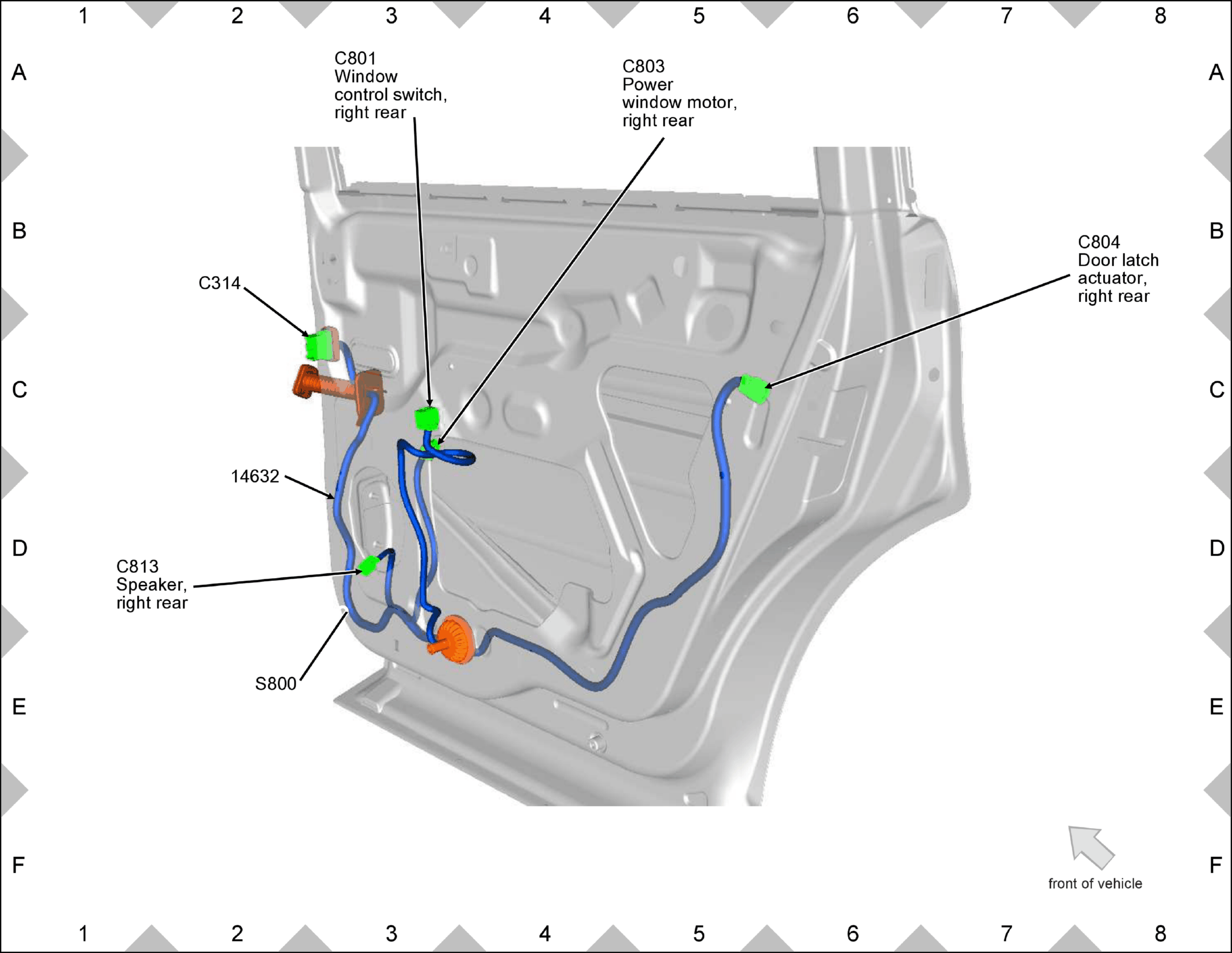

GFDW64445Courtesy of FORD MOTOR COMPANY

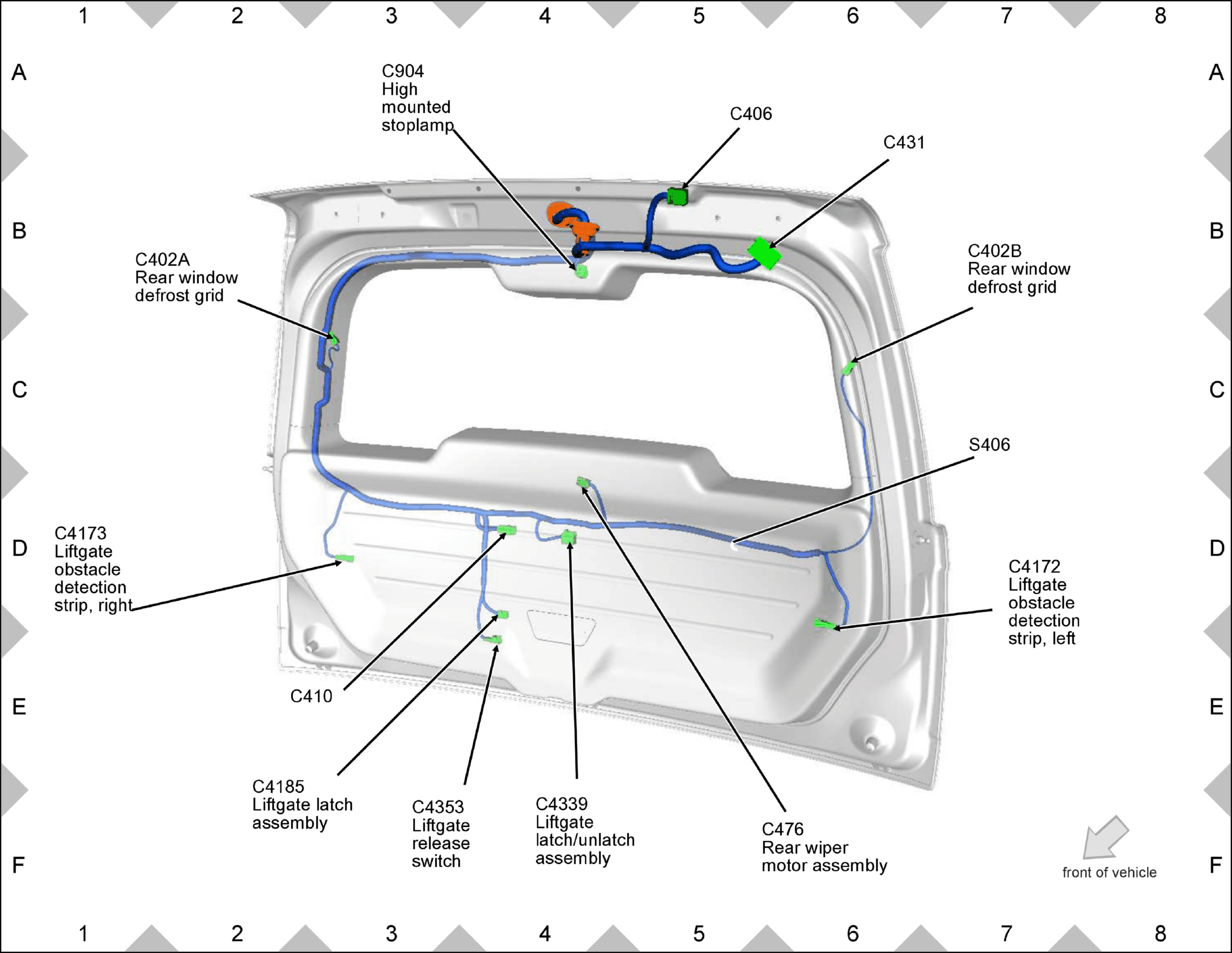

GFDW64446Courtesy of FORD MOTOR COMPANY

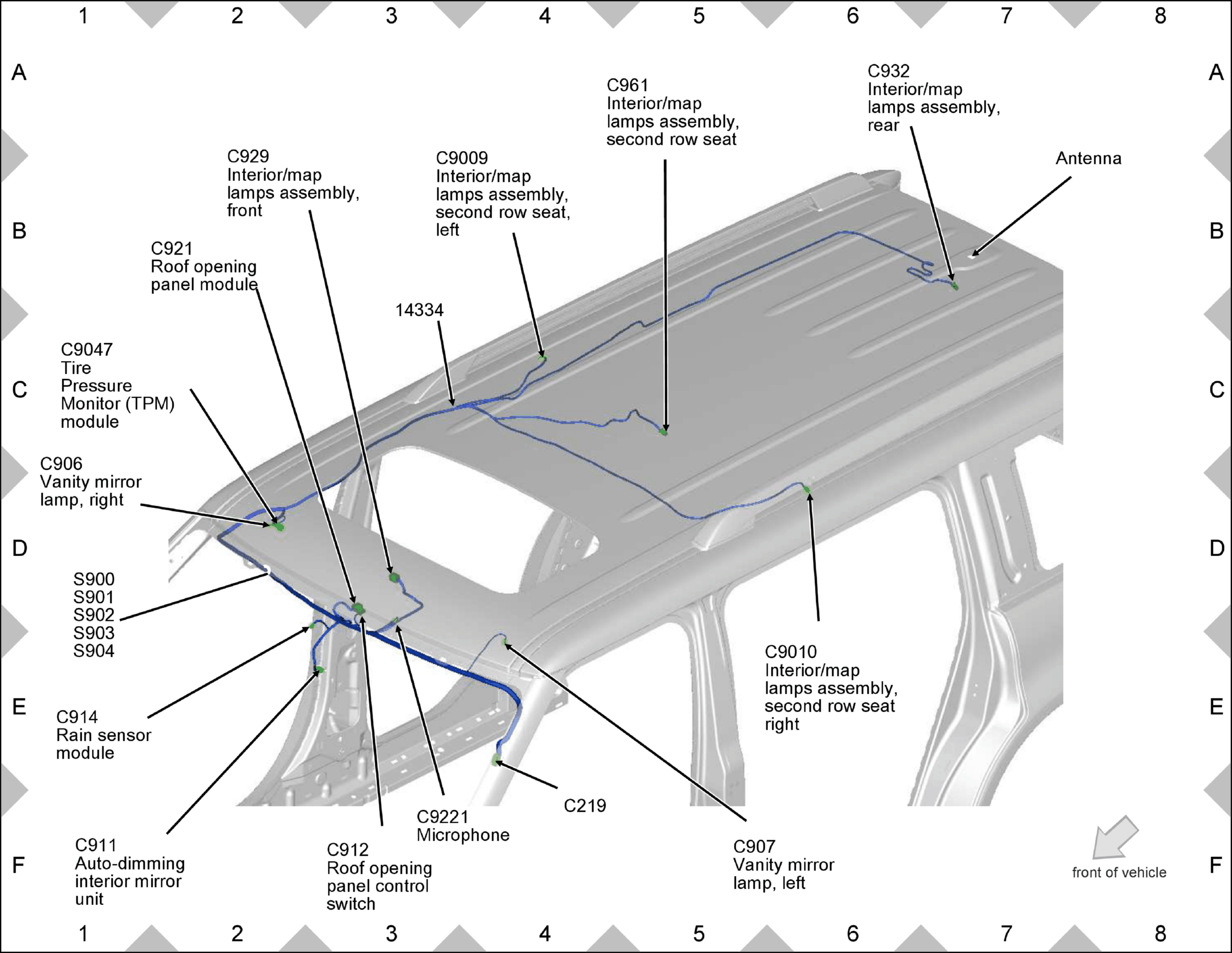

GFDW64447Courtesy of FORD MOTOR COMPANY

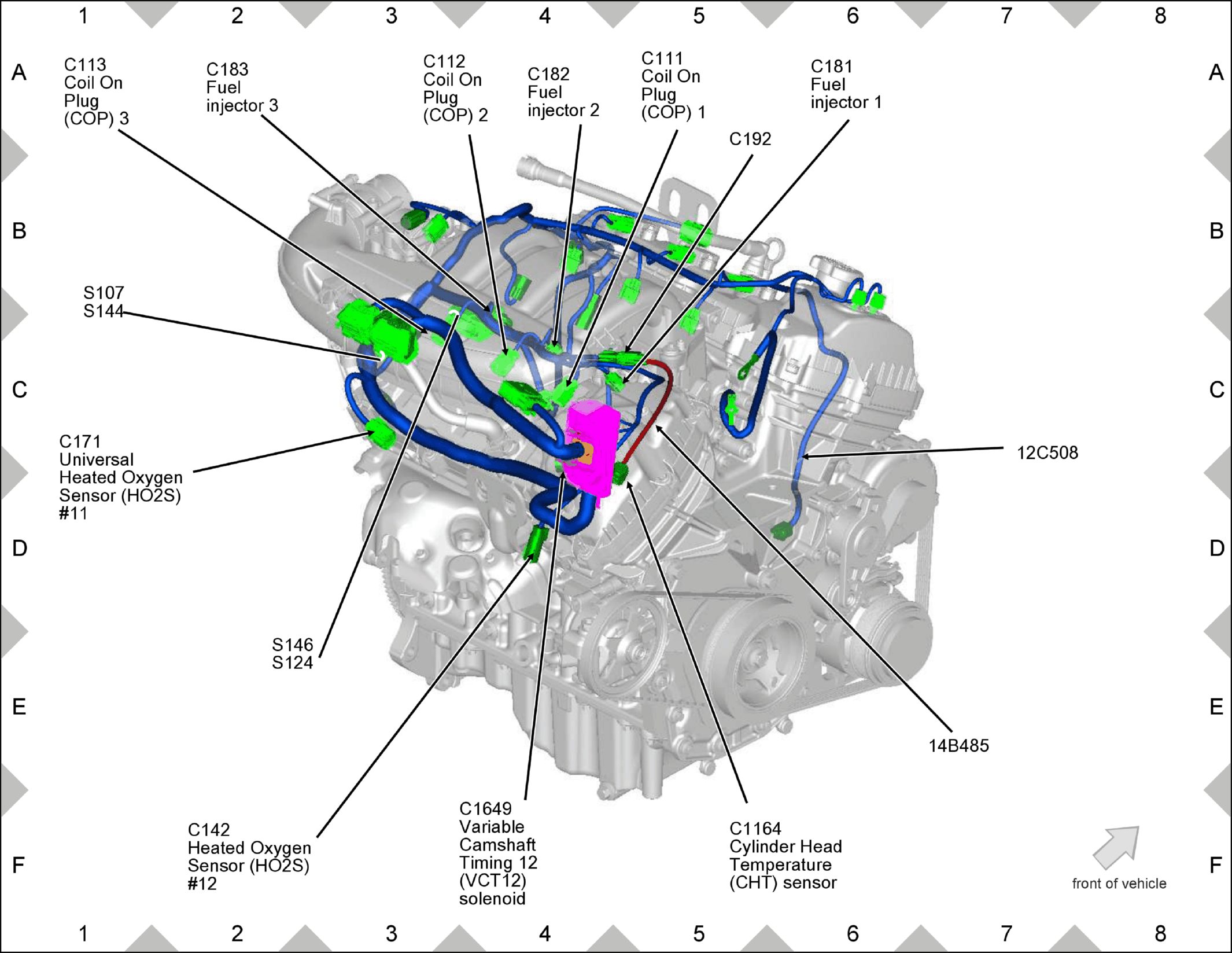

GFDW64448Courtesy of FORD MOTOR COMPANY

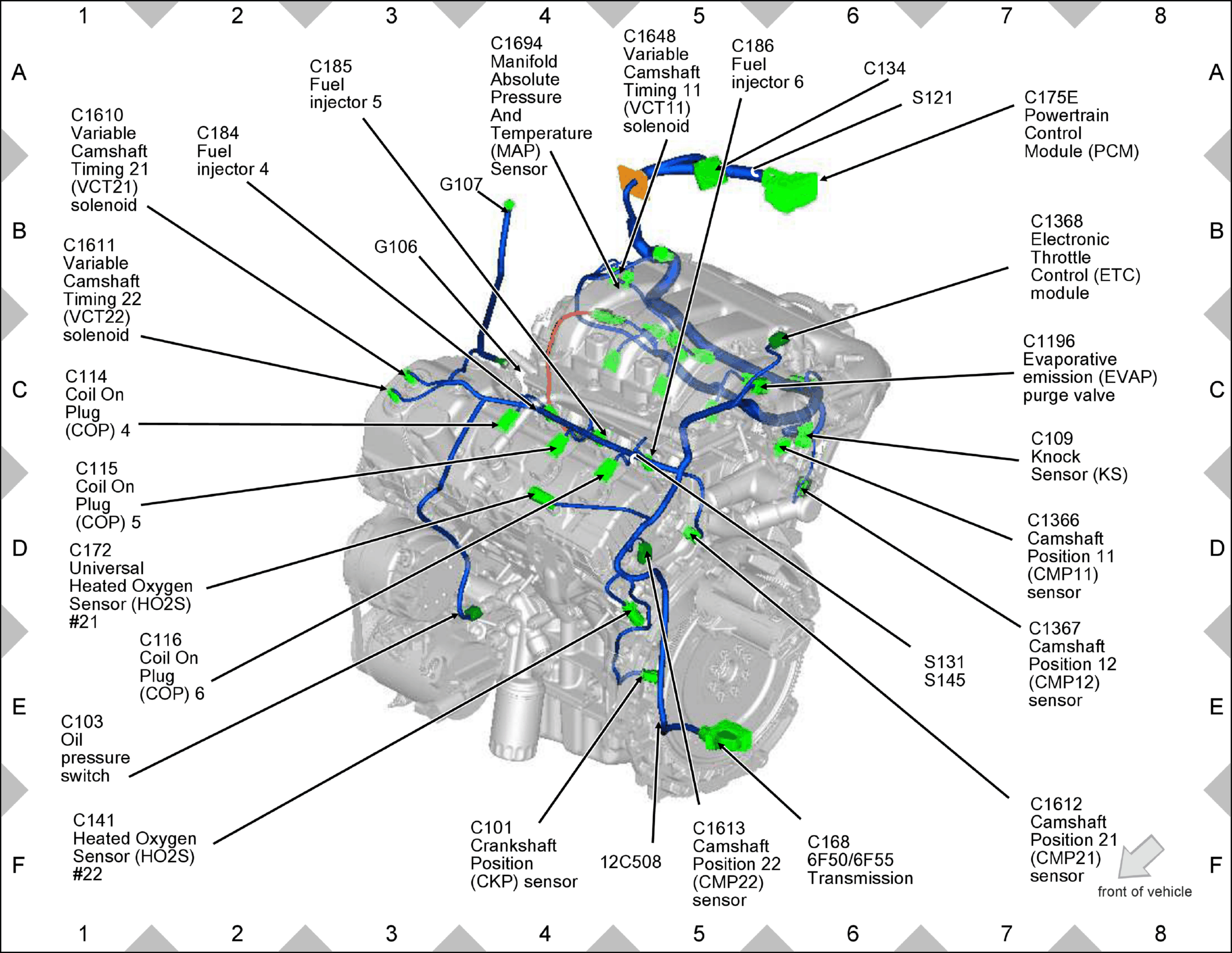

GFDW64449Courtesy of FORD MOTOR COMPANY

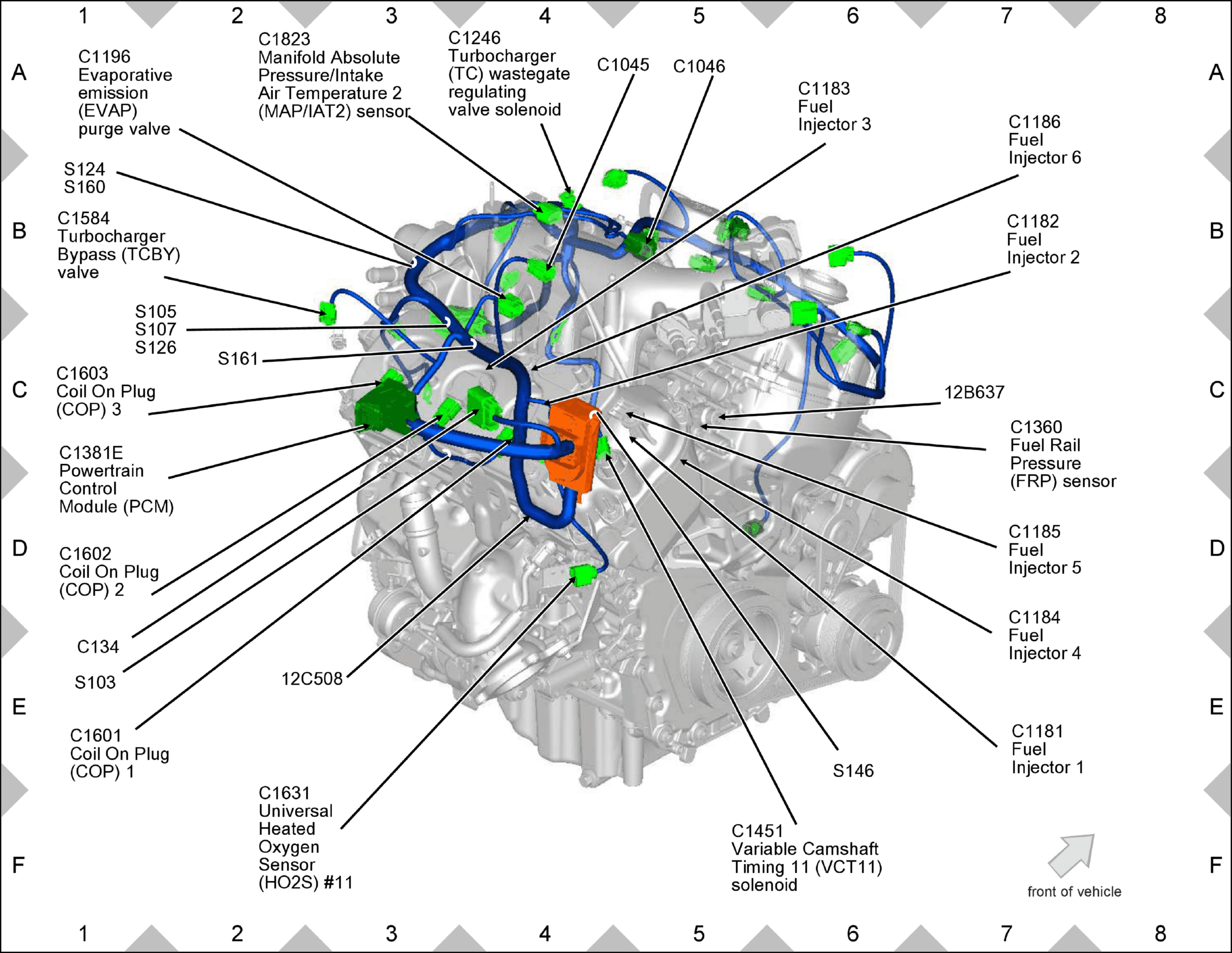

GFDW64450Courtesy of FORD MOTOR COMPANY

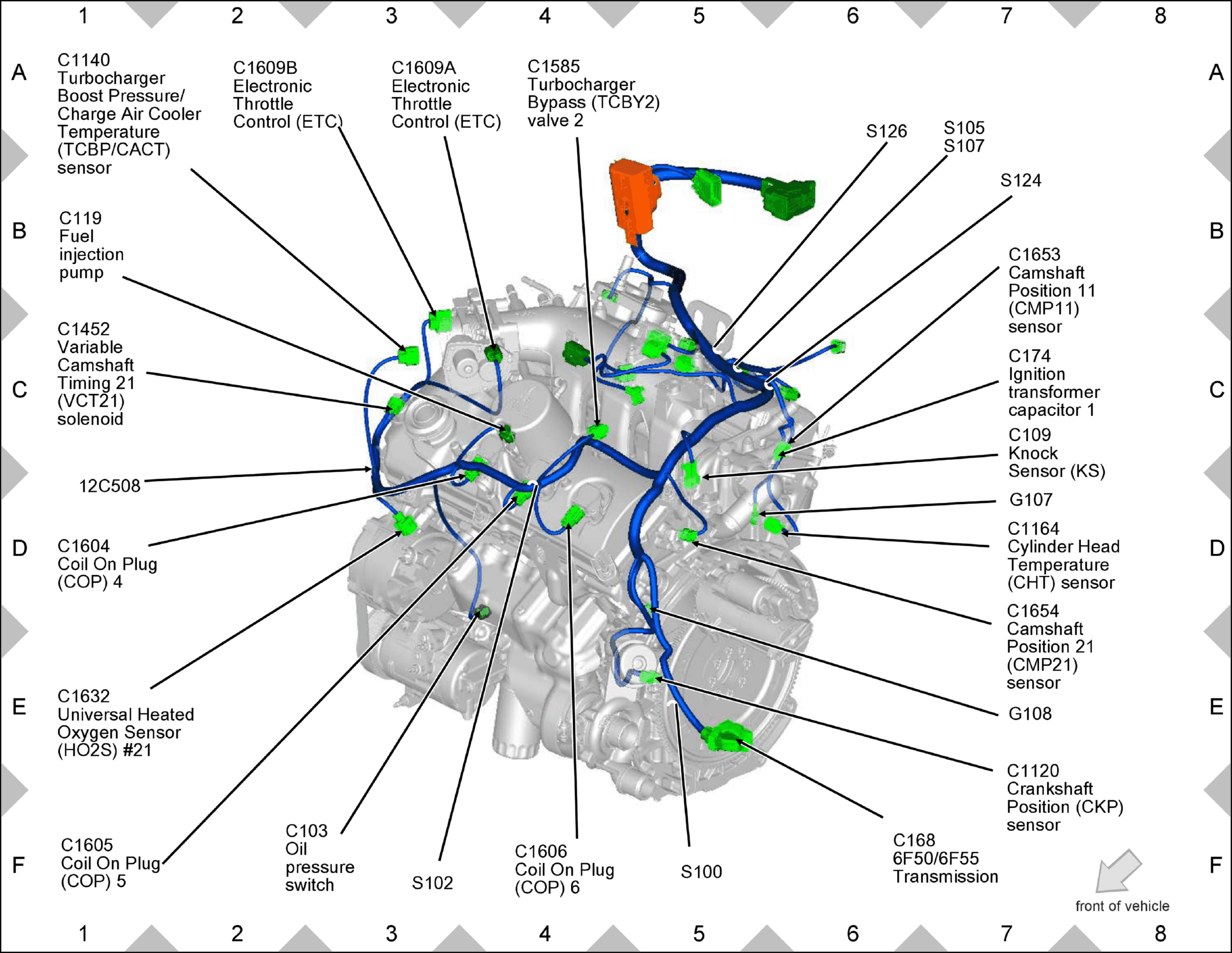

GFDW64451Courtesy of FORD MOTOR COMPANY

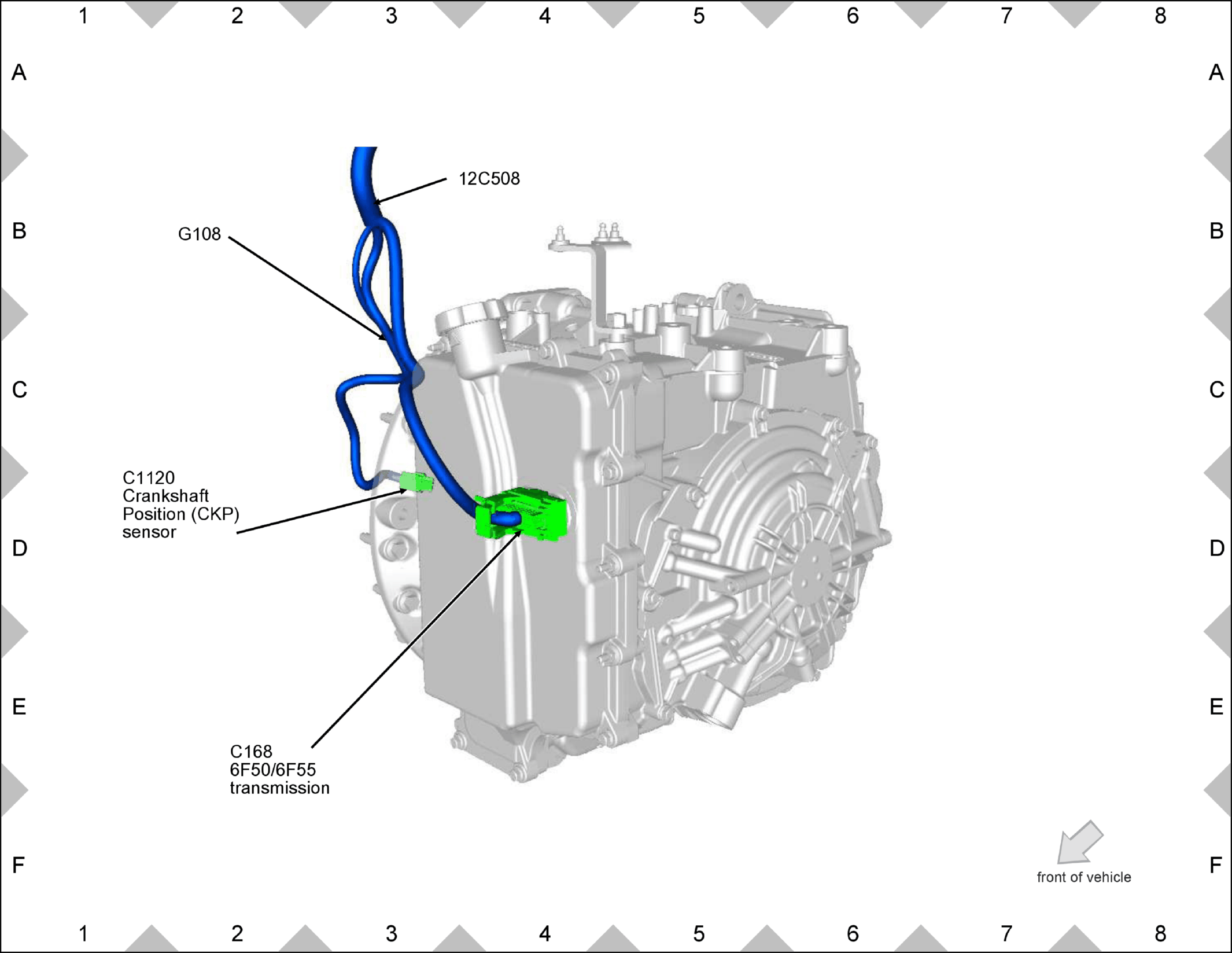

GFDW64452Courtesy of FORD MOTOR COMPANY

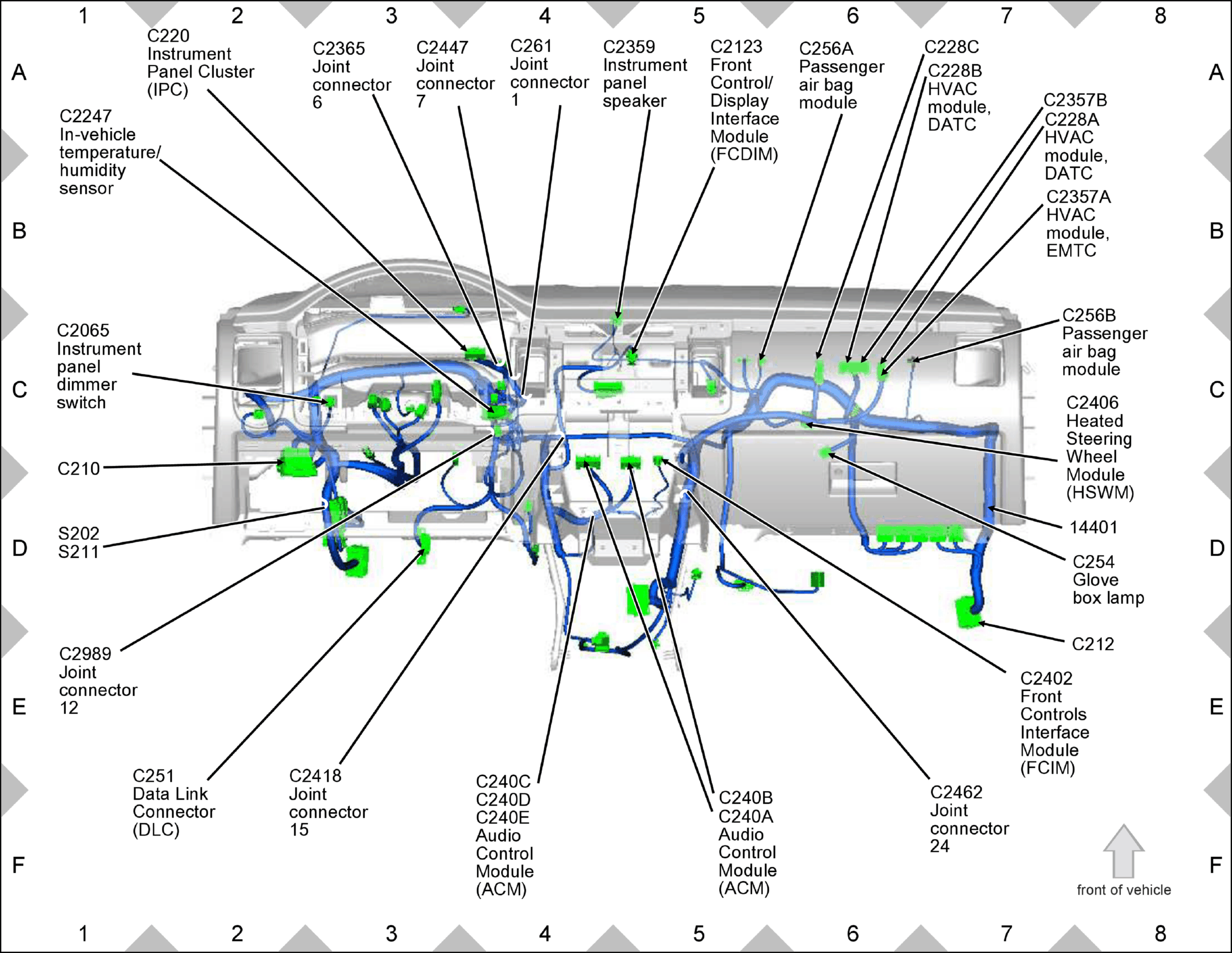

GFDW64453Courtesy of FORD MOTOR COMPANY

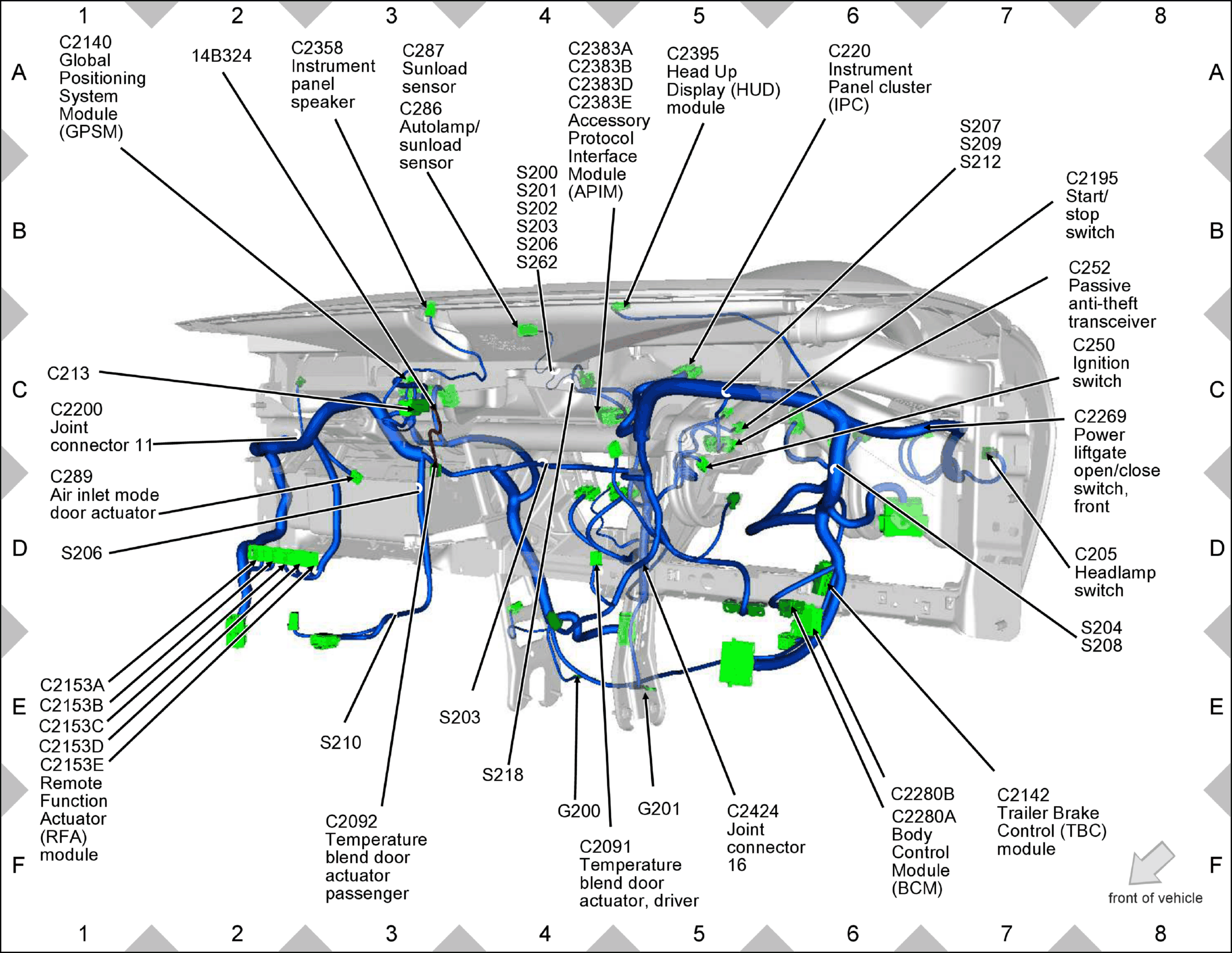

GFDW64454Courtesy of FORD MOTOR COMPANY
