OEM Ground Distribution: Grounds

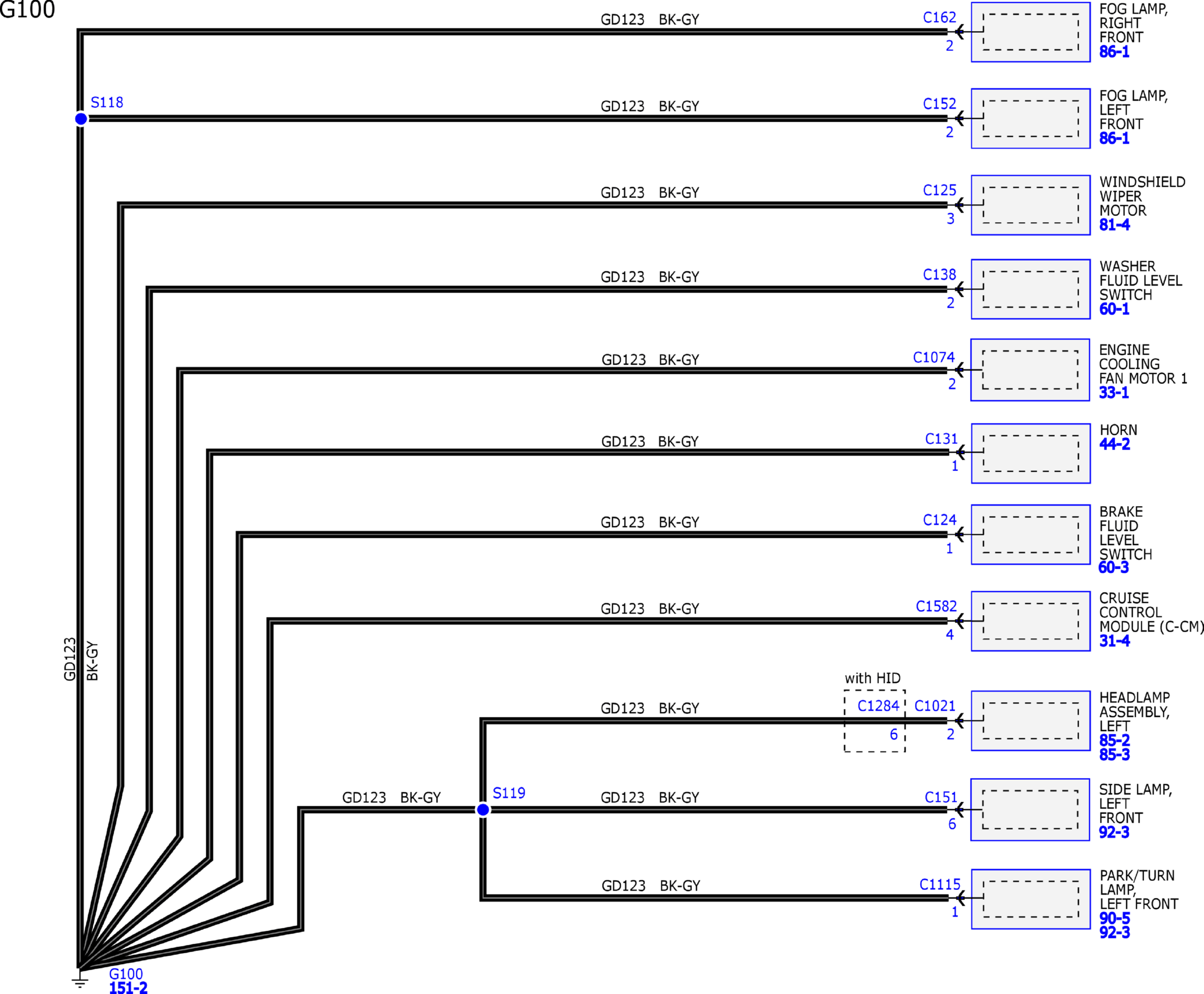

GFDW64988Courtesy of FORD MOTOR COMPANY

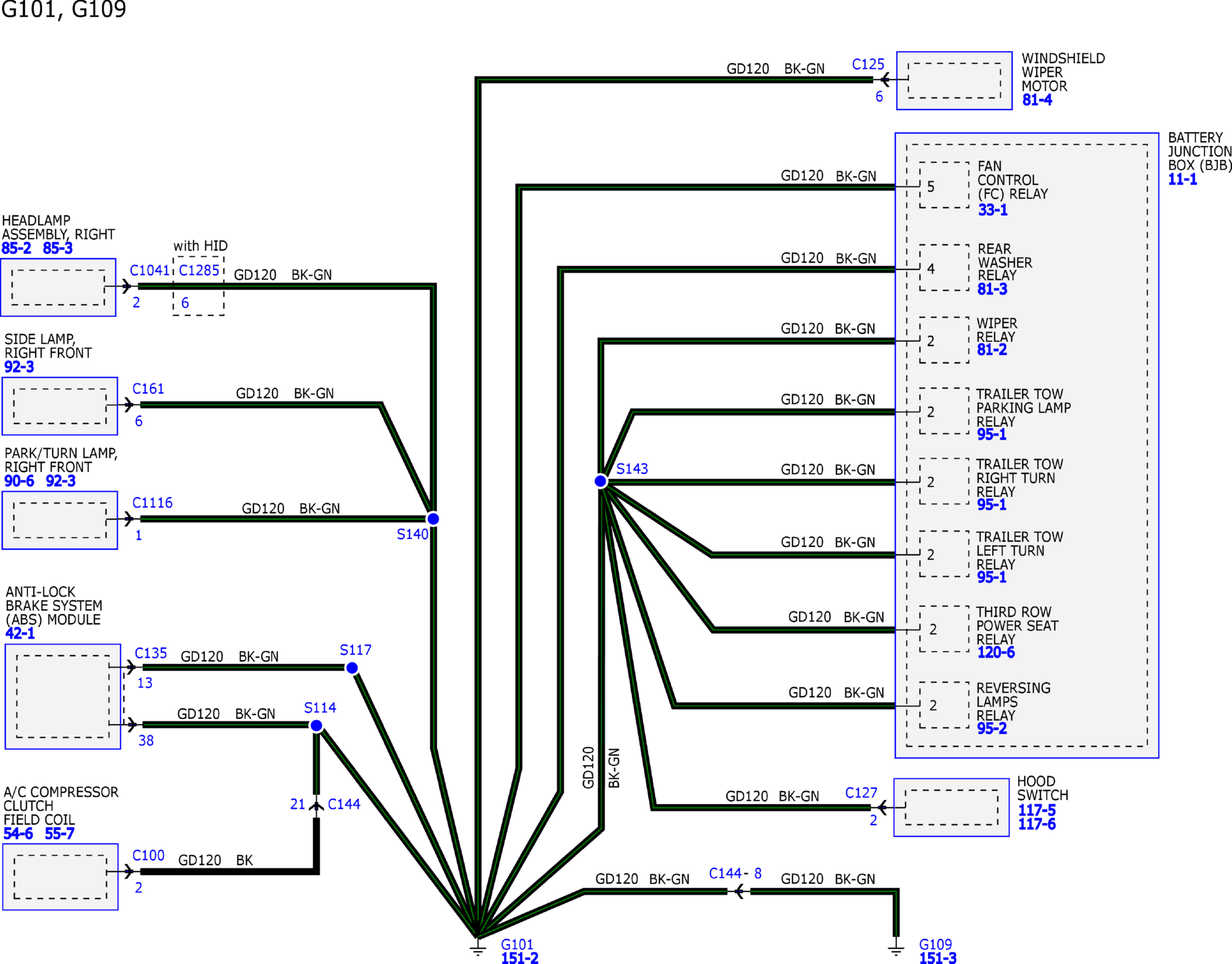

GFDW64989Courtesy of FORD MOTOR COMPANY

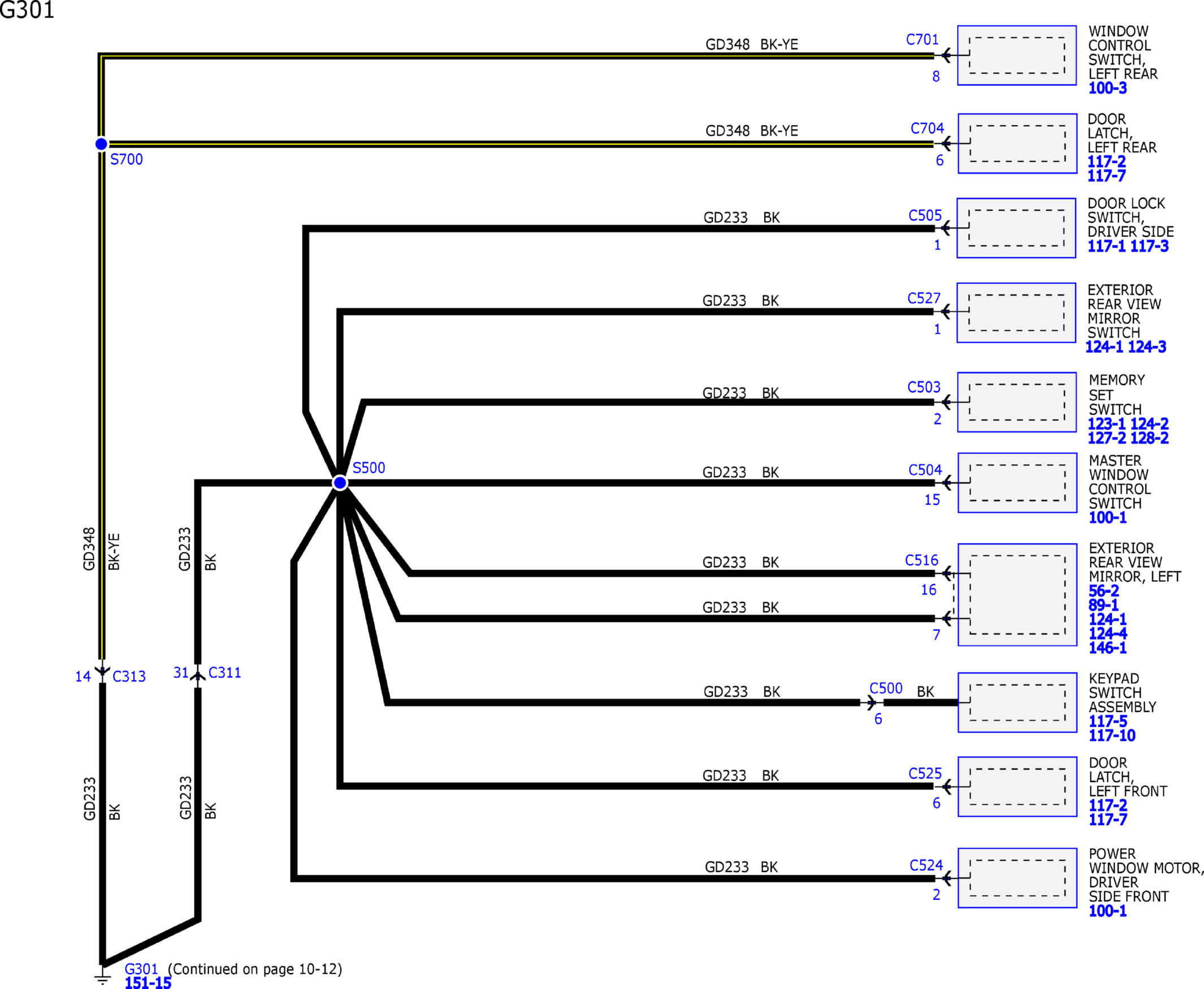

GFDW64990Courtesy of FORD MOTOR COMPANY

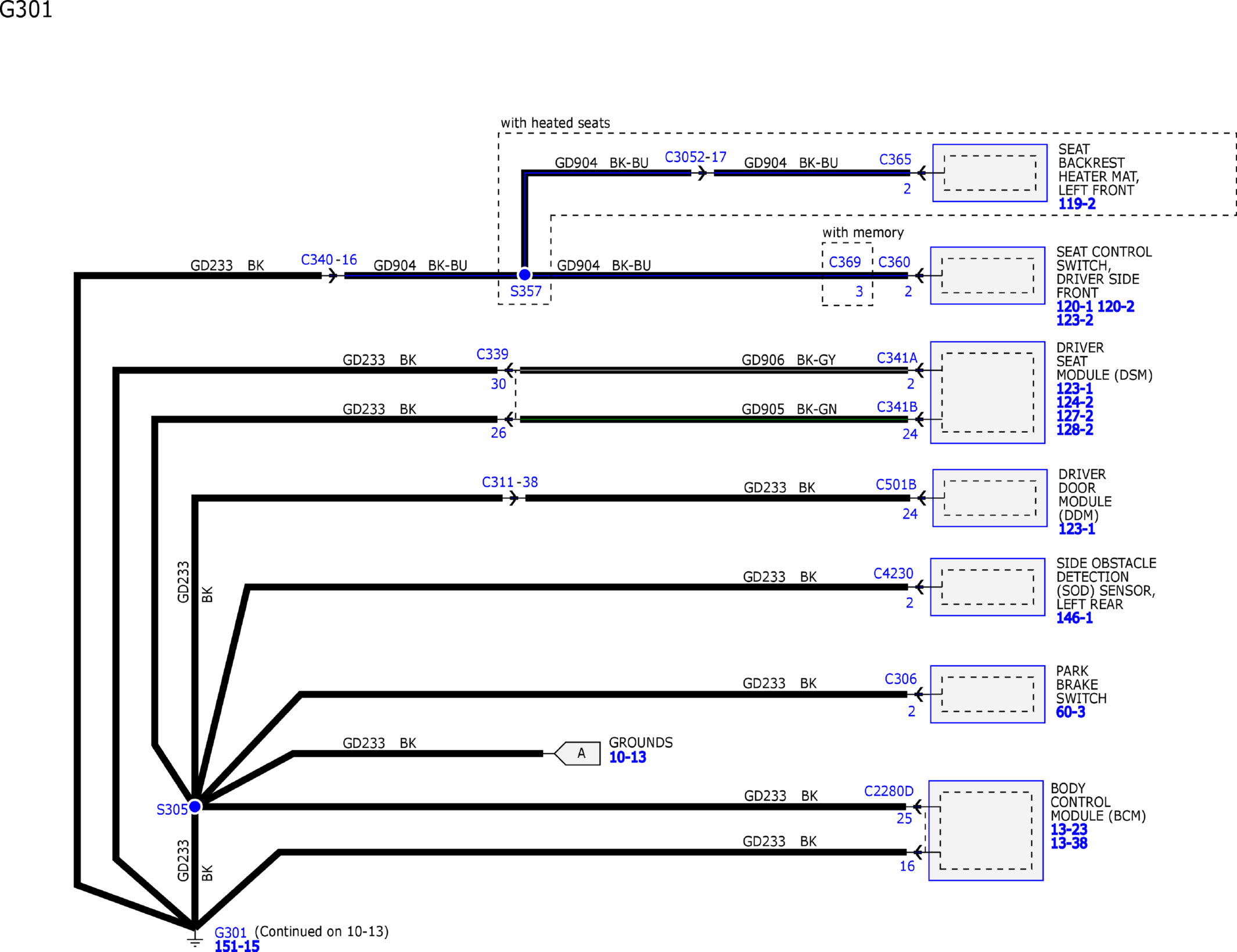

GFDW64991Courtesy of FORD MOTOR COMPANY

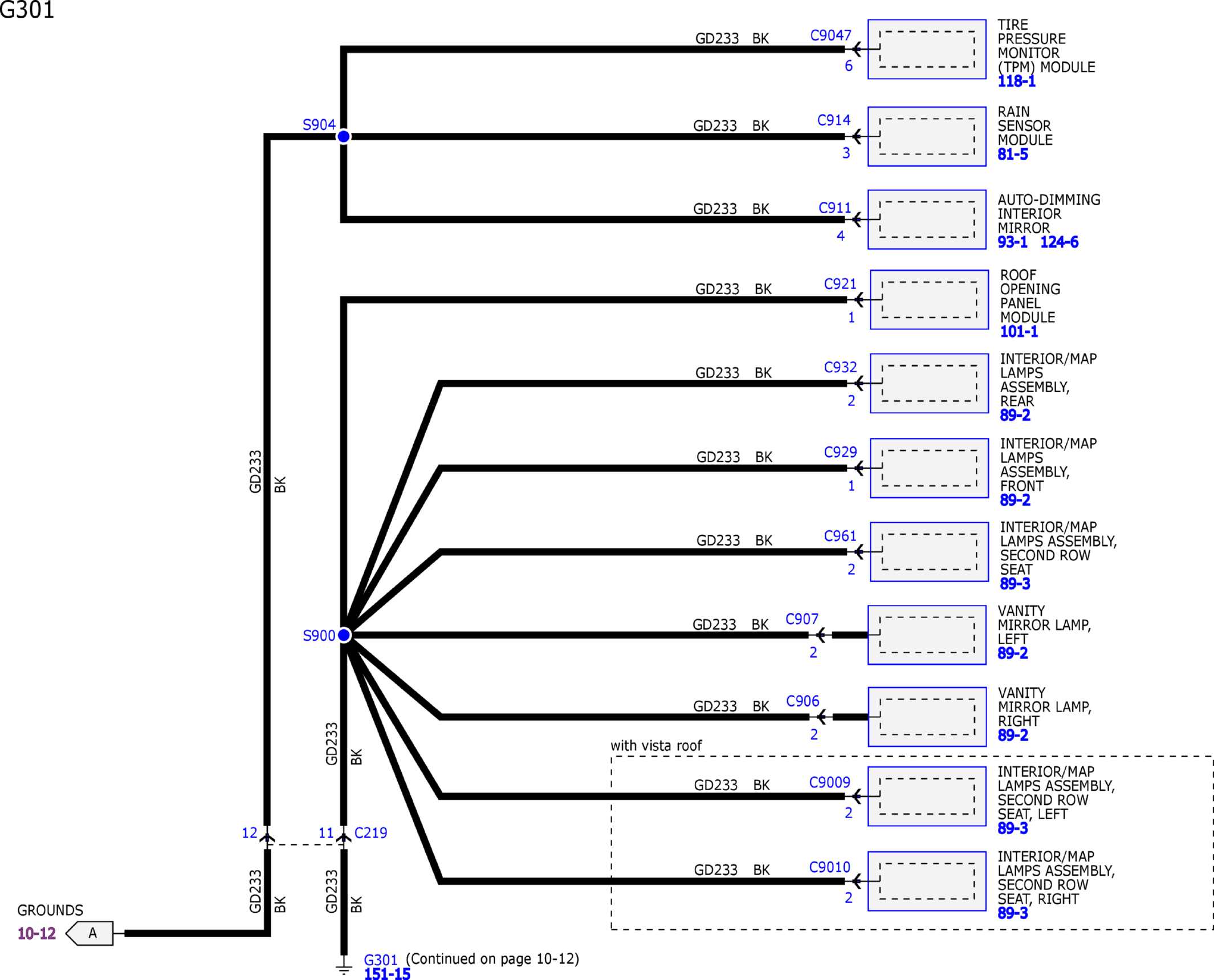

GFDW64992Courtesy of FORD MOTOR COMPANY

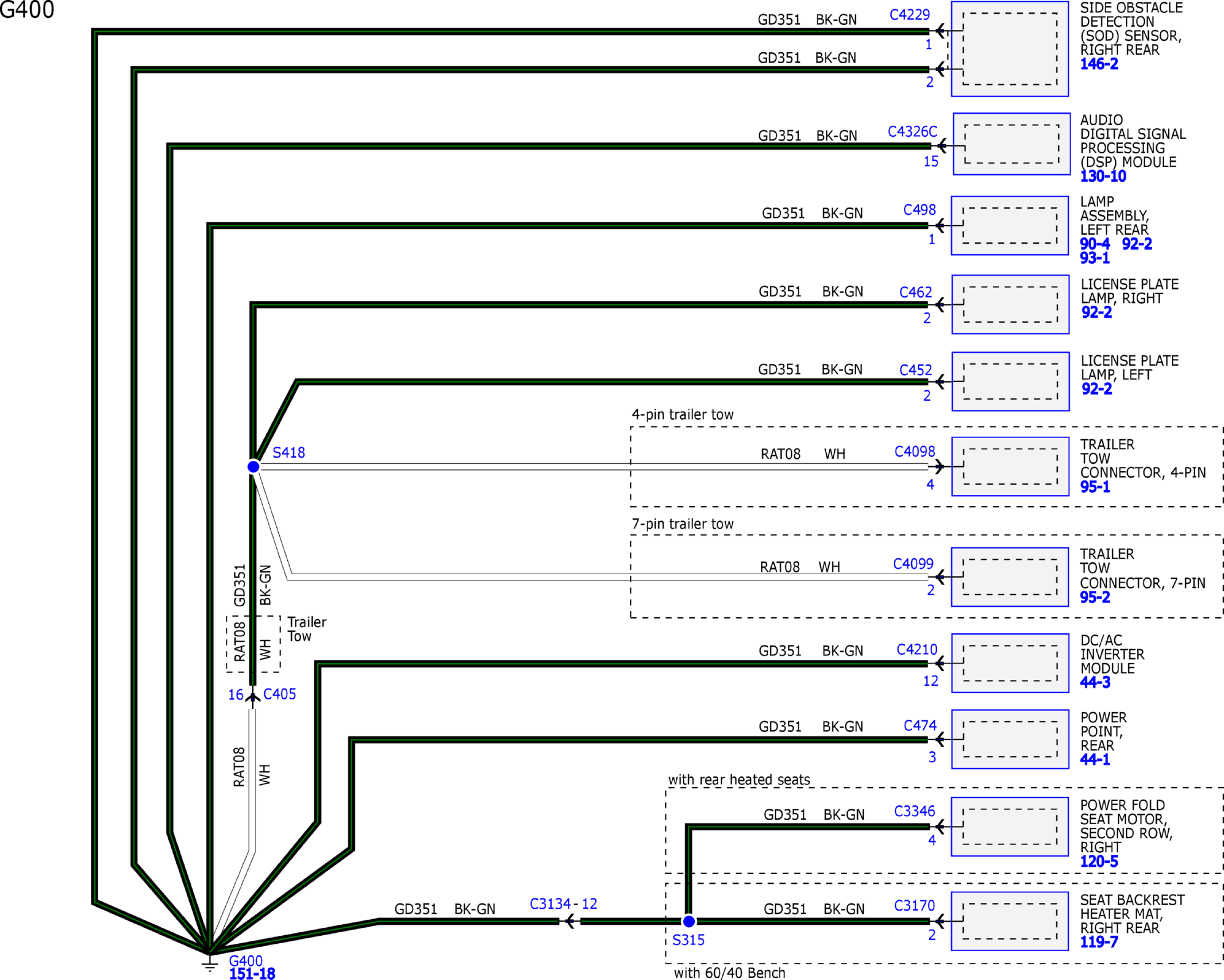

GFDW64993Courtesy of FORD MOTOR COMPANY

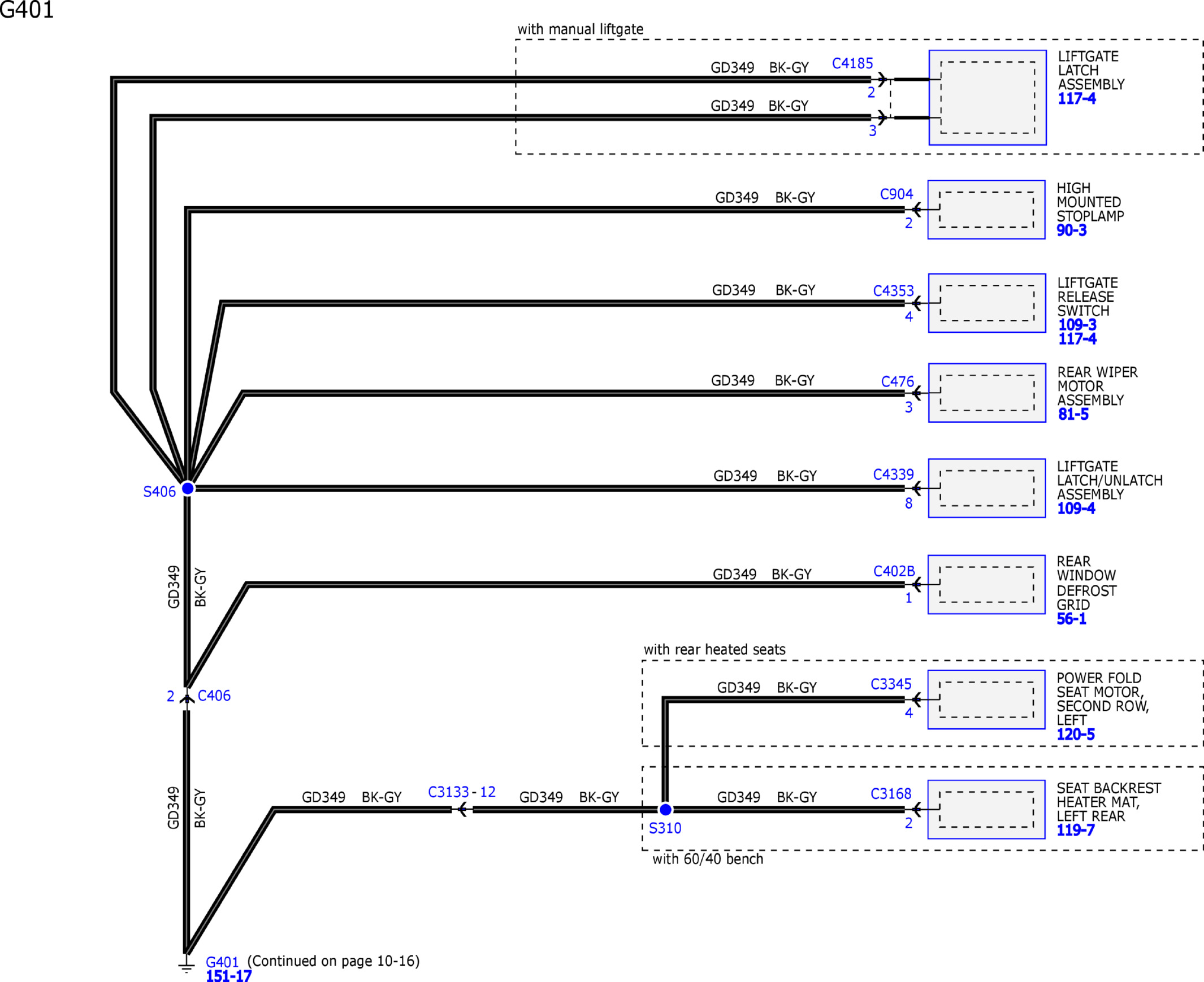

GFDW64994Courtesy of FORD MOTOR COMPANY

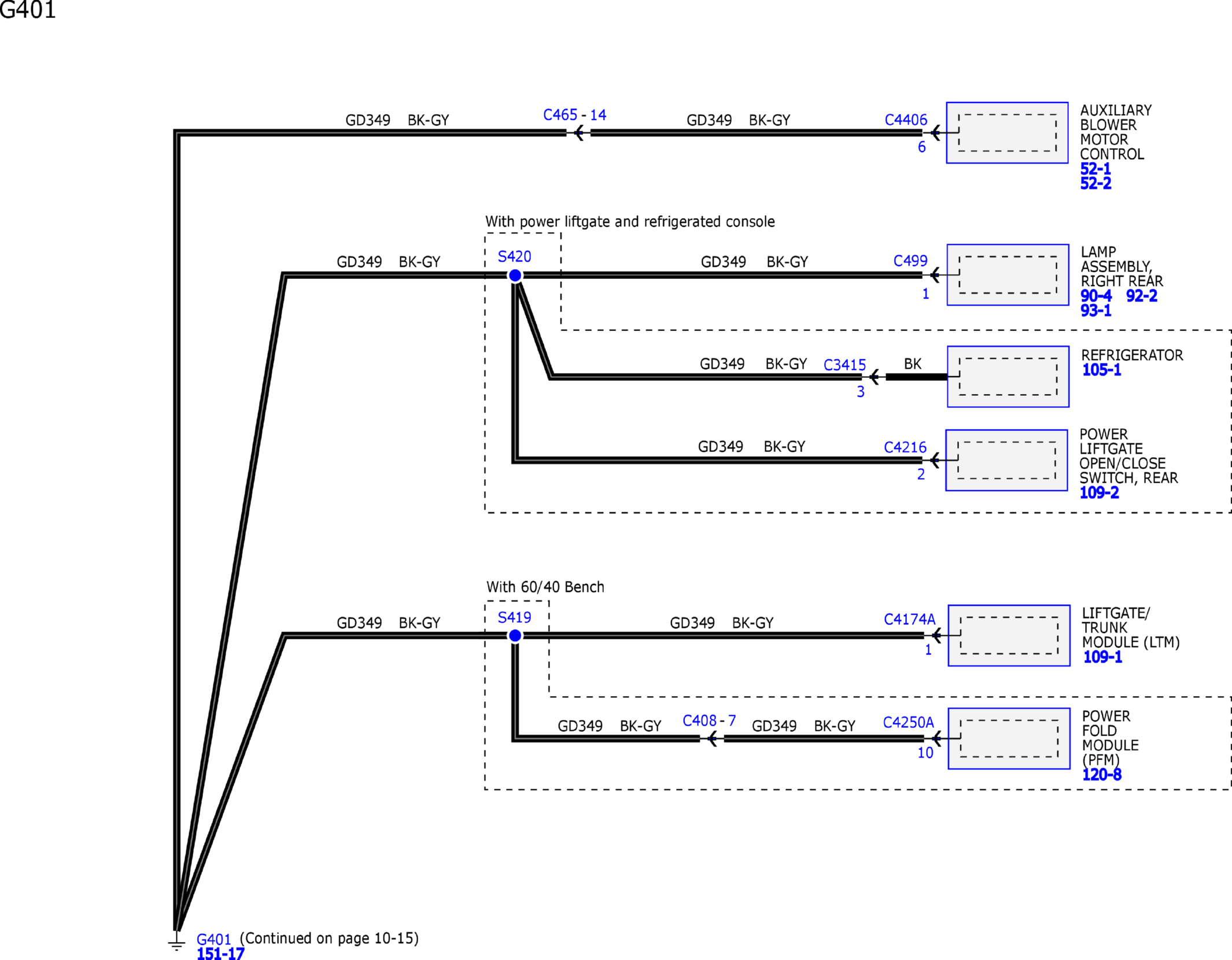

GFDW64995Courtesy of FORD MOTOR COMPANY

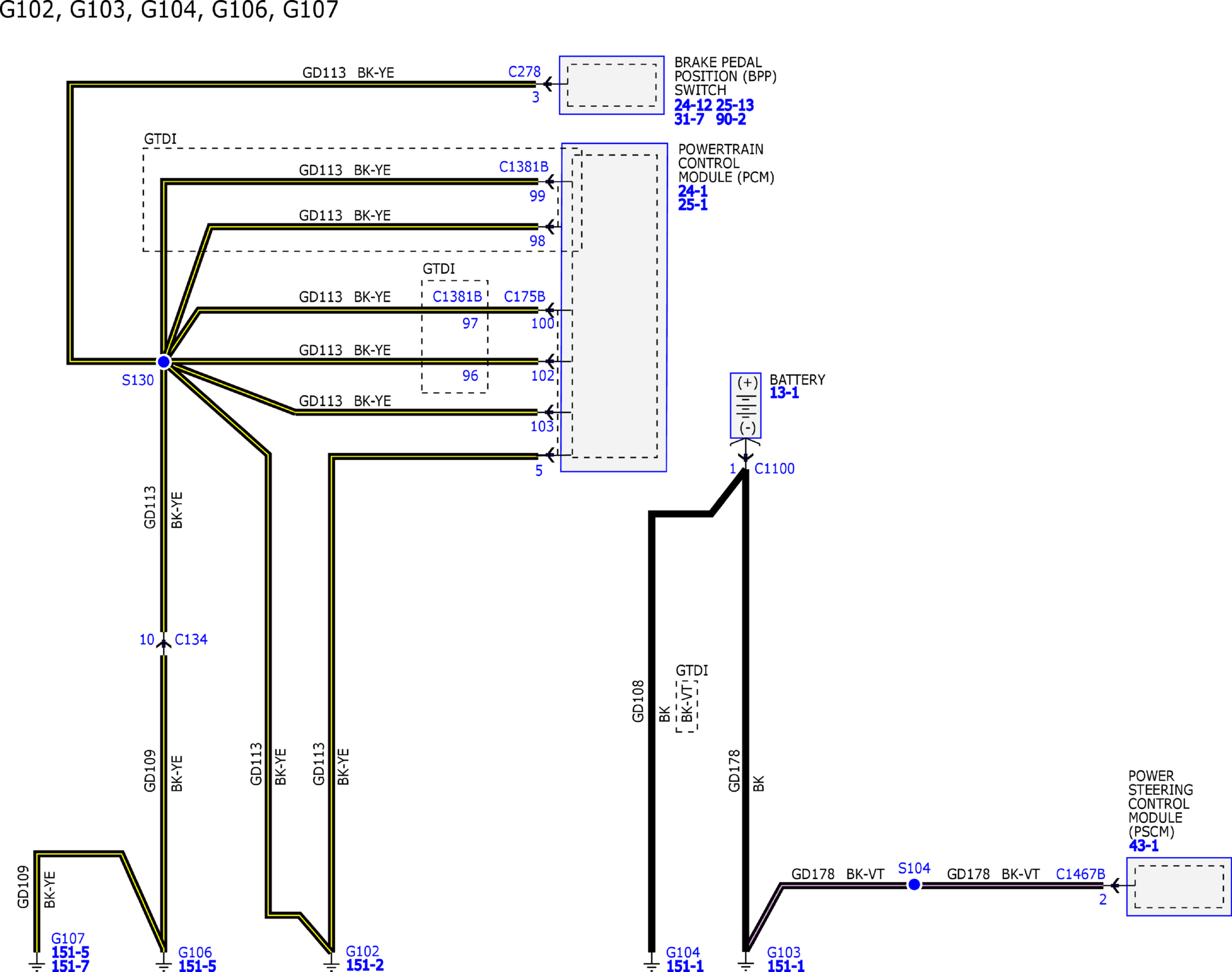

GFDW64996Courtesy of FORD MOTOR COMPANY

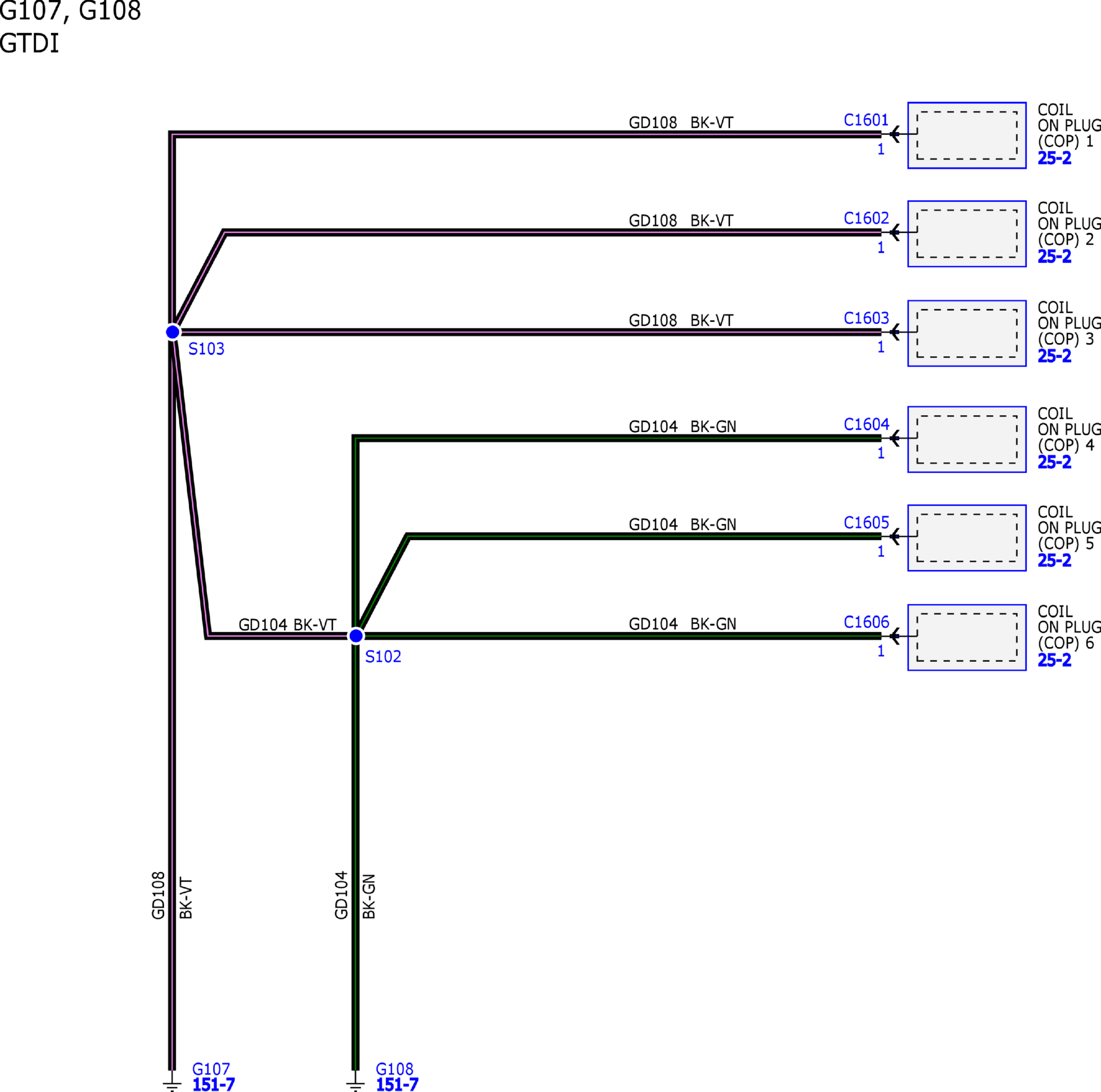

GFDW64997Courtesy of FORD MOTOR COMPANY

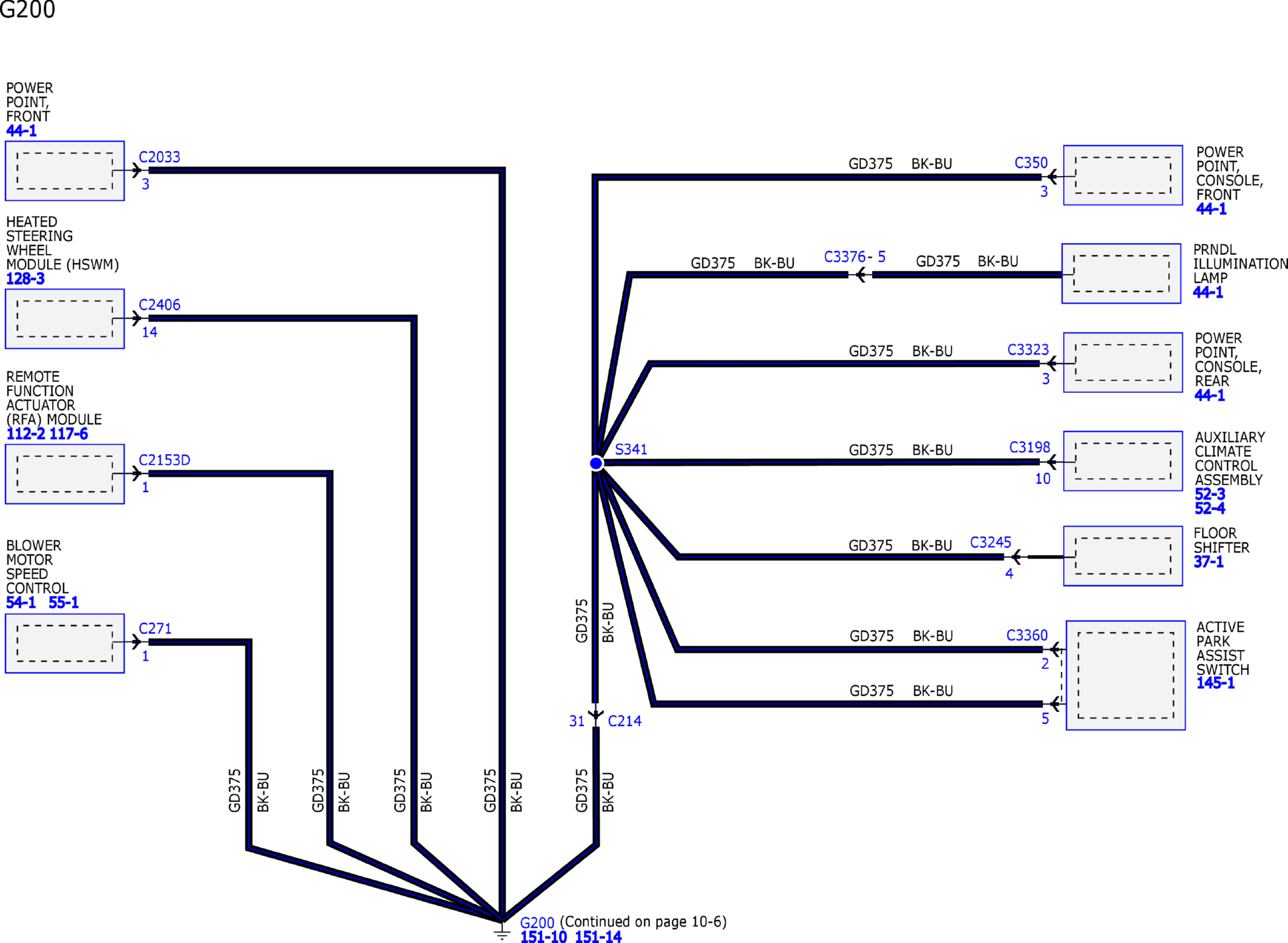

GFDW64998Courtesy of FORD MOTOR COMPANY

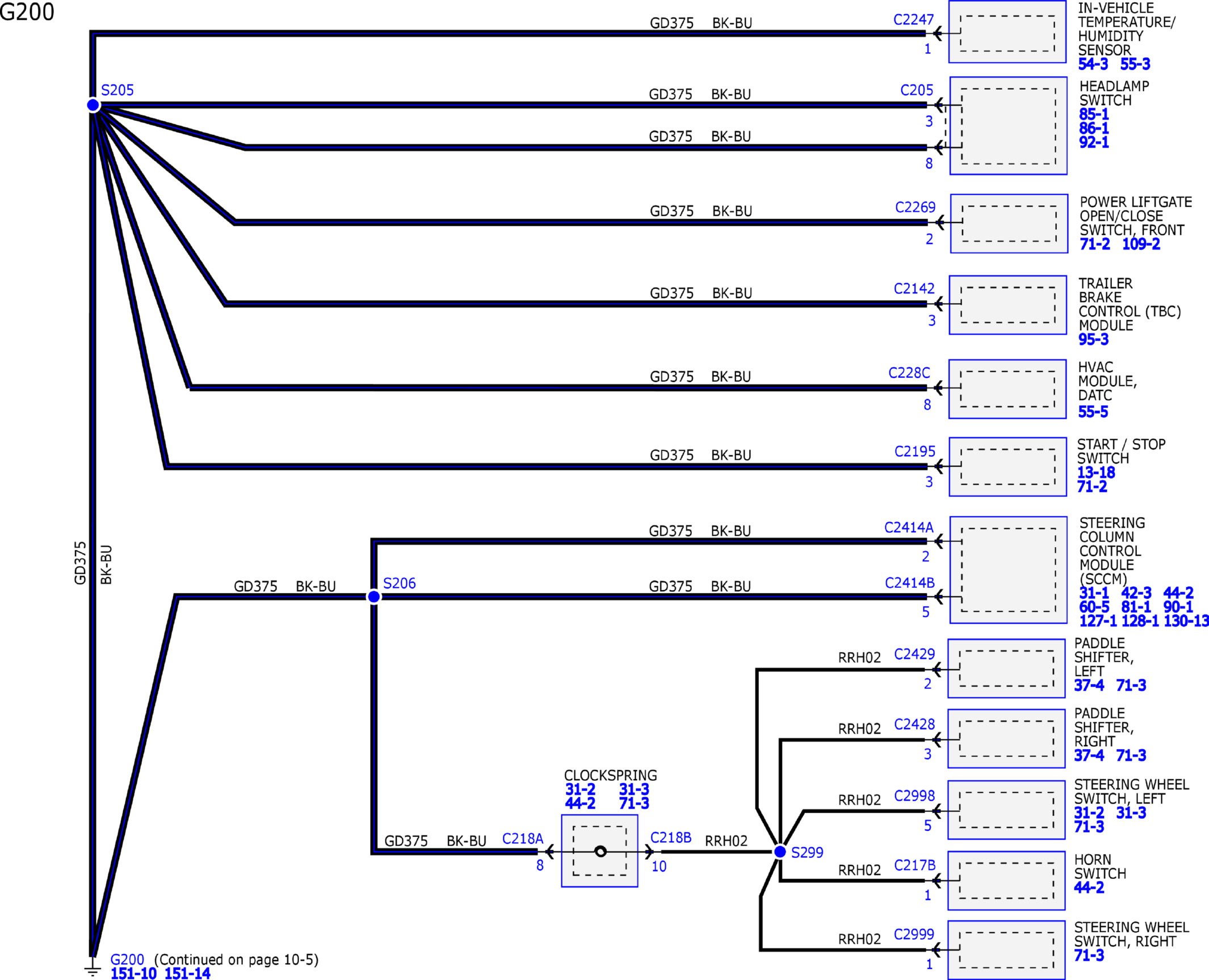

GFDW64999Courtesy of FORD MOTOR COMPANY

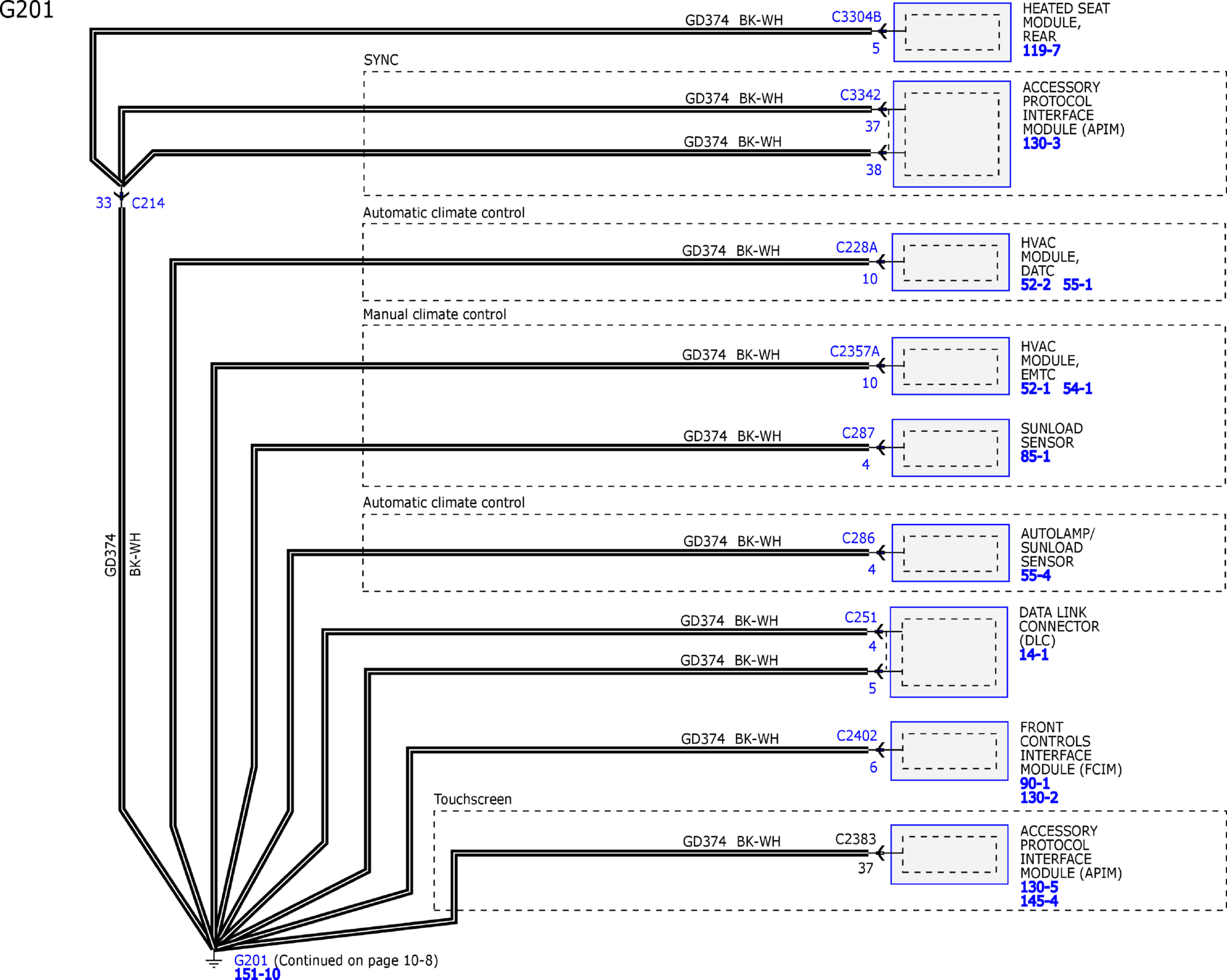

GFDW65000Courtesy of FORD MOTOR COMPANY

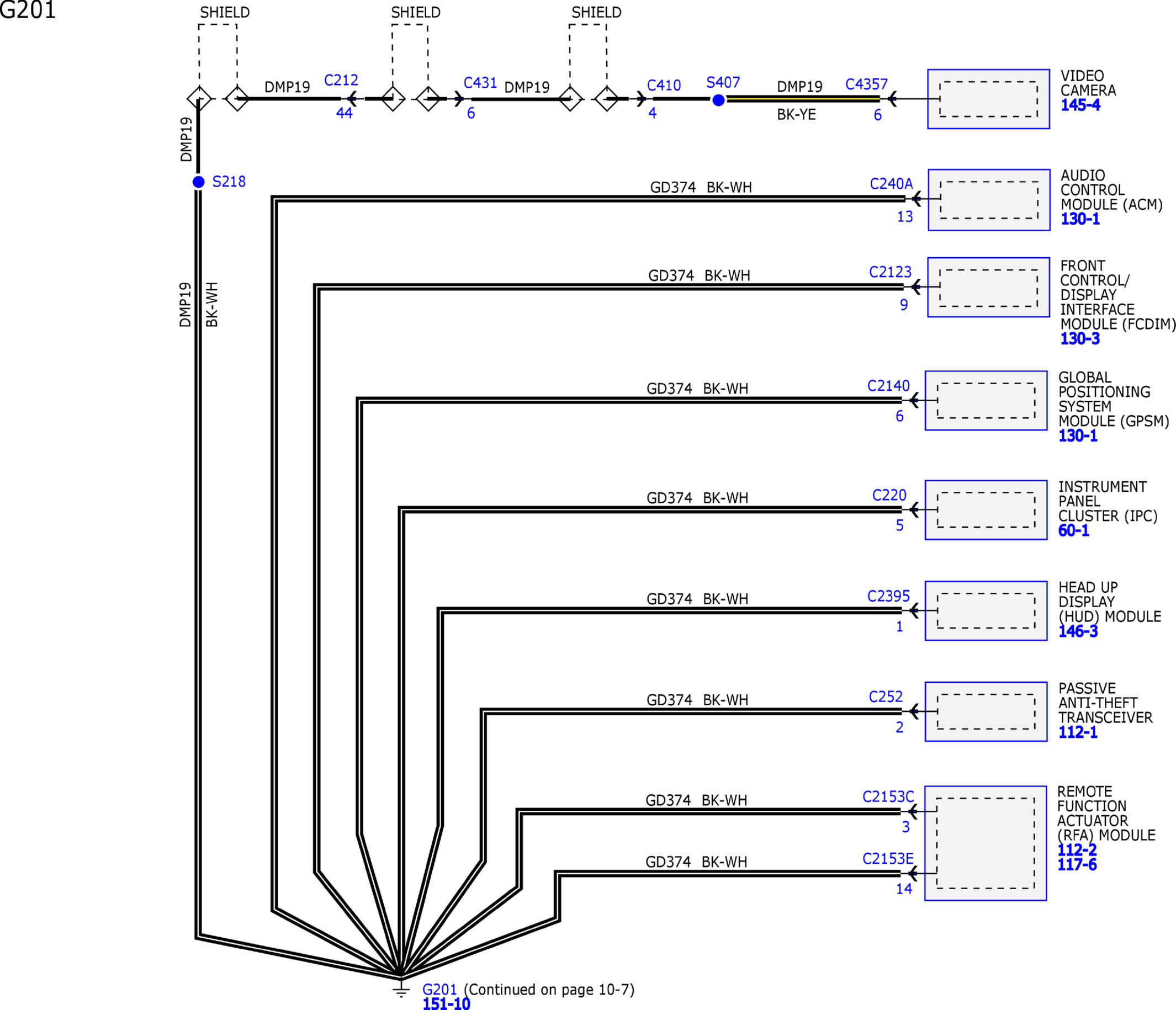

GFDW65001Courtesy of FORD MOTOR COMPANY

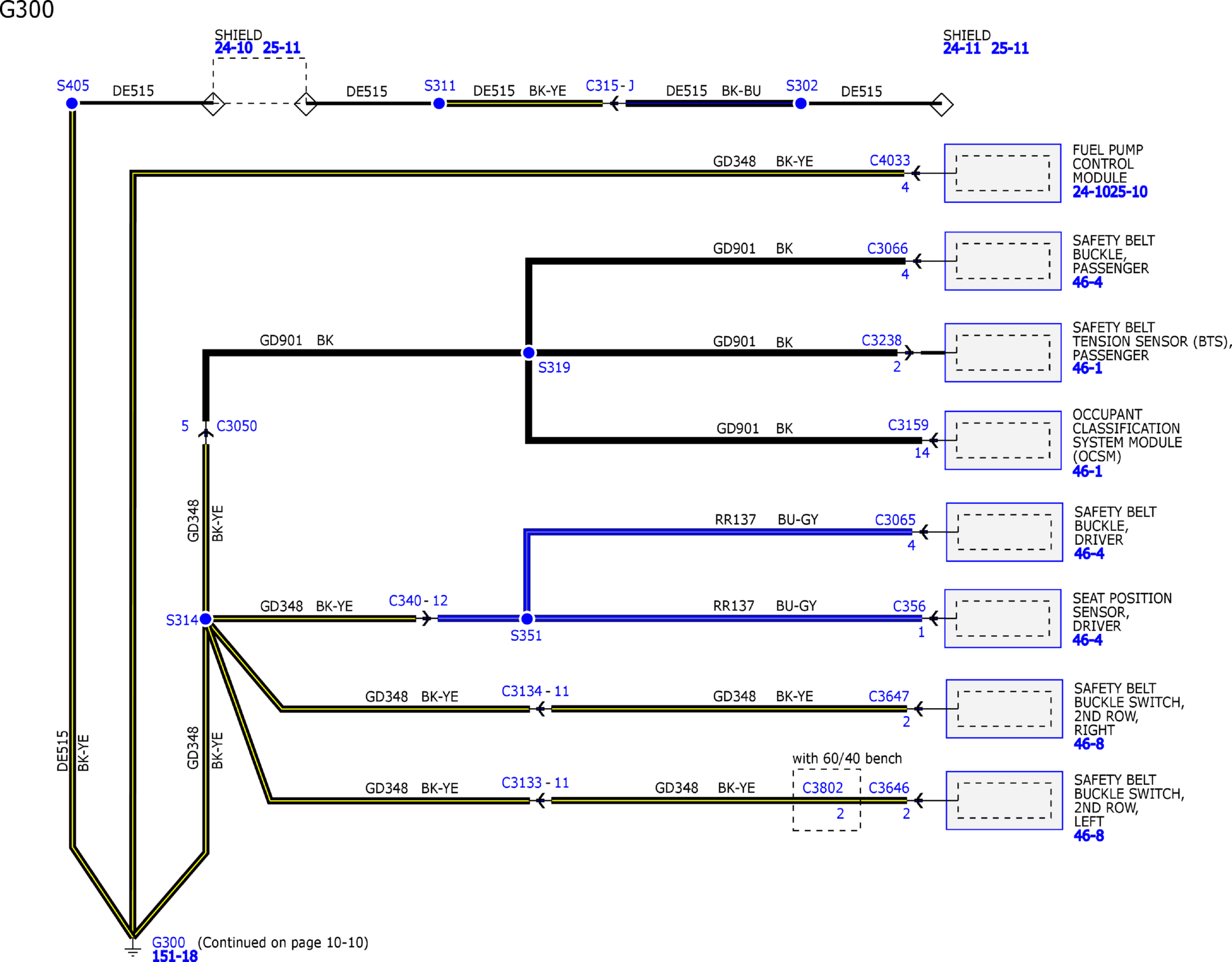

GFDW65002Courtesy of FORD MOTOR COMPANY

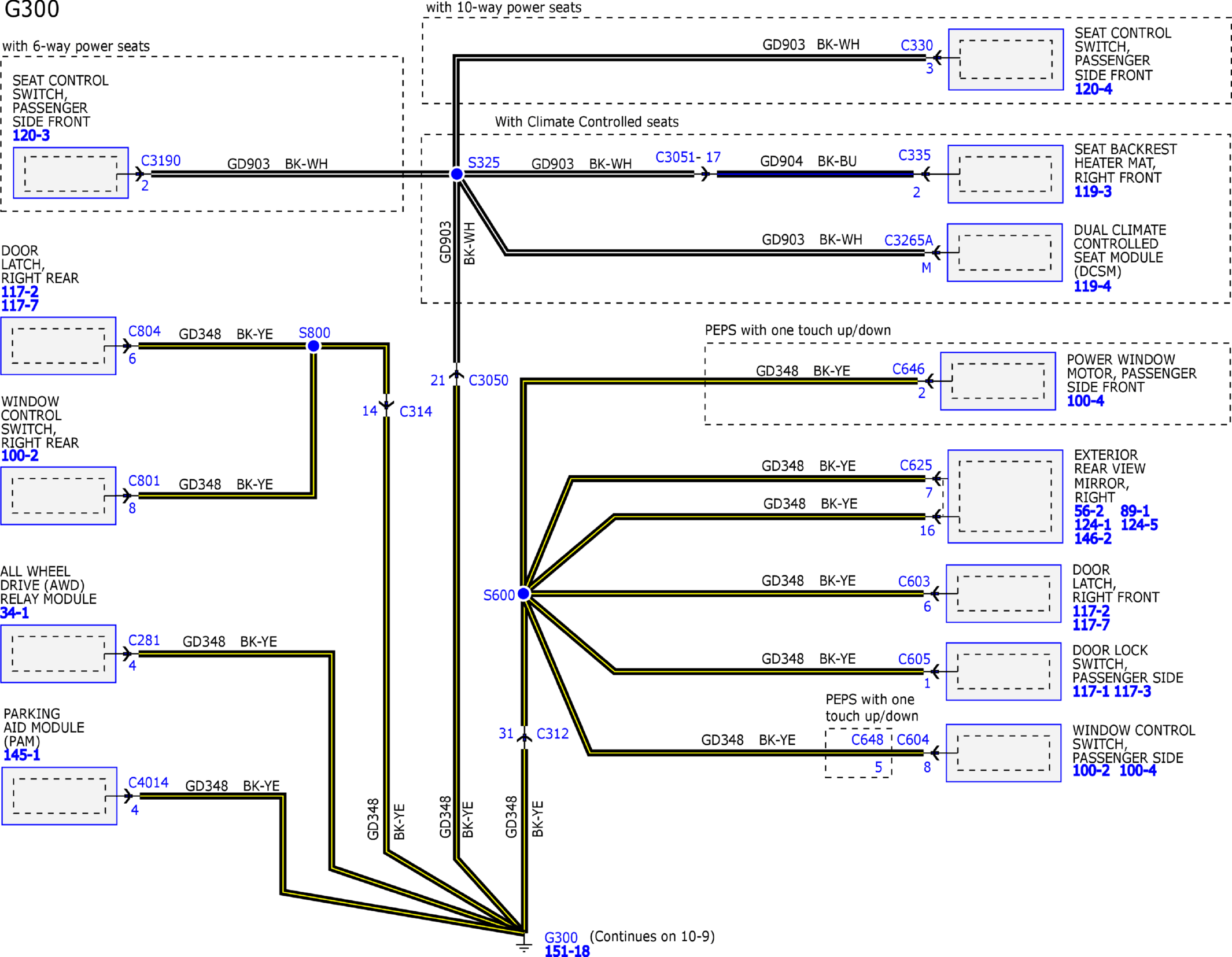

GFDW65003Courtesy of FORD MOTOR COMPANY
