Windshield Wiper Motor Initialization
WARNING: This page is about a different variant/trim than selected.
Initialization
WARNING:
Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
NOTE:
Do not set the ignition to OFF during the procedure. Setting the ignition to OFF causes the wiper motors to accept the current windshield wiper arms position as the initialized position.
NOTE:
Low battery voltage may prevent the BCM from entering Learn Mode.
NOTE:
If the FCDIM displays Low Battery Audio Off or the FDIM displays Battery Saver System Off, start the vehicle and set the ignition to OFF to reset the BCM.
NOTE:
Make sure the windshield is clean and dry before carrying out this procedure.
- 2.
Cycle the windshield wipers "ON" then "OFF". Make sure the windshield wiper arms park in the correct position.
- 3.
Using a diagnostic scan tool, place the windshield wiper motors in Learn Mode using the WMM Calibration.
- 4.
Press the wiper and washer lever arm down 3 times within 5 seconds. The windshield wiper arms move to a preset or pre-initialization position
- 5.
-
NOTE: If the wiper arms are pulled closer to the A-pillar than the specified distance during this step, do not attempt to move the wiper arms back toward the pre-initialization position manually. Damage to the wiper motor can occur.NOTE: Pre-initialization can be reset by selecting INTERMITTENT on the wiper/washer switch and then selecting OFF.

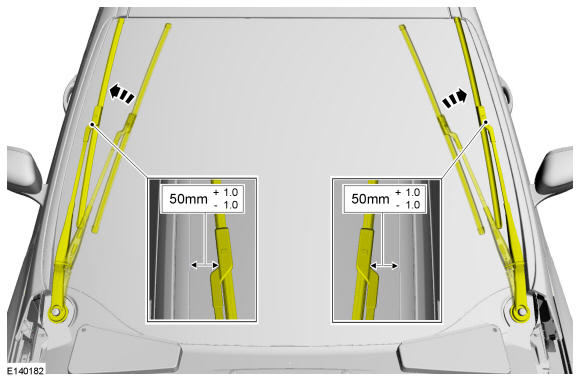

Gently pull the windshield wiper blades out toward the A-pillar moulding until the distance between the wiper arm and the edge of the windshield is 50mm (1.97in).
-
- 6.
Press the wiper and washer lever arm down 1 time. This sets the current windshield wiper arm position as the approved position and the wiper arms move back to the PARK position.
- 7.
Using the scan tool, finish the WMM Calibration by placing the windshield wiper motors in Normal Mode.
