Pinpoint Tests KF: Variable Speed Electric Cooling Fan: Introduction

WARNING: TO PREVENT THE RISK OF HIGH-VOLTAGE SHOCK, ALWAYS FOLLOW PRECISELY ALL WARNINGS AND SERVICE INSTRUCTIONS, INCLUDING INSTRUCTIONS TO DEPOWER THE SYSTEM. THE HIGH-VOLTAGE SYSTEM UTILIZES APPROXIMATELY 300 VOLTS DC, PROVIDED THROUGH HIGH-VOLTAGE CABLES TO ITS COMPONENTS AND MODULES. THE HIGH-VOLTAGE CABLES AND WIRING ARE IDENTIFIED BY ORANGE HARNESS TAPE OR ORANGE WIRE COVERING. ALL HIGH-VOLTAGE COMPONENTS ARE MARKED WITH HIGH-VOLTAGE WARNING LABELS WITH A HIGH-VOLTAGE SYMBOL. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.

This pinpoint test is intended to diagnose the following:

variable speed electric cooling fan (8T00)
harness circuits: FCV, B+ and GND
PCM (12A650)

Fig 1: Cooling Fan (CF) Module Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
4	FCV (Fan Control Variable)
2	GND (Ground)
1	VPWR (Vehicle Power)

Fig 2: Cooling Fan (CF) Motor Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
2	GND (Ground)
1	FANPWR (Fan Power)

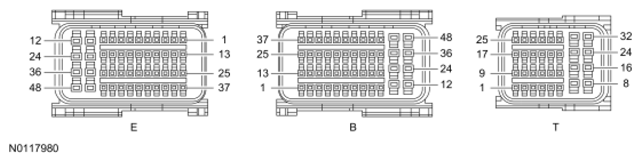

Fig 3: Powertrain Control Module (PCM) Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
B13	FCV (Fan Control Variable)
