Cruise Control Module (CCM): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front bumper cover. Refer to: Front Bumper Cover .
Remove the active grille shutter. Refer to: Active Grille Shutter .

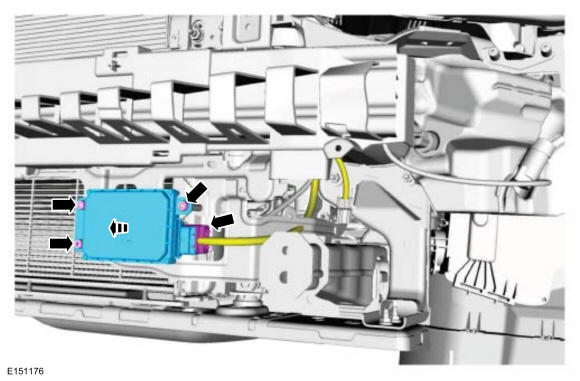

- Disconnect the electrical connector.
- Release the CCM grommets from the ball studs.
- Remove the CCM.
- To install, align the CCM after installation. Refer to: Cruise Control Radar Alignment .
Courtesy of FORD MOTOR COMPANY

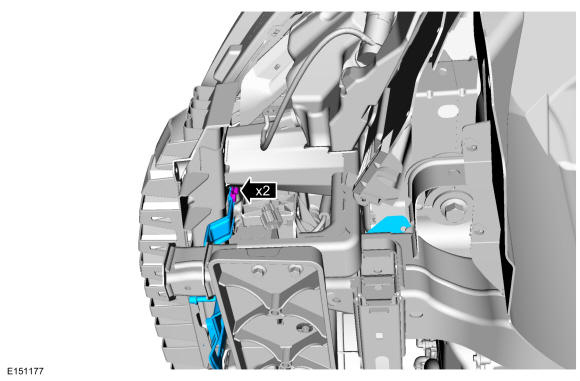

Remove the CCM bracket bolts.
Torque: 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY

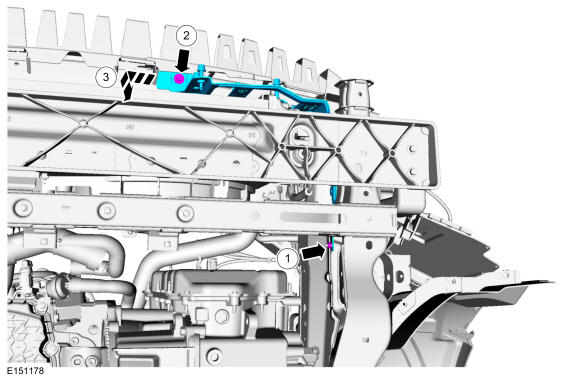

Remove the CCM bracket.
1. Remove the CCM bracket nut.
  Torque: 80 lb.in (9 Nm)
2. Remove the CCM bracket bolt.
  Torque: 80 lb.in (9 Nm)
3. Slide the CCM bracket out of the front bumper slot.

Courtesy of FORD MOTOR COMPANY
