Headlamp Assembly: Notes
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

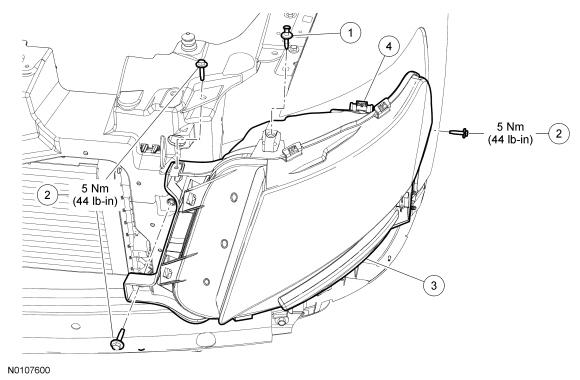

| Item | Part Number | Description |
|---|---|---|
| 1 | W709984 | Pin-type retainer |
| 2 | W505425 | Headlamp assembly bolts (3 required) |
| 3 | - | Headlamp electrical connectors (part of 14290) |
| 4 | 13008 | Headlamp assembly |
