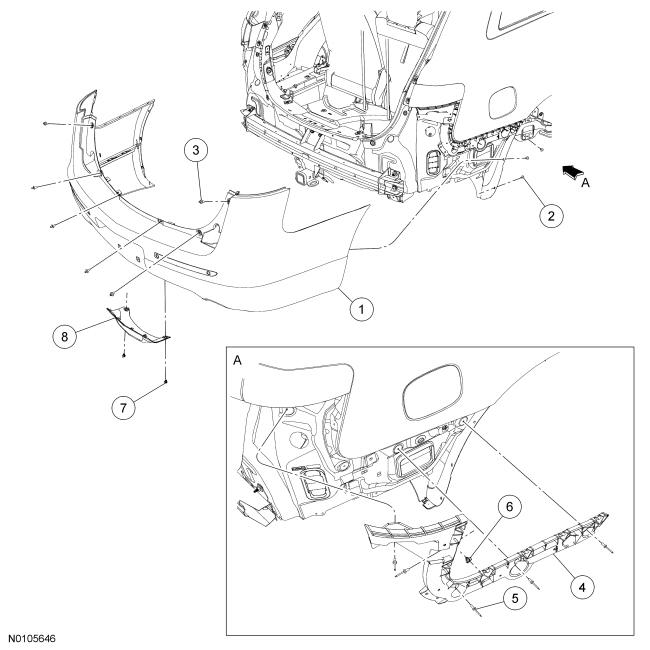

Bumper - Exploded View, Rear
WARNING: This page is about a different car, the 2015 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17K835 | Rear bumper cover |
| 2 | W710763 | Fender splash shield screw |
| 3 | W710250 | Rear bumper cover pin-type retainer (6 required) |
| 4 | 17D949 LH/ 17D948 RH LH/ 17D948 RH | Rear bumper cover bracket |
| 5 | W705376 | Rear bumper cover bracket rivet (5 required) |
| 6 | - | Rear bumper cover bracket clip (part of 17D949 LH/ 17D948 RH) |
| 7 | - | Trailer hitch cover pin-type retainer (part of 17F001) (2 required) |
| 8 | 17F001 | Trailer hitch cover |
