Seat Wire Harness Routing
WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
For correct front passenger seat cushion wire harness routing, refer to the following views.- Match the numbers in the wire harness view to the numbers in the retainer and connector location views and attach accordingly.
- Wire harness retainers and electrical connectors are called out in assembly order.
- 2.NOTE: Illustration shows Occupant Classification System (OCS) weight sensor bolts in their installed position with the seat in the vehicle (arrow indicates front).
Verify the correct passenger seat OCS weight sensor bolt electrical connector positions using the illustration.
- For correct identification and placement of the 2 OCS weight sensor bolt electrical connectors, use the wire colors identified in SUPPLEMENTAL RESTRAINT SYSTEM Connecting the incorrect connector to a sensor will cause DTCs to set and will result in an unsuccessful OCS System Reset.

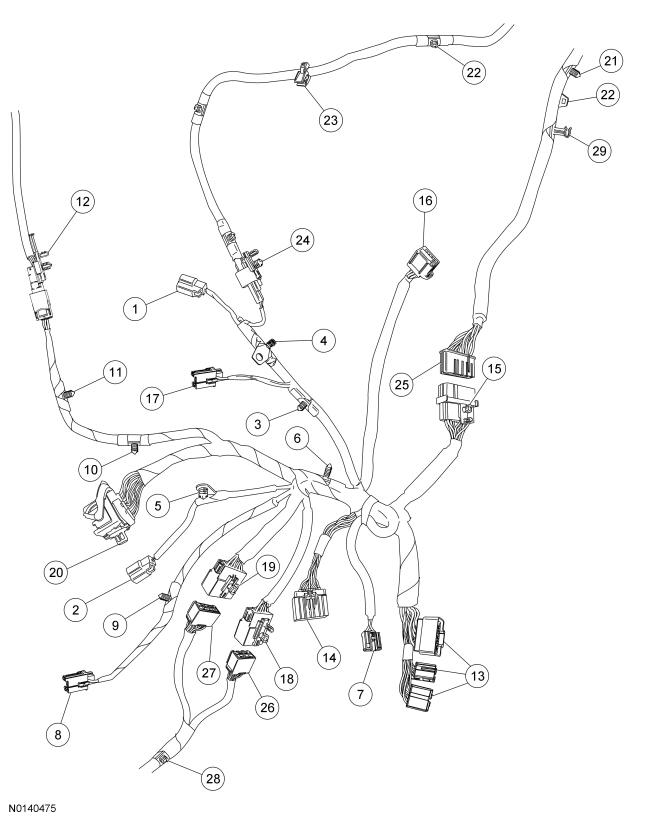

Wire Harness View
| Item | Description |
|---|---|
| 1 | OCS weight sensor bolt C electrical connector |
| 2 | OCS weight sensor bolt D electrical connector |
| 3 | Horizontal motor electrical connector wire harness retainer |
| 4 | OCS weight sensor bolt C wire harness retainer |
| 5 | OCS weight sensor bolt D wire harness retainer |
| 6 | Wire harness main retainer |
| 7 | Rear height motor electrical connector |
| 8 | Front height motor electrical connector |
| 9 | Front height motor wire harness retainer |
| 10 | Safety belt buckle wire harness retainer |
| 11 | Safety belt buckle wire harness retainer |
| 12 | Safety belt buckle electrical connector and retainer |
| 13 | Dual Climate Controlled Seat Module (DCSM) electrical connectors |
| 14 | Occupant Classification System Module (OCSM) electrical connector |
| 15 | Seat-to-backrest wire harness electrical connector and retainer |
| 16 | Cushion Thermo-Electric Device (TED) electrical connector |
| 17 | Horizontal motor electrical connector |

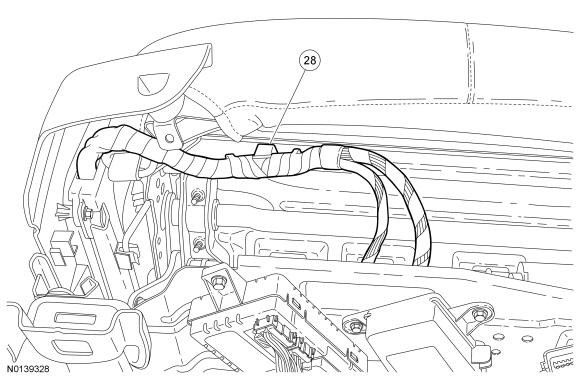

| 18 | Seat control switch electrical connector (small) |
| 19 | Seat control switch electrical connector (large) |
| 20 | Seat-to-body harness electrical connector and retainer |
| 21 | Backrest wire harness retainer |
| 22 | Side air bag wire harness retainer |
| 23 | Side air bag wire harness retainer |
| 24 | Side air bag electrical connector and retainer |
| 25 | Seat-to-backrest wire harness electrical connector |
| 26 | Seat control switch electrical connector (small) |
| 27 | Seat control switch electrical connector (large) |
| 28 | Seat control switch pigtail retainer |
| 29 | Backrest wire harness retainer |
Wire Harness Retainer and Connector Location View
NOTE:
See supporting views for missing numbers.

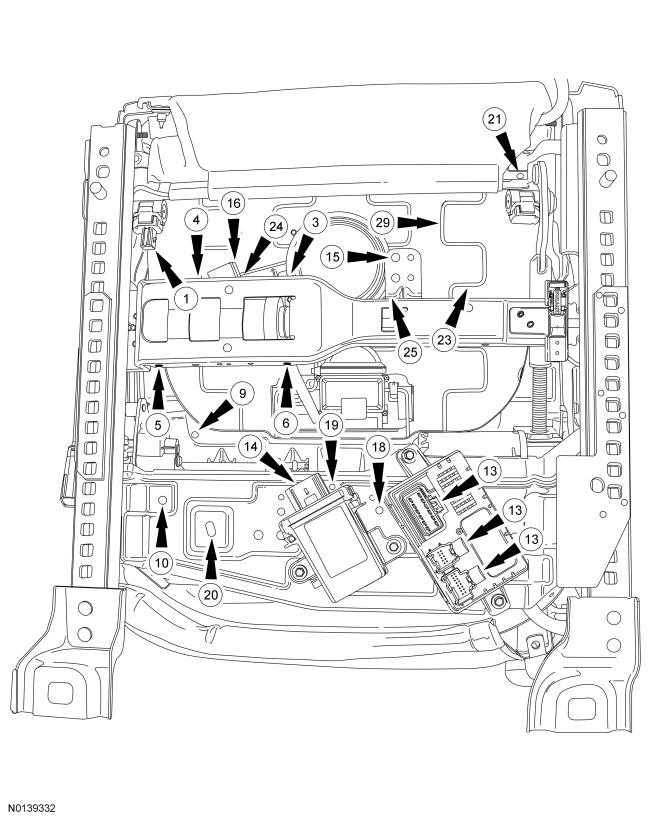

Retainer and Connector Location View, Front of Seat

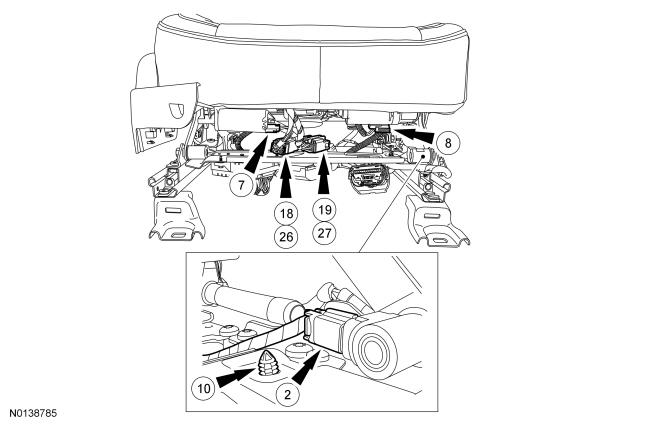

Retainer and Connector Location View, Inboard Side
Retainer and Connector Location View, Front of Seat Underneath

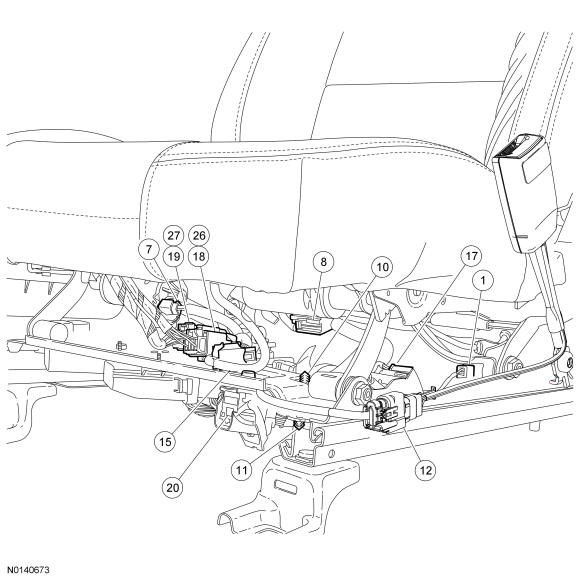

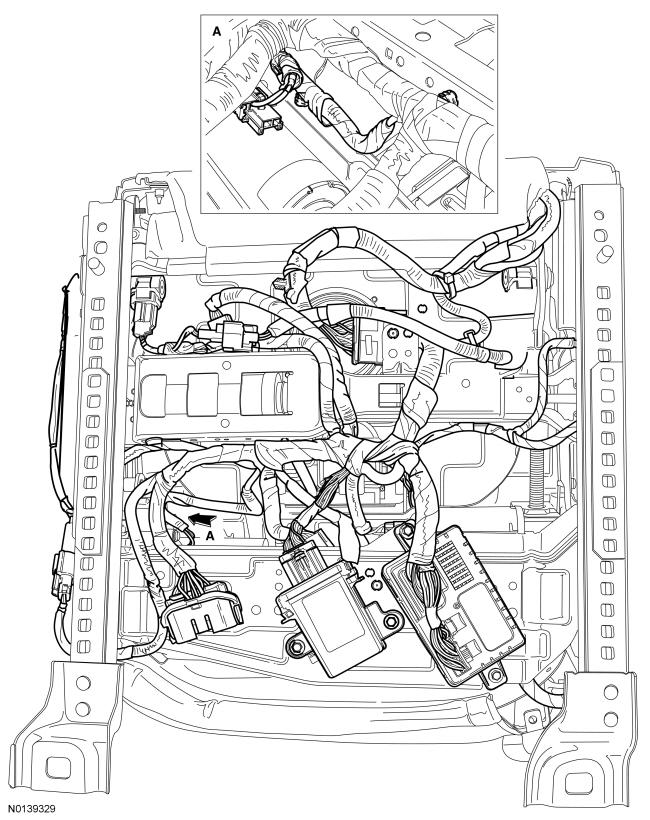

Wire Harness Installed View
