Front Seat Motor Cable: Installation

WARNING: This page is about a different car, the 2016 Lincoln MKS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The front seat motor cable service part for the driver seat is different than the service part for passenger seat. Make sure to install the correct service part required for the seat.

  1. 1.

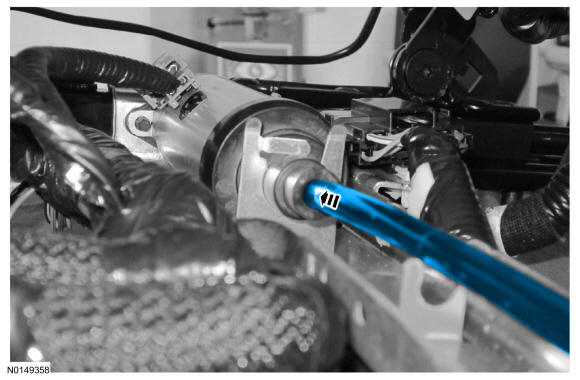

GFD90124Courtesy of FORD MOTOR COMPANY

  1. 2.

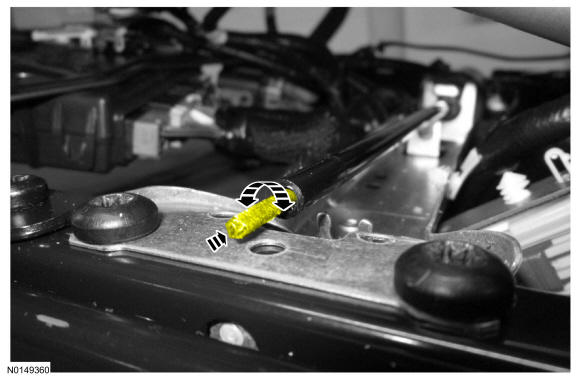

    NOTE: The cable felt covering should not be visible when the cable is correctly engaged to the horizontal motor square drive.
    • Push the cable into the horizontal motor square drive twisting back and forth to engage the cable.
GFD90125Courtesy of FORD MOTOR COMPANY

  1. 3.

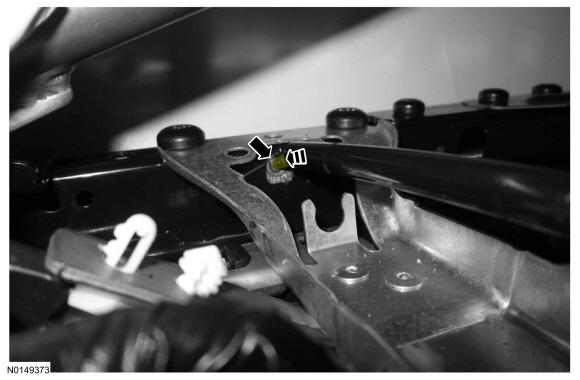

GFD90126Courtesy of FORD MOTOR COMPANY

  1. 4.

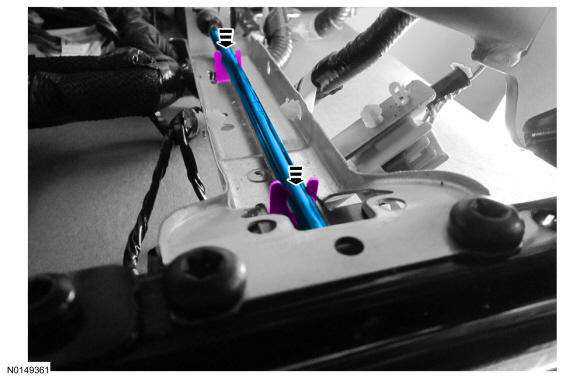

GFD90127Courtesy of FORD MOTOR COMPANY

  1. 5.

    1. 1.

    1. 2.

      -

    1. 3.

      -

    1. 4.

      -

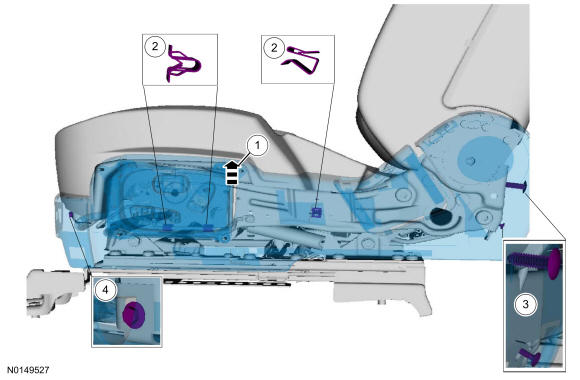

GFD90104Courtesy of FORD MOTOR COMPANY

  1. 6.

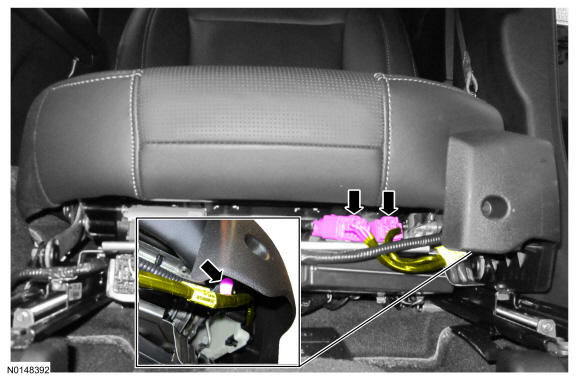

GFD90084Courtesy of FORD MOTOR COMPANY

  1. 7.

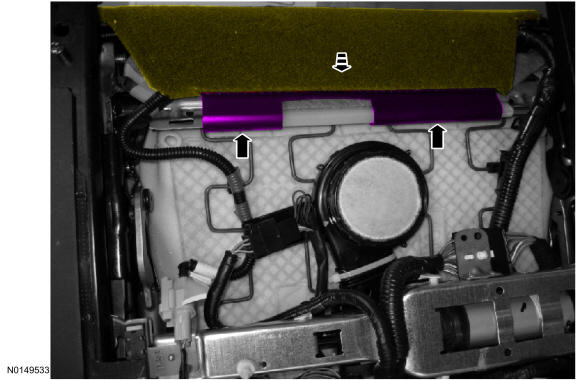

GFD90105Courtesy of FORD MOTOR COMPANY

  1. 8.

    Install the front seat. Refer to Seat - Front .
