Gearshift Module (GSM): Removal

NOTE: It is not necessary to carry out a PMI when installing a new GSM unless specifically instructed to do so in a TSB, GSB, FSA or SSM.

NOTE: Removal steps in this procedure may contain installation details.

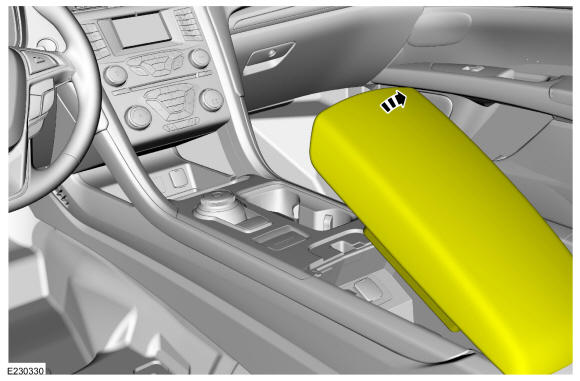

1. Open the floor console stowage bin lid.

   Courtesy of FORD MOTOR COMPANY

2. On both sides.Release the clips and remove the floor console upper side finish panels.

   Courtesy of FORD MOTOR COMPANY

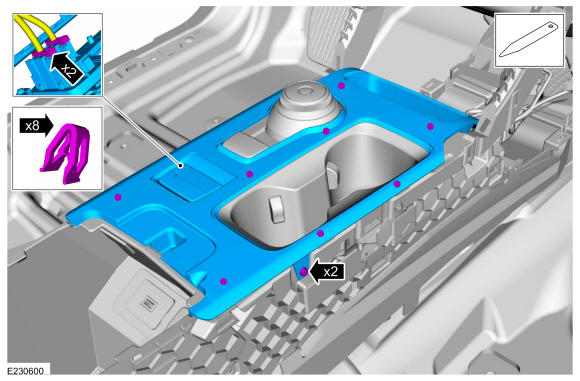

3. Remove the screws, release the clips and remove the floor console upper trim panel.
   • Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

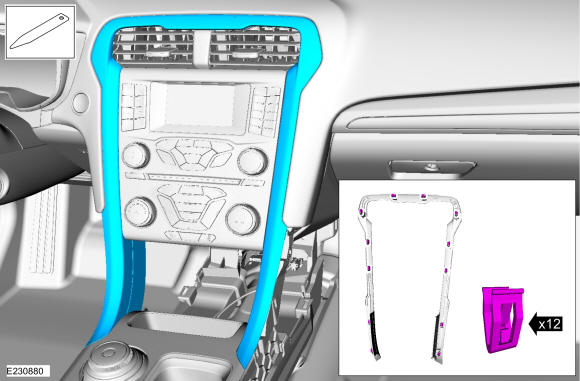

4. Release the clips and remove the center stack trim panel. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

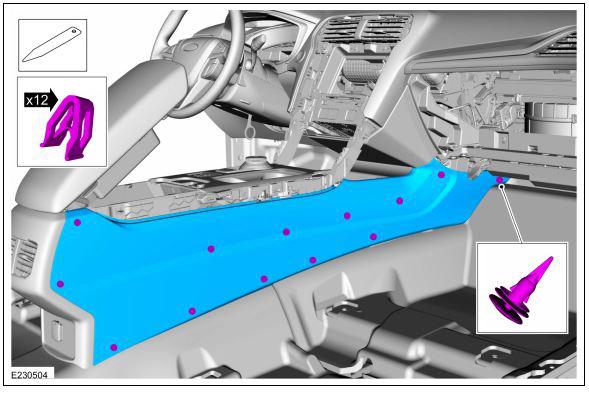

5. On both sides. Remove both console side trim panels. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR CO.

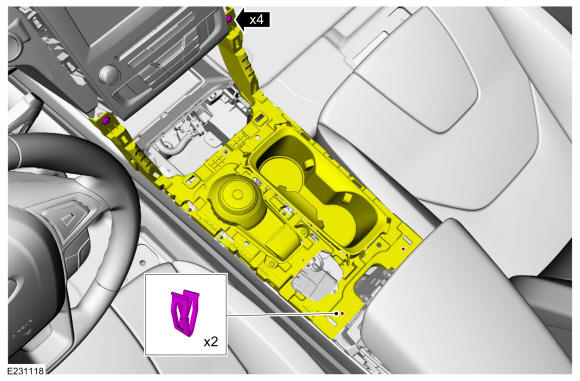

6. Remove the screws, release the clips and position the floor console upper support to access the GSM.

   Courtesy of FORD MOTOR COMPANY

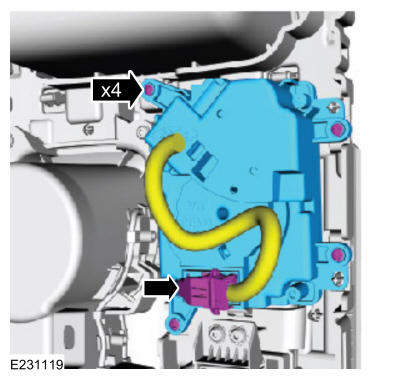

7. Disconnect the electrical connector, remove the screws and remove the GSM.

Courtesy of FORD MOTOR COMPANY
