Fuel Pump Driver Module (FPDM): Removal

NOTE: The FPDM is located beneath the rear seat cushion on the LH side.

1.

Remove the rear seat cushion. Refer to: Rear Seat Cushion .

2.

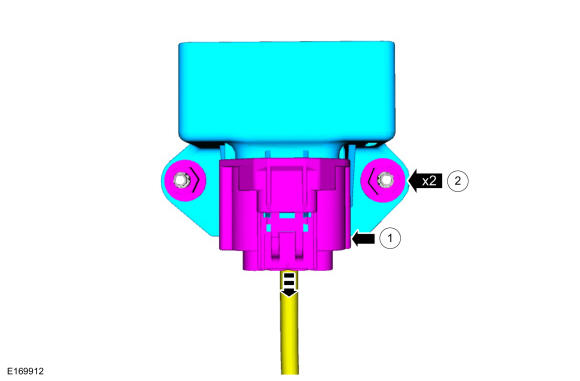

- 1.

  Disconnect the FPDM electrical connector.
- 2.

  Remove the FPDM retaining nuts and then remove the FPDM.

GFD130700

Courtesy of FORD MOTOR COMPANY
