Fuel Pump Driver Module (FPDM): Installation

1.

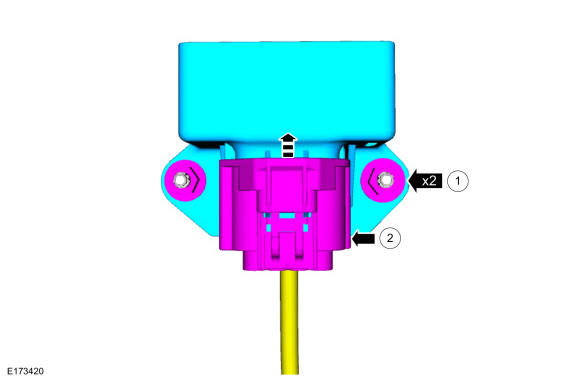

- 1.

  Install the FPDM, then install and tighten the FPDM retaining nuts.
  Torque: 44 lb.in (5 Nm)
- 2.

  Connect the FPDM electrical connector.

GFD130701

Courtesy of FORD MOTOR COMPANY

2.

Install the rear seat cushion. Refer to: Rear Seat Cushion .
