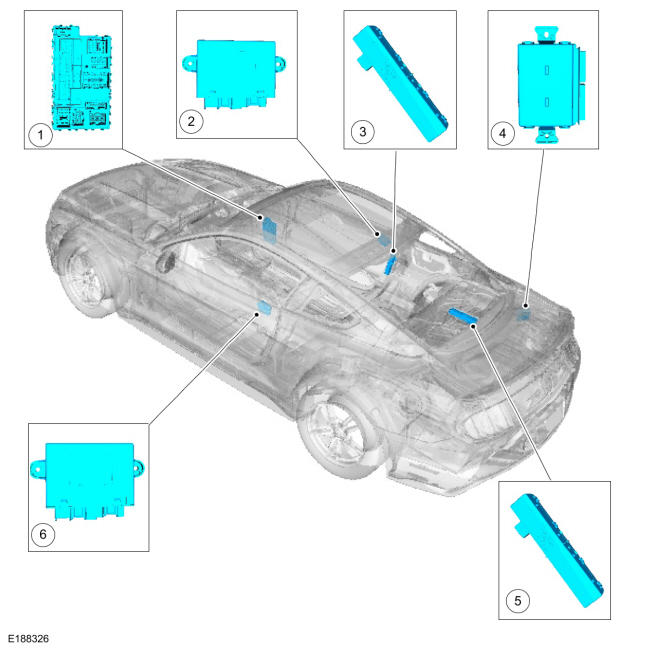

Module Controlled Functions - Component Location

GFD132726

Courtesy of FORD MOTOR COMPANY

Item	Description
1	BCM
2	PDM
3	RTM (Convertible)
4	Body Control Module B (BCM-B)
5	RTM (Coupe)
6	DDM
