Head Up Display (HUD) Module: Removal

1. 1.

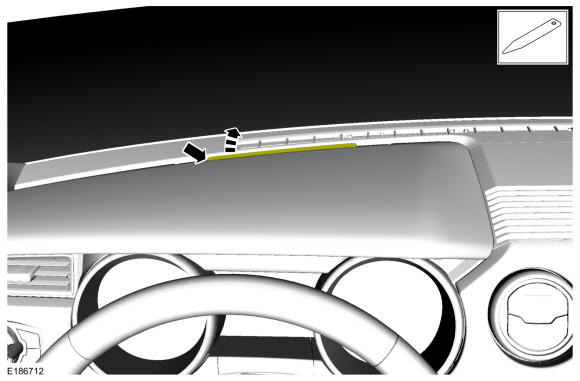

   Using a non-marring tool, release the tab and position the HUD up.

Courtesy of FORD MOTOR COMPANY

1. 2.

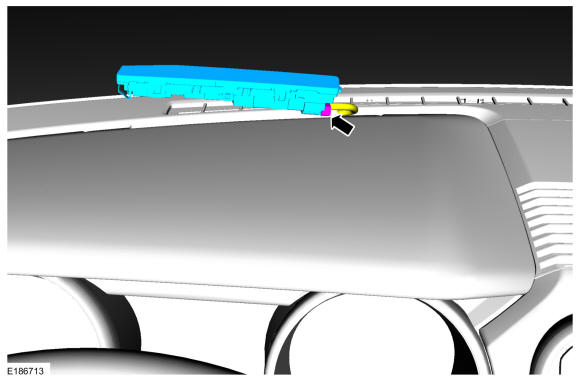

   Disconnect the electrical connector and remove the HUD.

Courtesy of FORD MOTOR COMPANY
