Component Location Views

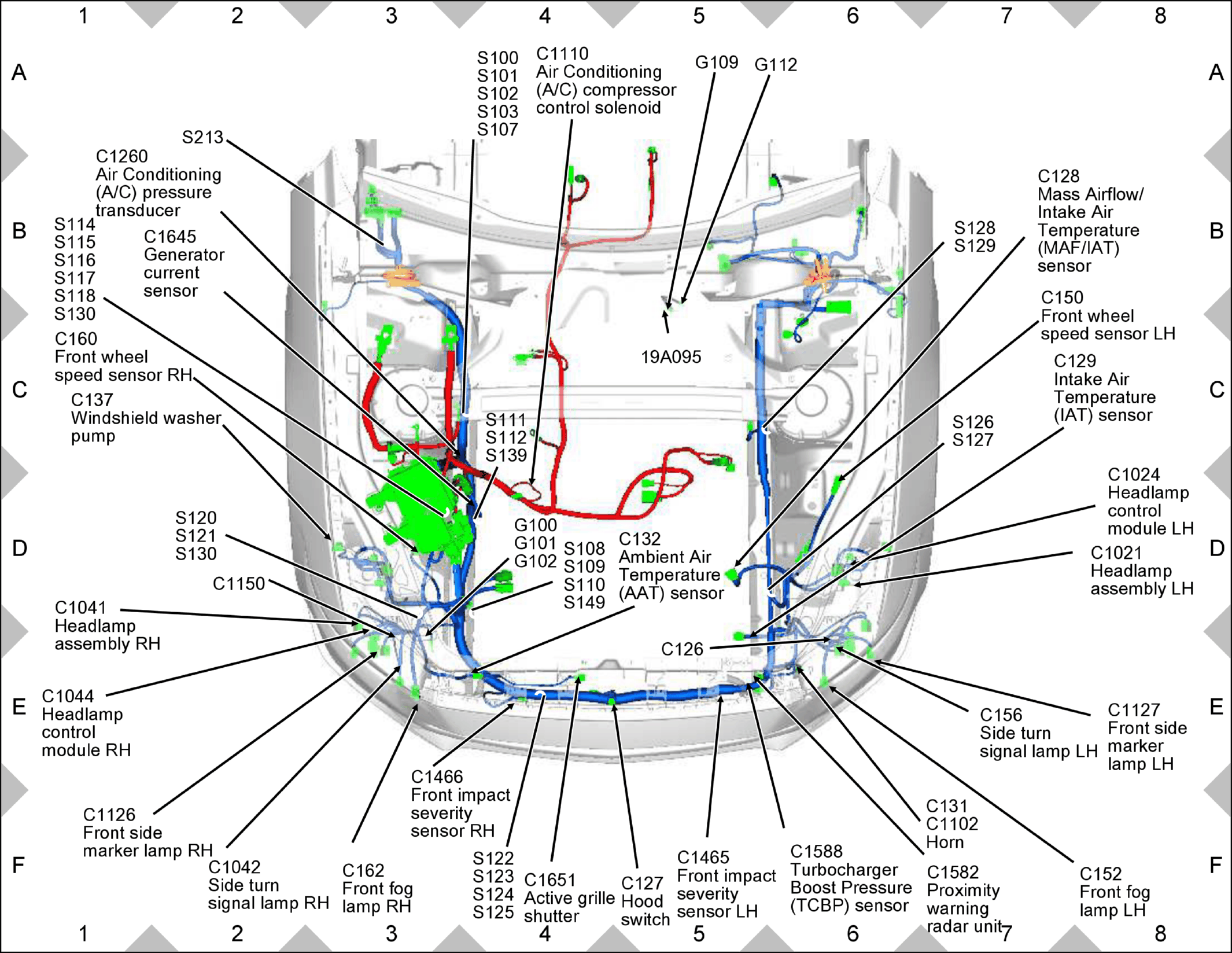

GFDW56743Courtesy of FORD MOTOR COMPANY

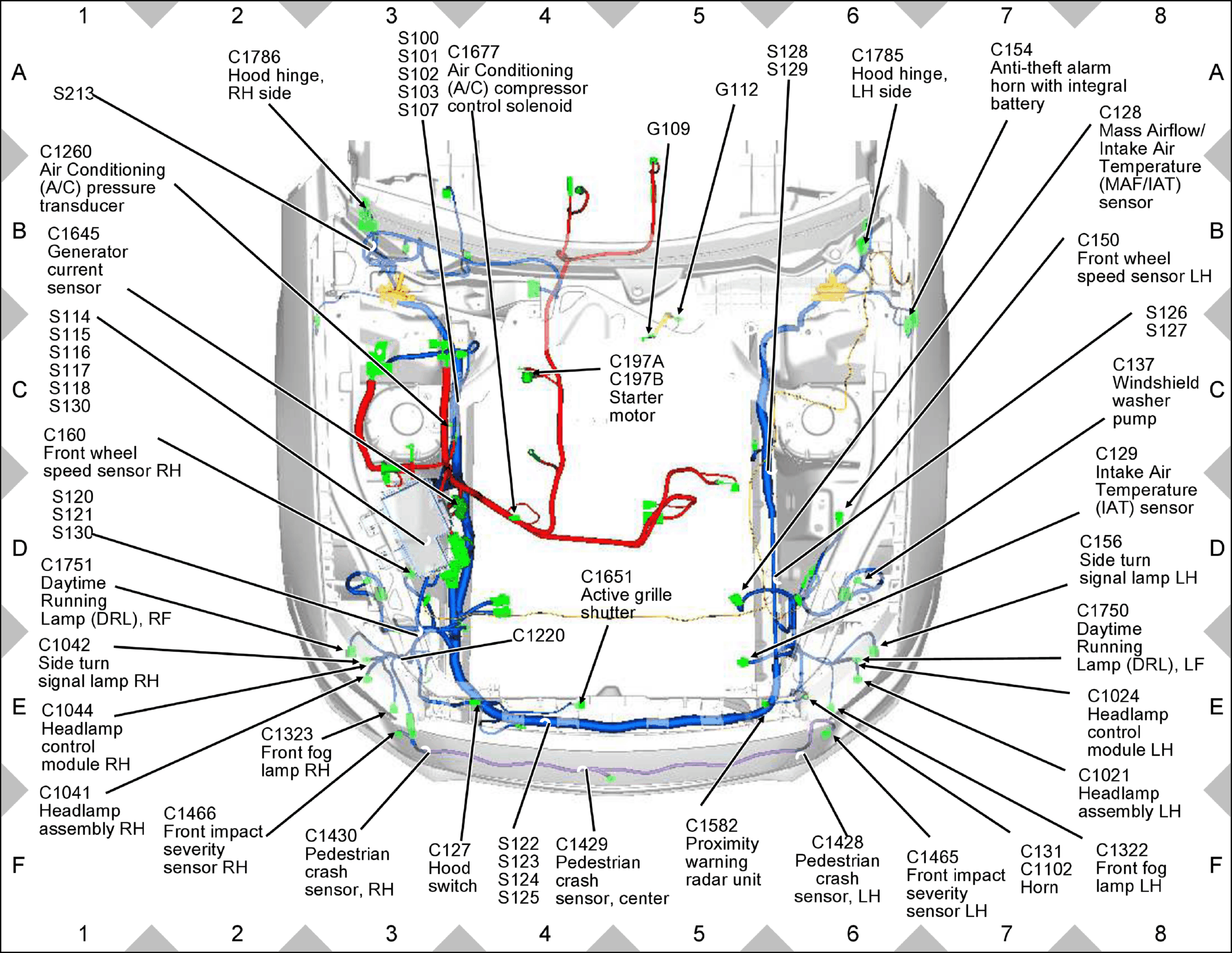

GFDW56744Courtesy of FORD MOTOR COMPANY

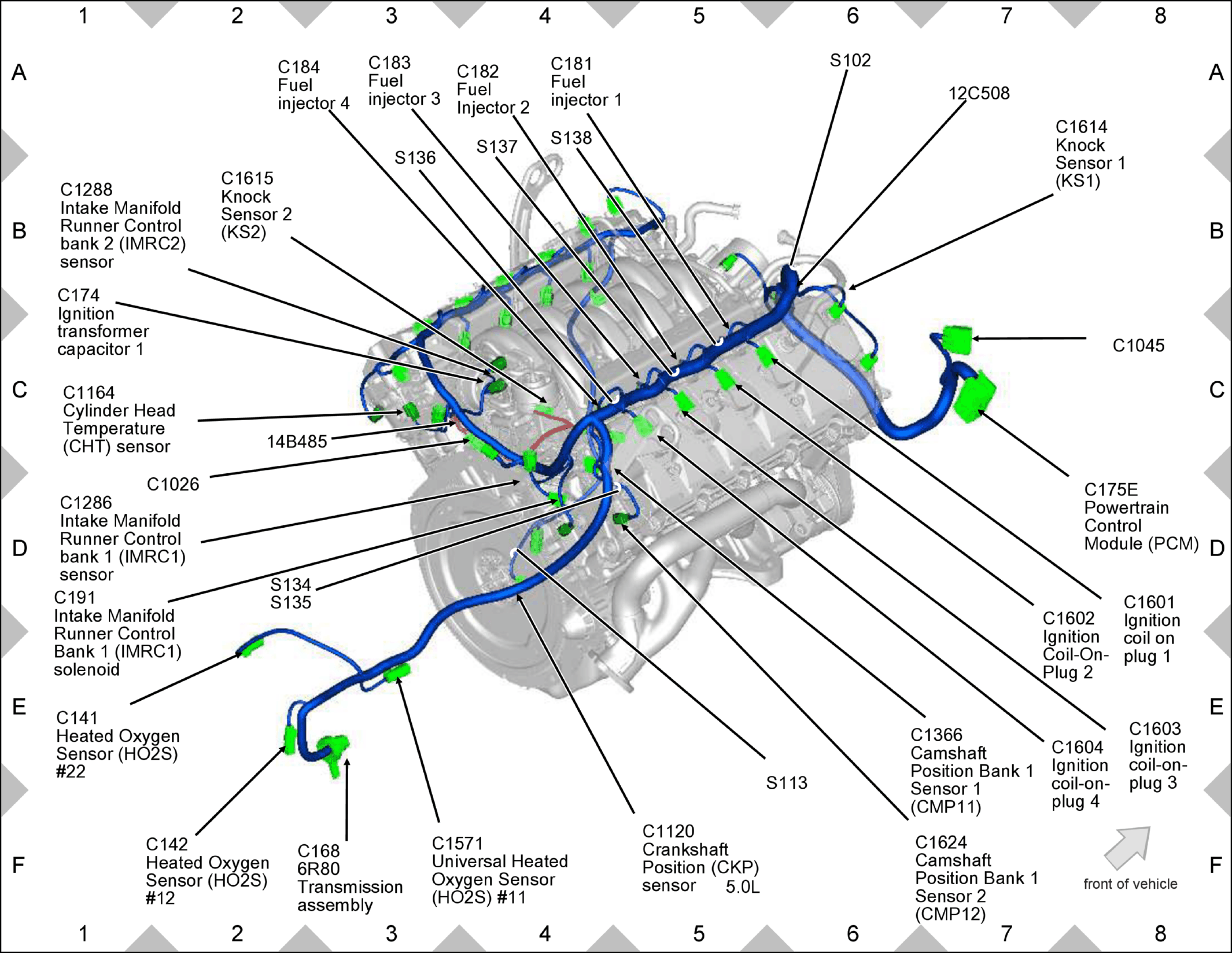

GFDW56745Courtesy of FORD MOTOR COMPANY

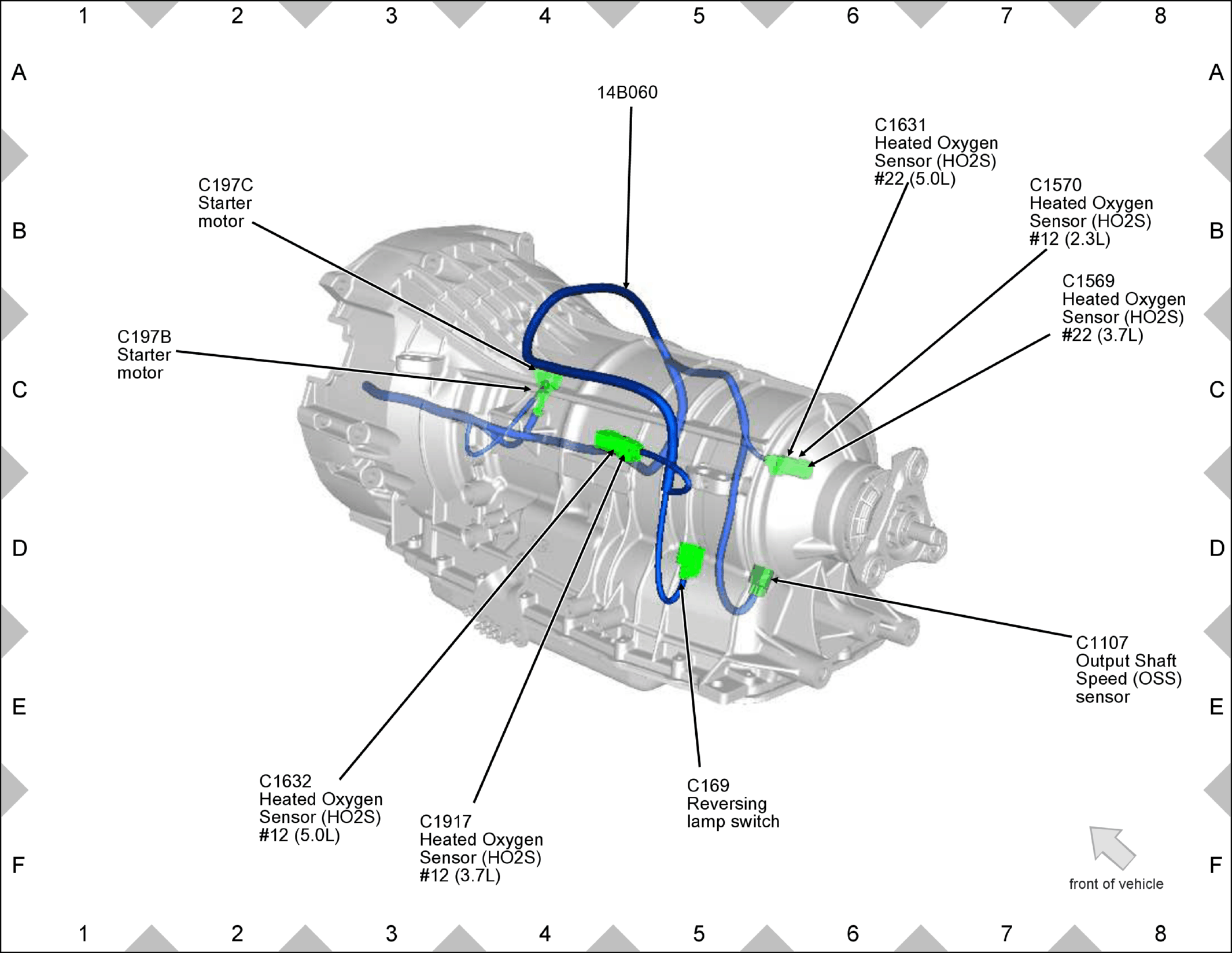

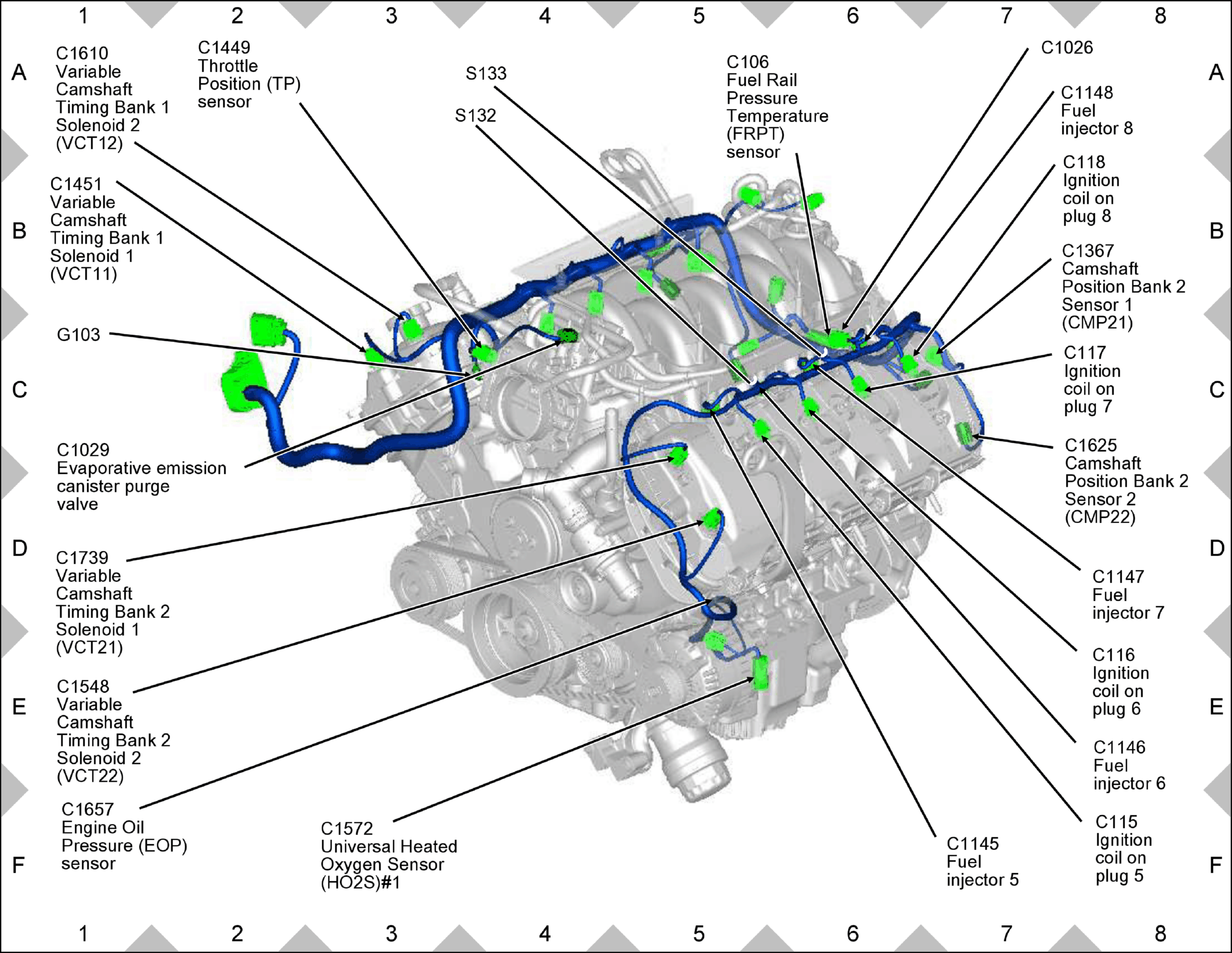

GFDW56746Courtesy of FORD MOTOR COMPANY

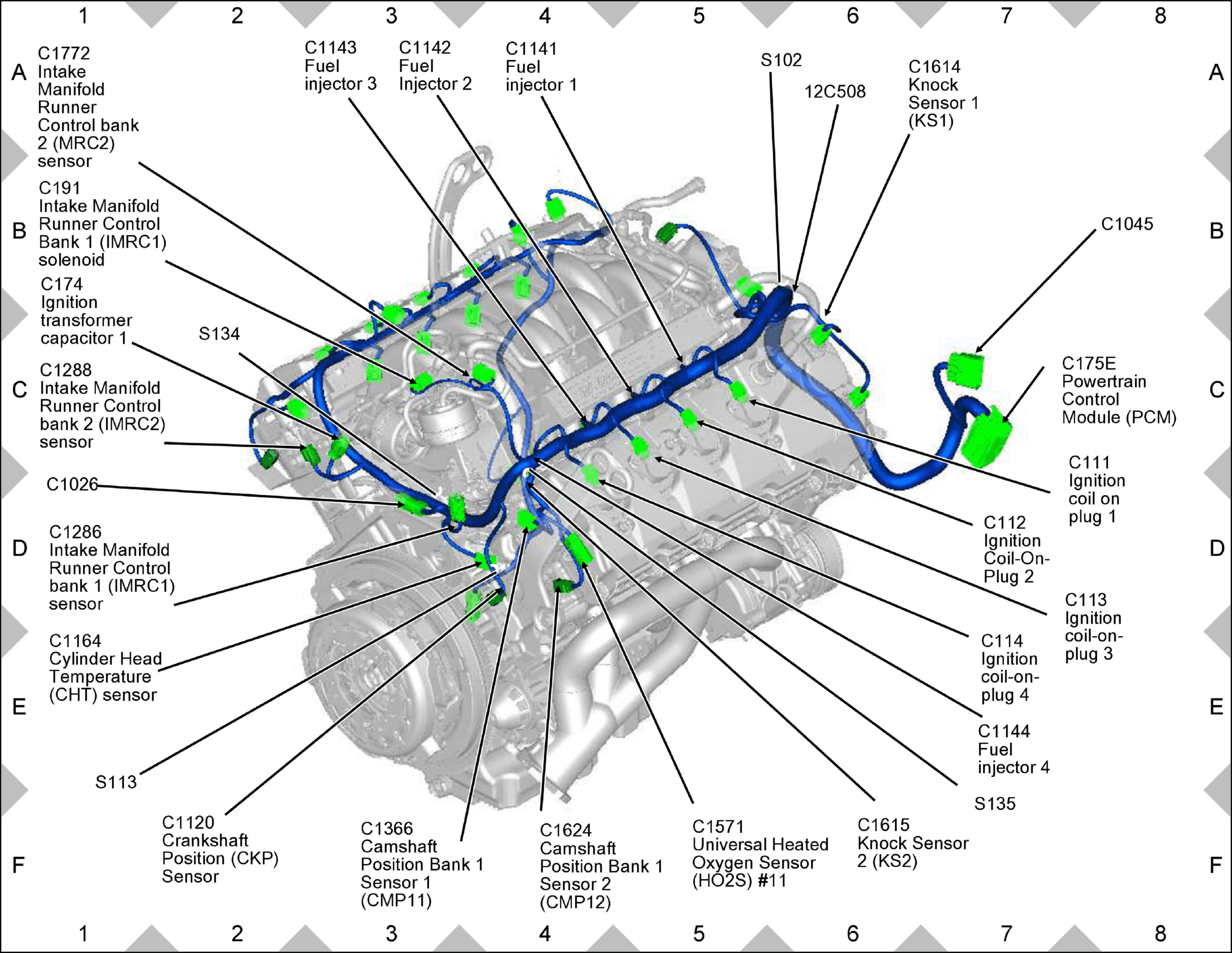

GFDW56747Courtesy of FORD MOTOR COMPANY
GFDW56748Courtesy of FORD MOTOR COMPANY

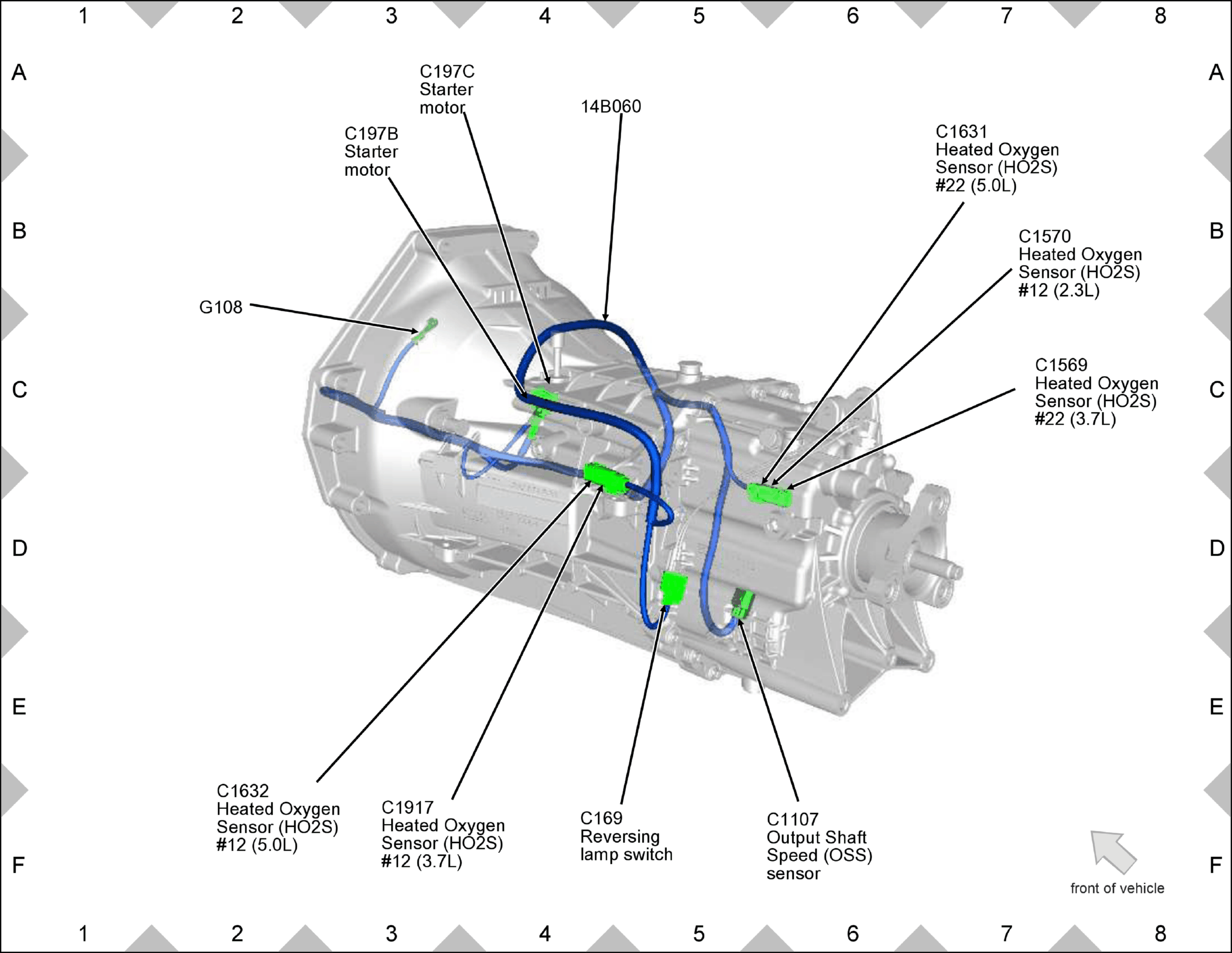

GFDW56749Courtesy of FORD MOTOR COMPANY

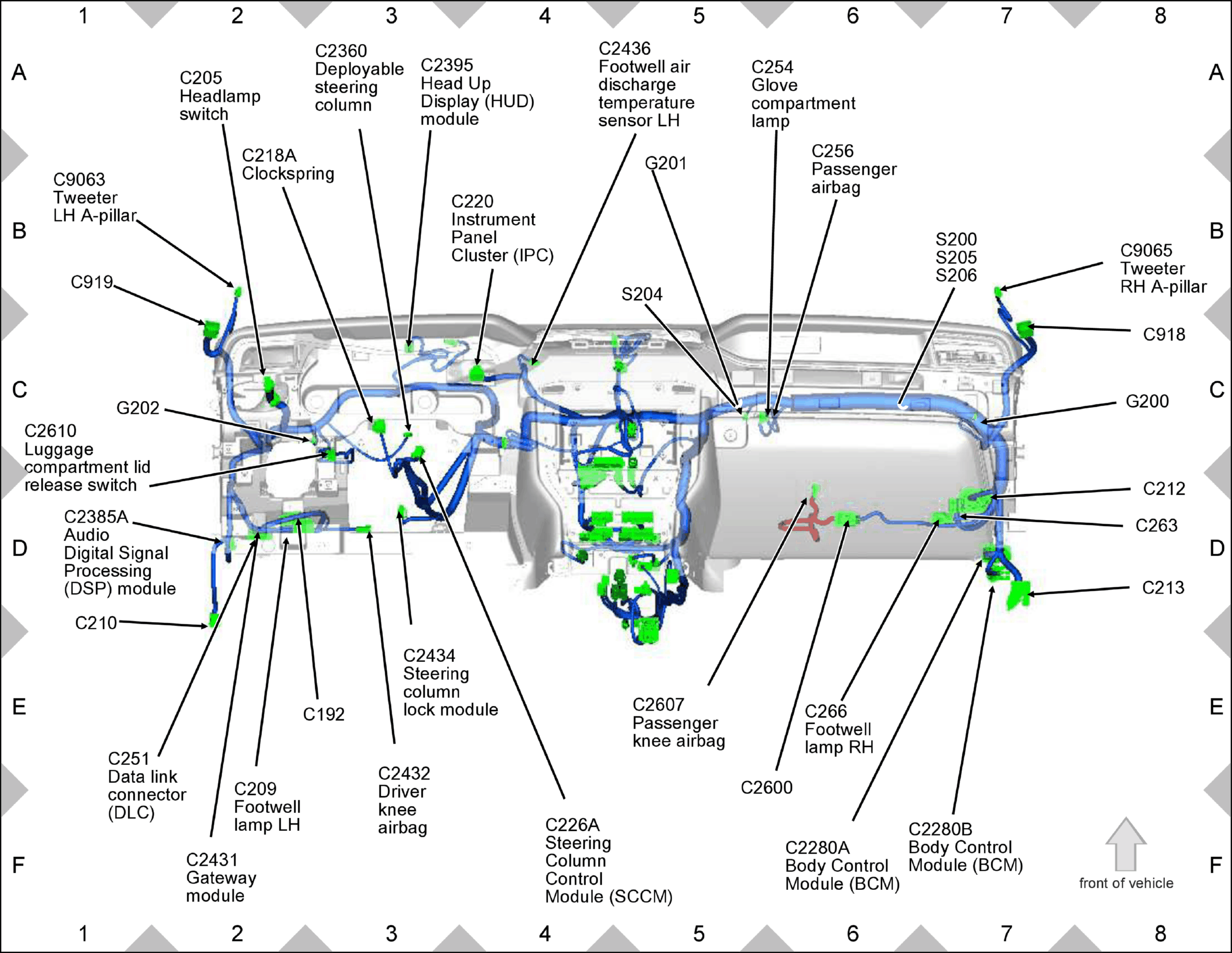

GFDW56750Courtesy of FORD MOTOR COMPANY

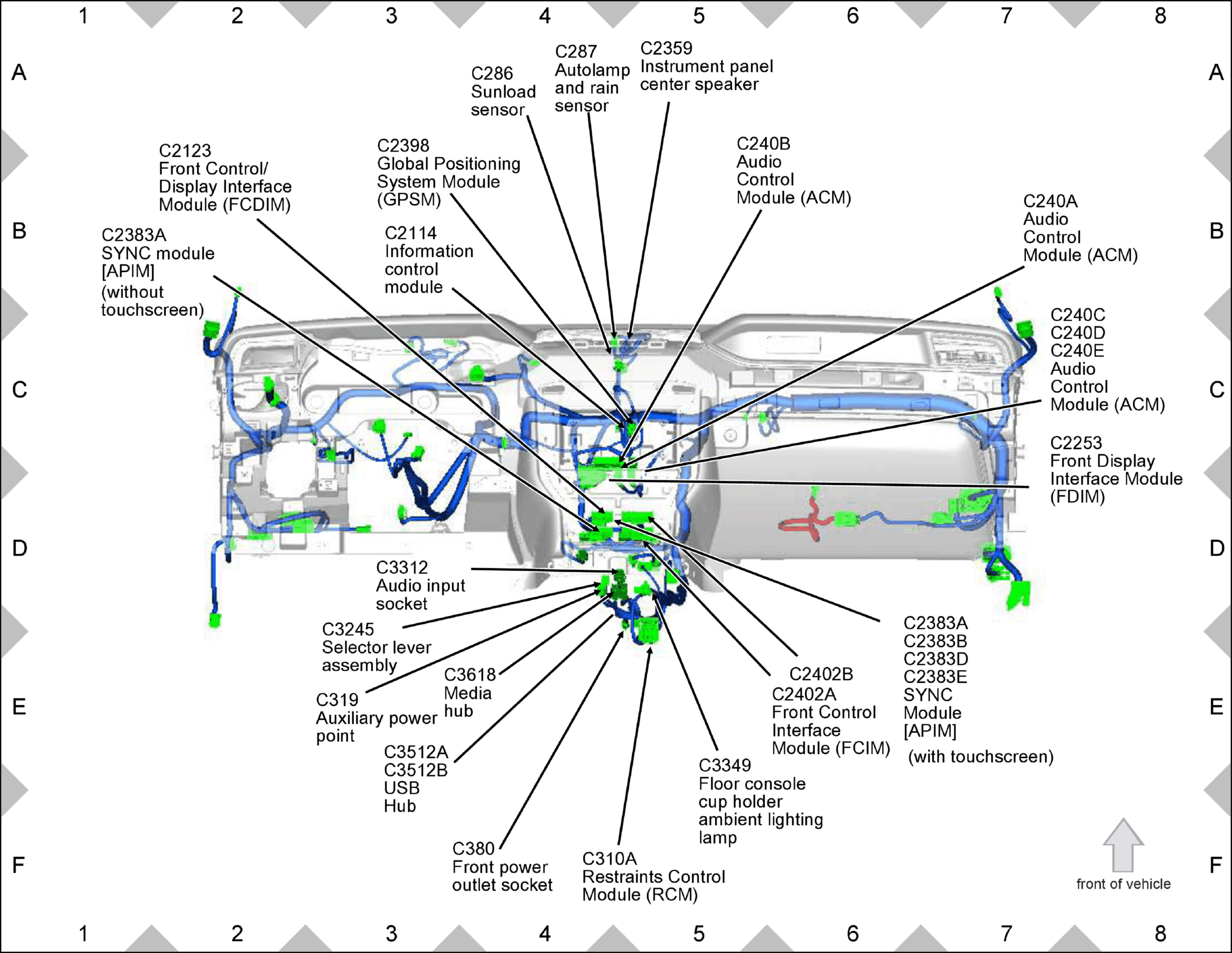

GFDW56751Courtesy of FORD MOTOR COMPANY

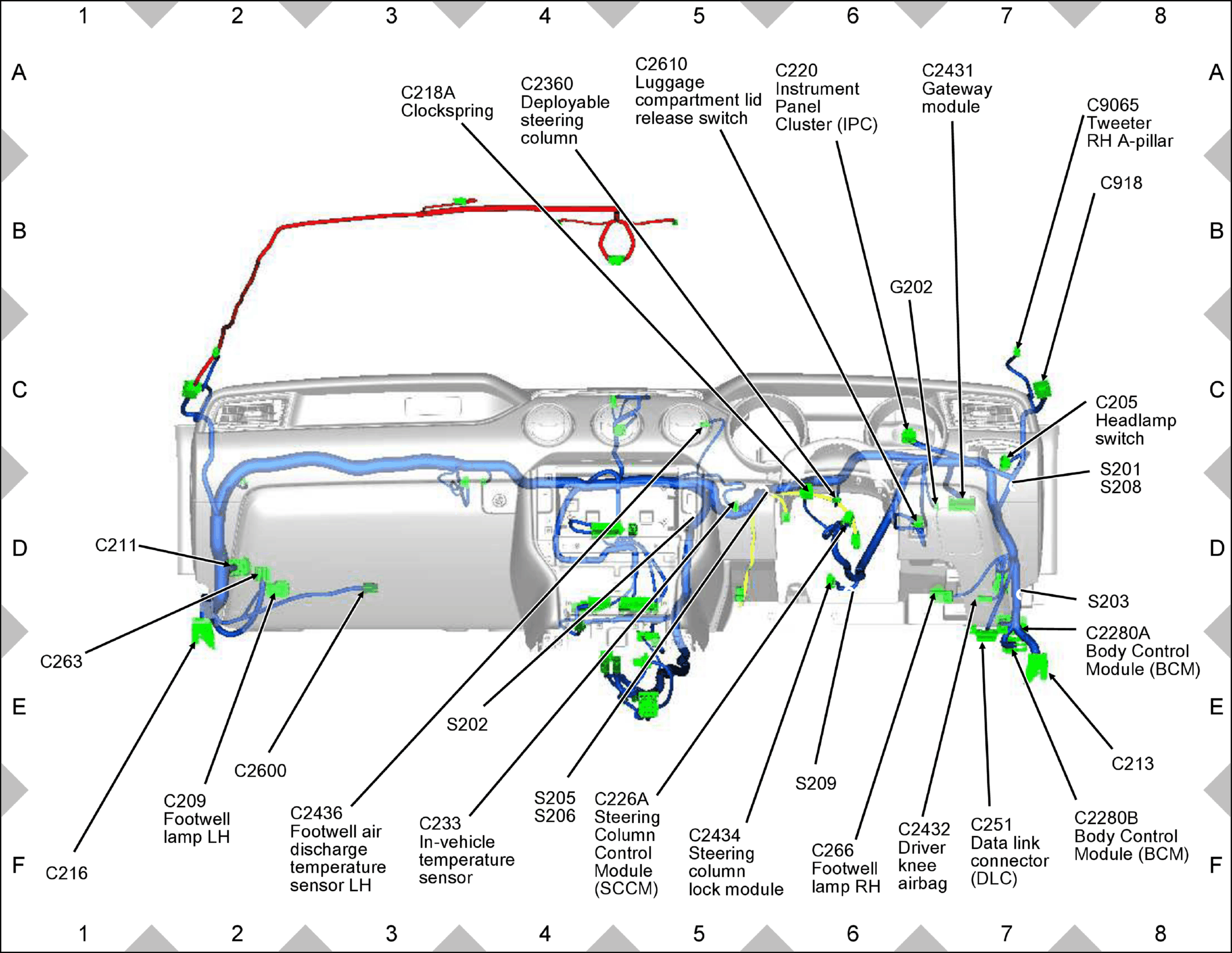

GFDW56752Courtesy of FORD MOTOR COMPANY

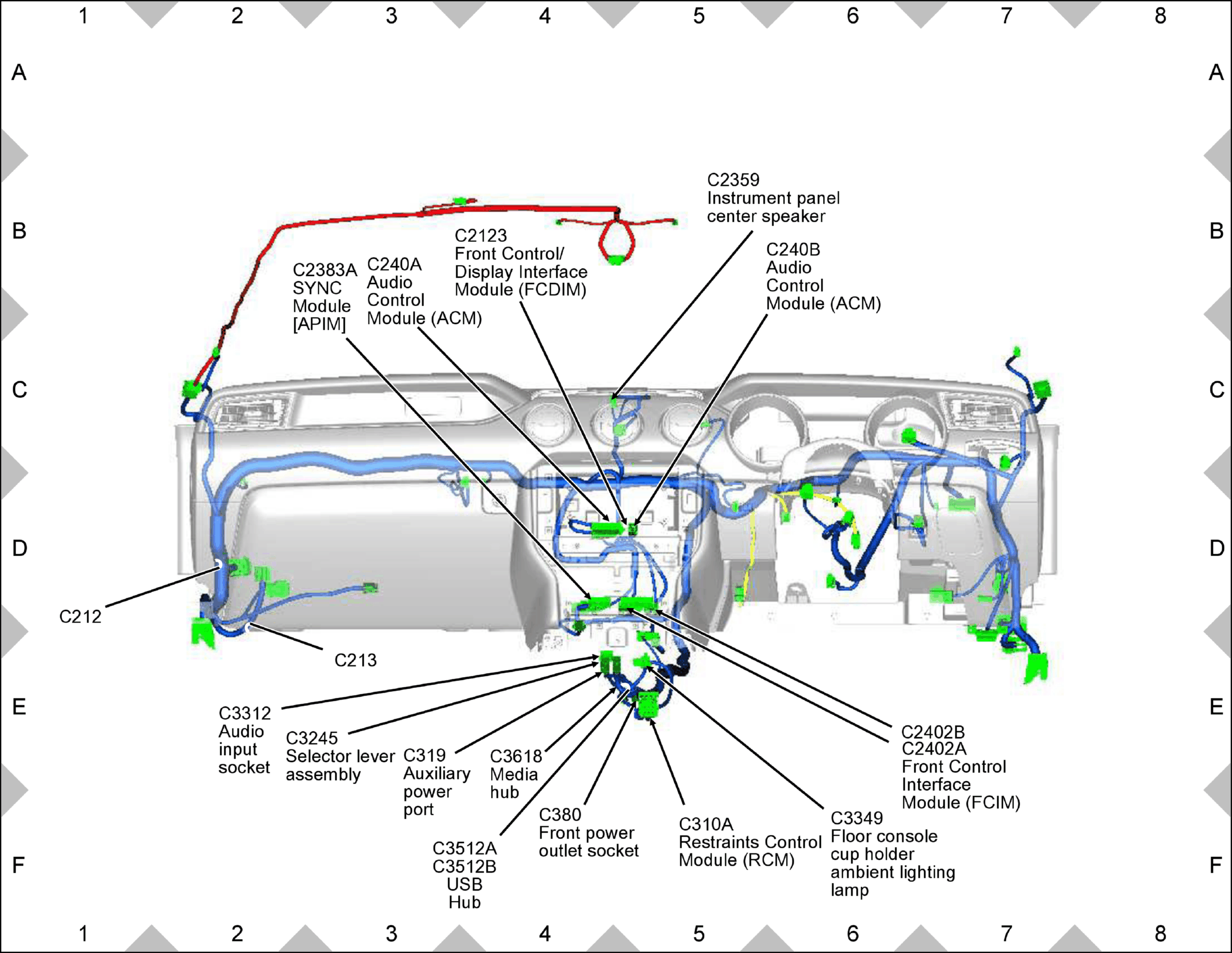

GFDW56753Courtesy of FORD MOTOR COMPANY

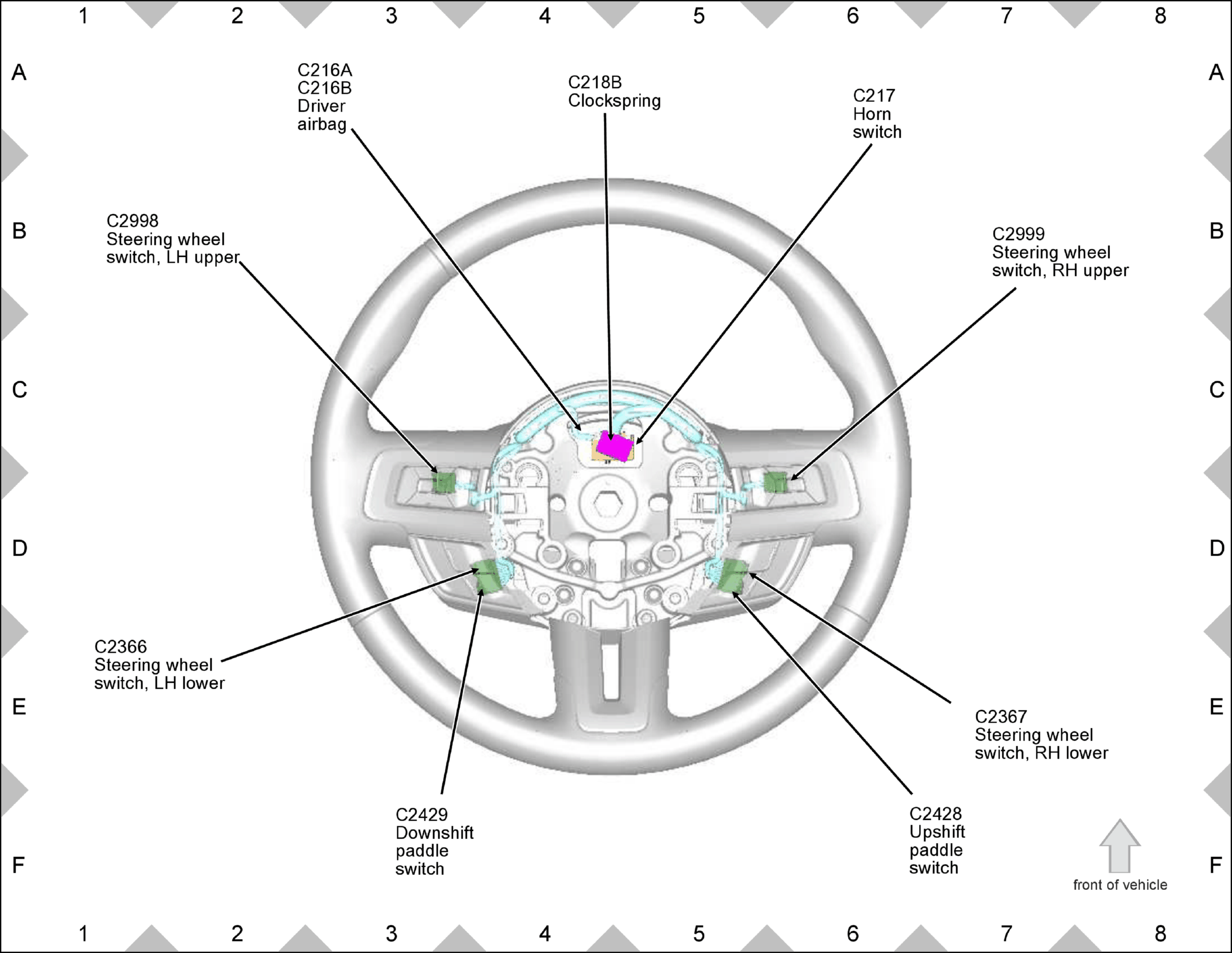

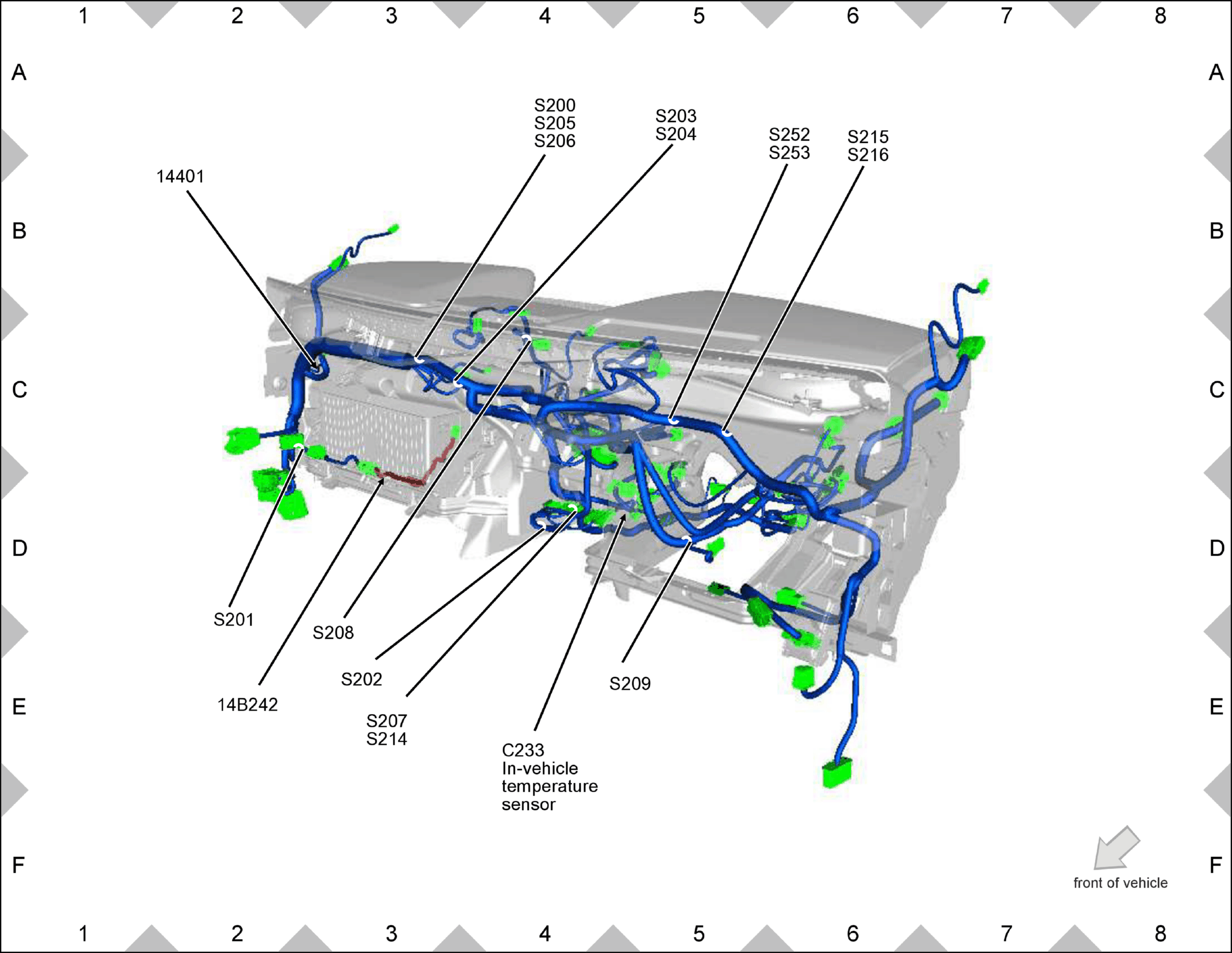

GFDW56754Courtesy of FORD MOTOR COMPANY

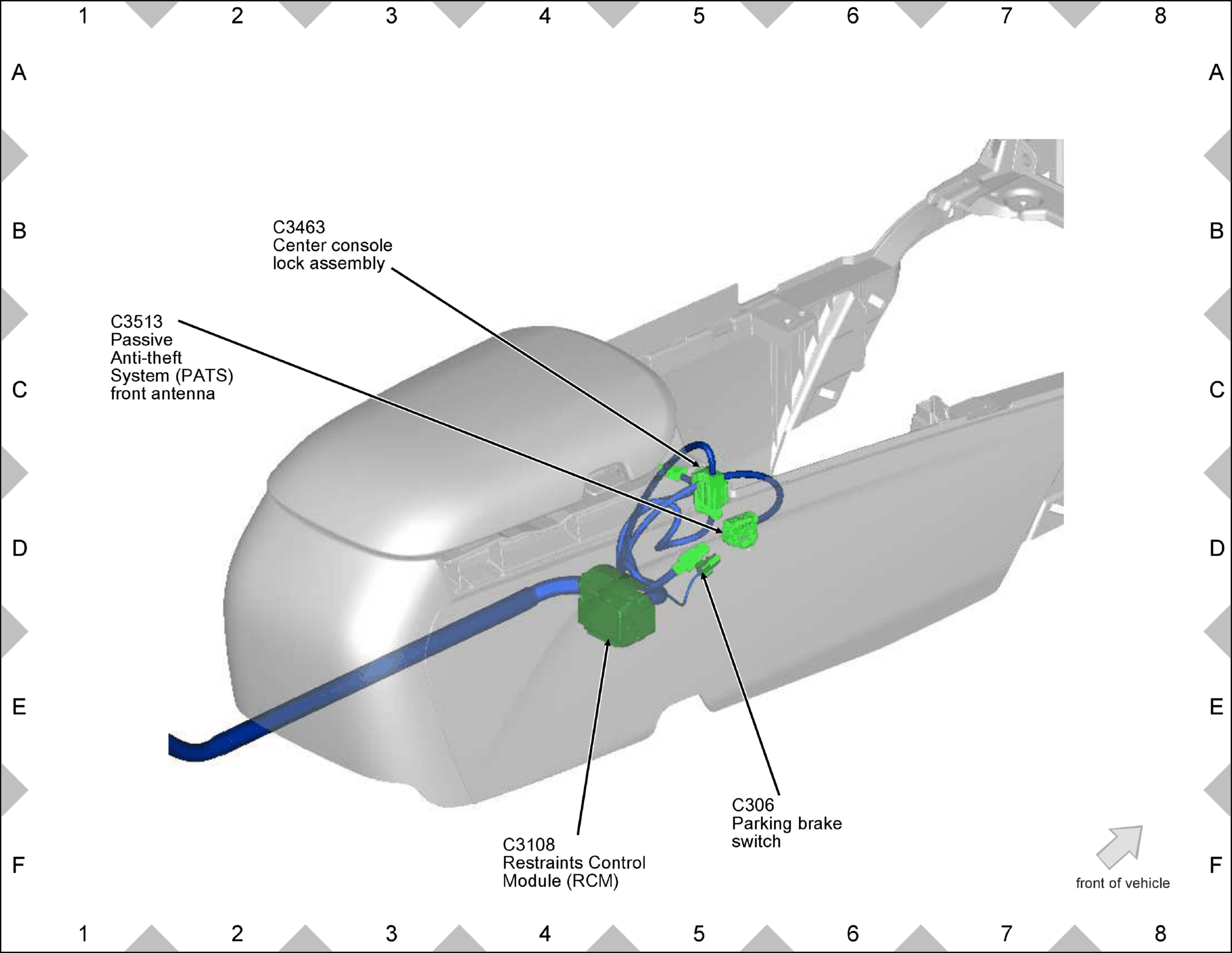

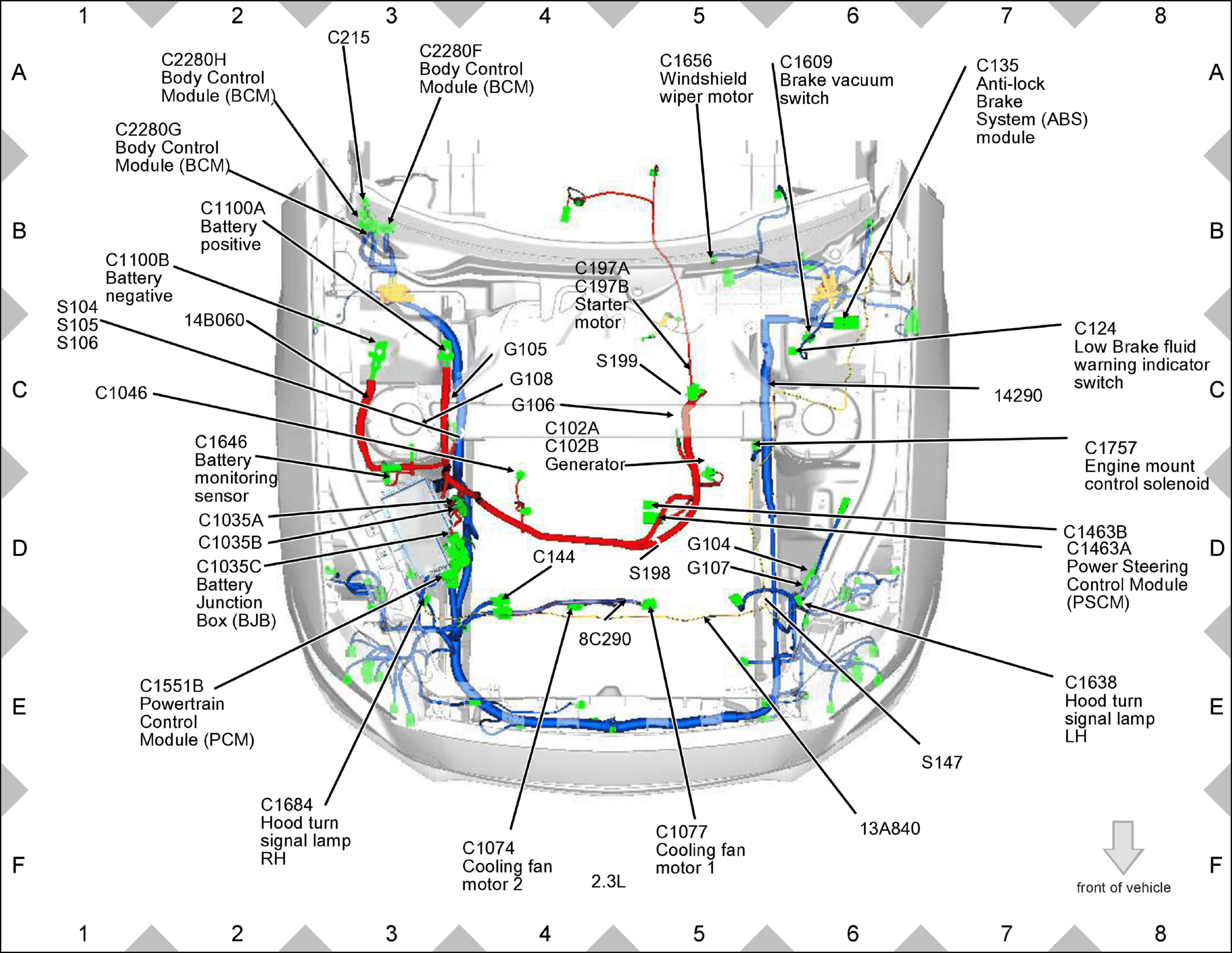

GFDW56755Courtesy of FORD MOTOR COMPANY

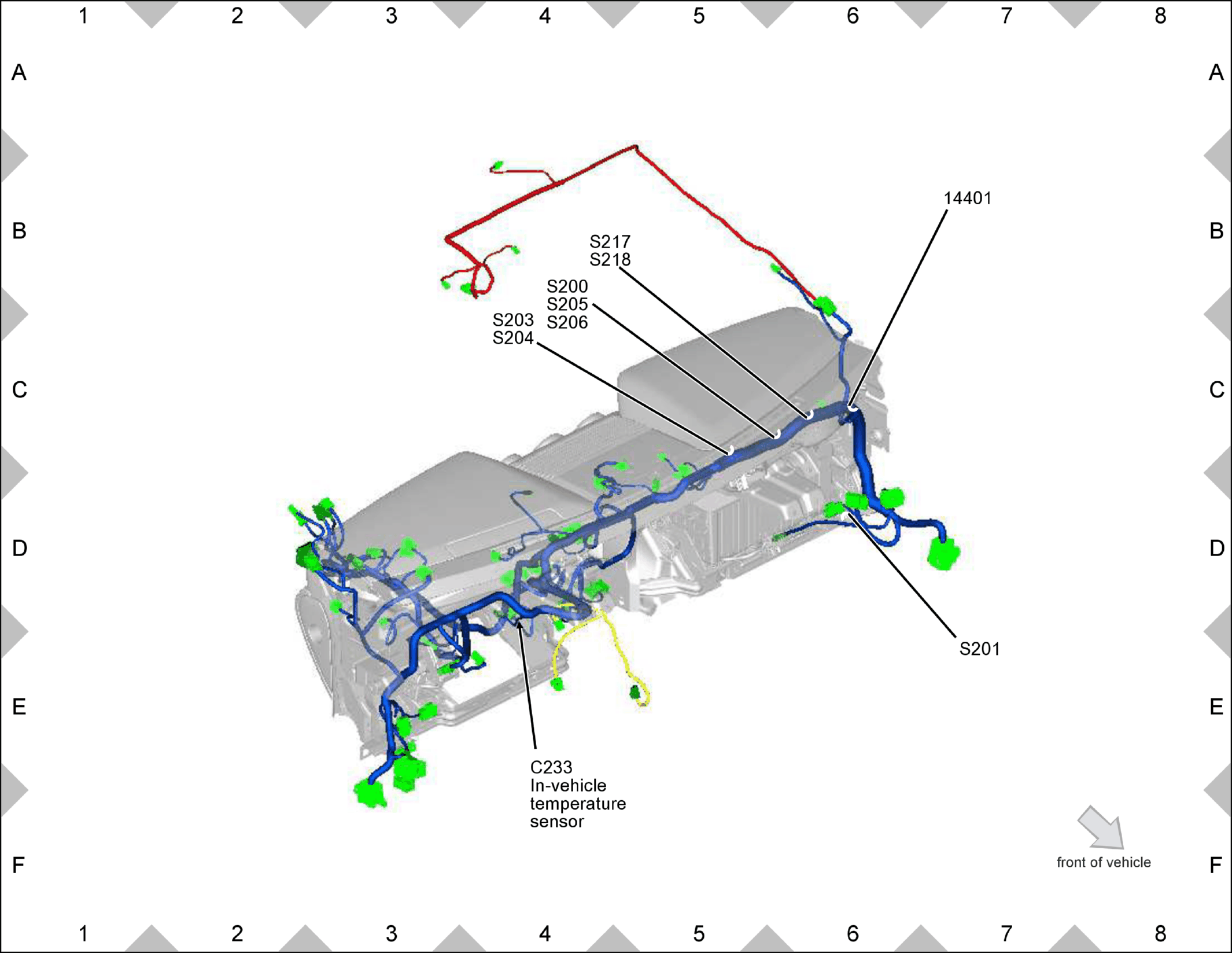

GFDW56756Courtesy of FORD MOTOR COMPANY

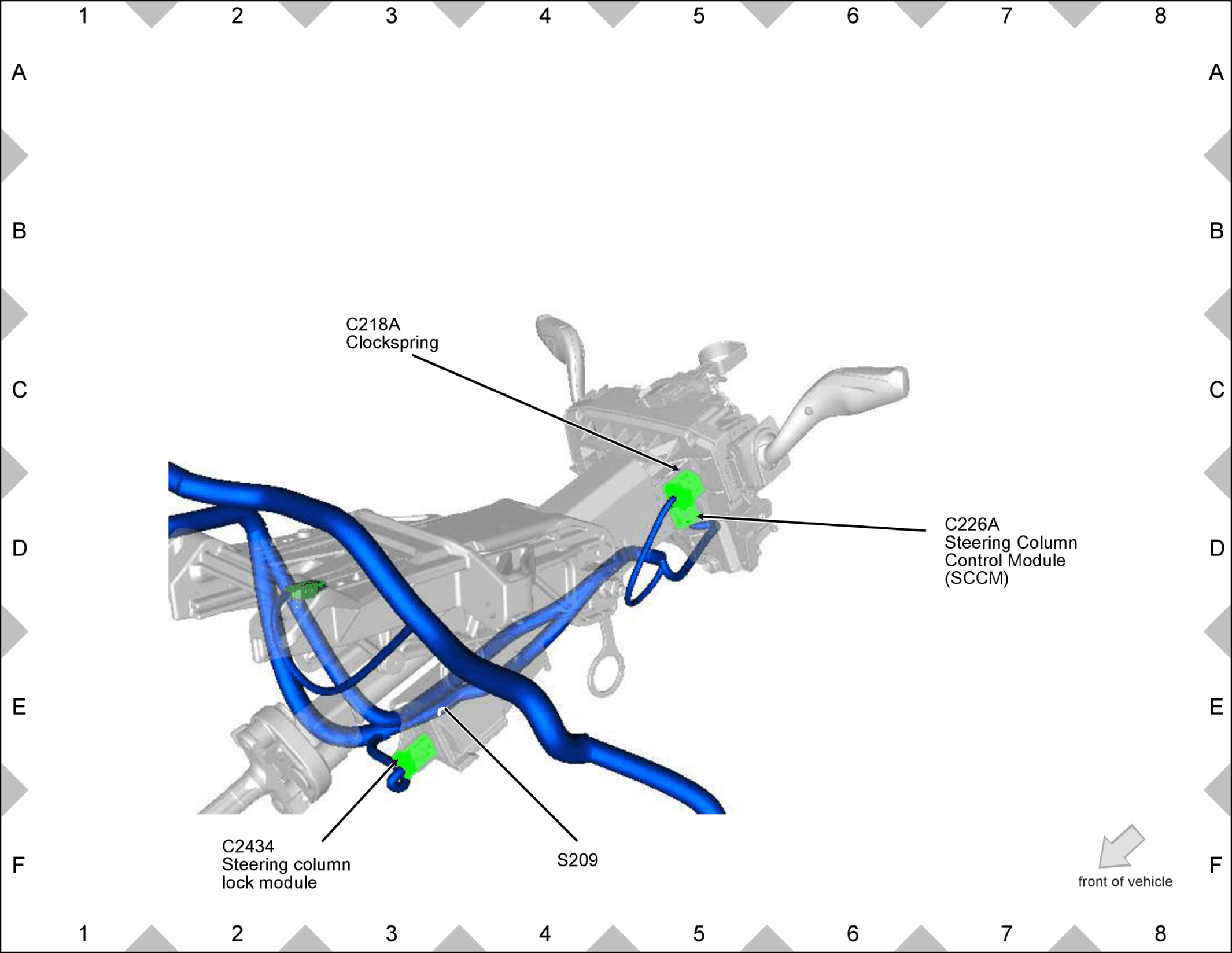

GFDW56757Courtesy of FORD MOTOR COMPANY
GFDW56758Courtesy of FORD MOTOR COMPANY
GFDW56759Courtesy of FORD MOTOR COMPANY

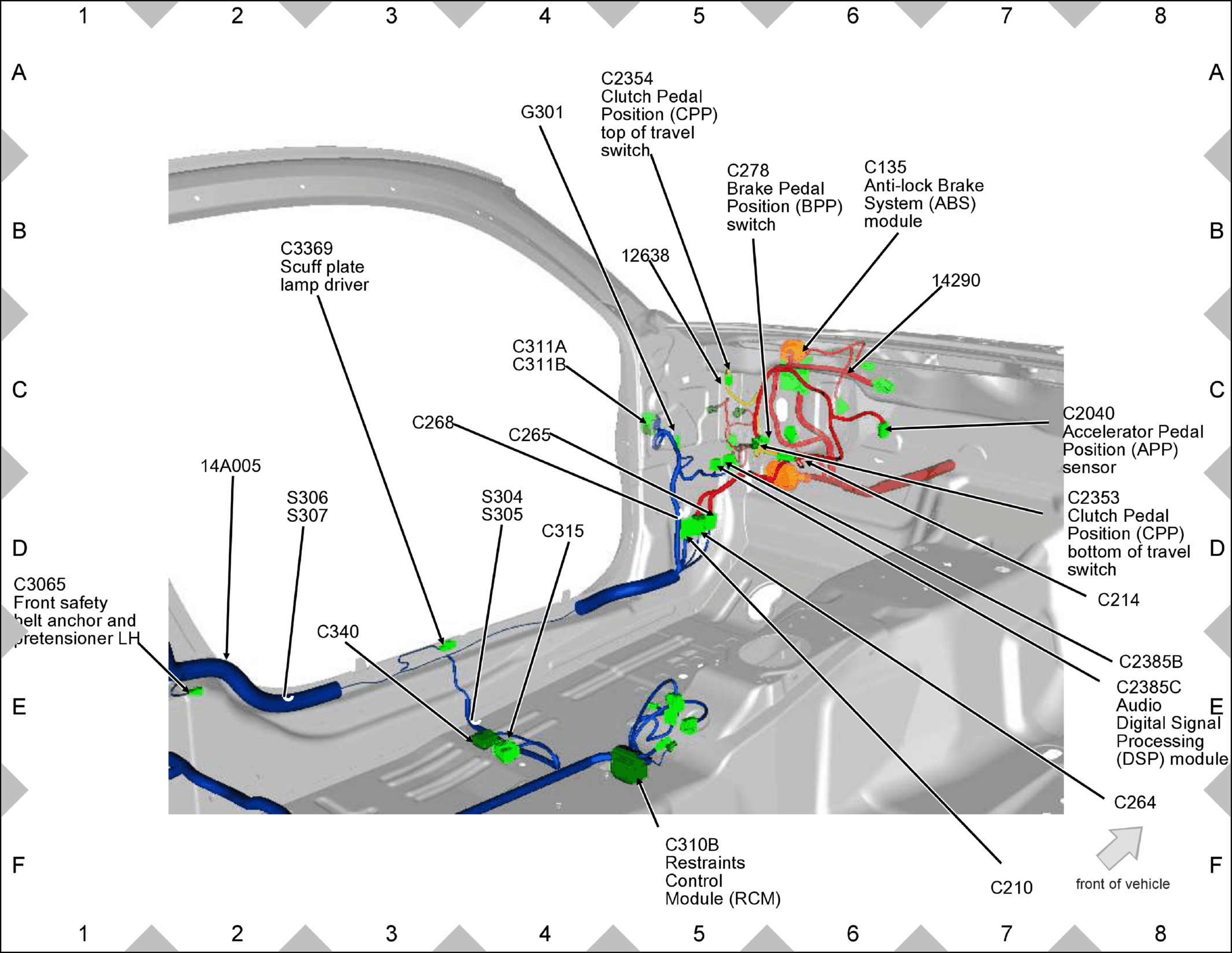

GFDW56760Courtesy of FORD MOTOR COMPANY

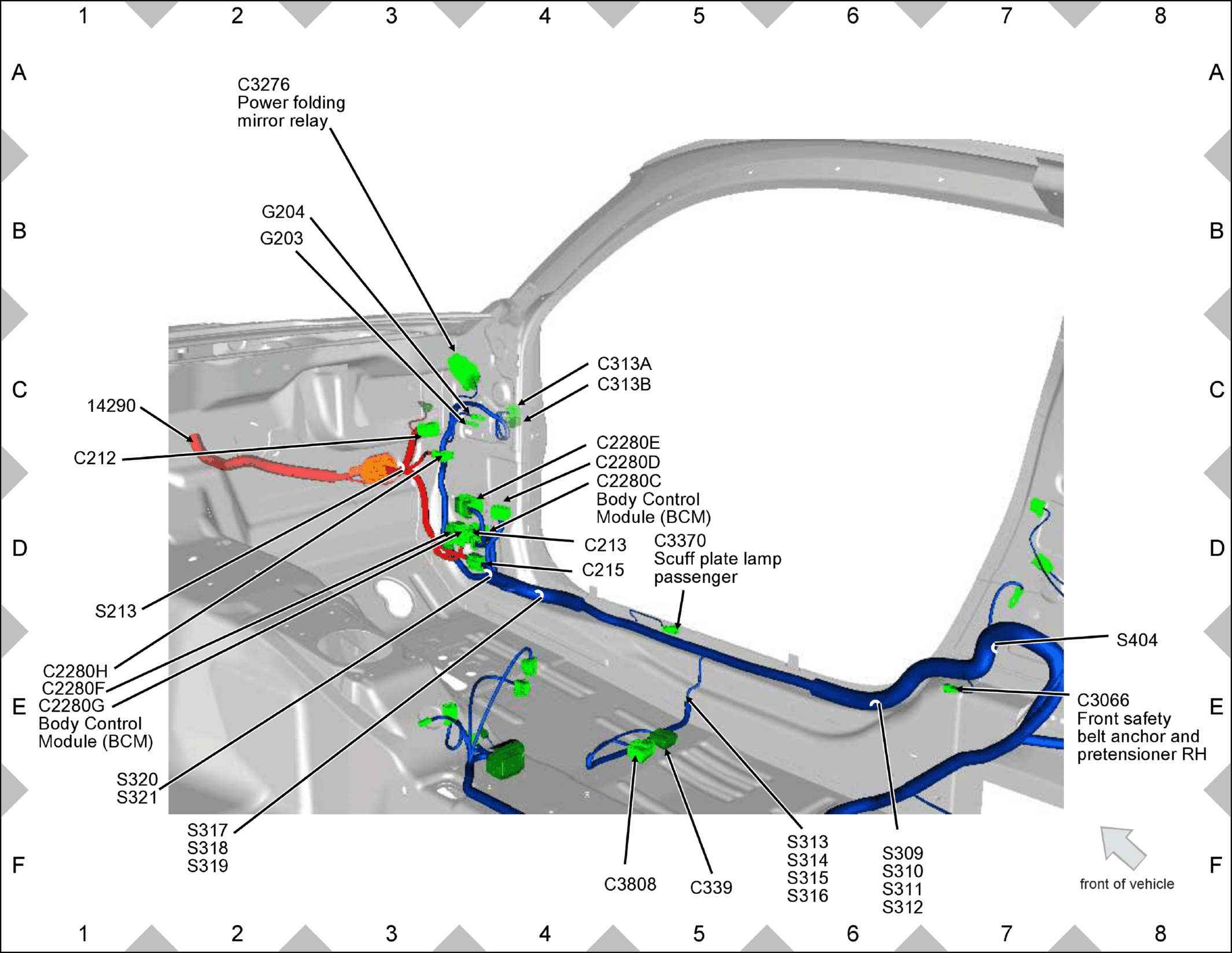

GFDW56761Courtesy of FORD MOTOR COMPANY

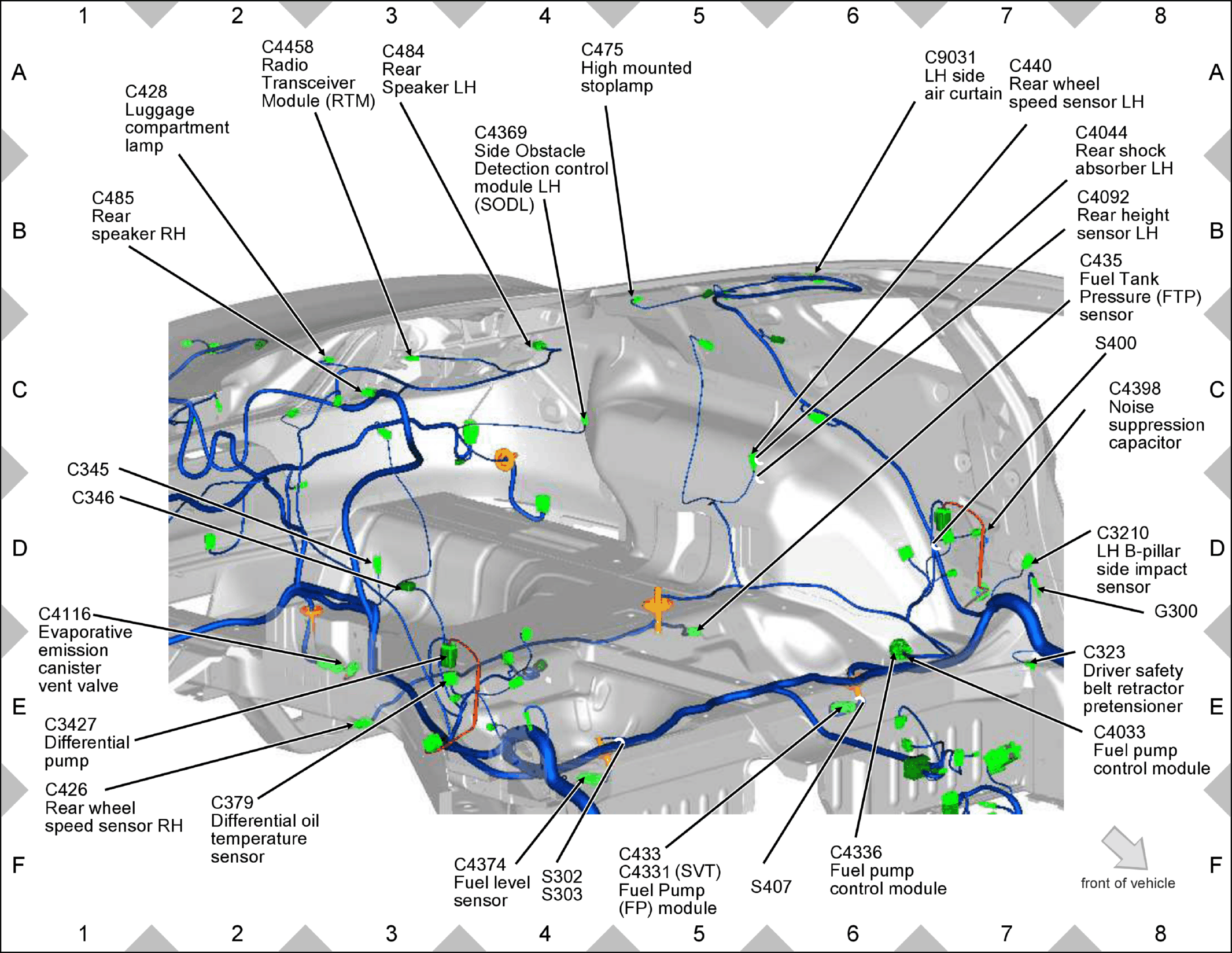

GFDW56762Courtesy of FORD MOTOR COMPANY

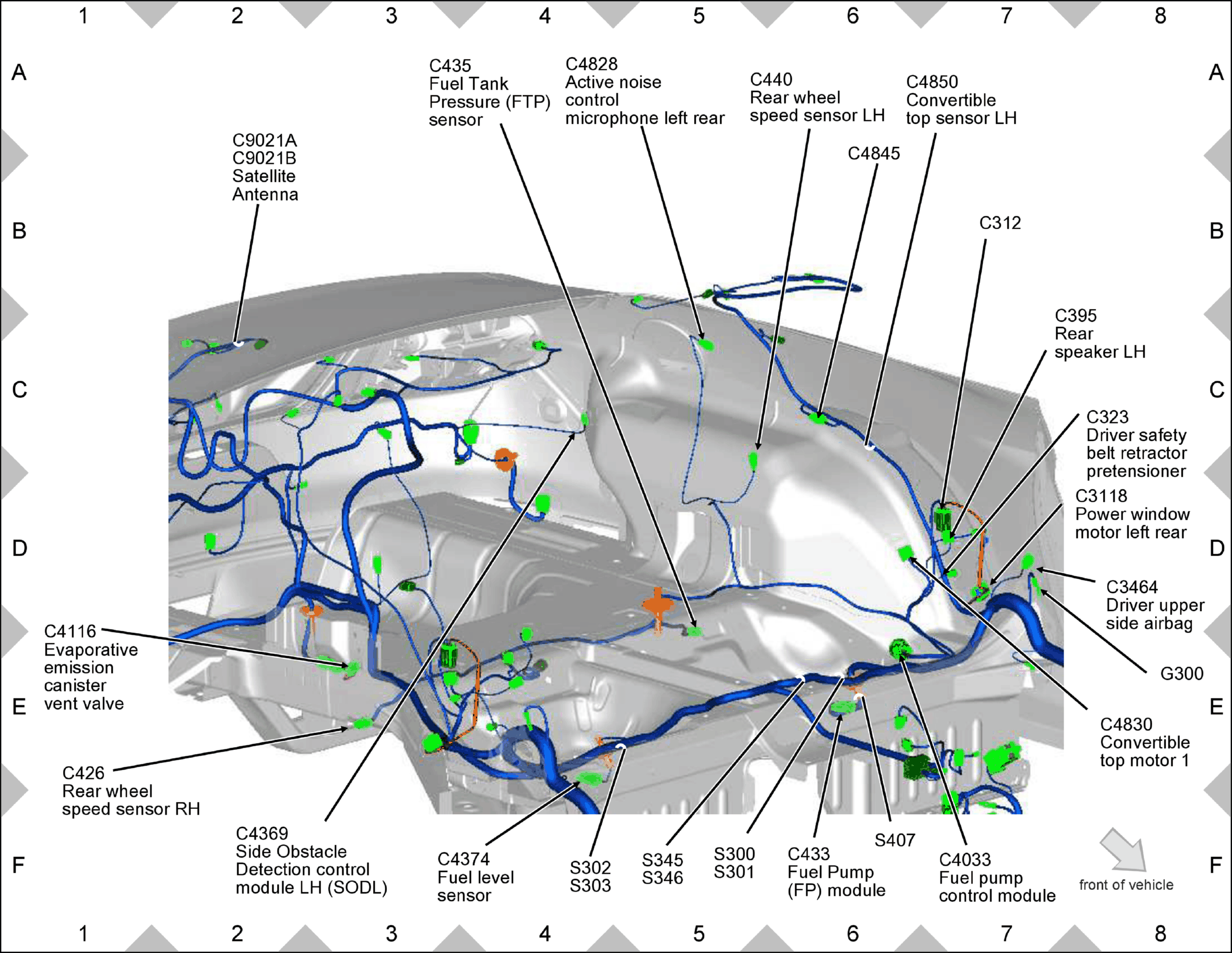

GFDW56763Courtesy of FORD MOTOR COMPANY

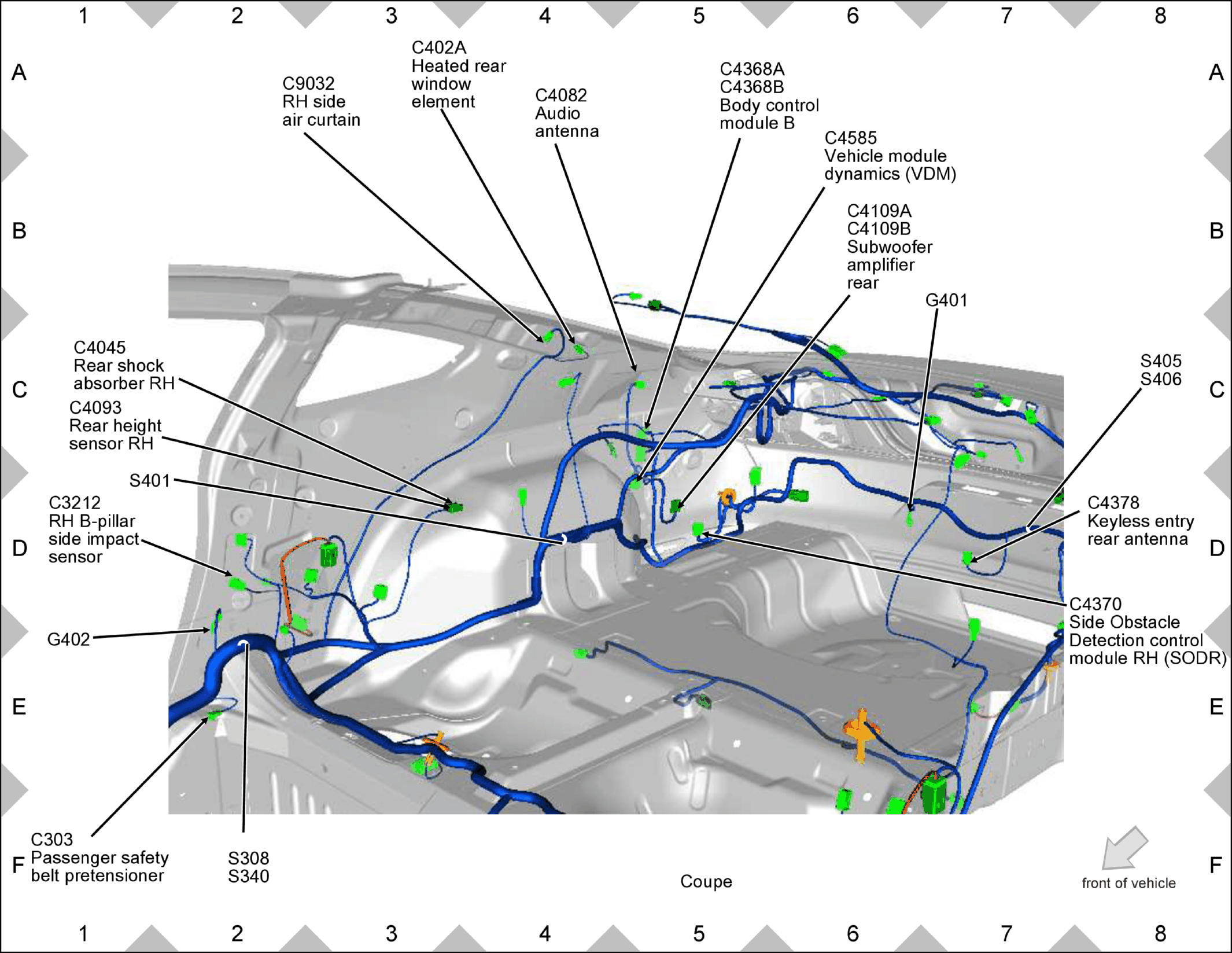

GFDW56764Courtesy of FORD MOTOR COMPANY

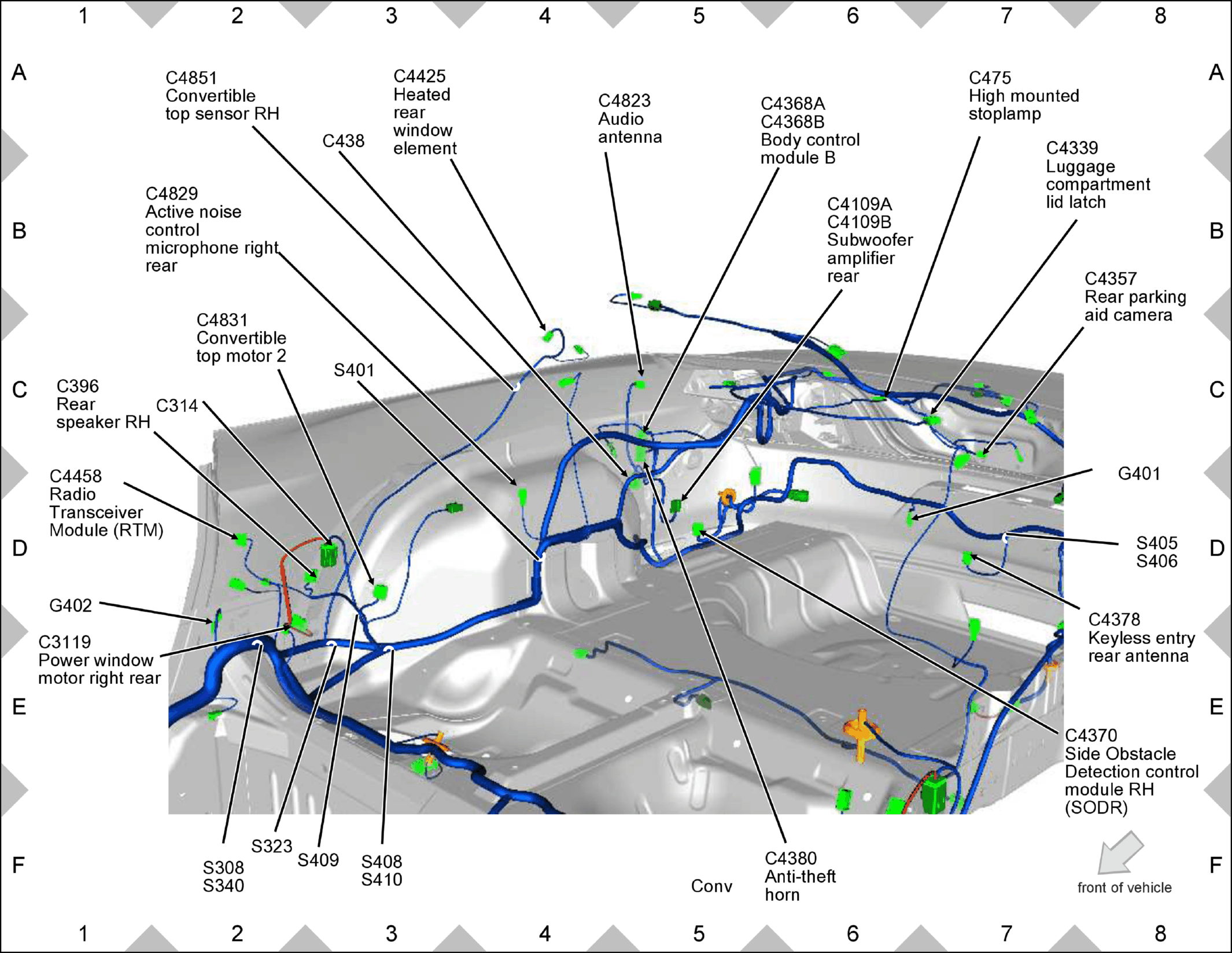

GFDW56765Courtesy of FORD MOTOR COMPANY

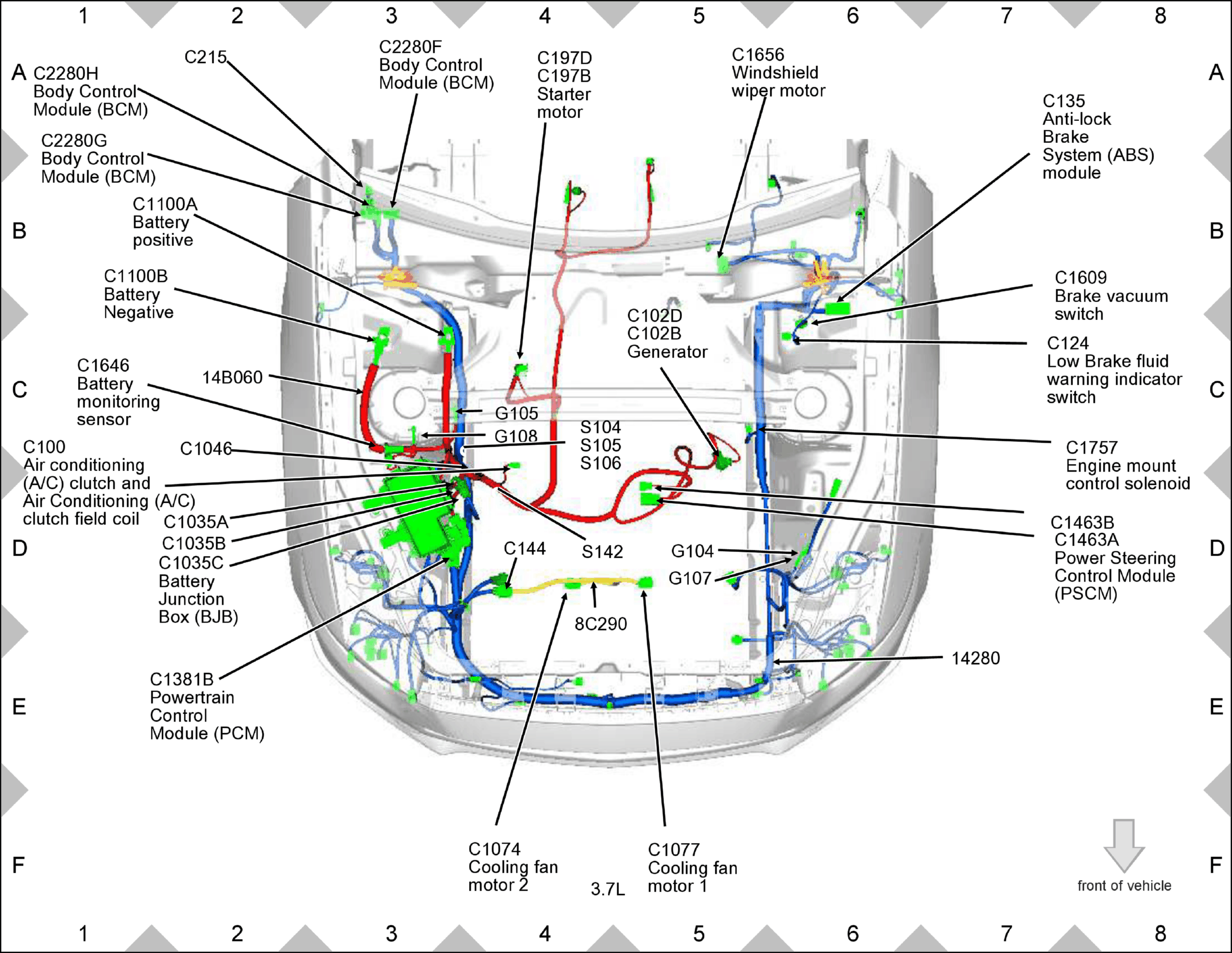

GFDW56766Courtesy of FORD MOTOR COMPANY

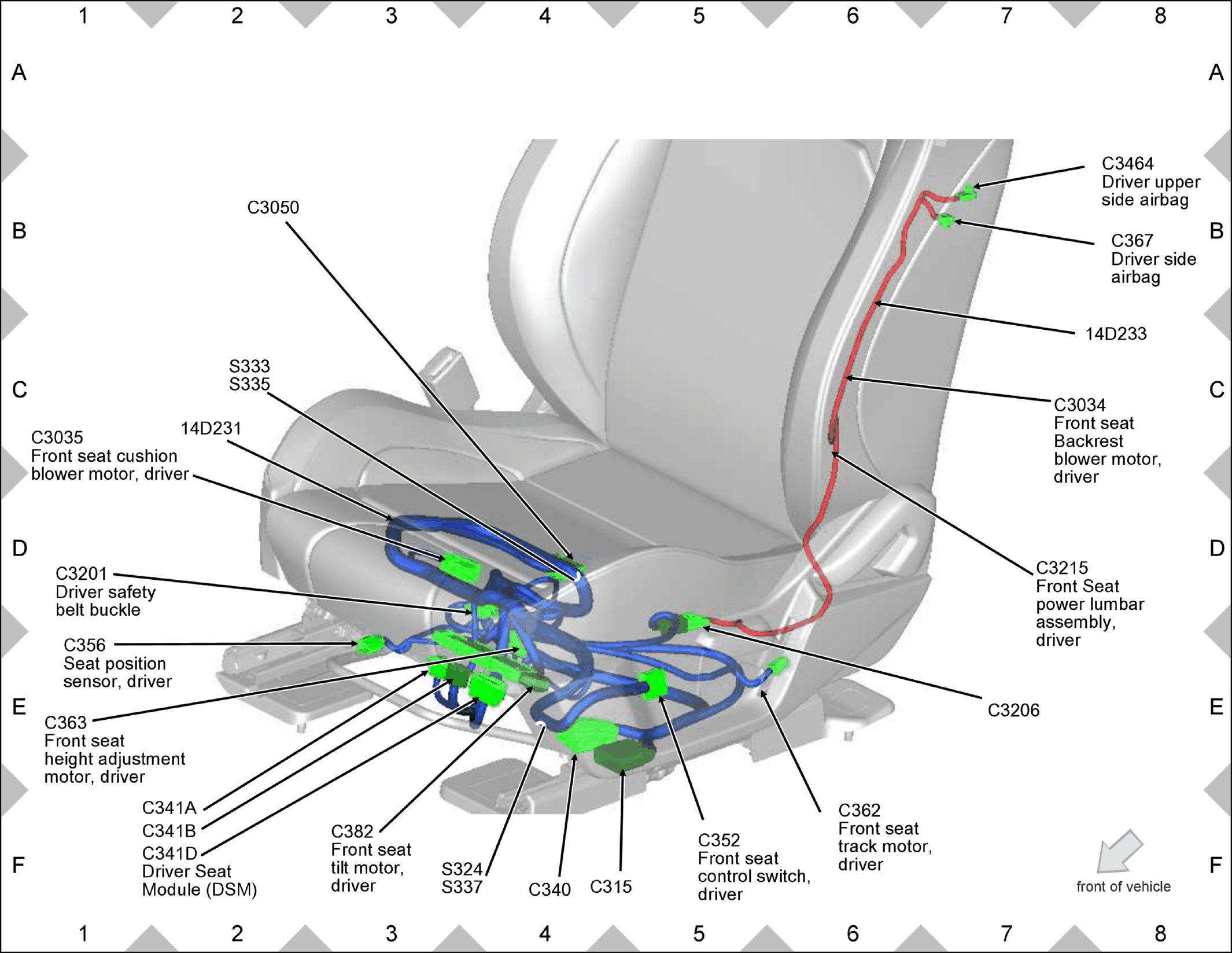

GFDW56767Courtesy of FORD MOTOR COMPANY

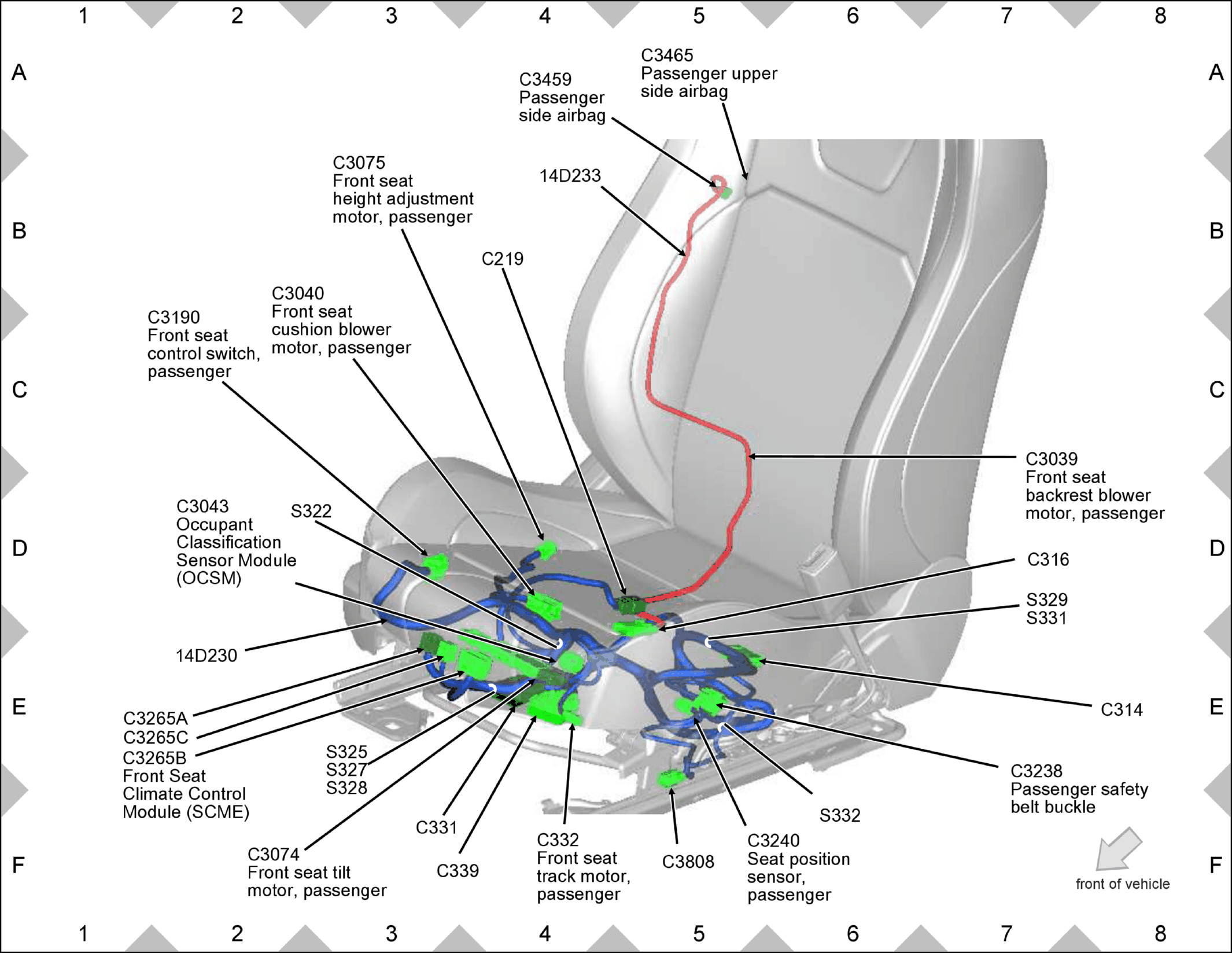

GFDW56768Courtesy of FORD MOTOR COMPANY

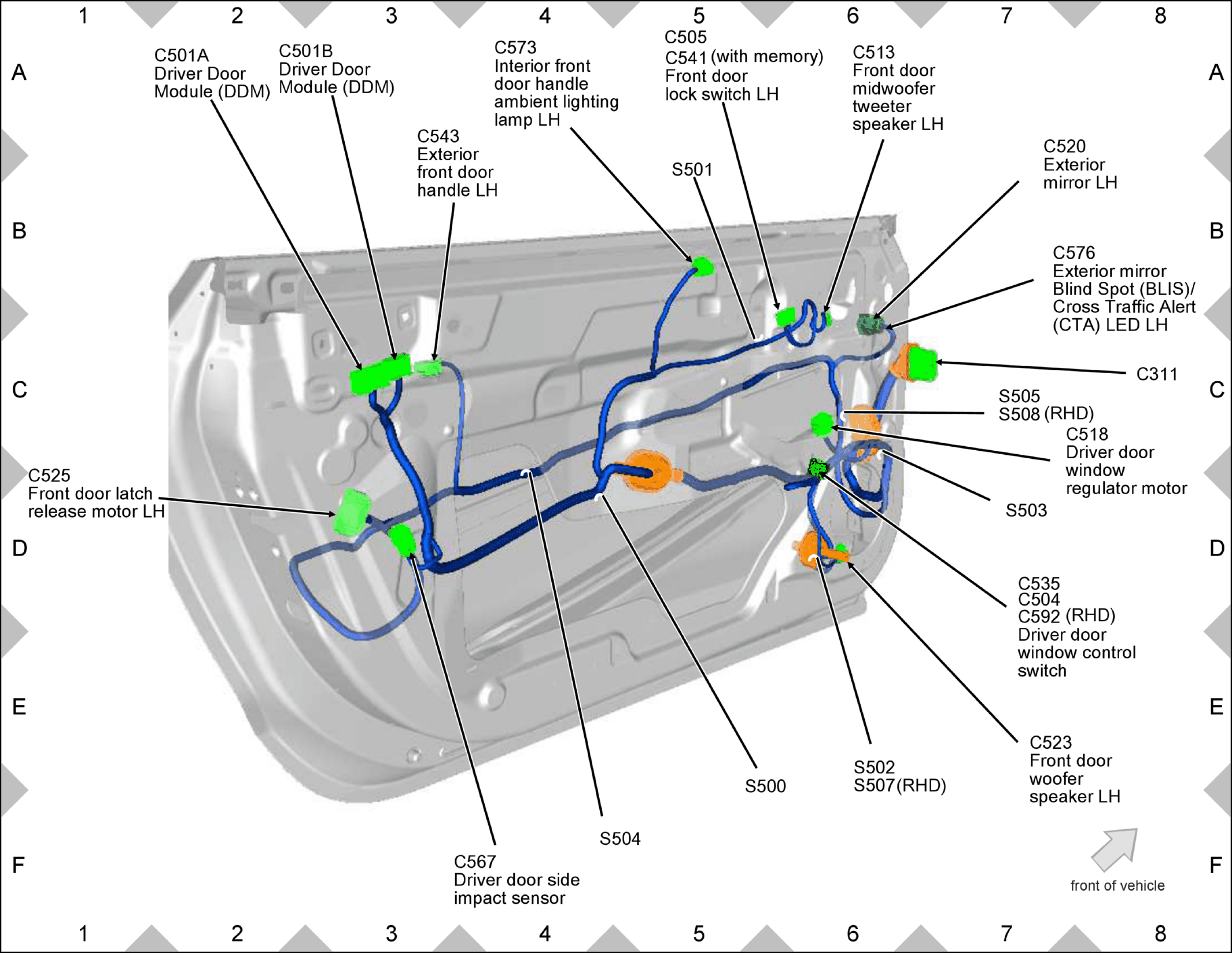

GFDW56769Courtesy of FORD MOTOR COMPANY

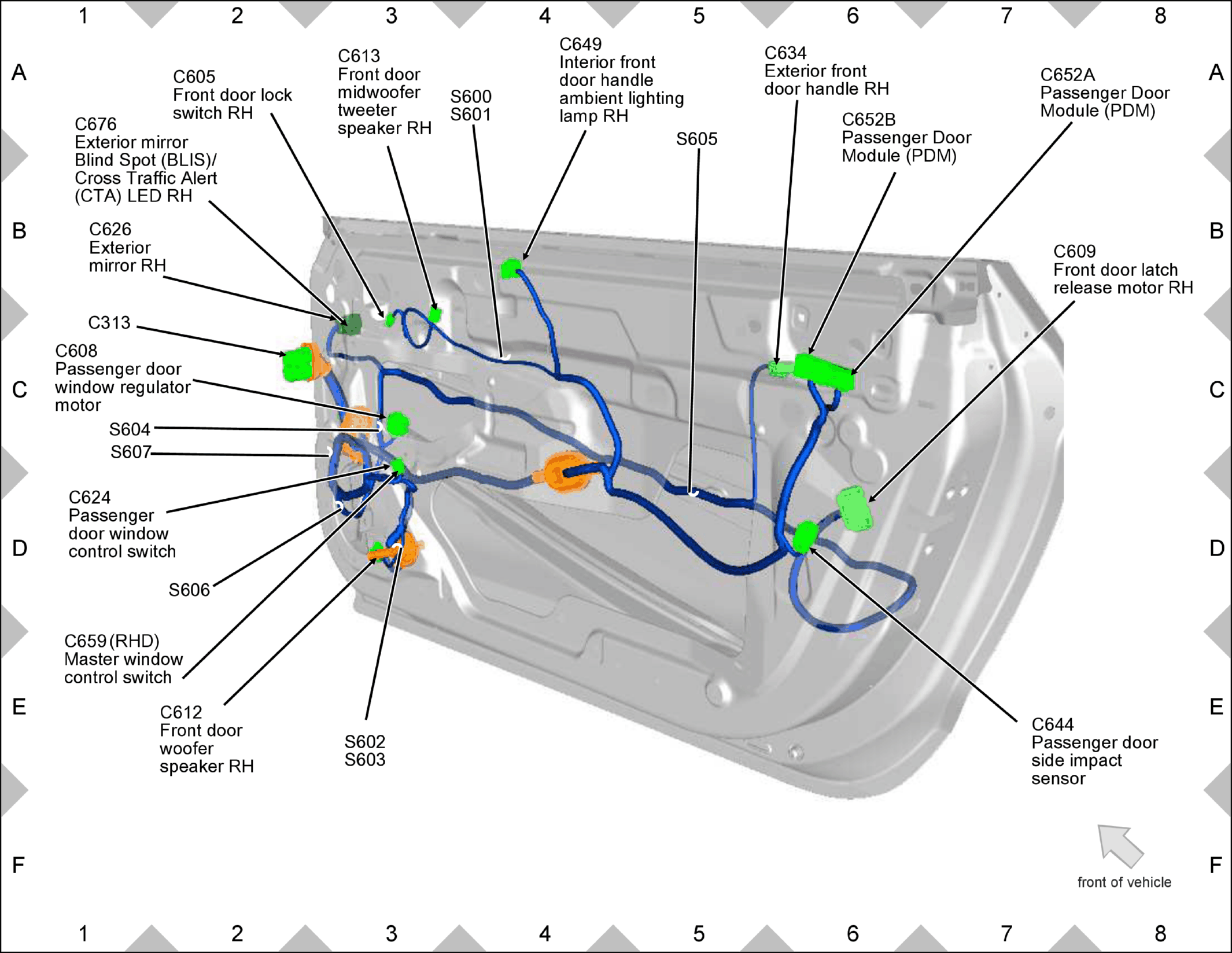

GFDW56770Courtesy of FORD MOTOR COMPANY

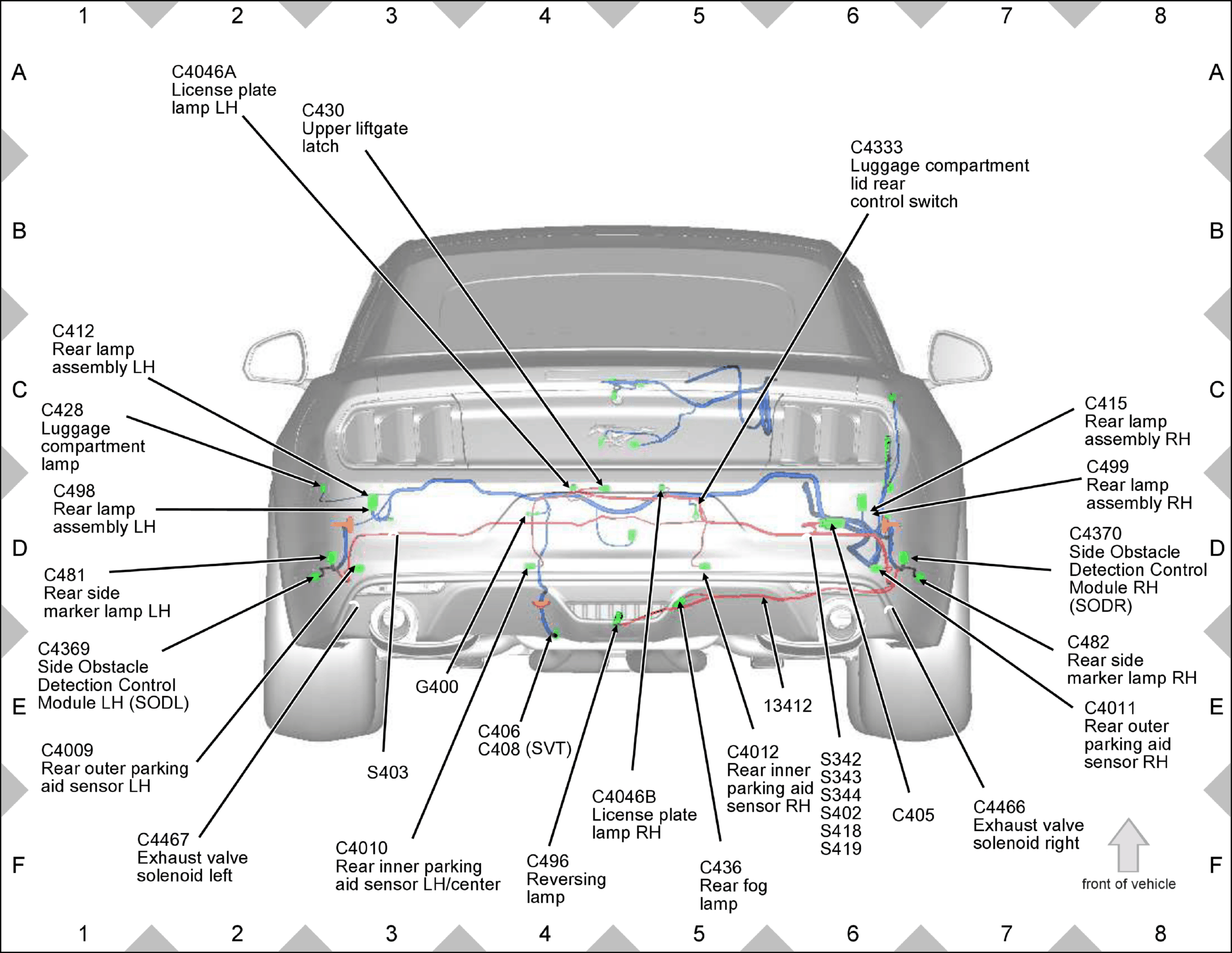

GFDW56771Courtesy of FORD MOTOR COMPANY

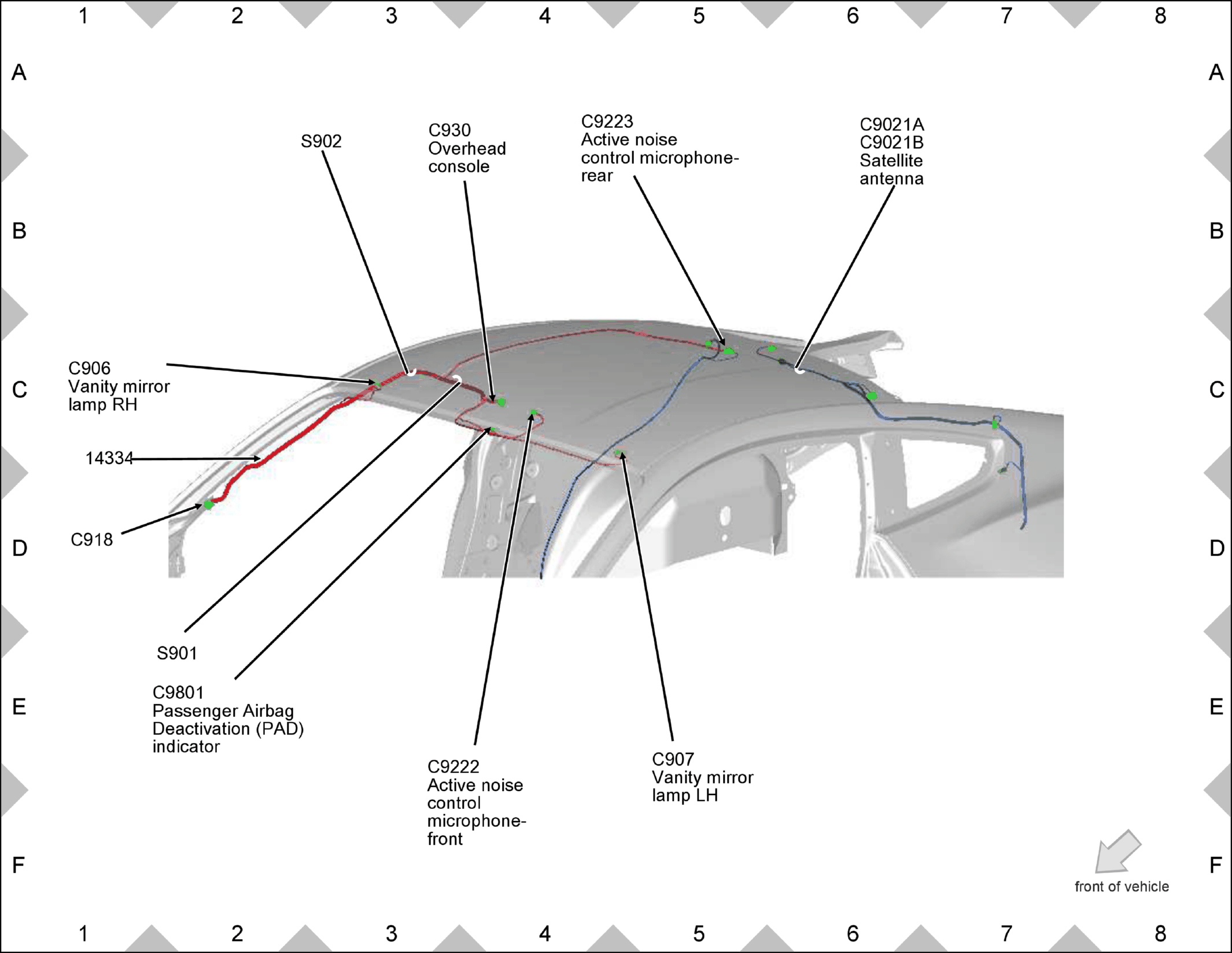

GFDW56772Courtesy of FORD MOTOR COMPANY

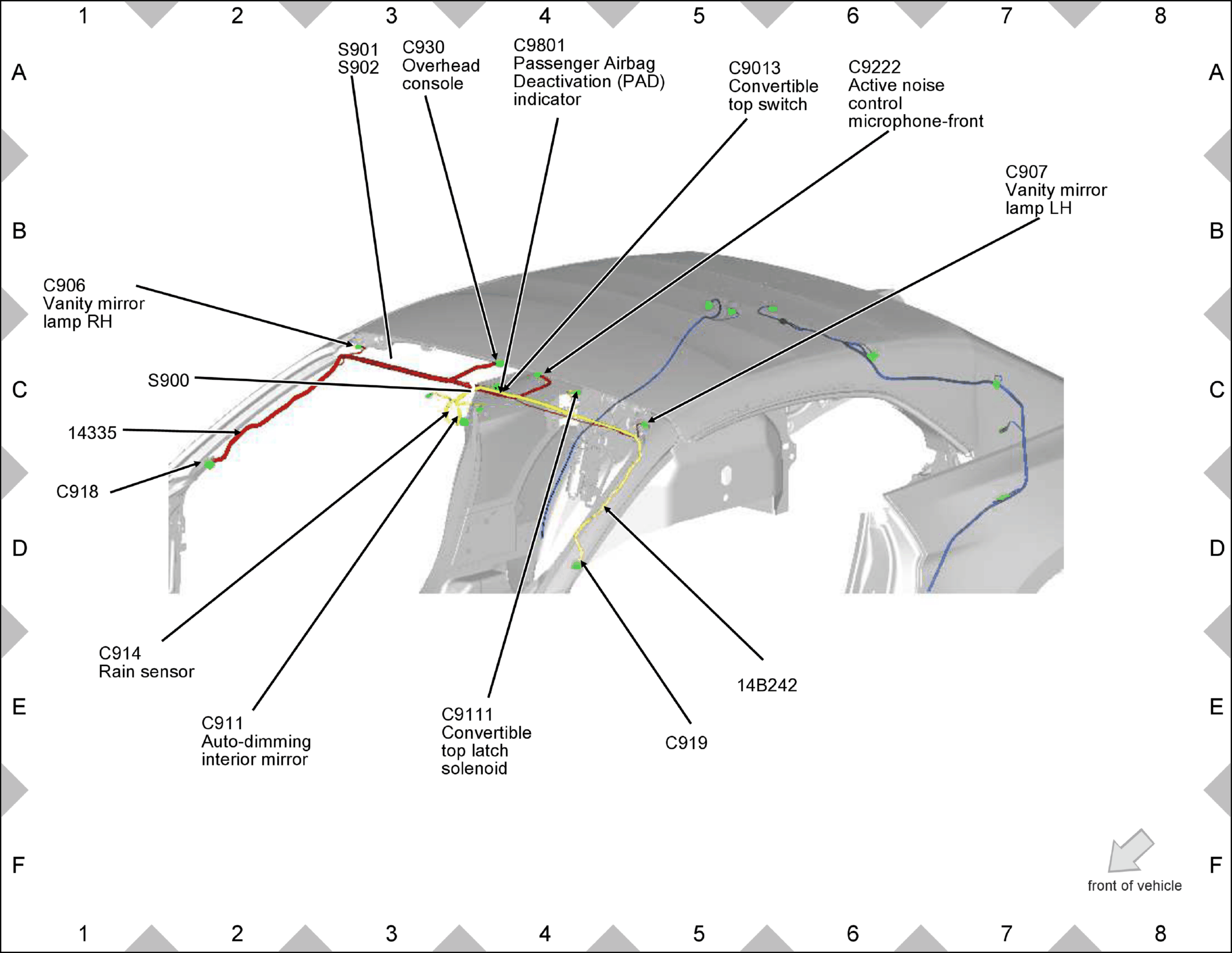

GFDW56773Courtesy of FORD MOTOR COMPANY

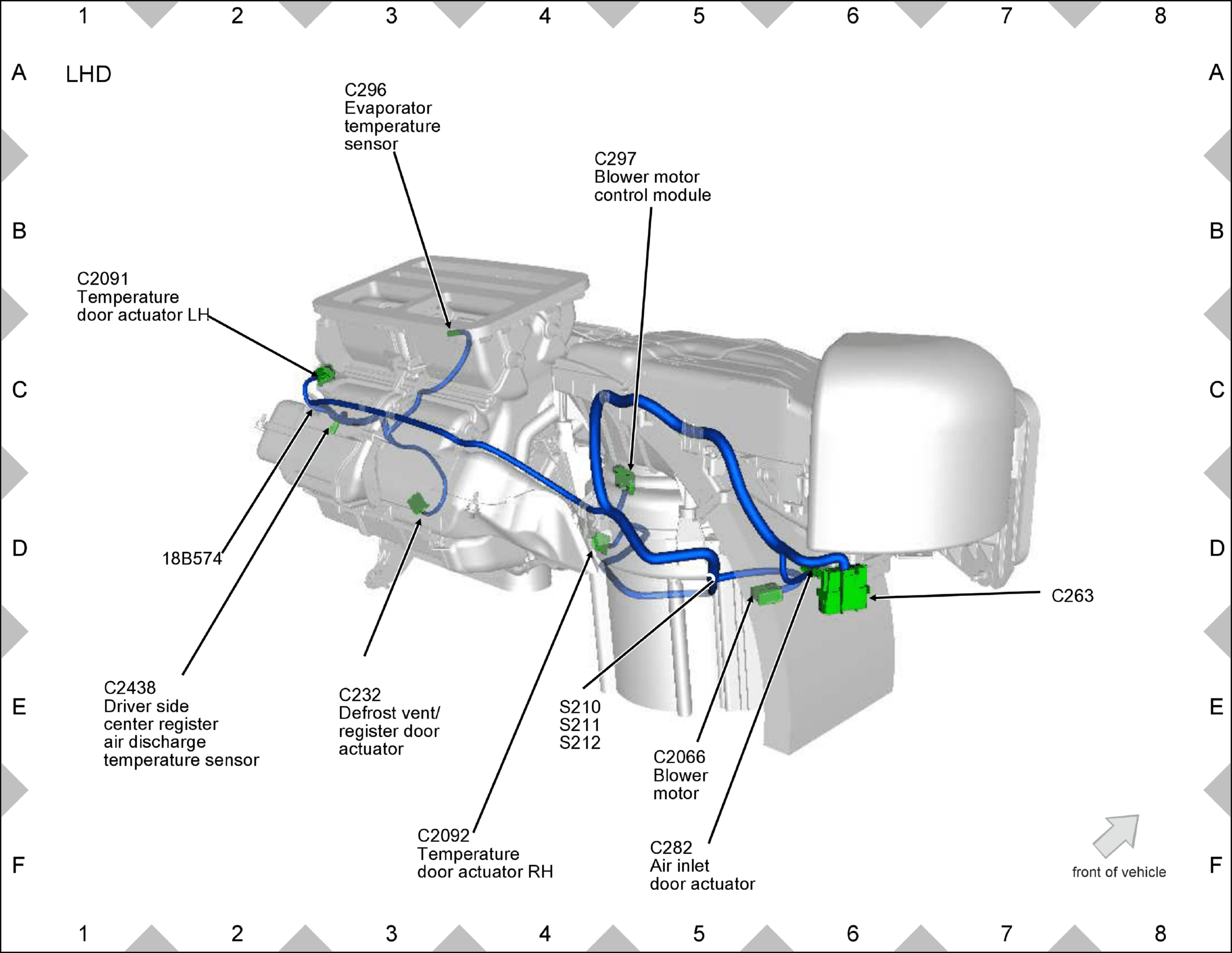

GFDW56774Courtesy of FORD MOTOR COMPANY

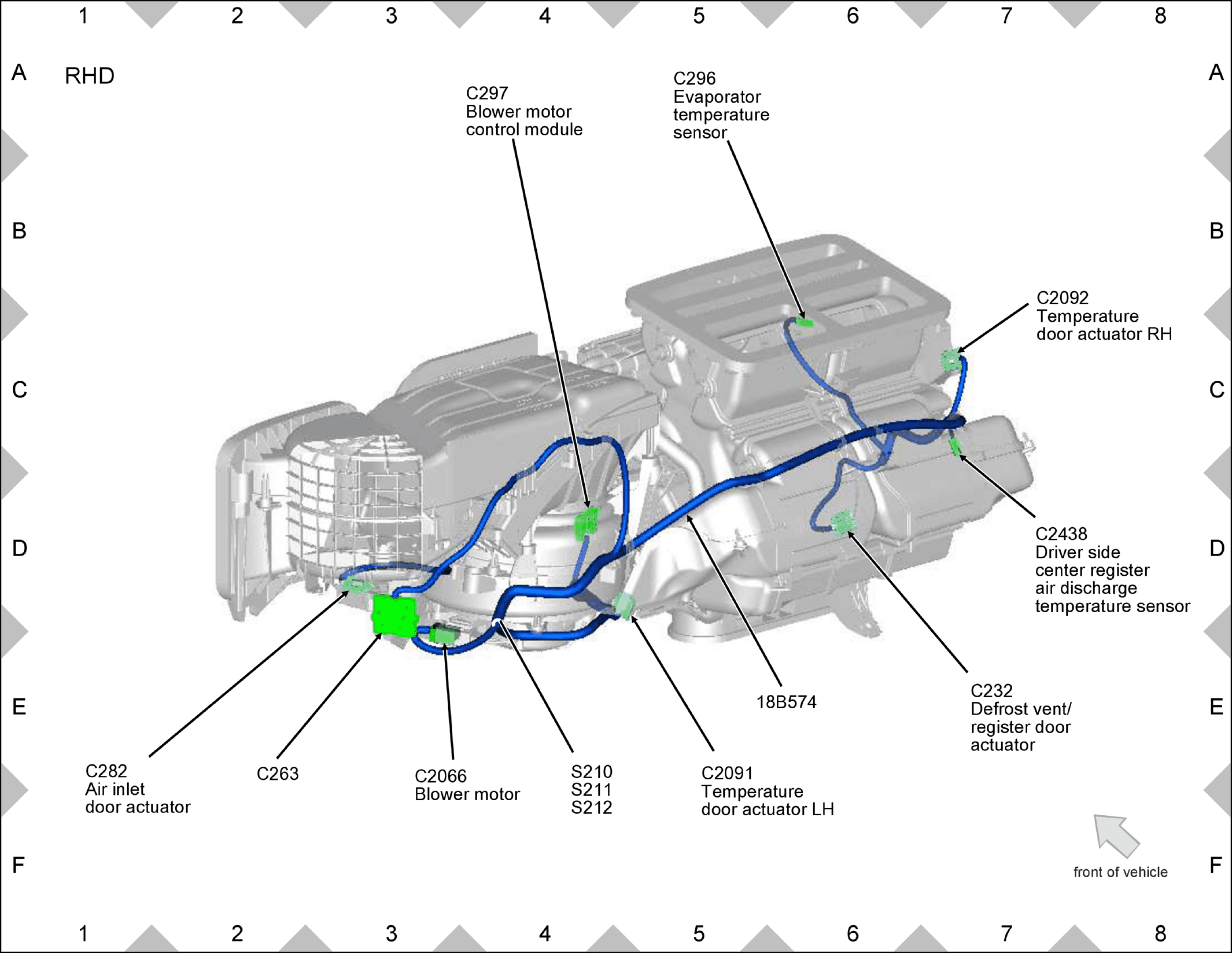

GFDW56775Courtesy of FORD MOTOR COMPANY

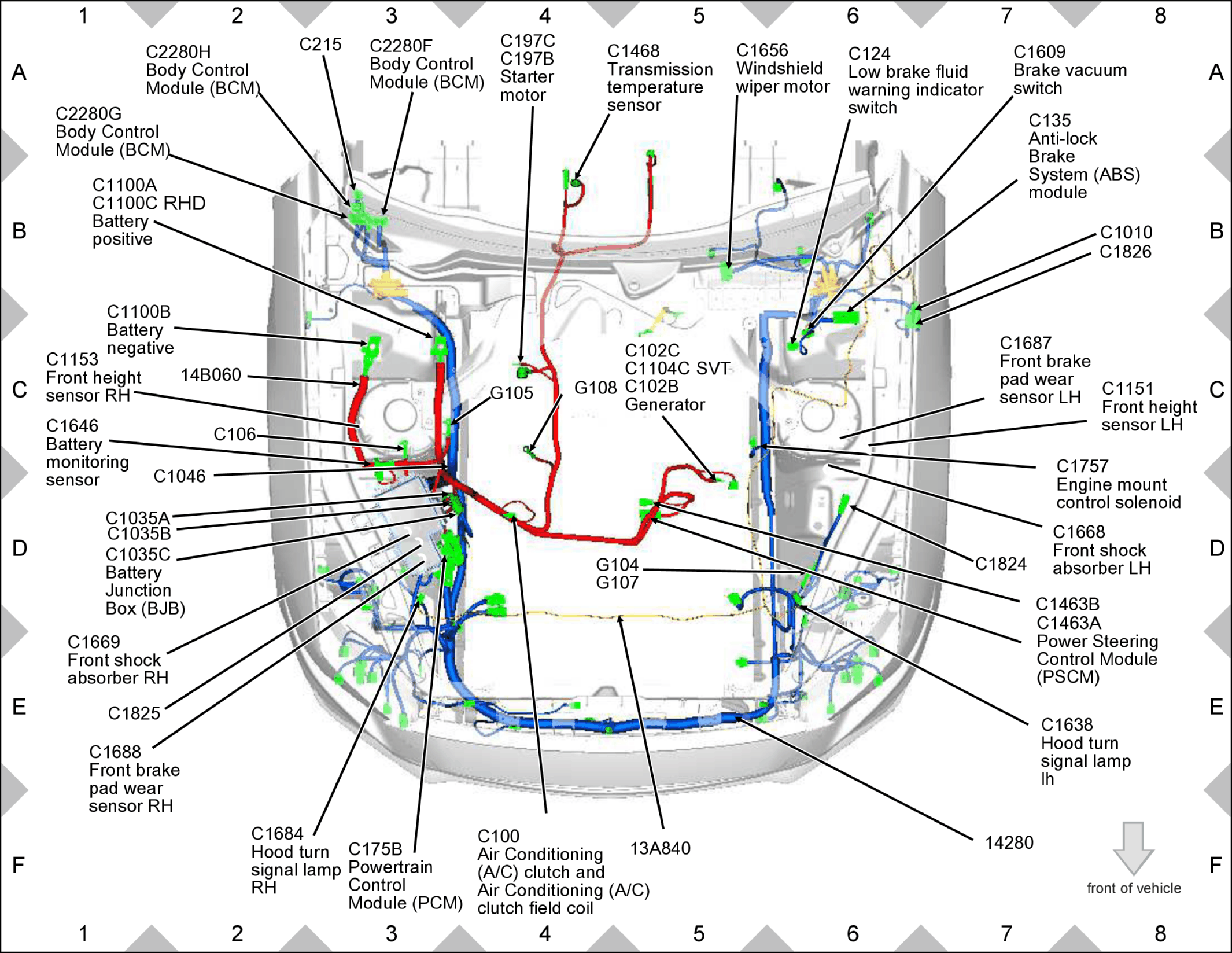

GFDW56776Courtesy of FORD MOTOR COMPANY

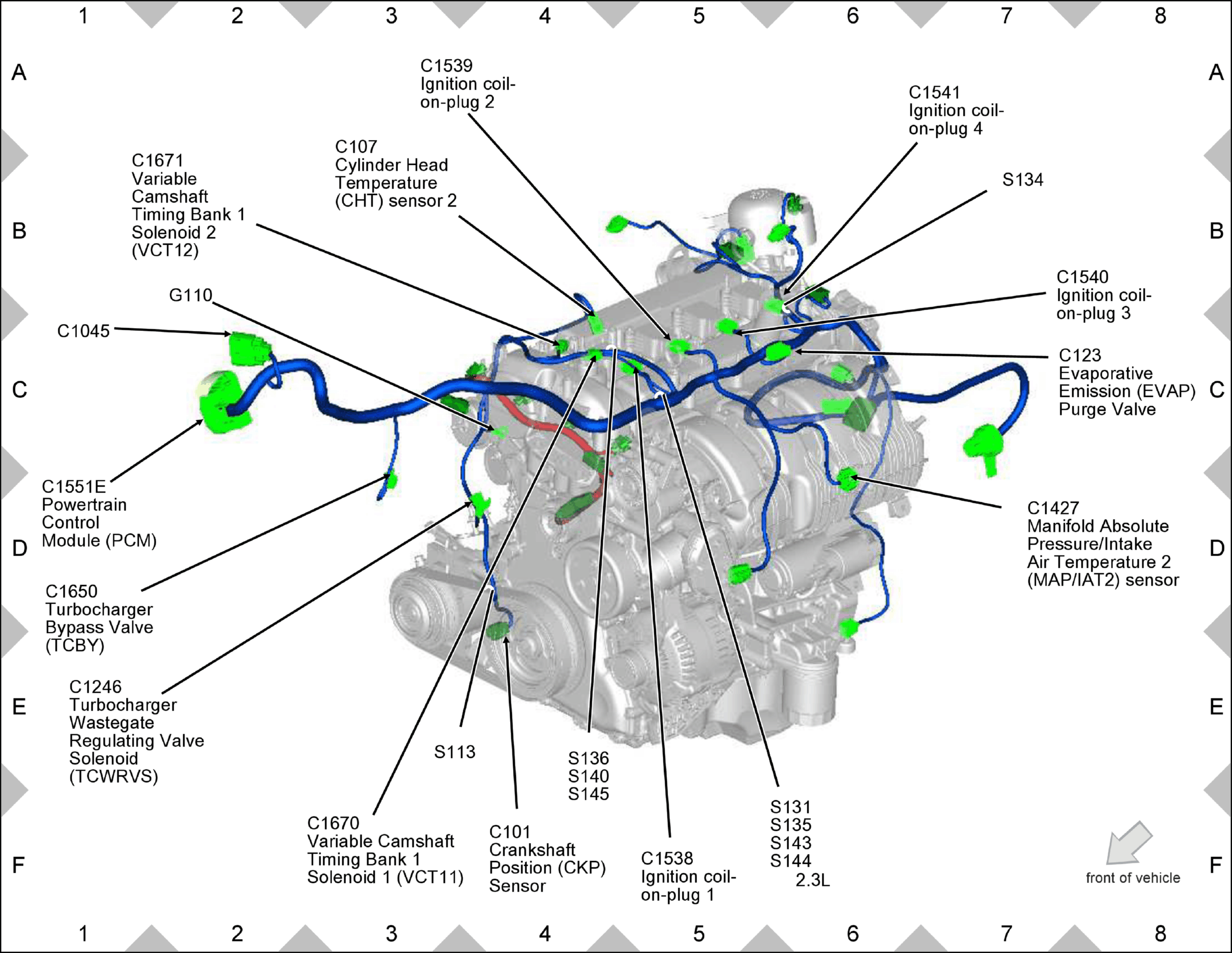

GFDW56777Courtesy of FORD MOTOR COMPANY

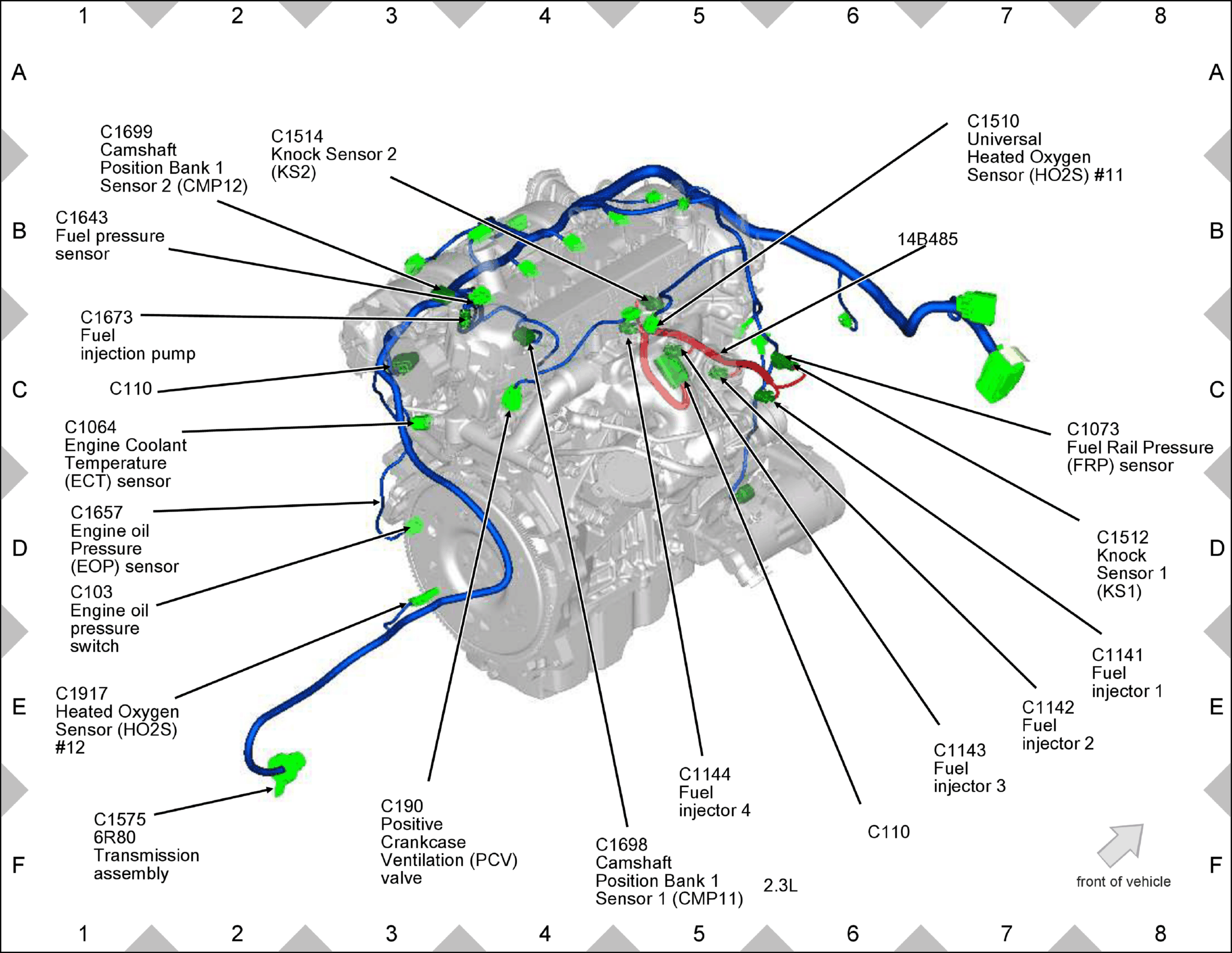

GFDW56778Courtesy of FORD MOTOR COMPANY

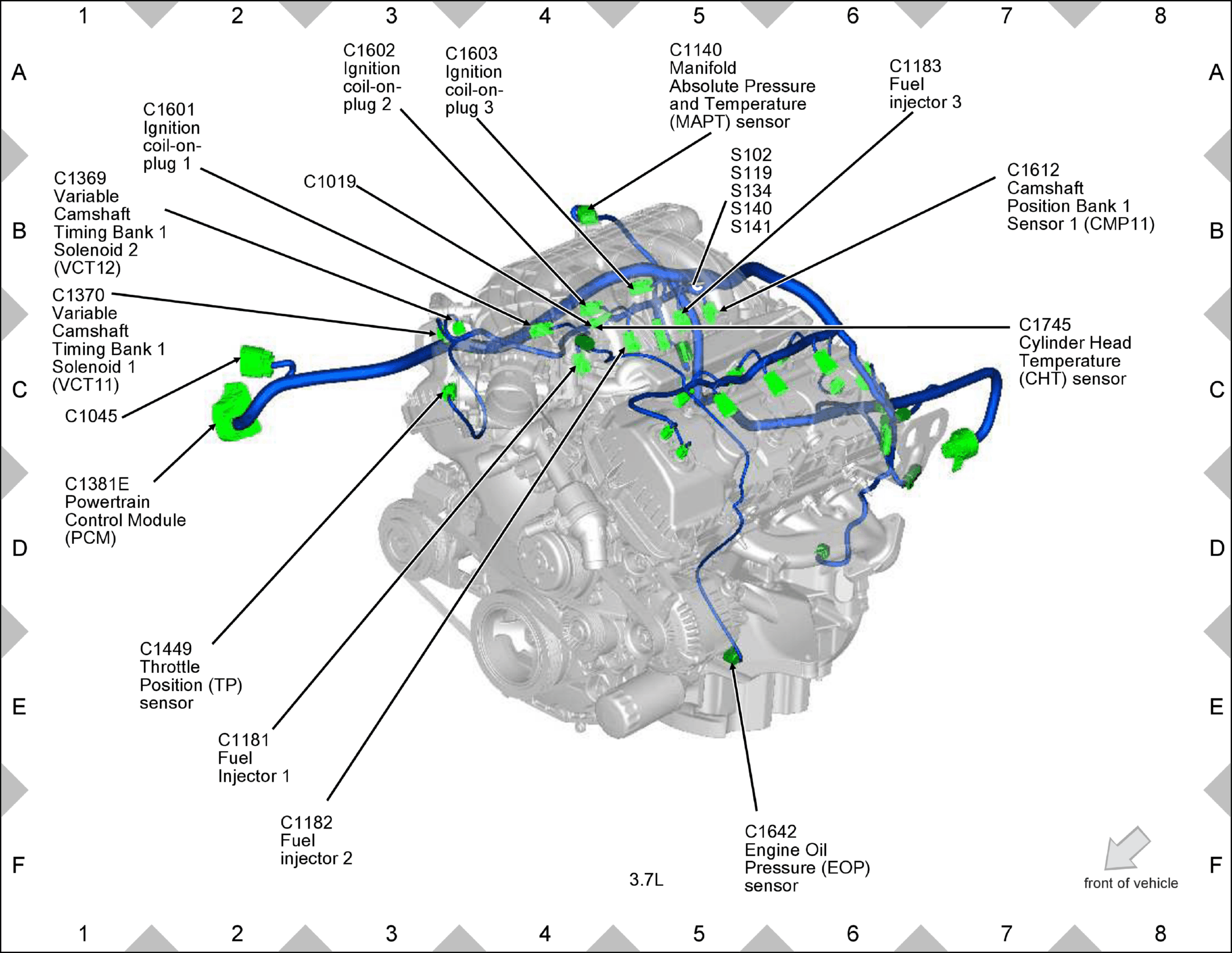

GFDW56779Courtesy of FORD MOTOR COMPANY

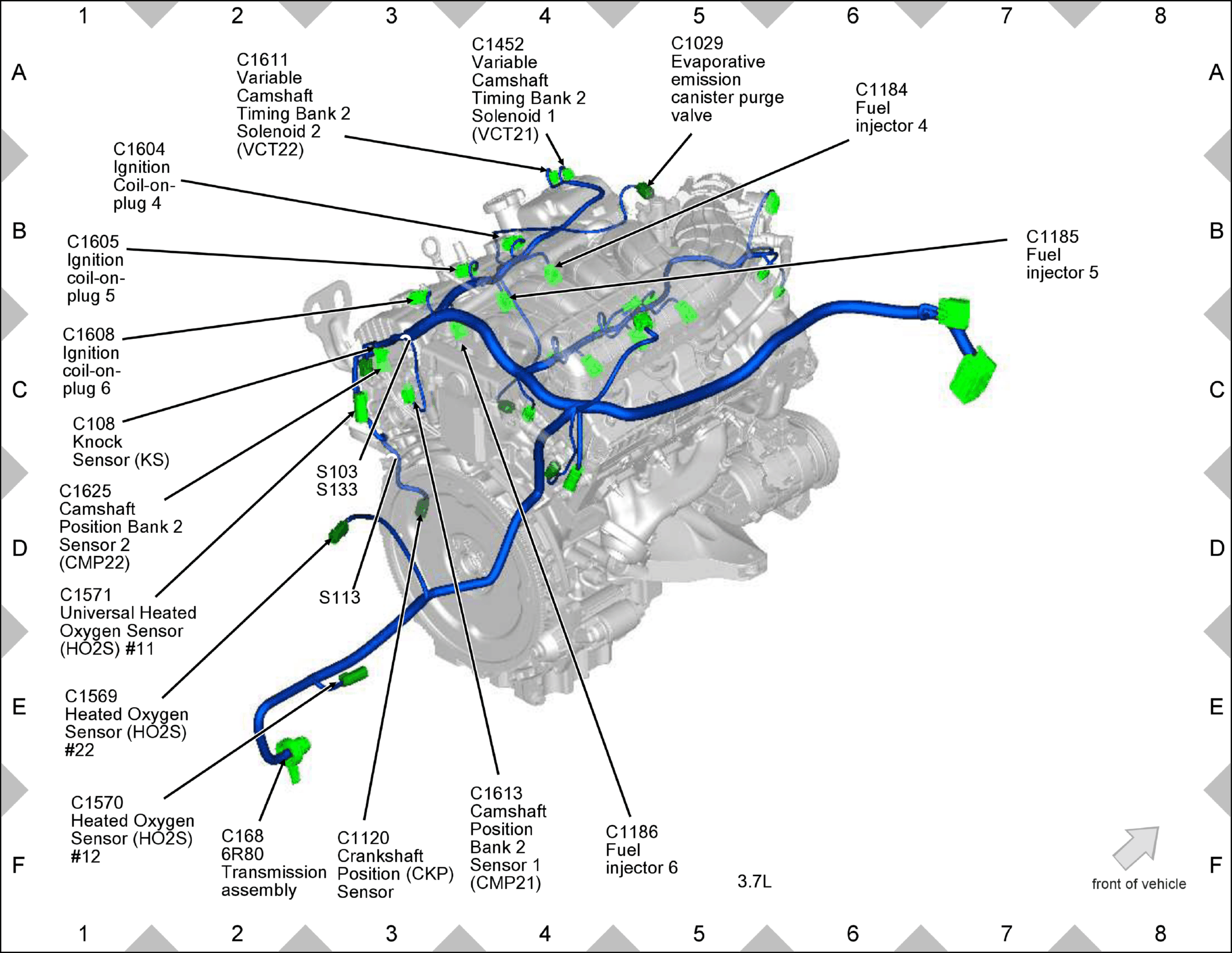

GFDW56780Courtesy of FORD MOTOR COMPANY

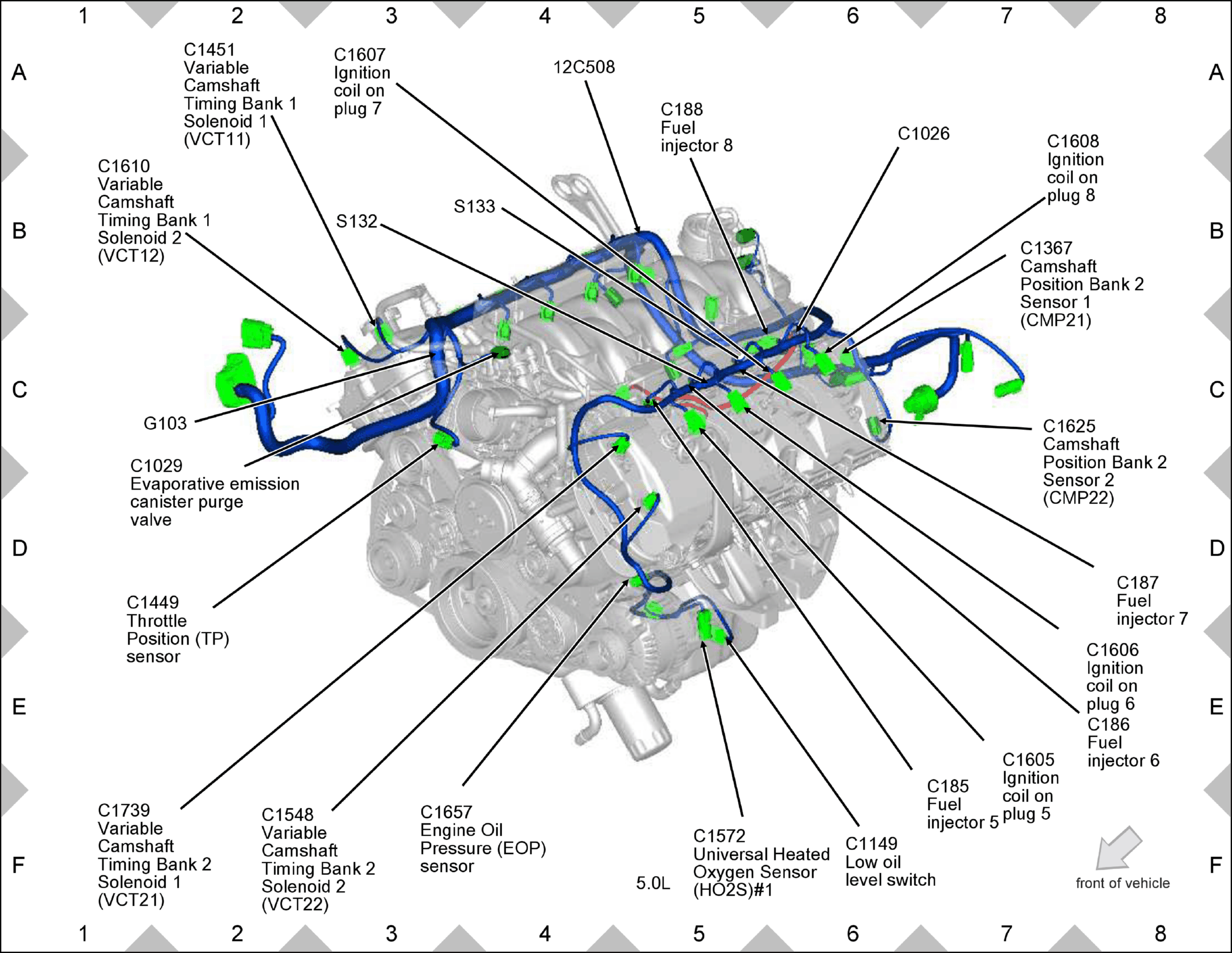

GFDW56781Courtesy of FORD MOTOR COMPANY
