Component Testing

Fig 1: Introduction

GFDW57669

Courtesy of FORD MOTOR COMPANY

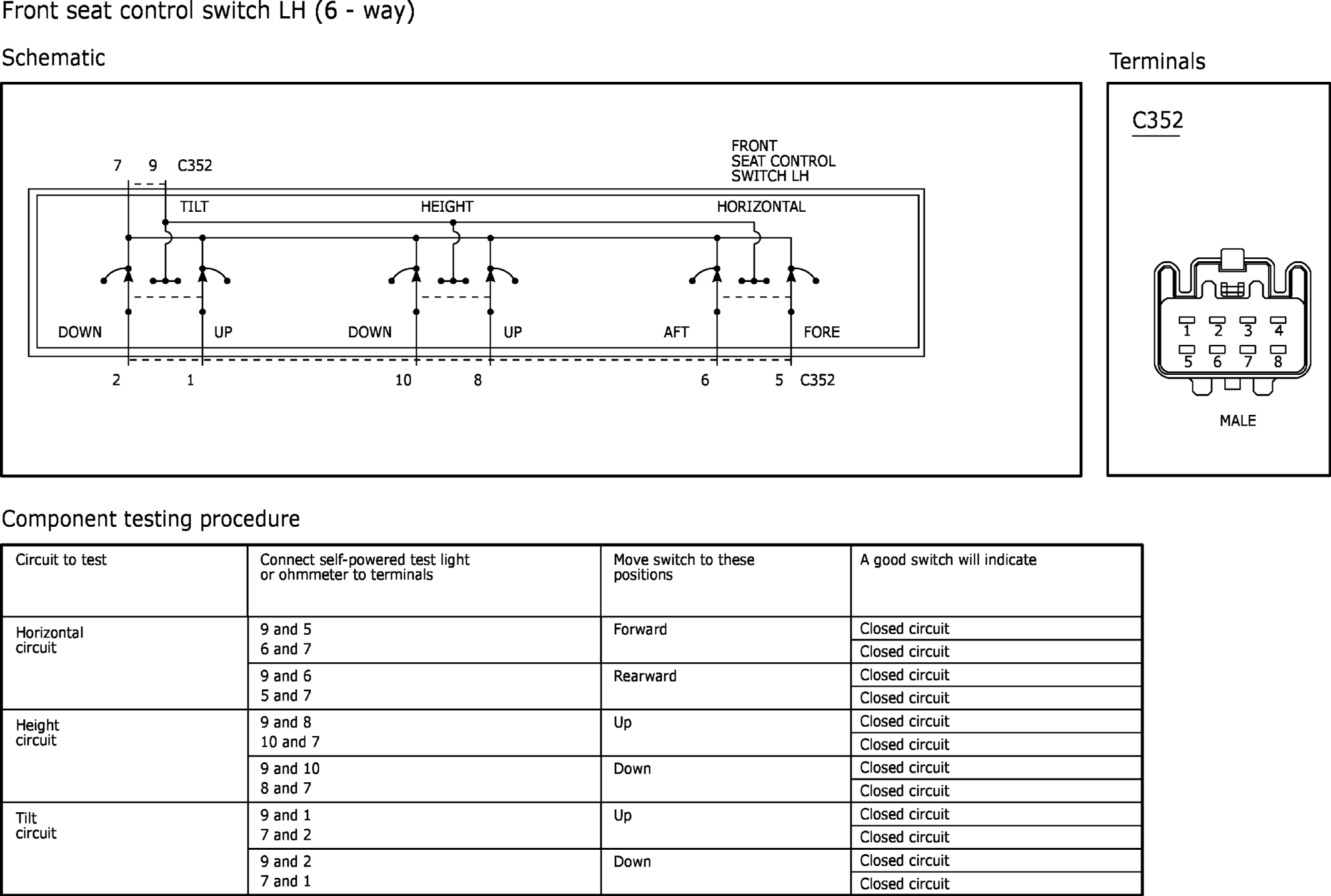

Fig 2: Front Seat Control Switch LH (6-Way)

GFDW57670

Courtesy of FORD MOTOR COMPANY

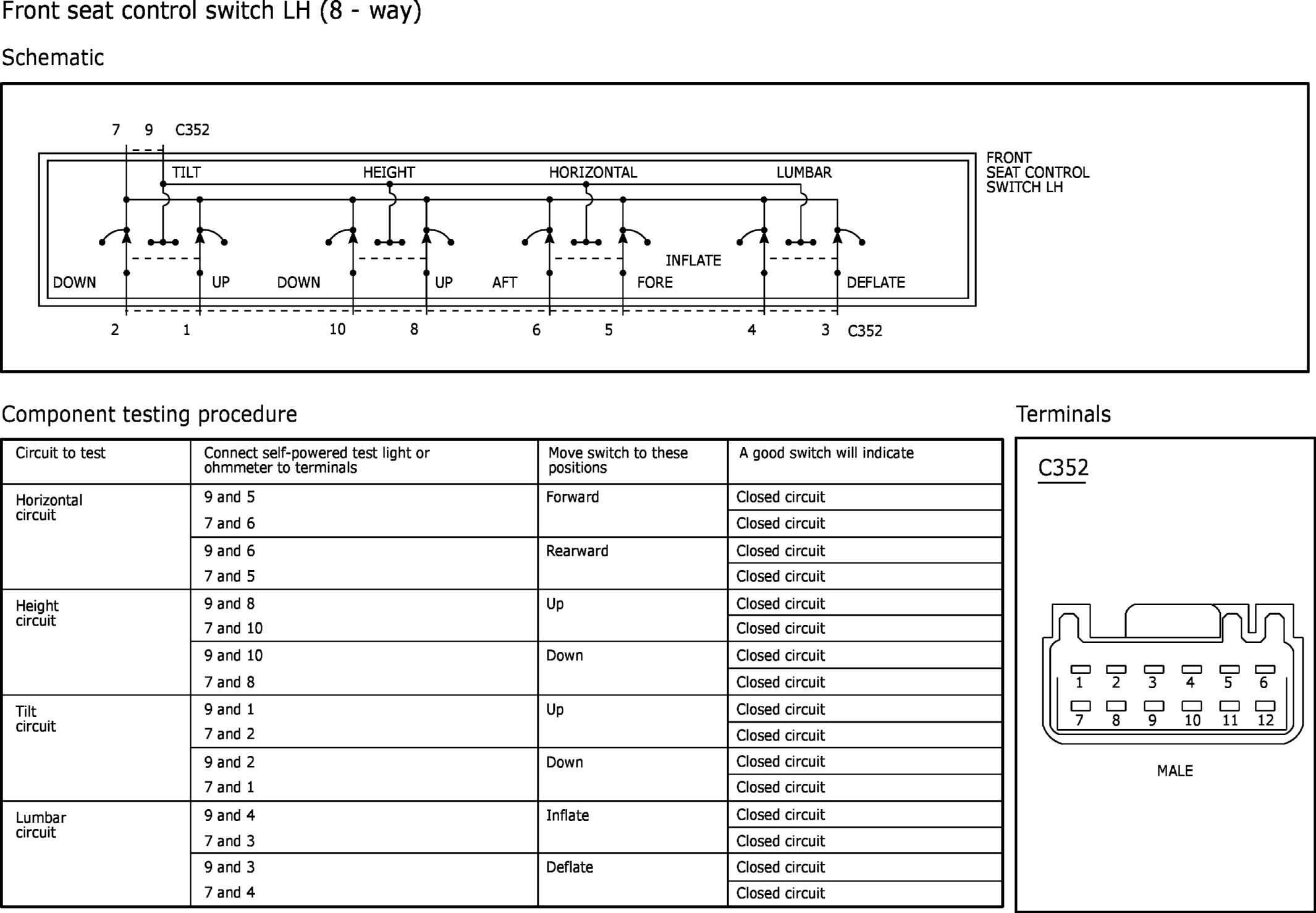

Fig 3: Front Seat Control Switch LH (8-Way)

GFDW57673

Courtesy of FORD MOTOR COMPANY

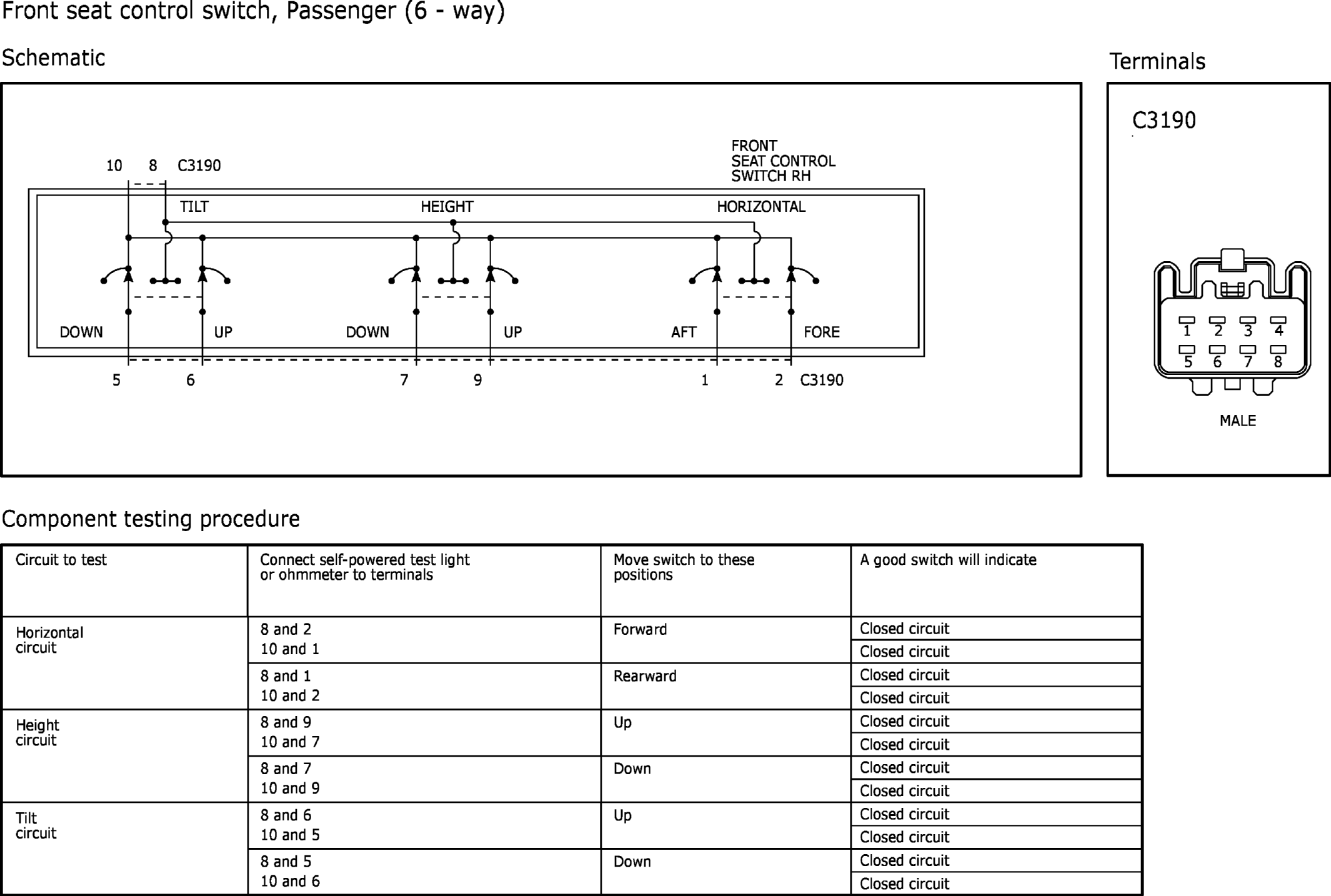

Fig 4: Front Seat Control Switch Passenger (6-Way)

GFDW57674

Courtesy of FORD MOTOR COMPANY

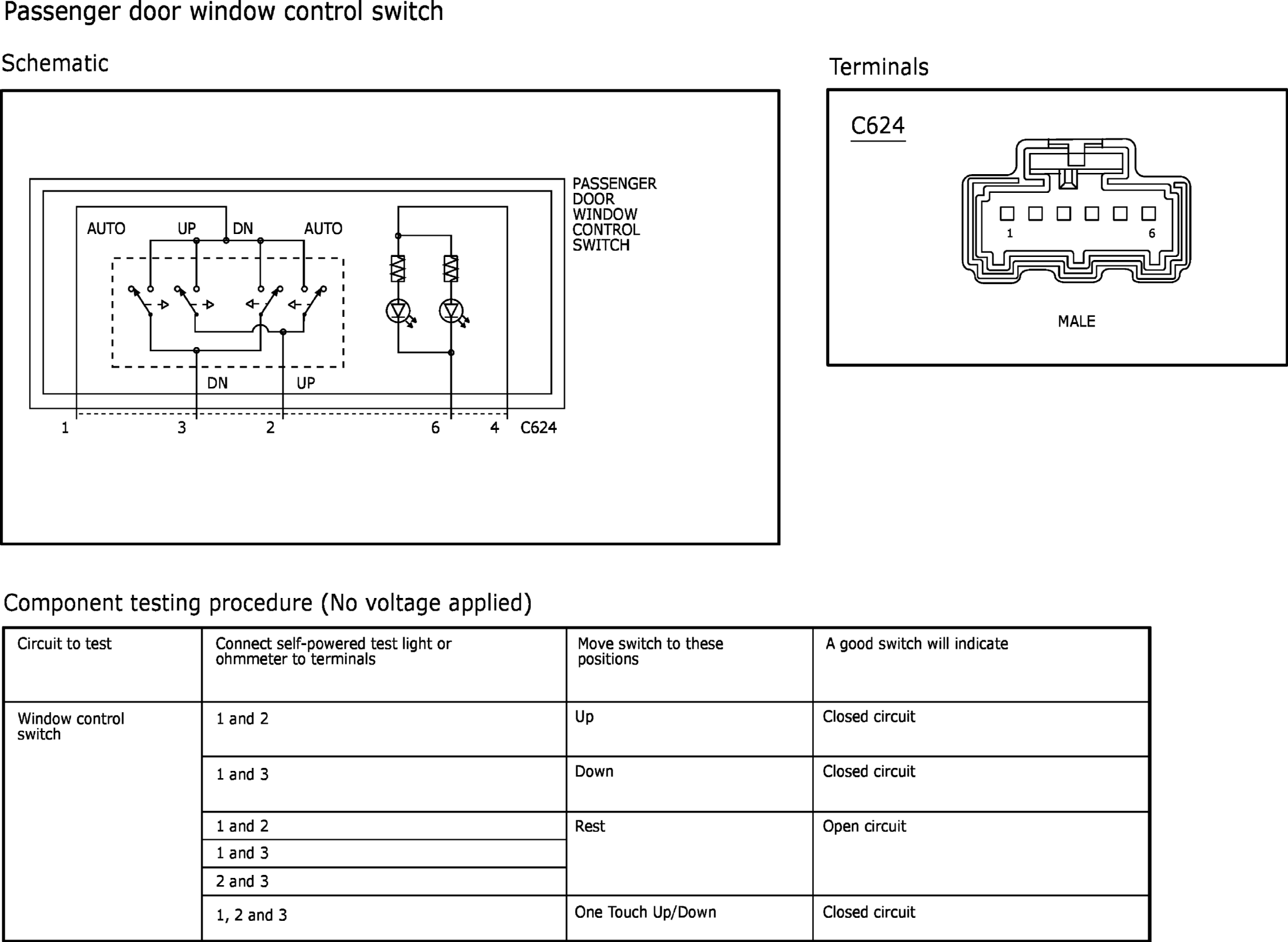

Fig 5: Passenger Door Window Control Switch

GFDW57675

Courtesy of FORD MOTOR COMPANY

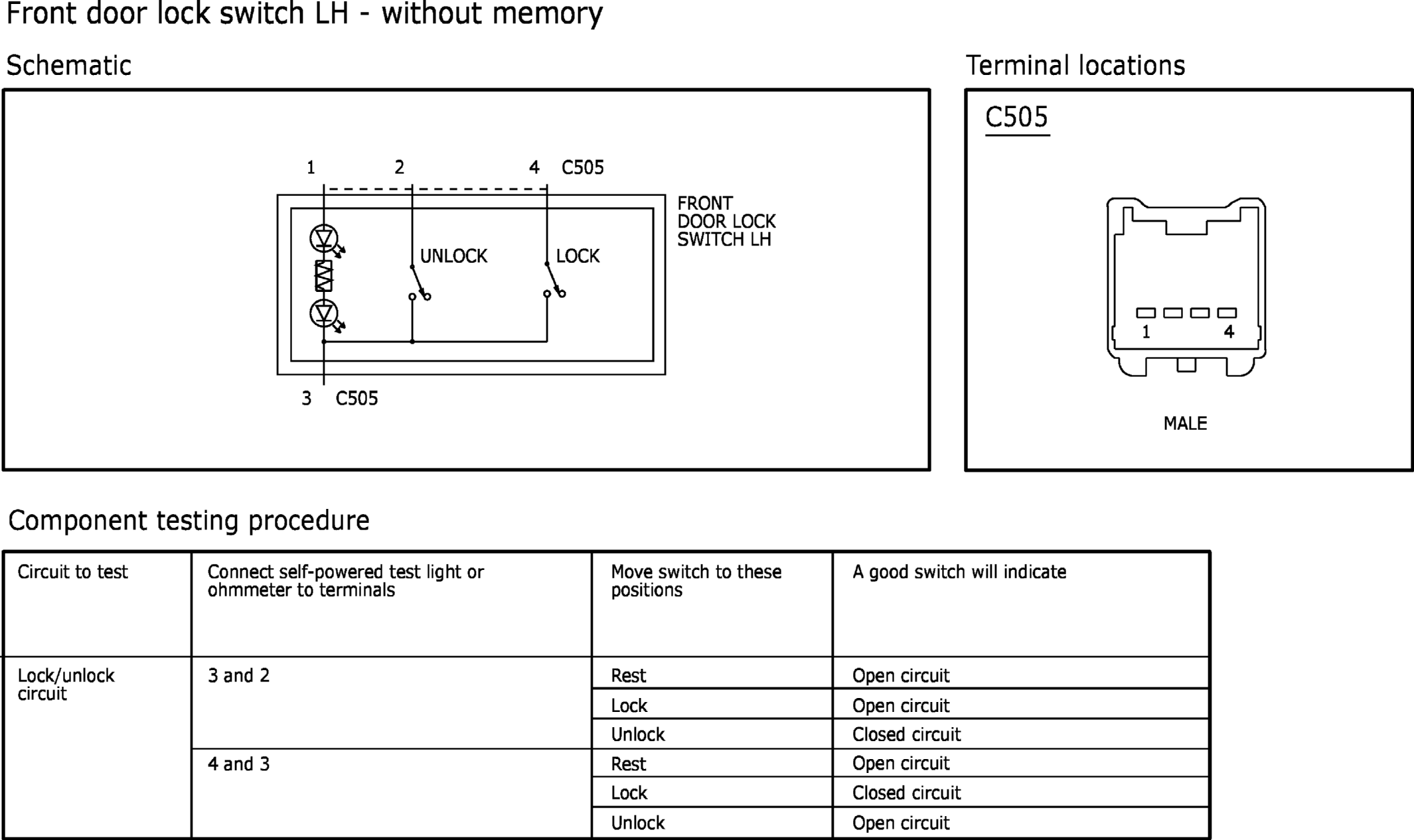

Fig 6: Front Door Lock Switch LH - Without Memory

GFDW57676

Courtesy of FORD MOTOR COMPANY

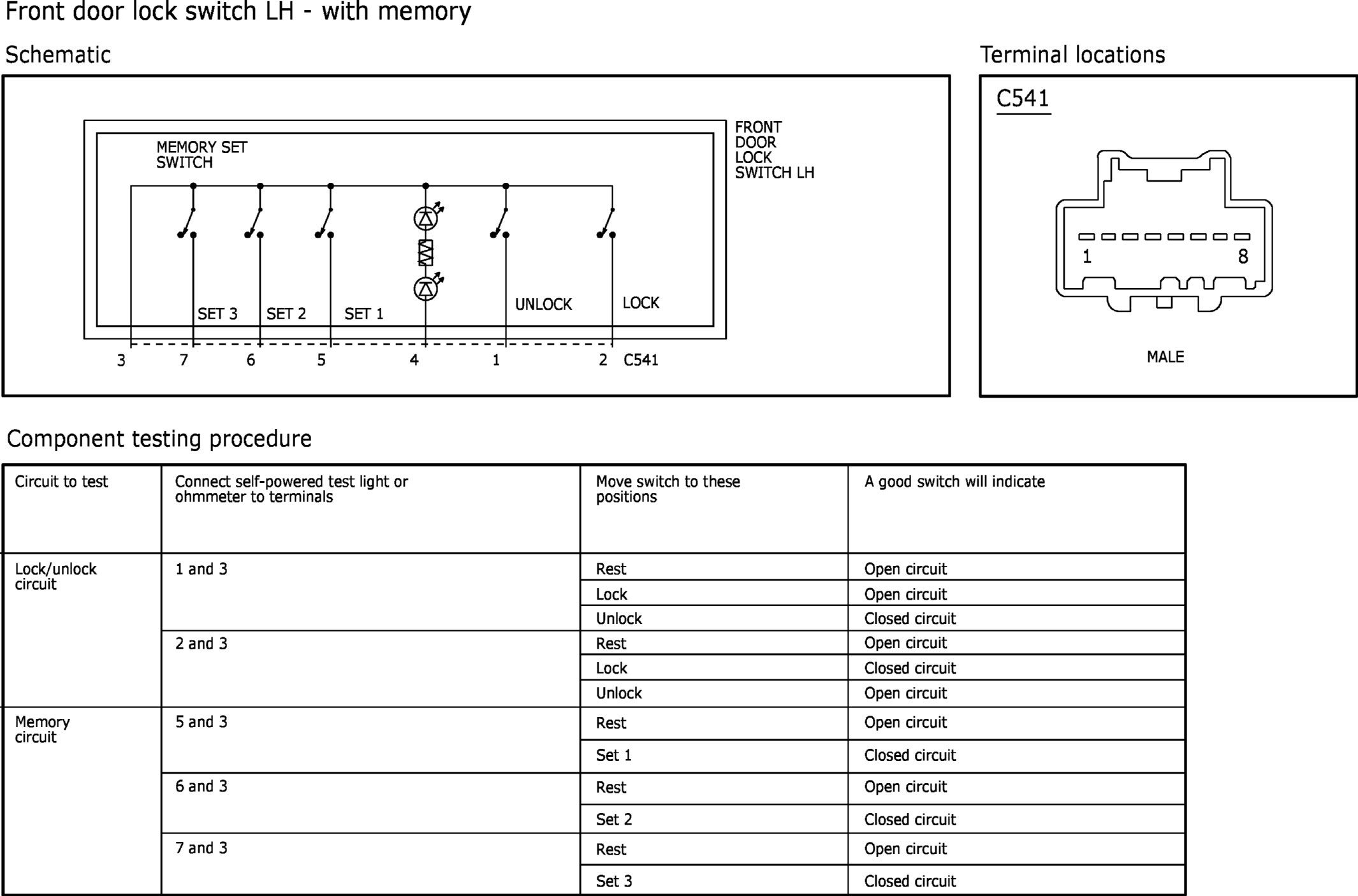

Fig 7: Front Door Lock Switch LH - With Memory

GFDW57677

Courtesy of FORD MOTOR COMPANY

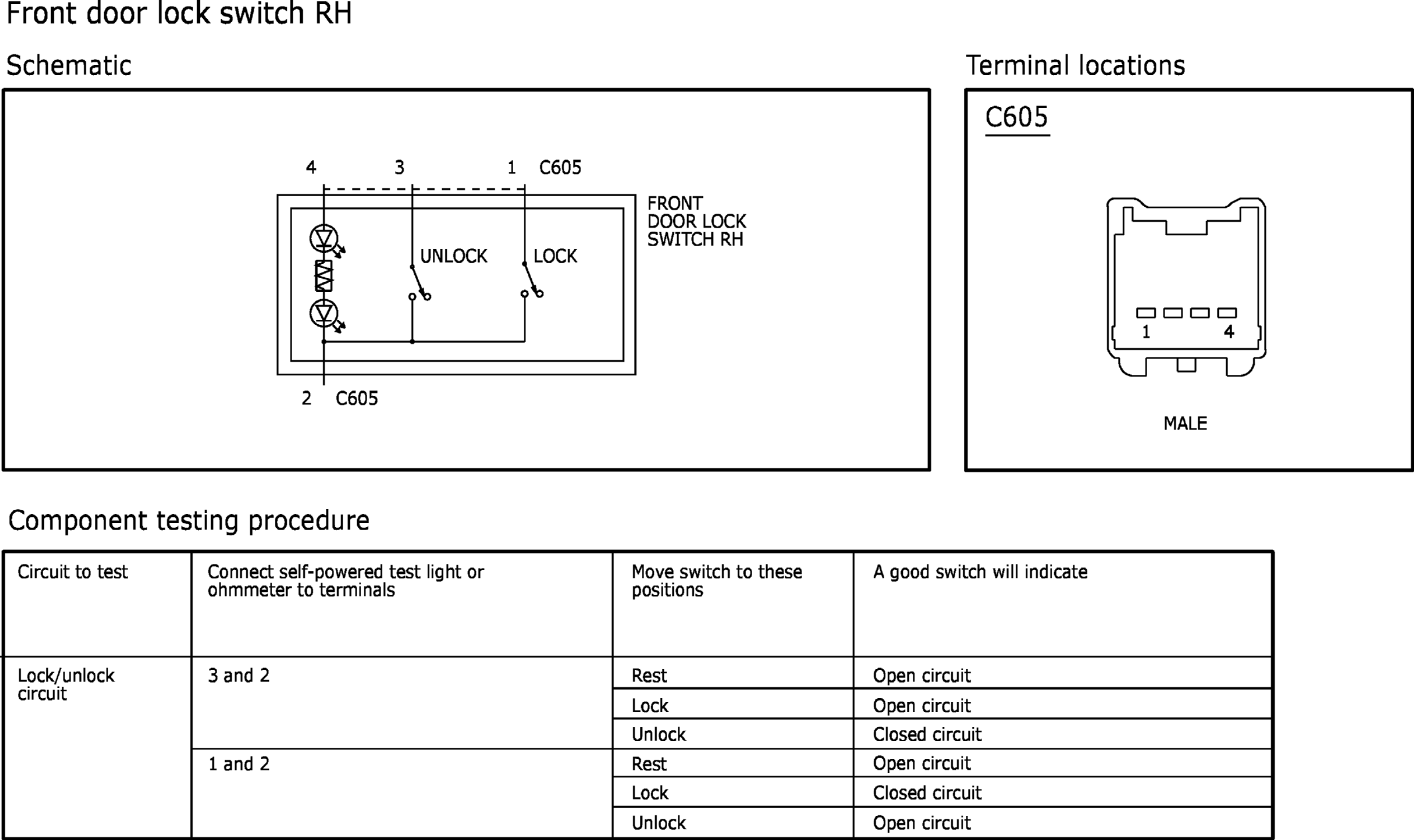

Fig 8: Front Door Lock Switch - RH

GFDW57678

Courtesy of FORD MOTOR COMPANY

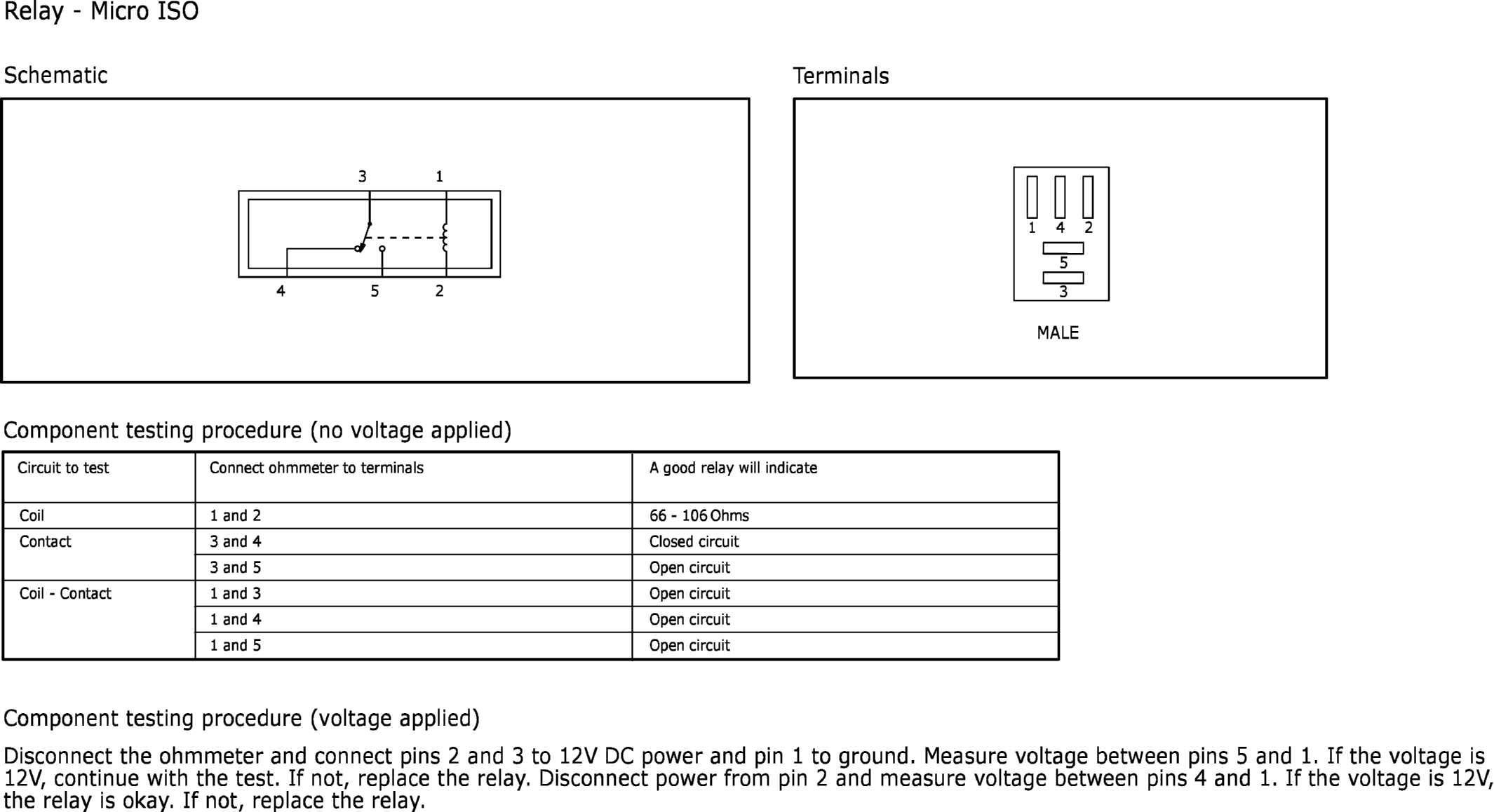

Fig 9: Relay - Micro ISO

GFDW57679

Courtesy of FORD MOTOR COMPANY

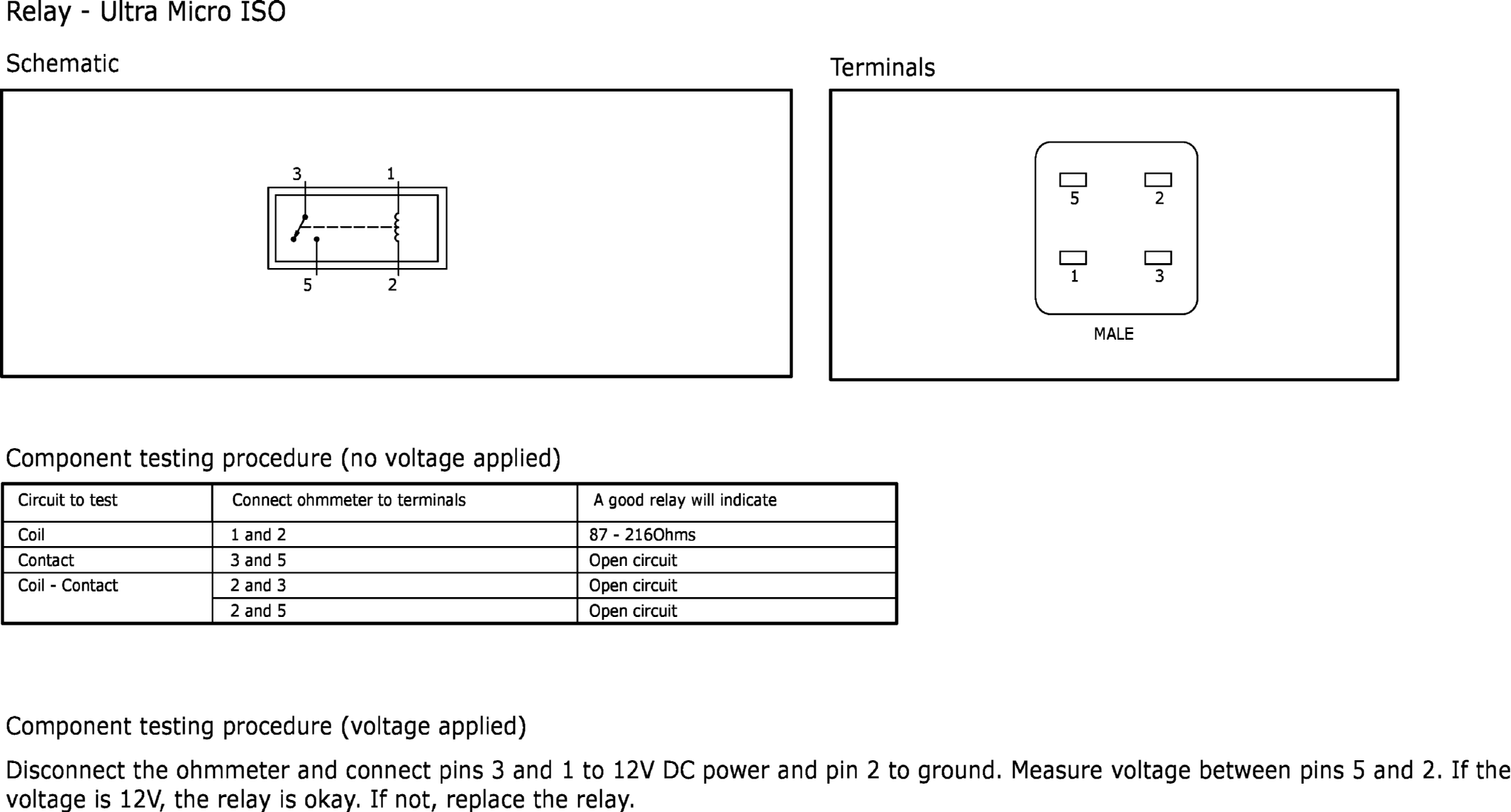

Fig 10: Relay - Ultra Micro ISO

GFDW57680

Courtesy of FORD MOTOR COMPANY

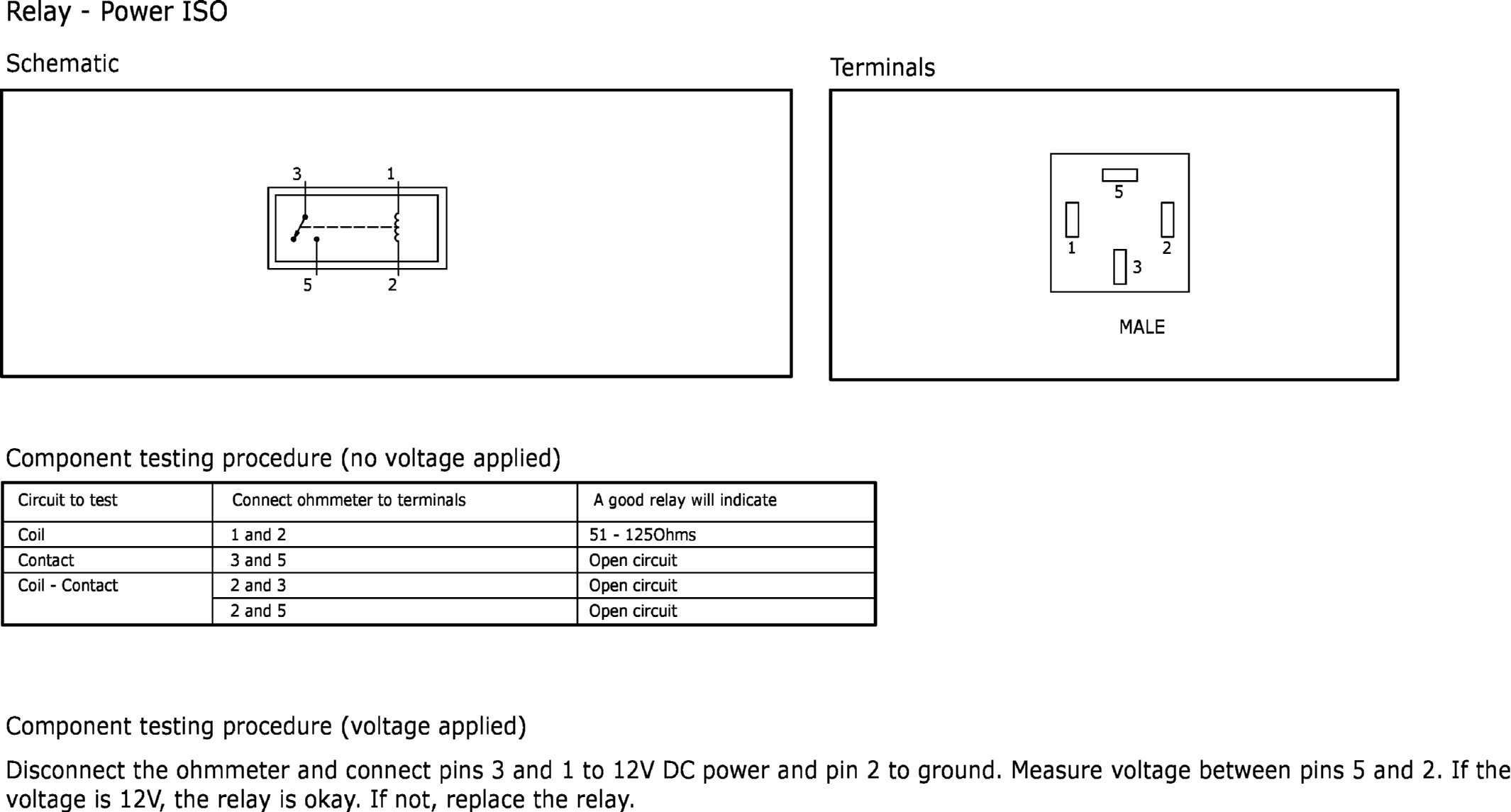

Fig 11: Relay - Power ISO

GFDW57671

Courtesy of FORD MOTOR COMPANY

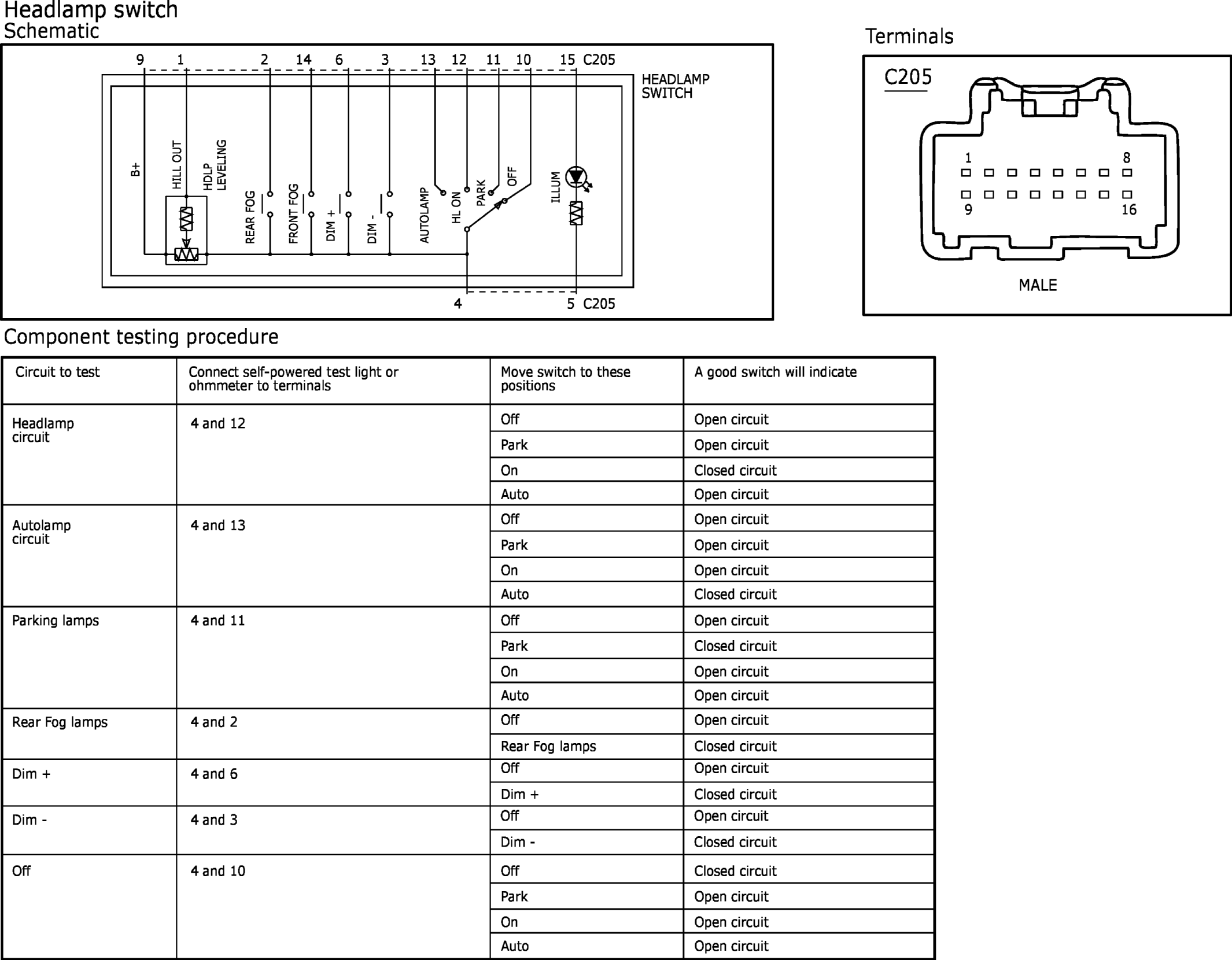

Fig 12: Headlamp Switch

GFDW57672

Courtesy of FORD MOTOR COMPANY
