Front Strut and Spring Assembly: Assembly
- 1.NOTE: Make sure that the components are installed to the position noted before removal.
To assemble, reverse the disassembly procedure.

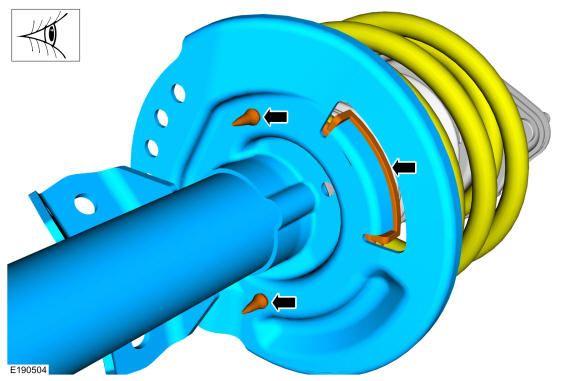

- 2.NOTE: Make sure that the spring is centered in the lower spring seat.
Make sure that the lower spring seat is properly installed.

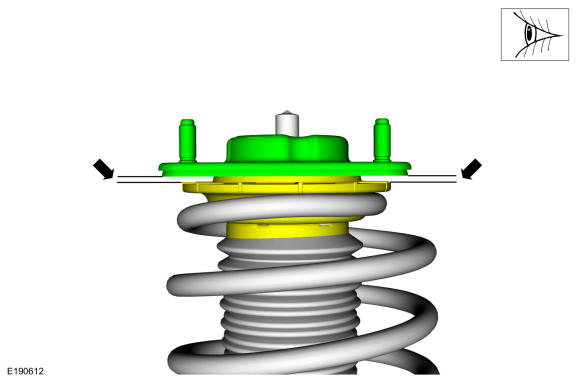

- 3.NOTE: If bearing is properly seated, there should be equal spacing on all sides.
Make sure that the bearing is properly seated in the mount.
- 4.NOTE: Typical strut and spring assembly shown.

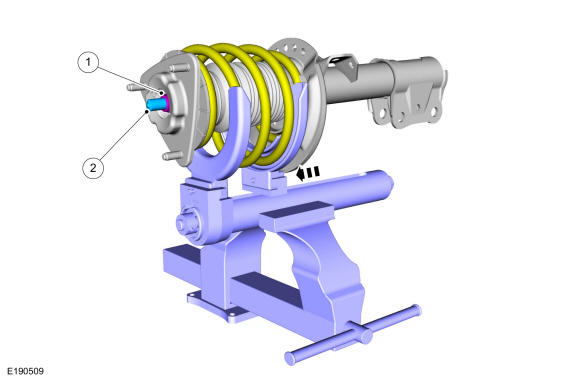

- 1.NOTE: Utilize the hex holding feature to prevent the strut rod from turning while installing the strut rod nut.
Install the new strut rod nut. Use the General Equipment: Spring Compressor Use the General Equipment: Vise
Torque: 76 lb.ft (103 Nm)
- 2.
Install the cap.
- 1.
