Front Strut and Spring Assembly: Installation

• 1.

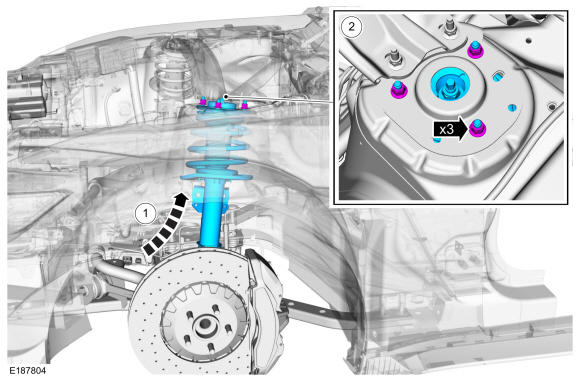

  Install the front strut and spring assembly.

• 2.

  Install the 3 new upper strut mount nuts.

  Torque: 46 lb.ft (63 Nm)

• 1.

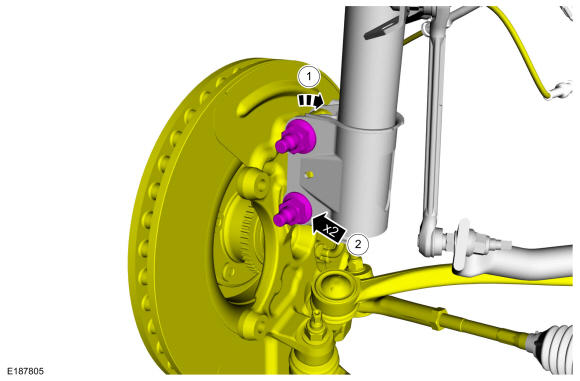

  Attach the wheel spindle to the front strut and spring assembly.

• 2.

  Install the 2 new strut-to-wheel spindle bolts and nuts.

  Torque: 184 lb.ft (250 Nm)

Torque: 85 lb.ft (115 Nm)

• 1.

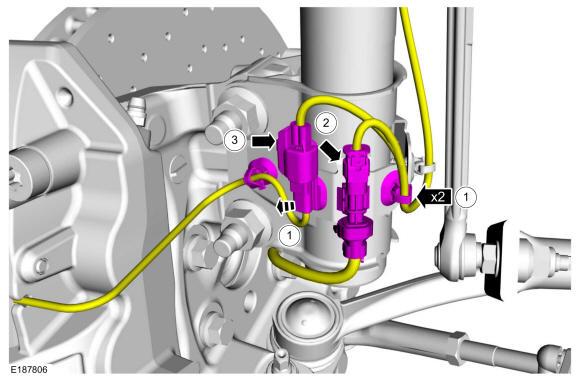

  If equipped. Clip the brake sensor electrical connector and the 2 wire retainers to the strut.

• 2.

  If equipped with dynamic suspension. Connect the dynamic suspension strut wire harness connector.

• 3.

  If equipped. Connect the brake sensor electrical connector.

• 1.

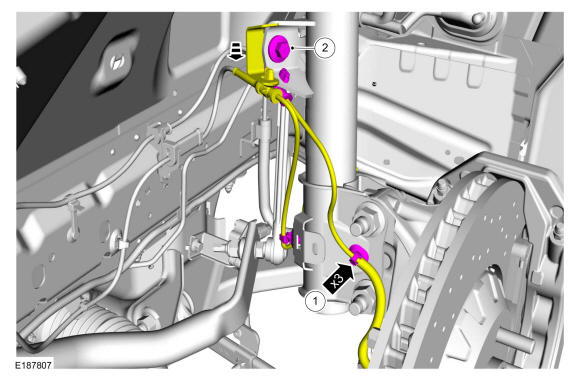

  Connect the 2 wheel speed sensor retainers and the 1 dynamic suspension strut wire harness retainer.

• 2.

  If equipped with dynamic suspension. Position the dynamic suspension strut wire harness bracket install the bolt.

  Torque: 46 lb.ft (63 Nm)

• 1.

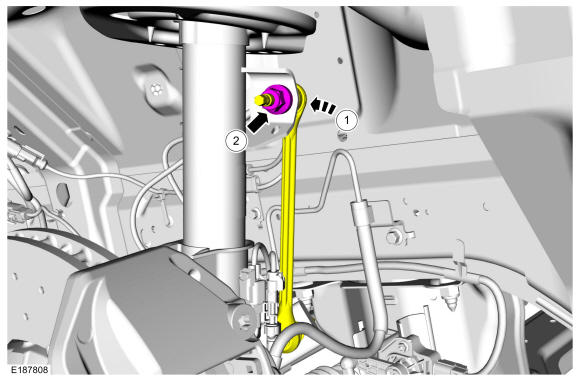

  Position the front stabilizer bar link.

• 2.


  NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.
  NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.

  Install the front stabilizer bar link upper nut.

  Torque: 85 lb.ft (115 Nm)
